Part Number: 125 elbow lock
Picture shows lock in the locked position.(down)Color: White, New Goldtone, Beige, Bronze, Chestnut Bronze, Clay and Coppertone
Associated parts sold separately for Elbow Style Lock
Part Number 172 Elbow Style Lock Keeper Finder
NOTE: 125 Elbow Style Lock is a replacement option for the Straight Arm and Curved Arm Lock (see pictures). If you are using 125 as replacement option you may want to Add a Keeper Finder (P/N 172) to your window lock order. The Keeper Finder will assist you in installing your new locks. QTY One (1) Keeper Finder is all that is needed to install multiple locks.
Known Part Number: HCSE32, 091694, 091695, 016155, 061656, 018911, 018912
Known to use as repalcement lock for: Hurd, Biltbest, Caradco, Oldach, norco and more
Part Number 129 MIRAGE® CONCEALED MULTI-POINT LOCKING SYSTEM
Casement and Awning Amesbury Truth Mirage Lever Lock & Escutcheon Kit
Each Kit Comes With: 1 lever Lock and 1 escutcheon
The true beauty is what you can't see. Mirage's Concealed Locks for wood windows are so thin; they're barely noticeable. All locking points are concealed to create a clean look for your window system. The handle and escutcheon are removable for painting or staining wood trim. The tie bar guides are pre-located for quick and easy installation. Mirage's Multi-Point Locking System has an exceptional .625" pull-in and can withstand 245 lbs. of force per locking point.
In Stock Colors: Champagne, White, New Goldtone, Bronze, Black
All other colors are special order item. No returns or exchanges.
Associated parts Sold Separately:
Bug Guards can also be purchased separately P/N 128 pack of 4
BACKPLATE LINK ASSEMBLY (11645.92)
198 Tie Bar Multi Point Window Locking Mechanism (in jamb version)
Brand: Amesbury Truth Mirage, Energy Saver Vintage Hurd Casement and Awning, Sierra Pacific, H3 and many other window brands, Energy Saver Vintage Hurd Casement and Awning Kit Includes: Lock Handle, Escutcheon and 2 Bug Guards
Known Part Numbers: 45265, 45376, 10-13 Sash Lock (B1), HCSE66, D4-2091, D4-2092, D4-2090
Part Number: 130
Amesbury Truth BACKPLATE LINK ASSEMBLY (11645.92) (part of Mirage Concealed Multi point Locking System)
*Screws not included
number stamped on back of part : 31830
Associated Parts Sold Separately:
129 Mirage Lock and Escutcheon
198 Tie Bar Window Locking Mechanism.
128 Bug Guard Pack (For Lock)
Part Number 143
Amesbury Truth Small Sash Keeper Pack - For Window Lock
Color: Steel Finish or Beige - random selection based off of what we have in stock
Measurements: 1-3/4"W Overall x 11/16"H x 3/8"D - 1-3/8" center to center screw hole
Part Number 144
Amesbury Truth Window Sash Keeper for Window Lock
Color: EGARD
Size: Large
Measurements: 1-3/4"W Overall x 29/32" H
1-3/8" center to center screw hole
May have 30827A stamped on the part.
Part Number 145
Amesbury Truth Window Sash Keeper for Window Lock
Color: Eguard Finish
Measurements: 1 29/64" w x 37/64 Deep
May have 61437 stamped on the part.
Part Number 146
Amesbury Truth Window Sash Keeper for Window Lock
Part Number 146 all colors are Special order item - non stock, no returns. Allow at least 1-3 week lead time depending on factory stock.
Color: E-GARD, Stainless Steel and High Strength
Measurements: 1 21/64" Wide x 37/64 Deep x 57/64" Tall
May have 31344A stamped on it.
Part Number: 179
LOCK ONLY - Casement and Awning Sash Lock - Curved Handle for Casement and Awning Windows
179 Curve Lock is AS IS ITEM - (may have minor scuffs, etc.) - No returns all sales final.
ONCE STOCK IS GONE the 125 Elbow Style it replacement style
Colors in Curved Style: Goldtone
***Please note that the curved handle lock has been discontinued by the manufacturer so we have limited stock. Once our stock is depleted we will ship out the new lock that is the direct replacement. You will need to retro fit the 125 Elbow Handle Lock (shown in picture) to your windows. Add a Keeper Finder (P/N 172) to your window lock order! The Keeper Finder will assist you in installing your new Elbow Style locks. QTY One (1) Keeper Finder is all that is needed to install multiple locks.
Known Part Number: HCSE32
Known to have been used on: Hurd casement and awnings for units manufactured pre 1998. , Biltbest, Caradco, norco and more

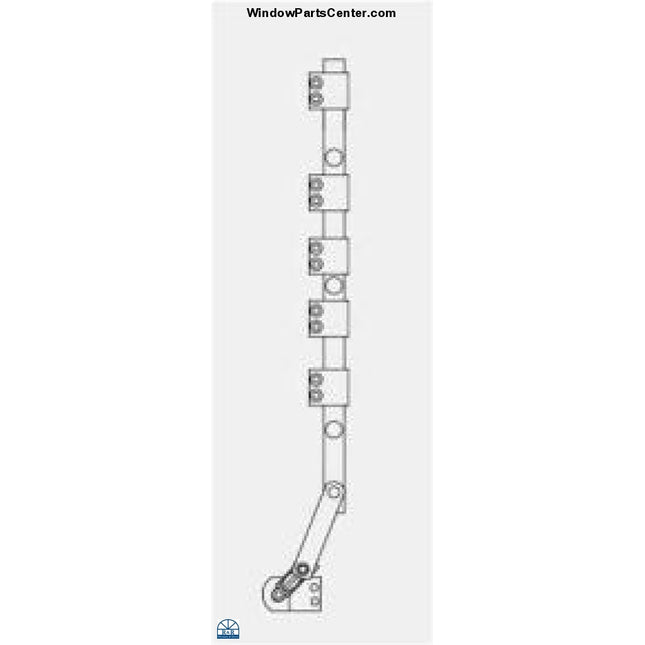

Tie Bar Locking Mechanism For Casement or Awning Windows
MIRAGE® CONCEALEDMULTI-POINT LOCKINGSYSTEM (Tie Bar in Jamb version)
Order by Bar Length: Measure the length of the Tie Bar Bar. Not including the pivot clip on the bottom. See pictureTie Bars are are handed however you can easily change the handing to the one you need by swapping the black tabs to one way or the other.
Tie Bar used on multiple brand windows.
Associated parts Sold Separately:
129 Amesbury Truth Mirage Lever Lock & Escutcheon Kit
715 - H3 Lock Tie Bar Assemblies For Awnings and Casements
Replacement H3 Lock Tie Bar Assemblies Awning and Casement WindowsTie Bar Lock Actuator Linkage Sold Separately see Part # 717.Finish: E-Gard Beige. Stainless Steel available for Special Order Please E-mail R&R for Pricing.These tie bars work on Hurd and Sierra Pacific Hurd Brand Awning and Casement Windows as well as other window brands.
Associated parts Sold Separately:
129 Amesbury Truth Mirage Lever Lock & Escutcheon Kit
Part Number 717 Tie Bar lock Actuator Linkage
Part Number: 716 - Tie Bar Lock Actuator Linkage For Awning and Casement
H3 Tie Bar Lock Actuator Linkage for Awning and Casement WindowsThis lock linkage goes with part # 715 Tie Bar Assemblies Awning and Casement WindowsFinish: E-Gard Beige. Stainless Steel available for Special Order Please Call or E-mail R&R for Pricing.This tie bar lock actuator linkage work on Hurd and Sierra Pacific Hurd Brand Awning and Casement Windows as well as other window brands.
Known Part Number Stamped On Back Of Black Part: 40960 CAV
Associated parts Sold Separately:
129 Amesbury Truth Mirage Lever Lock & Escutcheon Kit
Part Number 715 Tie Bar
Part Number 984
Amesbury Truth Window Lock Back Support Plate
Color: E-gard Beige
Comes in Packs of 1 or 5
Associated Parts Sold Separately:
989 Vinyl Window Sash Lock - Casement and Awning Windows
Used On: Amsbury Truth, Hurd Monument Vinyl, Cascade Vinyl, SuperSeal and many other vinyl window brands
