Part Number: 836

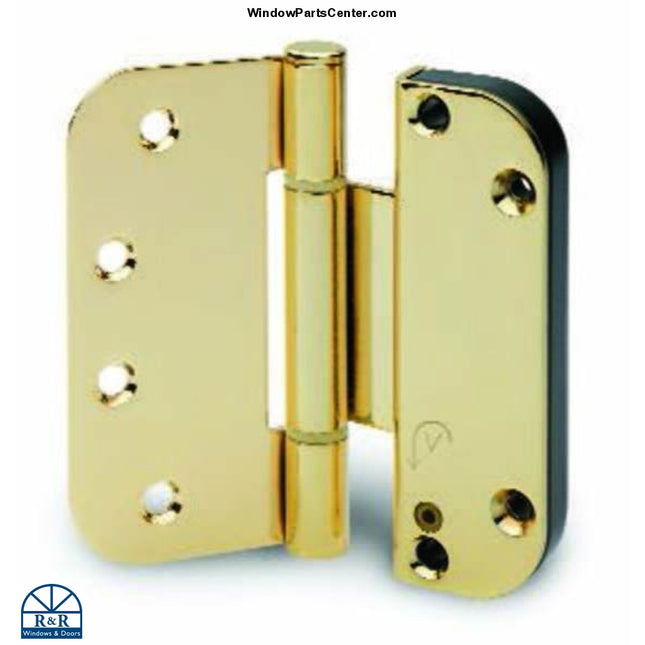

4" x 4" Ashland Vertical Set Hinge Adjusting Swinging Patio Door Hinge
PIVOT TRUE V400 4" VERTICAL ADJUSTABLE DOOR HINGES
For Mate Horizontal Hinge See Part Number 835
Low Stocked Item - May have a 2-3 week lead time
Handing: Non Handed - see video below. Remove pin and flip to reverse handing
KEY FEATURES
Seamlessly retrofits a 4" X 4" one-step pocket route with 5/8" corner radius
Hex head adjustment screws, not Phillips or Slotted, to provide secure tool engagement and prevent stripping during adjustment
Screw hole locations optimized away from panel edge to prevent accidental wood splitting
Panel leaf incorporates a unique shield to keep out debris and provide a premium appearance in the closed position
Incorporates Teflon filled bushings for increased wear resistance
Non-removable pin (NRP) option available for secure out-swing applications
PERFORMANCE AND OPERATION
Adjusts 1/4" vertically and 3/16" horizontally
Easily reversible for either left or right-hand hinge applications
Innovative, patent-pending adjustment mechanism achieves extremely low adjustment torque with a standard 3/32" hex wrench
Exceeds BHMA - grade 3 standards for wood, vinyl, aluminum and steel doors.
Known Brands: Ashland, Hurd Energy Saver Patio Door, Sierra Pacific WI Patio Door
Screw Pack: Screws are sold separately and not all colors are available. To order Screws with your hinges see 835/836Screw Pack (1 screw pack will do 1 hinge).
Or you can buy at your local hardware store the following:
QTY 4 - #9 x ¾” or 1” (size change depends on what finish the screw is available in)
QTY 4 - #9 x 1-1/2”
QTY 1 - #9 x 2 ½” or 3” (size change depends on what finish the screw is available in
Associated Product Sold Separately:
Part Number 835 Guide Hinge
Part Number 835/836 Screw Pack
IF THIS HINGE DOES NOT LOOK EXACTLY LIKE YOUR ADJUSTABLE HINGE. CLICK HERE TO SEE ALL THE ADJUSTABLE HINGES WE HAVE ON OUR WEBSITE TO ORDER. IF YOU ARE NOT FINDING YOUR HINGE PLEASE EMAIL OR TEXT OUR RESEARCH DEPARTMENT AND WE WOULD BE HAPPY TO ASSIST YOU.
How To Remove Pin
Part Number 837

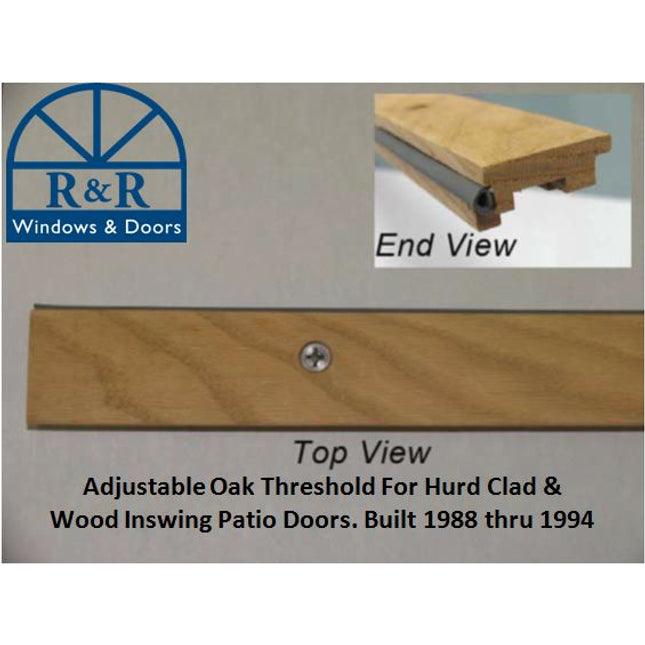

Adjustable Oak Threshold For Hurd Clad & Wood In swing Patio Doors. Built 1988 thru 1994Thresholds will not fit tight end to end as there needs to be a small gap on both sides for water weep purposes. - Old weep system threshold.Size:2-6 Size = Threshold is 27 7/8 Inch Long2-8 Size = Threshold is 29 7/8 Inch Long3-0 Size = Threshold is 33 7/8 Inch Long
INSTRUCTIONS FOR P#837
To remove old threshold:
Use a #3 Philips bit on your drill - to unscrew the screws on the top of the old oak threshold all the way. Once screws are completely removed the old threshold will pull up.
There are T nuts in a T track underneath the threshold that the screws screw into.
You can reuse the old T nuts or replace the T nuts in the T track with the new T nuts provided with the new threshold
To replace the T nuts – you will remove the old T nuts by sliding them out of the track – there should be a space at one of the ends of the track for you to do this.
Take new T nuts and slide them into the track through the same space at one of the ends of the T track.
Replace with new threshold by aligning the T nuts to the screws in the threshold.
Screw in all screws into the T nuts below – be careful not to over tighten – and the screws are used to adjust the threshold as well.
Adjusting the Threshold:
Once the threshold is installed and all screws are screwed into the T nuts - the threshold can be adjusted by tightening or loosening the screws.
Tightening screws to lower the threshold or loosening the screws to it rise up.
Known Part Number: 203516, 203515, 203514, HHPD43
Part Number 838

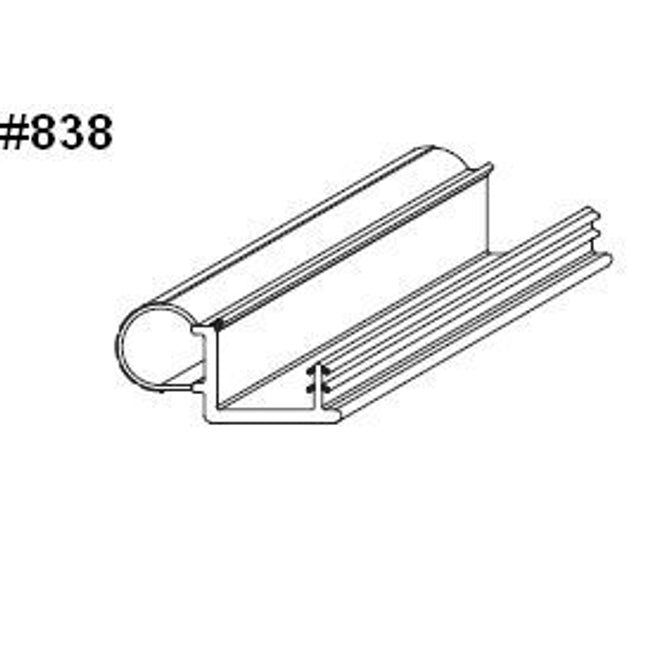

Weatherstrip used on Hurd Classic In swing patio Door with Fiberglass Sill built Prior to 2010Length: 6 foot
Sample: If you order a Sample it will be approximately 2 inches long. If you selected sample you will receive a small cut pieces for color/fit reference only. No returns on samples
Color Bronze
Limited quantities available as this product is no longer manufactured
Part Number: 840 Current Style Active
Amesbury Truth Sentry® .63 and Sentry® .03
Used For GU Multi Point Hardware ACTIVE HANDLE SET* (Hurd and Sierra pacific)
Active handle sets come keyed with thumb turn and are for single door or the primary active door panel on a French door.
10 Inch Escutcheon
NOTE TO CUSTOMER: As of March 20 2017 the OLD STYLE 8.9375 long Escutcheon was discontinued by the manufacture (mounting screw hole where 7 5/8" center to center. The new style has 10" long Escutcheon (Mounting screw holes are 8.5" center to center). Note this height change does alter the placement of our mounting holes. Bottom mounting screw hole will be reused, but the customer will have to drill one new top mounting screw hole. The old mounting screw hole will be covered by the escutcheon.
All handle sets will be shipped with the new 10 inch taller escutcheon plates. Please note a new mounting hole will be necessary. Field instructions (see pictures for drawings with dimensions).
Special Order Item. No returns exchanges or order cancellations once order has been placed. Please allow 2-3 week lead time.
Finish Options for Different Styles:
(All styles are not available in every finish color)

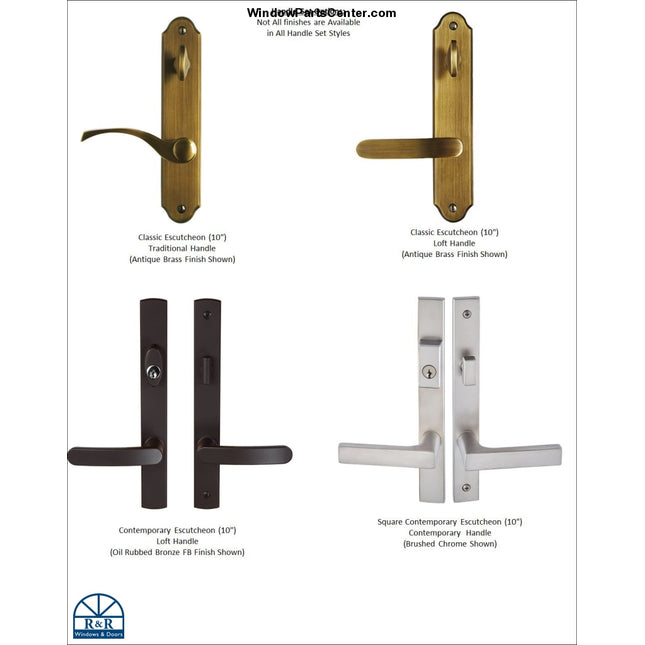

Classic Escutcheon with Traditional Handle
Antique Brass
Black (Matte)
Bright Brass
Brushed Chrome
Champagne
Oil Rubbed Bronze FB**
Polished Chrome
Satin Nickel
White
Classic Escutcheon with Loft Handle
Antique Brass
Brushed Chrome
Oil Rubbed Bronze FB (forever bronze not true oil rubbed bronze that will change)
Polished Chrome
Satin Nickel
White
Contemporary Escutcheon with Loft Handle
Antique Brass
Black (Matte)
Bright Brass
Brushed Chrome
Oil Rubbed Bronze FB**
Polished Chrome
Satin Nickel
White
Squared Contemporary Escutcheon with Contemporary Handle
Antique Brass
Black (Matte)
Bright Brass
Brushed Chrome
Oil Rubbed Bronze FB**
Polished Chrome
Satin Nickel
White
Special Order Item. No returns exchanges or order cancellations once order has been placed. Please allow 2-3 week lead time.Used on Hurd Inswing and outswing patio doors all wood and wood clad 2006 - Present - Direct Replacement For 2005 models as well
*For Semi Active handle set see part number 841 Has thumb turn no keyed lock- To be used on a secondary door panel on a French door that has shoot bolts that are operated and locked into place by the handle set.
*For dummy handle see part number 842 no operation no thumb turn - To be used on a secondary door panel on a French door that is fixed in place with no operation or has manual shoot bolts that are not operated by the handle set.
**FB = forever bronze so it will not change color over time like a true oil rubbed bronze would.
As is - New Condition old stock (may have minor scuffs, etc.) - No returns all sales final. Once our stock is gone this item will no longer be available

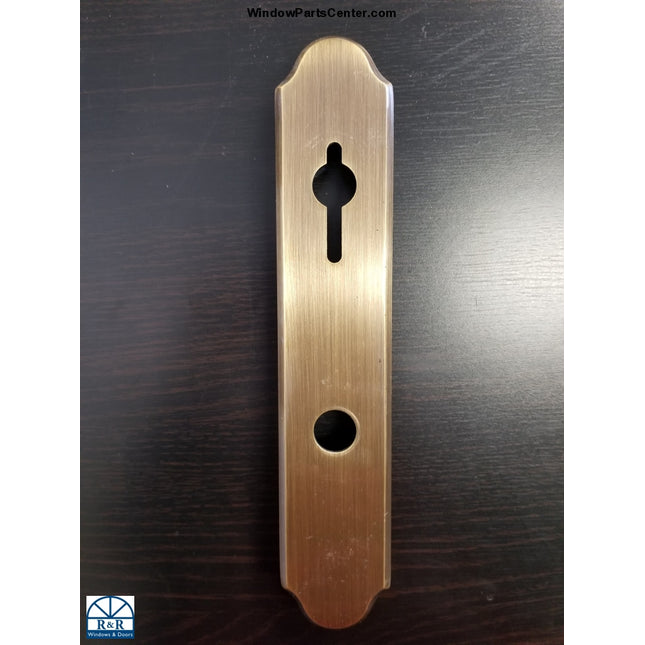

840-001- Amesbury Truth GU Faceplate Small Hole - Swinging Patio Door Hurd
Discontinued Product. What we have in stock is all that is available. No returns all sales final.
As is - New Condition old stock (may have minor scuffs, etc.) - No returns all sales final. Once our stock is gone this item will no longer be available

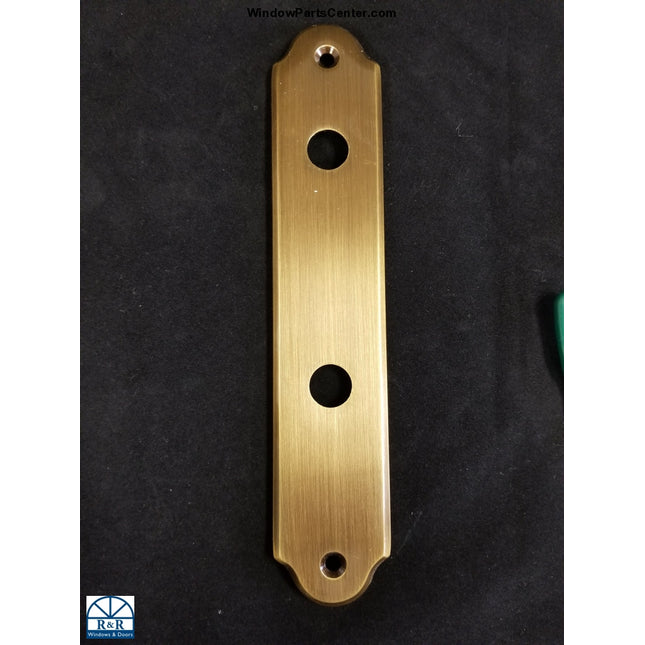

840-002 Armsbury Truth swinging Patio Door Active Face Plates
Handel set Replacement Parts
Discontinued Product. What We have in stock is all that is available
Active Face plate Only
No returns all sales final Sold as is
used on: Amesbury Truth Handle Set, Hurd Swinging Patio Door, GU hardware
As is - New Condition old stock (may have minor scuffs, etc.) - No returns all sales final. Once our stock is gone this item will no longer be available

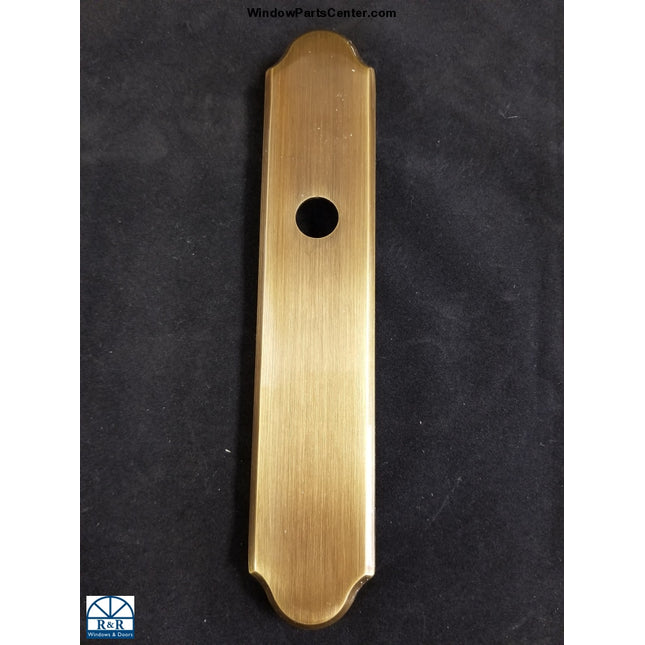

840-003 Small Hole Armsbury Truth swinging Patio Door Face Plates
Handel set Replacement Parts
Discontinued Product. What We have in stock is all that is available
Active Face plate Only
No returns, all sales final, Sold as is
used on: Amesbury Truth Handle Set, Hurd Swinging Patio Door, GU hardware

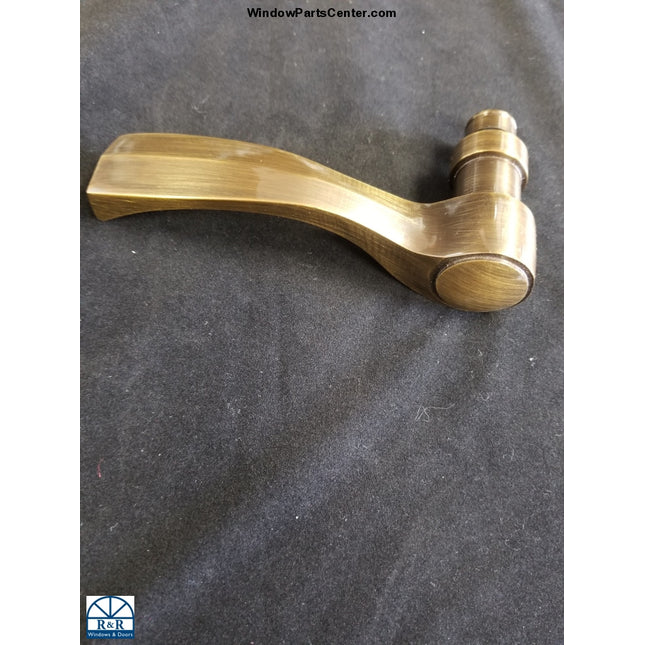

840-005 Amesbury Truth GU Handle Snap Ring Style - Swinging Patio Door.
Replacement Door Handle only all other parts sold separately.
Discontinued Product. What we have in stock is all that is available.
No returns, all sales final, finishes color variation due to true metal finish and minor scratches.

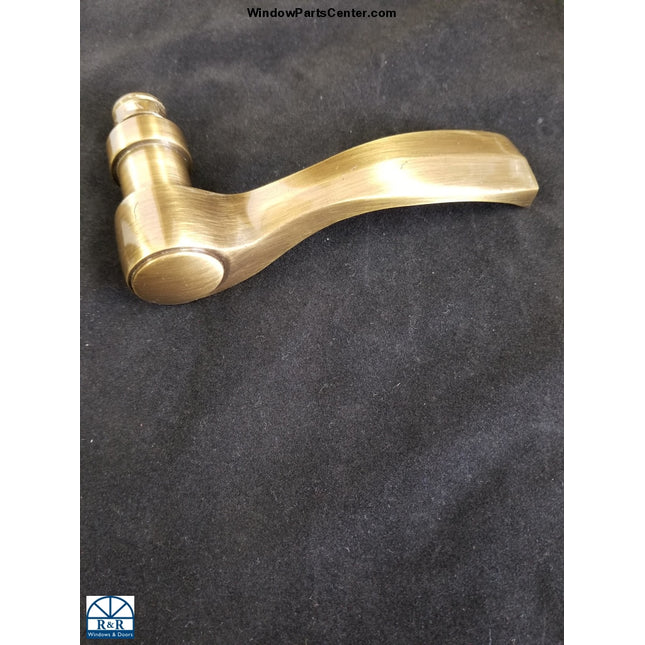

840-006 Amesbury Truth GU Handle Snap Ring Style - Swinging Patio Door.
Replacement Door Handle only all other parts sold separately.
Discontinued Product. What we have in stock is all that is available.
No returns, all sales final, finishes color variation due to true metal finish and minor scratches.
As is - New Condition old stock (may have minor scuffs, etc.) - No returns all sales final. Once our stock is gone this item will no longer be available

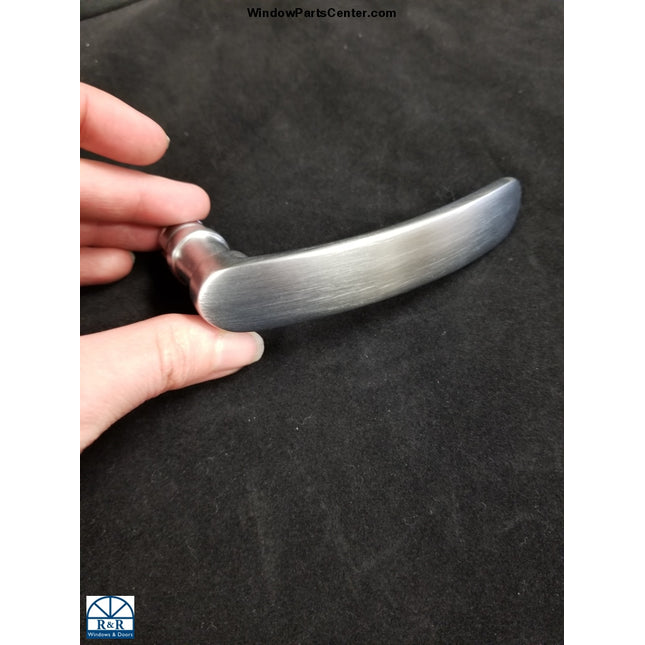

840-007 Amesbury Truth GU Handle Snap Ring Style - Swinging Patio Door. Loft Handle style
Replacement Door Handle only all other parts sold separately.
Discontinued Product. What we have in stock is all that is available.
No returns, all sales final, finishes color variation due to true metal finish and minor scratches.
As is - New Condition old stock (may have minor scuffs, etc.) - No returns all sales final. Once our stock is gone this item will no longer be available.

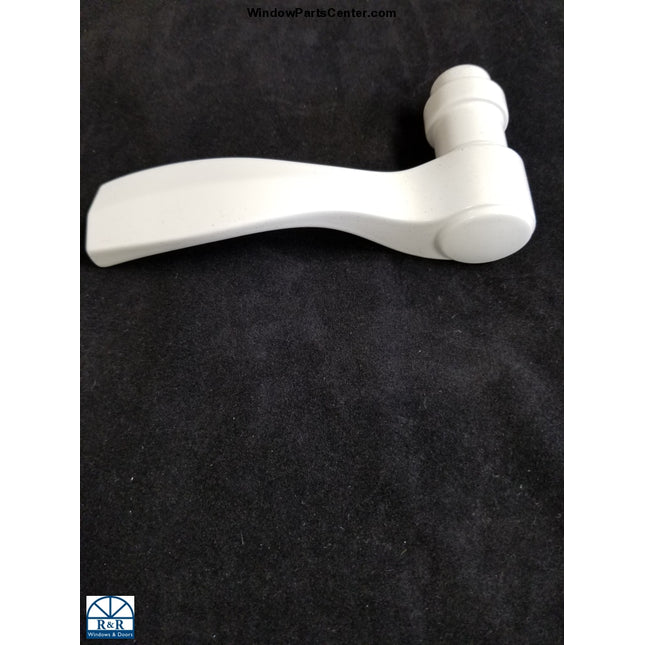

840-008 - Amesbury Truth GU Handle - Set Screw and Shaft Type - Swinging Patio Door Hurd.
Replacement handle only. All other replacement parts sold separately.
Discontinued Product. What we have in stock is all that is available. No returns, all sales final. Some may have minor scratches.

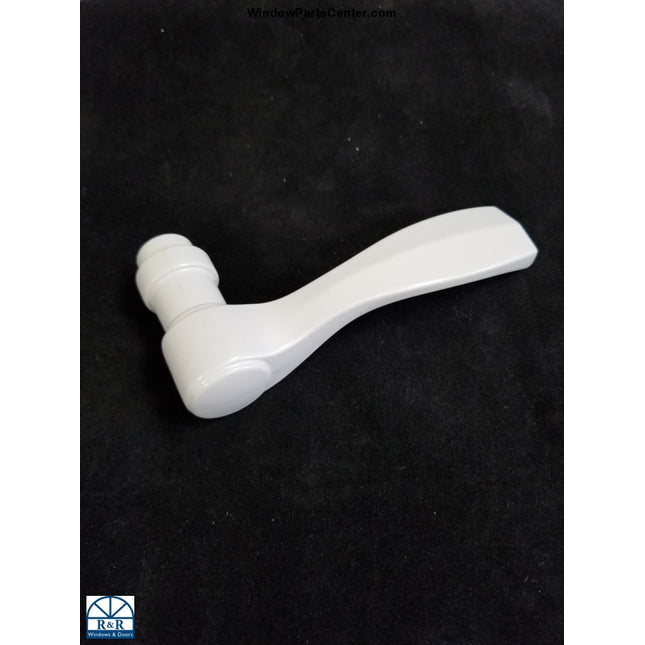

As is - New Condition old stock (may have minor scuffs, etc.) - No returns all sales final. Once our stock is gone this item will no longer be available840-009 - Amesbury Truth GU Handle - Set Screw and Shaft Type - Swinging Patio Door Hurd.
Replacement handle only. All other replacement parts sold separately.
Discontinued Product. What we have in stock is all that is available. No returns, all sales final. Some may have minor scratches.
GU, Amesbury Truth, Hurd
