Awning Window Operators, Parts and Accessories
SS10012 - Roto X Drive Handle for Casement and Awning Window Operator
Part Number SS10012 Roto handle for X Drive operators for Casement and Awning Windows Spline: 5/16" Number stamped on bottom of handle known to be: #OP06-1520 In Stock Colors: Blue White, Bright White, Euro White, Beige (aka Almond), Clay, Coppertone, Dark Bronze, and Black. Special Order Colors: Oil Rubbed Bronze, Brushed Chrome and Bright Brass. You will be notified of lead time once you place your order. Discontinued Colors No Longer Available: Old Clay - We call it "Old Clay" as it is much darker then the current "Clay" color that Roto manufactures. See color cart. How to tell white colors apart: When you have the handle on white copy paper the Euro White has a yellow hue compared to the paper, Bright White matches the color of the copy paper and Blue White has a blue tint compared to the paper (see our color cart picture). (Note the above is from comparing brand new handles. The sun can fade, change and yellow colors over time, if your handles are older try to use a handle that does not get direct or intense sunlight). Associated Parts Sold Separately: SS10011 Roto North America X Drive Dual Arm Vinyl Casement Operator S1062 Roto X Drive and Pro Drive Awning Window Operator SS10017 Roto 15 Inch Face Mount Track Assembly with Track Shoe 0P05100 SS10013 - Roto North America Face Mount Bracket Assembly For Vinyl Awning For Pro Drive Version of handle see part number S1066 SS10012 is longer and different from our S1042. Both are used on Roto North America X Drive OP06 Operators See pictures Known To Be Used on Following Window Brands and Many More: Roto Casement and Awning Operators X Drive Operators SuperSeal Vinyl Windows and Sierra Pacific Vinyl Windows (For SuperSeal and Sierra Pacific Vinyl windows they used Euro White and Beige (almond) for their two standard colors Minnkota Windows (their "clay" color was the old clay that has been discounted by the manufacture). PeachTree (their "clay" color was the old clay that has been discounted by the manufacture). Euro Star Windows & Doors WeatherShield Visions 3000 & 3500 series windows. Factory windows from Visions was "tan" which matched the offering from (WindowPartsCenter) listed as "beige" crestline windows RC Home Showcase Windows CM100 Series Royal Window and Door Profiles royalplast Allsco 4700 PREMIUM Known Part Number: SS10012 and OP06-1520, 7-1877W, 7-1877AD, 7-1877BW, 7-1877DB
$ 15.00 - $ 50.00
137 Encore Tango Folding Handle and Operator Cover Kit 13342 12616
Part Number 137 Truth Amesbury Encore: Tango Folding Handle and Operator Cover for Casements and Awning Operators 13342 12616 Handing: Casements can be left or right handed See pictures above, video and Pro Tip below to determine handing you need to order for your operator. Awnings operators will always will be Left Hand. Colors: New Goldtone, Champagne (old Prior to 4/1/2024), Current Champagne (4/1/2024 to Present), Coppertone, Bronze, White, Black, Bright Brass, Polished Chrome, Brushed Chrome, Brushed Nickel, Antique Brass, Oil Rubbed Bronze, Beige Out of stock / Pre Order Colors can have a estimated 2-6 week lead time. Price depends on finish selected. Large QTY orders may not be eligible for returns. Pro Tip: Left Hand = White Bag to be used with Silver Worm Operator. Right Hand = Red Bag to be used with Gold Worm Operator. Encore Operators Sold Separately: Part Number: 119 Casement Encore Dual Arm Sill Mount Amesbury Truth Part Number: 147 AmesburyTruth Encore Sill Mount Casement Operator-Dyad Part Number: 158 AmesburyTruth Casement Sill Mount Operator-Encore-Single Arm Part Number: 207 Awning Amesbury Truth Encore Awning Sill Mount Operator. Proper Installation of an Operator Cover & Nested Folding Handle: When installing the cover and handle on the operator you should follow these instructions: • Snap the cover onto the operator base. • Place the handle onto the spline of the operator and rotate the handle to close the window. • Lock the window in place. • Rotate the handle ¼ turn back (towards opening direction) to reduce the pressure on the operator . • If the handle needs to be positioned in a nested cover you can remove the handle at this time and re-position it so that it will rest correctly in the nested cover. • Tighten the set screw on the handle. • Unlock the window and cycle the sash open and closed until the handle returns to the starting position whereby there is no additional torque required to close the sash. Note: the sash should travel to a point that the lock can easily engage and seal the window. • If the window does not come all the way into the closed position, and more force is required on the operator to close the window, you will need to review the window for the following; sash sag; racked window; lock points that are not properly aligned; or hinges not installed correctly. These issues should be corrected prior to repeating the installation of the handle onto the operator spline. Placing the operator and the handle under high stress and abusive loads can cause permanent failures to the handle or operator as the window is repeatedly opened and closed. This video will show how to determine which handing to 137 cover and handle to order for your operator: This video will show how to attached # 137 Encore Cover and handle to the # 119 Truth Encore Operator Manufacture Tech Note: Proper Installation of an Operator Cover & Nested Folding Handle. When installing the cover and handle on the operator you should follow theseinstructions:• Snap the cover onto the operator base.• Place the handle onto the spline of the operator and rotate the handle to closethe window.• Lock the window in place.• Rotate the handle Ľ turn back (towards opening direction) to reduce thepressure on the operator.• If the handle needs to be positioned in a nested cover you can remove thehandle at this time and re-position it so that it will rest correctly in the nestedcover.• Tighten the set screw on the handle.• Unlock the window and cycle the sash open and closed until the handle returnsto the starting position whereby there is no additional torque required to close the sash. Note: the sash should travel to a point that the lock can easily engageand seal the window.• If the window does not come all the way into the closed position, and more forceis required on the operator to close the window, you will need to review thewindow for the following; sash sag; racked window; lock points that are notproperly aligned; or hinges not installed correctly. These issues should becorrected prior to repeating the installation of the handle onto the operatorspline.Placing the operator and the handle under high stress and abusive loads can causepermanent failures to the handle or operator as the window is repeatedly opened andclosed. Known Part Numbers: 137, 096357, 096358, 096353, 096354, 096354, 096356, 13342 12616, HCSE54, MONCSE675 Known to have been used on the following brands: Hurd Operator cover and crank handle (nesting) for units manufactured 9/19/05 to present, Biltbest, Sierra pacific, Semco, Windsor, Lincoln, Comfort Line, Milgard, Fiber Frame, Monarch June 2006 to present and more
$ 25.00 - $ 67.00
139 Handle Roto Crank - 3 1/2" with 11/32" Spline
Part Number: 139 3 1/2 inch with 11/32 Inch Spline Replacement 3" Window Roto Operator Crank Handle for Amesbury Truth with 11/32" Spline Operators Truth Handle - Roto - Replacement Parts for Awning and Casement Windows operators.Colors: Bronze, New Goldtone, White, Beige, Brass, Goldtone, Clay, Aluminum, Chestnut Bronze, Medium Bronze, Brushed copper Nickel, Off-White, Black, Cocoa Brown, Blue White (aka Bright White), Tuscan Bronze, Oil Rubbed Bronze, Off White (aka Euro white) Special Order Colors: Special order colors or Pre-order colors are non returnable and can have up to a minimum 3 week lead time. Large QTY orders of 50 or more will also be considered special order none returnable. ** Please note: That the Short Handle Roto Crank has been discontinued by the manufacturer. Once our stock is depleted we will ship out the longer version of the Roto Crank Handle that will work on your windows. Known to have been used on many window Brands: Biltbest, Crestline, Caradco, Peachtree, Vetter, Oldach, Windsor, Sliver Line and Crank Handle standard Hurd used on casement and awnings manufactured pre February 1998. Known Part Numbers: 139, 45054 31, HCSE29
$ 20.00 - $ 150.00
166 EntryGard Operator Covers 10341
Part Number 166 EntryGard Replacement Covers Only - 10341 Amesburty Truth Truth EntryGard Operator Contour Cover Only - Fits 15 Series EntryGard Casement and Awning Operator andHandles 139 and 135 sold separately - See Accessories items Known Part Numbers On Operator: 20910, L30941, 40853, U.S. PAT. 4,241,541 - CAN. PAT. 350,432 - PAT. 1982 , 31538, 40754, 45179 Discontinued Color: Coppertone. For Additional Entrygard Covers in different styles and colors see part numbers S1002 and S1004 Replacement Parts for: Hurd, Semco, Marvin, Cascade, Caradco, BiltBest, Milgard, Sierra Pacific and more. Free Economy Shipping On All USA Orders. If Cover color or QTY you want to order is is out of stock you can pre-order and parts will ship out as soon as they come in from the factory.
$ 12.80 - $ 55.00
131 Amesbury Truth Folding Handle for Casement and Awning Operator 11/32 Inch Spline
Part Number: 131 Folding Crank Handle for Amesbury Truth 11/32 Spline OperatorsColors: Aluminum, Beige, Black, Bright White, Bronze, Chestnut Bronze, Clay, Faux Oil Rubbed Bronze, New Goldtone, Tuscan Bronze White Special order Colors: Goldtone, Oil Rubbed Bronze, Bright Brass are a non returnable item- no returns for these items Large Quantities Order: orders with QTY 50 or more are special order items no returns or order cancellations. Related Parts: Part # 101 Truth Maxim Dual Arm Casement Operator Part # 102 Truth Maxim Split Arm Dyad Casement Operator Part # 209 Truth Maxim Awning Operator Part # 111 Truth Ellipse Style Split Arm Dyad Casement Operator Part # 105 Truth Ellipse Style Straight Arm Casement Operator Other Amesbury Truth Operators Part # 131 Folding Handle was primarily used on Part # 101, 102 and 209 Truth Maxim casement and awning operators). Replacement part for Hurd Casement and awing window operators Vintage Classic Style: 02/02/1998 - 9/17/2007. Also used on many other window brands that use Truth Hardware Known Part Numbers: Truth, 45393, U.S. PAT. 351490, 5560082, 131, Truth 3, 037189, 037188, 091691, 11329-32, HCSE31, A3-2104, A4-2149, A4-2150, A4-2147, A4-2148, 00-0000 Replacement Parts for: Hurd, Semco, Marvin, Cascade, Caradco, BiltBest, Milgard, Sierra Pacific, Vetter, Allsco and more. Updated 7/24/23
$ 27.00 - $ 145.00
S1103 - Ashland Operator Cover and Crank Handle Kit - 4 7/32 Inch
Part Number: S1103 Ashland Operator Cover and Crank Handle Kit Kit comes with 1 Cover and 1 crank handle Cover 4 7/32 Inch Wide Color: White or Bronze Handing: Left Hand and Right Hand - see picture to determine the handing you need LEFT HAND SHOWN IN PICTURE. Stamped under the cover is an L or R to designate left or right hand. Part Number Stamped on back side of Cover: U.S PAT PENDING P-1080-200 R, P-1080-100 L It will also say L for Left or R for Right stamped on the back side of the cover Associated Parts: To order Crank Handle Only see part Number S1104 Straight Arm Operator S1131
$ 30.00
216 - Crank Handle Adapter for Clear Story Windows "Female"
Part Number: 216 Crank Handle Adapter 5/8 Inch Hex Femail used with Clear Story Windows Size: Spline Size see list below 11/32 Spline Fits: Truth (Amesbury Truth): Marvin, Some Milgard, Caradco, Weather Shield, Hurd, BiltBest, Eagle, Vetter, Roto X Drive and Others 9/32 Spline Fits Peachtree and Getty 3/8 Special Spline Fits: Pella 3/8 Special Spline Fits: Anderson 3/8 Spline Fits: Some Milgard and Others Finish: Mill (Special order colors email for pricing: White, Black and Champagne) Put those operable clerestory windows to energy-saving use with our 39-series clerestory extension crank. High mounted windows are excellent for capturing light while providing privacy, but they can also be “excellent” heat traps. It is now possible to vent the heat that rises to these areas as easily as opening any other window in the home.It’s inexpensive and can easily retrofit to existing or new window installations. By simple removal of the existing crank handle and replacement with an adapter (Hex-Bolt) the crank will open and close any operable clerestory window. It is not necessary to replace the current operator.The removable extension crank is available in many standard sizes for either sill or jamb mounted operators. (See Manual Window Wands) The standard finish for the crank is natural anodized aluminum.
$ 16.95 - $ 41.95
C2003 Roto Interlock Non Folding Handle 5/16 Inch Hex Casement Awning Window
Part Number: C2003 Roto Interlock Non Folding Handle 5/16 Inch Hex For Casement Awning Window Operator Crank C2003 Non folding is the old style and no longer available to order in all colors. Replacement new style is C2004 Folding Style and is available in multiple colors C2003 Non Folding Colors Available: Blue White (white is on back order from the factory as of 6/7/22) C2004 Folding Colors Available: White, Blue White, Euro White, Almond and Clay - to order please to go C2004 product page How to tell white colors apart: When you have the handle on white copy paper the Euro White has a yellow hue compared to the paper, Bright White matches the color of the copy paper and Blue White has a blue tint compared to the paper. (Note the above is from comparing brand new handles. The sun can fade, change and yellow colors over time, if your handles are older try to use a handle that does not get direct or intense sunlight). Brand: Interlock, Roto, Cascade, Milgard Follow Related Parts Are Sold Sold Separately: Part Number C2002 - Roto America Interlock Casement Split Arm Operator Part Number C2003 - Roto Interlock Non Folding Handle 5/16 Inch Hex Casement Awning Part Number C2004 - Roto America 5/16 Inch Hex Casement and Awning Folding Crank Handle Part Number C2005 - SX Interlock Friction Hinge Set Cascade Casement Awning Windows Part Number C2006 - 4-1/8 Inch Black Top Spacer - Interlock Roto Part Number C2009 - Interlock Connect Arm w/ modified Clip 160MM 6 7/8" Long Arm Part Number C2011 - Clamp Washer Part Number C2012 Brootom Back Plastic Shim Part Number C2013 DIE CAST BRACKET WITH ARM STAINLESS STEEL CONNECT ARM NOTCHED OUT -Roto operator bracket 5 3/8" Known Part Number: C2003, P4601, 7-1849BW
$ 0.00 - $ 35.00
C2004 - Roto 5/16 Inch Hex Casement and Awning Crank Folding Handle
Part Number C2004 Roto America 5/16 Inch Hex Casement and Awning Folding Crank Handle Available Colors: White, Blue White, Almond and Clay known to have been used on: Milgard Ultra Windows, Cascade and many other window brands Follow Related Parts Are Sold Sold Separately: Part Number C2002 - Roto America Interlock Casement Split Arm Operator Part Number C2003 - Roto Interlock Non Folding Handle 5/16 Inch Hex Casement Awning Part Number C2004 - Roto America 5/16 Inch Hex Casement and Awning Folding Crank Handle Part Number C2005 - SX Interlock Friction Hinge Set Cascade Casement Awning Windows Part Number C2006 - 4-1/8 Inch Black Top Spacer - Interlock Roto Part Number C2009 - Interlock Connect Arm w/ modified Clip 160MM 6 7/8" Long Arm Part Number C2011 - Clamp Washer Part Number C2012 Brootom Back Plastic Shim Part Number C2013 DIE CAST BRACKET WITH ARM STAINLESS STEEL CONNECT ARM NOTCHED OUT -Roto operator bracket 5 3/8" C2004 is the New Roto American 5/16" folding style. Which is the Direct Replacement Style for C2003 Non Folding Style Known Part Number: C2003, P4601
$ 40.00
213 Black Slider Shoe
Part number: 213 sold individually Pivot Slide Assembly - Black Plastic, pivot shoe Dimensions 1 1/4" x 1 1/16" Black Slider Shoe for Awning DLX Maxim and Encore OperatorsReplacement Part for awning window operator.Amesbury Truth Replacement Part Associated Parts Sold Separately: Part Number: 718 - Amesbury Truth Awning Guide Bar Part Number: 207 Amesbury Truth Encore Sill Mount Awning Operator Part Number: 209 Amesbury Truth Maxim DLX Awning Operator sliding transition element
$ 8.00
177 Amesbury Truth Contour Non Folding Handle for 11/32 Spline Operators
Part # 177 Replacement Amesbury Truth Non Folding Contour Handle - 11/32" Spline For Casement and Awning Window Operators. Colors in stock: White, Bronze, Goldtone, New Goldtone and Beige Special Order Colors: Bright Brass, Clay, Aluminum, Chestnut Bronze, Brushed Copper Nickel, Black, Coppertone, Cocoa Brown, Bright White, Tuscan Bronze, Oil Rubbed Bronze. Special order colors are non returnable and can have a 1-3 week lead time. Replacement part for Hurd Casement and awing window operators Vintage Classic Style: 02/02/1998 - 9/17/2007 and many other window brands using Truth Operators, Allsco, Norco, Vetter, Windsor, Pozzi and many more window brands. Known Part Numbers: Truth 45240, 177, 010768, 010769, 090934, 11454-32, HSCE30, G4-2051, G4-2050, G4-2049, A3-2106, G5-2048, G5-2047, G5-2045, G5-2046
$ 19.00 - $ 102.00

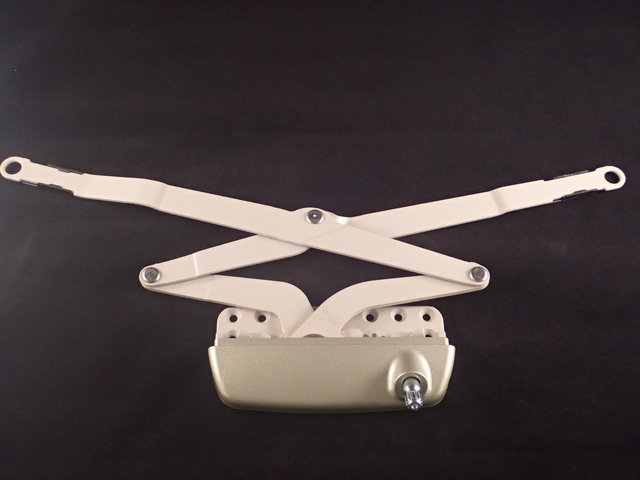

211 Truth 11 Series (11.12) Awning Single Pull 16 1/4"
Truth 11 Series (11.12) Awning Short Arm Operator Single Pull - 16 1/4 Wide Colors In Stock: Goldtone, White, Bronze and New Goldtone Special Order Color: Clay, Beige are special order item. 1-4 week lead time No Returns Known to be used on Hurd Brand Windows with glass widths: 19 & 23, this part has been used on many other window brands such as Weather Sheild, Caradco, Biltbest and more. Associated Parts Sold Separately: Part Number 139 Crank Handle Part Number 135 T Handle Part Number 108 Knob Handle Part Number 218 Center Hook Below video shows how to replace an awning operator. Steps are very similar when you are replacing part number 211. Known Part Numbers: 211, U.S. PAT. 4505601, PAT. CAN. 1986, 4530, 30896, 11-12-32-001
$ 77.00 - $ 97.00
