Part Number 825
Hoppe Single Point Gear Box as shown in pictures and in product video
**** 825 Single point gear box is not interchangeable with multi point gear box system interior components are different see video****
In stock: Only part # 825-D which has a 1 3/4" Backset and 1" Dead Bolt Throw
Special Order: All other part numbers are special order items (no returns or order cancellations) and can have a 1-4 week lead time once you place your order.
Strike is reversible for both left hand and right hand doors (see video below or revering latch instructions)
Install Instructions:
Remove set screws on handle levers and remove
Remove mounting screws on faceplate estuation of the handle set
On side of door remove screw that lines up with the lock cylinder.
Remove the handle set
Remove all screws down the side of the door that holds on the gear box (keep all screws you will reuse them)
Install new multipoint with screws
Test for Operation
Reinstall handle set
Test for proper operation
#813 - Hoppe 3Pt Convert Auto Release Striker - Bright Brass
Replacement Parts for Hoppe Multipoint Hardware used on swinging patio doors
May have minor scuffs, etc these come this way from the factory not considered a defect.
Known To have Been Used On: Hurd, Weather Sheild, Hoppe, Marvin BiltBest and many other door brands that used Hoppe Multi Point Hardware
Sold Separately Are Part Numbers:
#833 - Hoppe 3Pt Convertible Under plate #834 - Hoppe 3Pt Striker For Rollers - Auto
Part Number: S4112

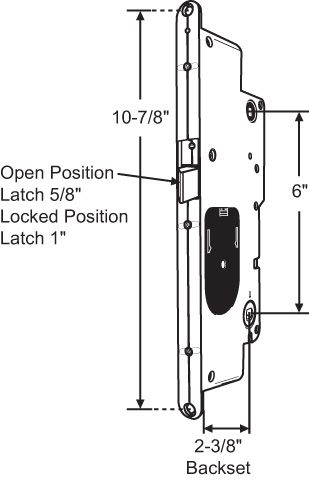

W&F Multipoint Mortise Lock 2-3/8IN BACKSET For 6 Inch handle
Used On: MULTIPOINT MORTISE LOCK2-3/8IN BACKSET 6IN HANDLETO CYLINDER PEACHTREECITADEL IPD AND CITATION
high performance stamped on side of mortise lock box. U.S. PATENT NO’S 5,290,077 5,388,875
Color: Older ones are a gold color where the current version is more green. Green is a direct replacement for the gold.
Non handed - the mortise is reversible for your door handing and also has a interior plastic release. To reverse the lock direction - remove the side plastic covers and swamping the internal cams - side to side. The lock bolt can also be reversed by extend the bolt and slide off the bolt base.
This center mortise lock rotates 50 degrees to retract the bolt. The mortise lock works with all handle sets designed for this lock system [1993-2002].
Replacement handle bushing kit [SKU 56-115] and Auxiliary Lock module springs are recommended parts when replacing the center lock mortise.
DO NOT TAKE APART THE MORTSE LOCK BOX OR REMOVE ANY SCREWS- THERE ARE NO REPLACEABLE PARTS INSIDE THIS LOCK BOX. ANY ALTERATION OR DISASSEMBLY OF THIS LOCK WILL VOID ANY RETURN POLICY. ALL MORTSE LOCKS ARE CHECKED FOR FUNCTION PRIOR TO SHIPMENT.
Associated Parts Sold Separately:
S4112TK - Alignment Key Tool - System Rod Timing Key
D301 W&F Trilennium multipoint 6 Inch CTC Replacement Handle Set
S4112 - Peachtree Multipoint Mortise Lock Citadel IPD Citation W&F
S4115 Peachtree W&F Peachtree Citadel Swing Patio Door Multipoint Lock
Part Number 810
Pin/Roller and Flipper/Tongue Style Hoppe Multi point for Hurd Swinging Patio Doors only!
(If your door is another door brand please email us and we can email you a worksheet you ok will need to fill out to get you the correct hoppe multipoint for your door. info@windowpartscneter.com)
Brass color no longer manufactured only comes in stainless steel for both the gear box and the extensions.
Comes with: bottom extension with gear box attached and the top extension (choose your door height size).
The Hoppe #810 Roller style is the direct replacement old FUHR Roller Multi point that was on Hurd doors – no modification is needed when changing to the Hoppe #810. The only difference is some of the FUHR multi point had an automatic fire to engage the multi point, the Hoppe does not. So with the Hoppe to engage the multi point you close the door then lift up on the door handle then throw the dead bolt to lock.
Hoppe Roller Style will also replace the Old FUHR Roller style as they.
Top Extension: Comes in Door Heights: Retro/6-8, 6-10, 7-2, 8-0.
This usually ships via UPS Ground.
Style Options:
Hoppe Gear Box Pin/Roller Style
Hoppe Gear Box Flipper/Tongue Style
Hurd Door Panel Heights for Top Extension:77" = Retro/6-878" = Retro/6-880" = 6-1084" = 7-293" = 8-0For Classic Hurd Doors Manufactured from 2005 and PriorFuhr Multi point used on Classic Hurd doors are no longer manufactured - Hoppe Multi point is the direct replacementNumber Known To Have Been On Older Gear Box (Hoppe Roller Style Brass Color): 1334291 - this is a component number.
Install Instructions (also see instructions in pictures):
Remove set screws on handle levers and remove
remove three mounting screws on faceplate estuation
On side of door remove screw that lines up with the lock cylinder.
Remove the handle set
Remove all screws down the side of the door that holds on the multipoint system (keep all screws you will reuse them)
Install new multipoint with screws
Test for Operation
Reinstall handle set
Test for proper operation
Part Number: D301*
W&F Trilennium 6 Inch CTC multipoint bore D301 is the new Replacement Handle Set - - Non stock item special order - Allow 1-2 weeks for your order to ship (unless otherwise noted on our website about extended lead times) - No order cancellations or returns
D301 is for doors with: 6 inch center to center 1 7/8" or 2 1/8" diameter bores and screw hole placement 5 3/16" Center To Center.
Requires: 1 11/16" or 2 1/8" crossbore
Screw Hole Placement: 5 3/16" Center To Center
Model: D301 Standard Set**
Size: for Door Panel Thickness 1 3/4" or 2 1/4"
Colors: Victorian Bronze, Satin Nickel, Bright Brass
Style:
Active Standard 150 Degree- Has Thumb Turn, Keyed Cylinder and Lever is Operational*** For Single and French Active door panels. (Degree is how far the lever handle rotates this is used with the newer style multi point see pictures for lever degree diagram).
Active Modified 180 Degree- Has Thumb Turn, Keyed Cylinder and Lever is Operational*** For Single and French Active door panels. (Degree is how far the lever handle rotates that is used with older multi point and double bore systems see pictures for lever degree).
Dummy - No Thumb Turn, No Key Cylinder and Fixed Lever**** For Inactive panels in French doors - that is fixed or has independent astragal installed
Tumbturn for 3020 - Has Thumb Turn, No Key Cylinder and Fixed Lever**** For Inactive panels in French doors that has 3020 lock installed only***
Handing: Universal - Non handed works for both LH and RH swing doors
Notes for other options for this style hardware on older doors:
D301 handle set is manufactured to be used with the current multipoint system and will work with it for you right out of the box - you will order Active Standard 150 Degree (see pictures for lever degree diagram and associated parts below).
If you have older style multipoint or backset lock and dead bolt with 6” center to center bore and screw hole placement is 5 3/16" Center To Center then you will order Active Modified 180 Degree to with with either of these two options (see pictures for lever degree diagram and associated parts below).
If your door has a 6 inch center to center 2 1/8" standard double bore with back set latch and dead bolt and screw holes are also 6" center to center you need to order part number 852).
If you are not sure what type of system your door has, please send us pictures of your handle set with the door panel open so we can see the hardware that the handle set connects to inside the panel. Email pictures to: info@windowpartscenter.com
footnotes:
*handle set only. Non stock - Allow 1-2 week for your order to ship - No order cancellations or returns
**This handle set also available in other Models: See part numbers: D300, D301, D302, D304
***Operational Lever: Can move up and down when door is unlocked
**** Fixed Lever: Inactive, and is intended for push/pull function.
*****Do NOT use a power driver tool to attach the handle set face plate retaining screws. Thread damage can result and is NOT considered a product defect.
Associated Parts Sold Separately:
S4112 - Peachtree Multipoint Mortise Lock Citadel IPD Citation W&F
S4115 Peachtree W&F Peachtree Citadel Swing Patio Door Multipoint Lock
For the Current Trilennium Multi Point - Email us for quote. Info@WindowPartsCenter.com
Handle Sets have been known to have been used on Bayer, Pella, Peachtree and other door brands.
Known W&F old handle set Pat No. 4,671,089 stamped on back of trim plate
Part Number 855
Single Point GU Gear Box Hardware* Schlosskasten Security / Schlossk. Sec.
*Single point gear box is not interchangeable with multi point gear box system interior components are different.
For Swinging Patio Doors
Depending on vintage your sticker label color can be orange or white with the following numbers:
Orange Label:
6-29377-45-0-1 A
45-92-8 or 45-92-8 EINST.
White Label:
6-29377-45-0-1 B
Scholssk.Sec.U 45/92/8
Strike is reversible for both left hand and right hand doors.
Brands known to been used on: GU, Hurd, Sierra Pacific and More.
Install Instructions:
Remove set screws on handle levers and remove
Remove mounting screws on faceplate estuation of the handle set
On side of door remove screw that lines up with the lock cylinder.
Remove the handle set
Remove all screws down the side of the door that holds on the gear box (keep all screws you will reuse them)
Install new multipoint with screws
Test for Operation
Reinstall handle set
Test for proper operation
*Single point gear box is not interchangeable with multi point gear box system interior components are different.
updated 7/18/23
Part Number: 840
Amesbury Truth
Used For GU Multi Point Hardware ACTIVE HANDLE SET* (Hurd and Sierra pacific)
Active handle sets come keyed with thumb turn and are for single door or the primary active door panel on a French door.
10 Inch Escutcheon
NOTE TO CUSTOMER: As of March 20 2017 the OLD STYLE 8.9375 long Escutcheon was discontinued by the manufacture (mounting screw hole where 7 5/8" center to center) . The new style has 10" long Escutcheon (Mounting screw holes are 8 5/8" center to center). Note this height change does alter the placement of our mounting holes. Bottom mounting screw hole will be reused, but the customer will have to drill one new top mounting screw hole. The old mounting screw hole will be covered by the escutcheon.
All handle sets will be shipped with the new 10 inch taller escutcheon plates. Please note a new mounting hole will be necessary. Field instructions (see pictures)
Special Order Item. No returns exchanges or order cancellations once order has been placed. Please allow 2-3 week lead time.
Finish Options for Different Styles:
(All styles are not available in every finish color)
Classic Escutcheon with Traditional Handle
Antique Brass
Black (Matte)
Bright Brass
Brushed Chrome
Champagne
Oil Rubbed Bronze FB**
Polished Chrome
Satin Nickel
White
Classic Escutcheon with Loft Handle
Antique Brass
Brushed Chrome
Oil Rubbed Bronze FB (forever bronze not true oil rubbed bronze that will change)
Polished Chrome
Satin Nickel
White
Contemporary Escutcheon with Loft Handle
Antique Brass
Black (Matte)
Bright Brass
Brushed Chrome
Oil Rubbed Bronze FB**
Polished Chrome
Satin Nickel
White
Squared Contemporary Escutcheon with Contemporary Handle
Antique Brass
Black (Matte)
Bright Brass
Brushed Chrome
Oil Rubbed Bronze FB**
Polished Chrome
Satin Nickel
White
Special Order Item. No returns exchanges or order cancellations once order has been placed. Please allow 2-3 week lead time.Used on Hurd Inswing and outswing patio doors all wood and wood clad 2006 - Present - Direct Replacement For 2005 models as well
*For Semi Active handle set see part number 841 Has thumb turn no keyed lock- To be used on a secondary door panel on a French door that has shoot bolts that are operated and locked into place by the handle set.
*For dummy handle see part number 842 no operation no thumb turn - To be used on a secondary door panel on a French door that is fixed in place with no operation or has manual shoot bolts that are not operated by the handle set.
**FB = forever bronze so it will not change color over time like a true oil rubbed bronze would.
Part Number: 880
GU Latch and Dead Bolt Strike Plate
Handed: Left Hand, Right Hand
Colors: Stainless Steel
Special order color: Oil Rubbed Bronze (special order items - no returns allow 2-3 weeks lead time)
Discontinued Colors Once stock is gone no longer available:
Antique Brass
Bright Brass
Polished Chrome
White
Screws Not Included: Factory Recommends using 7 x 5/8 PH FH Screw
Known to be used on: GU, Hurd and Sierra pacific WI in-swinging wood/clad doors.
#834 - Hoppe 3Pt Striker For Rollers - Auto - Bright Brass
Replacement Parts for Hoppe Multipoint Hardware used on swinging patio doors
Known To have Been Used On: Hurd, Weather Sheild, Hoppe, Marvin BiltBest and many other door brands that used Hoppe Multi Point Hardware
Sold Separately Are Part Numbers:
#813 - Hoppe 3Pt Convert Auto Release Striker
#833 - Hoppe 3Pt Convertible Under plate
Part Number: D302*
W&F Trilennium 6 Inch CTC multipoint bore D302 is the new Replacement Handle Set - Non stock item special order - Allow 1-2 weeks for your order to ship (unless otherwise noted on our website about extended lead times) - No order cancellations or returns
D302 is for doors with: 6 inch center to center 1 7/8" or 2 1/8" diameter bores and screw hole placement 5 3/16" Center To Center.
Requires: 1 11/16" or 2 1/8" crossbore
Model: D300 Standard Set**
Screw Hole Placement: 5 3/16" Center To Center
Size: for Door Thickness 1 3/4" or 2 1/4"
Colors: Victorian Bronze, Satin Nickel, Bright Brass, Black
Style:
Active Standard 150 Degree- Has Thumb Turn, Keyed Cylinder and Lever is Operational*** For Single and French Active door panels. (Degree is how far the lever handle rotates for newer style multi point see pictures)
Active Modified 180 Degree- Has Thumb Turn, Keyed Cylinder and Lever is Operational*** For Single and French Active door panels. (Degree is how far the lever handle rotates for older multi point and double bore systems see pictures)
Dummy - No Thumb Turn, No Key Cylinder and Fixed Lever**** For Inactive panels in French doors - that is fixed or has independent astragal installed
Tumbturn for 3020 - Has Thumb Turn, No Key Cylinder and Fixed Lever**** For Inactive panels in French doors that has 3020 lock installed only***
Handing: Universal - Non handed works for both LH and RH swing doors
Handle Sets have been known to have been used on Bayer, Pella, Peachtree and other door brands.
Known W&F old handle set Pat No. 4,671,089 stamped on back of trim plate
Notes for other options for this style hardware on older doors:
D302 is manufactured for the current multipoint system and will work for you right out of the box - order Active Standard 150 Degree (see pictures).
If you have older style multipoint or backset lock and dead bolt with 6” center to center bore and screw hole placement is 5 3/16" Center To Center then Active Modified 180 Degree (see pictures)
If your door has a 6 inch center to center 2 1/8" standard double bore with back set latch and dead bolt and screw holes are also 6" center to center you need to order part number 852).
If you are not sure what type of system your door has, please send us pictures of your handle set with the door panel open so we can see the hardware that the handle set connects to inside the panel. Email pictures to: info@windowpartscenter.com
footnotes:
*Non stock - Allow 1 week for your order to ship - No order cancellations or returns
**This handle set also comes in other Models: See part numbers: D300, D301, D303, D304
***Operational Lever: Can move up and down when door is unlocked
**** Fixed Lever: Inactive, and is intended for push/pull function.
*****Do NOT use a power driver tool to attach the handle set face plate retaining screws. Thread damage can result and is NOT considered a product defect.
Associated Parts Sold Separately:
S4112 - Peachtree Multipoint Mortise Lock Citadel IPD Citation
For Trilennium Multi Point - Email us for quote. Info@WindowPartsCenter.com
Part Number 881
GU Multi Point In Swinging Door Strike
Colors: Stainless Steel and Oil Rubbed Bronze
Discontinued colors:
All other colors below have been discontinued and no longer available. Any stock we still have is AS IS no return.
Antique Brass
Bright Brass
Polished Chrome
White
Screws Not Included: Factory Recommends using 7 x 5/8 PH FH Screw
Known to be used on: GU, Hurd and Sierra pacific WI in-swinging wood/clad doors.
Part Number S3008
GU Geared Handle SPACIO Right Hand 2 forks non locking
GU Handle For Slide and Fold Windows and Doors
Comes with 2 fixing screws
Discontinued product we only have RH available
Color: Aluminum Lacquer Finish
GU part number: G46552-96-R-1
Other known part numbers: 845-16673, E11581, D0310, D0309
