Cascade Windows & Doors Replacement Parts and Hardware

69 products


  • C2000 Ashland Optima Dual Arm Casement Window Operator Known Part Number: 1491-120B / 1491-220B on housing, S-1491-165 / S1491-265 on dyad arm, S-1491-160 / S-1491-260 on straight arm, W1491-100

    Ashland C2000 Ashland Optima Dual Arm Casement Window Operator

    23 in stock

    Part Number:  C2000  Ashland Optima Dual Arm Casement Window Operator With or Without Retaining Post (see video and pictures). Dual-Arm Operators are designed to work on windows from 24" [609 mm] in width up to 36" [914 mm] wide. It is used in conjunction with the sash bracket and track assembly sold separately. Operators are Handed:  Left Hand Right Hand Verify handing by comparing our pictures which are labeled with handing to your operator  Style (see video below): With Retaining Post (This is the current style manufactured can ONLY be used with S1043 Evolutions Cover and Handle Kit Sold Separately) Modified No Retaining Post (We modify the operator to come without the retaining post to be like the old style - see pictures and video below. Can be used with S1043 Evolutions or C2001 Expressions. Both Sold Separately) Recommended Fasteners: #8 x 3/4" SS Phillips Pan Head - not included  Corresponding parts that are sold separately: Part # C2010 Ashland Guide Bar with Shoe Part # S1069 Ashland Casement and Awning Standard Operator Sash Brackets SST Part #S1043 Ashland Evolution Cover and Handle Kit For Casement and Awning Part Number C2001 Ashland Expressions Cover and Handle Kit Part#  S1039 Ashland Optima Casement Window Dyad Split Arm Operator Known to have been used on: Cascade Vinyl Casement Windows and other casement windows. Ashland Part With Post Known Part Number: 1491-120B / 1491-220B on housing, S-1491-165 / S1491-265 on dyad arm, S-1491-160 / S-1491-260 on straight arm, W1491-100, W1491-200 Old Style No Post Known Part Number: S-1491-165, S-1491-160, 1496-320, S-1081-71, S-1491-265, S1491-260, 1496-420, W1497-100, W1497-2

    23 in stock

    $ 63.00 - $ 73.00

  • Part # 101 Amesbury Truth Maxim DLX Casement Dual Arm Operator Dimensions

    Amesbury Truth 101 Amesbury Truth Maxim DLX Casement Dual Arm Sill Mount Operator

    1 review

    Out of stock

    Part Number: 101 Amesbury Truth Maxim Dual Arm 50.00 DLX Sill Mount Casement Dual Arm Operator #101 101 Maxim DLX Sill Mount Style has been discontinued by manufacturer. Once our stock is depleted, you will order the replacement Encore Style Part # 119 and  You will need to purchase the cover and handle kit part number 137 sold separately. Colors in Stock for 101 Maxim Style: Goldtone ( once stock is gone you will have to order 119 Encore Style please watch videos below) To order 119 Encore style: go to 119 Encore Product Page - Part # 119 - Newer Encore Operators are a direct replacement/upgrade for these. See part number 119 You will also need to add to cart and order #137 cover and handle kit in the same handing Part Number: 137 Encore Folding Handle and Cover Kit PRODUCT TIPS Per Manufacturer 1. Operator base handing is determined by the window hinge side when viewed from the outside.2. Handing of Encore 119 Handle and cover is determined by the direction the handle points when in the nested position.3. Encore’s 119 unique spline design will only accept Tango or Encore specific handle designs.(See part number 137) (Note: This is part # 101  is the SILL MOUNTED version 7/16" measurement. For low profile version with 31/64" measurement see part number S1067 Amesbury Truth Maxim DLX Casement Dual Arm Low Profile Operator) Smooth and Curved appearance. Designed to operate sash size from 24" to 40" wide, 84" high and weighting up to 108 lbs.  101 Maxim: Older operators had black painted arms. Now arms are painted beige. Handle Sold Separately  Manufacturer Details: Exceptional Maxim Operators provide maximum performance to open and close larger windows with 33% less effort than previous operators. These operators feature a sealable housing to reduce water and air infiltration without the use of caulk or additional sealant. Available in a full range of operator styles, Maxim helps reduce manufacturing and inventory costs by using the same operator mounting location on every window size. An optional folding handle can be added. Stainless steel packages are available for demanding coastal applications. Developed as a system with Maxim Hinges and Locks to ensure maximum efficiency. Replacement Parts for: Hurd, Marvin, Cascade, Bilt Best, Milgard, Sierra Pacific, Allsco and more.  Related Products Sold Separately for Part Number 101 Maxim Operator :  Part # 177 – non folding handle Part # 131 – Folding handle option Part # 187 - Sash Bracket with Set Ring  - elbow arm of #101 operator snaps onto Part # 189 - Track Shoe – what the long arm of the #101 operator snaps onto Part # 114 - Sash Track (what the track shoe #189 slides into) Part # 121 - Adjustable Hinge – below the operator on the bottom and on top of the window when you open it. Part # 119 - Newer Encore Operators are a direct replacement/upgrade for these. See part number 119 Part Number 137 Associated Parts Sold Separately For Encore Style 119:  Part Number: 137 Encore Folding Handle and Cover Kit RECOMMENDED SCREWS: (QTY 6)(PN 19240.XX)#8 X 1 FLAT HEAD SHEET METAL SCREW (SEE TRUTH TIPS FOR MORE INFORMATION) (QTY 2)FOR REAR MOUNT:#8-32 X 3/8 PAN HEAD MACHINE SCREW PN 19545.XX Known Part Numbers: 101, 090937, 010724, 010723, 090938, 010725, 010722, 41012, 36-368-2, 36-369-2, 50.00.XX.011 14D500P to 14D800P and 6D700P, 50-00-32-011, 50-00-24-011, 50-00-32-012, 50-00-24-012, HCSE25, S3-2254, S3-2253, S3-2252, S3-2251, S3-2250, S3-2249, U3-2248, U3-2247, 50.00-RH-SS-CHA Known to have been used on the following Manufacture brand windows: Cascade, Sierra pacific Allsco, Marvin, Weather sheld Hurd DLX duel arm for casements manufactured 2/02/98 to 9/19/2005, and more Videos:  This video shows how the 119 with 137 cover and handle is the direct replacement for the 101 operator and how to install. This video shows how the sash track shoe and sash bracket disconnect from the 101 and 119 operator This video shows the difference below the Goldtone color and New Goldtone If you are not sure you can e-mail us a picture of your existing operator. Please read our Parts Identification Instruction page and then e-mail your pictures to: info@windowpartscenter.com

    Out of stock

    $ 87.00

  • C2001 Ashland Expressions Cover And Handle Kit For Casement Window Operator Window Parts

    Ashland C2001 Ashland Expressions Cover and Handle Kit For Casement Window Operator

    186 in stock

     Part Number: C2001 Ashland Expressions Cover and Handle Kit For Ashland Optima Casement Window Operator (this will not work on other brand operators)  Cover and Handle Kits Are Handed Left Hand and Right Hand. See pictures and videos to determine handing you need. Stock Colors: White and Beige/Almond Other Colors: Available for Special order. Please email info@windowpartscenter.com for quote Minimum QTY purchase may apply Pro Tip: For handing and installation the handle goes to the top. Please see pictures. Accessory Parts That Sold Separately: Part # C2000 Ashland Optima Casement Window Dual Arm Operator Part # C2010 Ashland Guide Bar with Shoe Part#  S1039 Ashland Optima Casement Window Dyad Split Arm Operator Other Ashland Optima Cover That are Interchangeable with the C2001 S1043 Ashland Evolution Cover and Handle Kit For Casement and Awning Manufacturing Product Information Premium Visuals Fold-down and nesting visuals are standard to allow clearance for blinds and shutters Removable visuals reduce inventory costs and allow for easy customization Aesthetic underside allows hardware to look good from any angle Visual packages are available in all common powder coat colors as well as premium plated finishes Expressions (C2001) and Evolutions (S1043) Handle and cover options shown can be used on same operator system interchangeably Product is delivered in individual printed compartment bags, bar coded – to help ensure proper selection and order fulfillment Known to have been used on: Cascade Vinyl Casement Windows and other casement windows. Ashland Part Known Part Number on Cover: P-1496-100 LAX,  P-1496-200 RAX,  Known Part Number On Operator: S-1491-165, S-1491-160, 1496-320, S-1081-71, S-1491-265, S1491-260, 1496-420

    186 in stock

    $ 30.00

  • C2002 Roto Interlock Casement Split Arm Operator. Left Hand Color White. Part Number 36-392LHW UPC 715384123831

    Roto C2002 Roto Interlock Casement Split Arm Operator

    25 in stock

    Part Number: C2002 Roto Interlock Casement Split Arm Operator Handed Item: Left Hand Or Right Hand Stock Colors: White, Blue White, Almond Brands: Roto, Interlock, Cascade, Milgard Vinyl Casement Windows. Known Part Number: C2002, Stamped on back of old operator: Roto Interlock World Patents, Made In New Zealand Design Pat. Pending. Works These Part Number Sold Separately: C2003 Handle or C2004 Handle (Part number P4601 stamped on back of handle that attaches to this operator) C2005 Hinge, C2006 Black Stop Spacer.  An older version of this operator had a square housing and has been discontinued. This rounded housing is the direct replacement (scroll thru pictures to see). Old square housing had: a Roto Window symbol and is stamped P4600, Made in New Zealand stamped on the box Follow Related Parts Are Sold Sold Separately: Part Number C2002 -  Roto America Interlock Casement Split Arm Operator Part Number C2003 - Roto Interlock Non Folding Handle 5/16 Inch Hex Casement Awning Part Number C2004 - Roto America 5/16 Inch Hex Casement and Awning Folding Crank Handle Part Number C2005 - SX Interlock Friction Hinge Set Cascade Casement Awning Windows Part Number C2006 - 4-1/8 Inch Black Top Spacer - Interlock Roto Part Number C2009  - Interlock Connect Arm w/ modified Clip 160MM 6 7/8" Long Arm Part Number C2011 - Clamp Washer Part Number C2012 Brootom Back Plastic Shim Part Number C2013 DIE CAST BRACKET WITH ARM STAINLESS STEEL CONNECT ARM NOTCHED OUT  -Roto operator bracket 5 3/8"

    25 in stock

    $ 110.00

  • C2013 -Roto Operator Bracket Die Cast With Stainless Steel Arms Connect Arm Notched Out Casement

    Interlock C2013 -Roto operator bracket Die Cast With Stainless Steel Arms Connect Arm Notched Out

    53 in stock

    Part Number: C2013  Notched Arm is discontinued. Replacement style is what will be shipped. Roto operator bracket Die Cast With Stainless Steel Arms Connect Arm Notched Out Size: 5 3/8" Long Arm Follow Related Parts Are Sold Sold Separately: Part Number C2002 -  Roto America Interlock Casement Split Arm Operator Part Number C2003 - Roto Interlock Non Folding Handle 5/16 Inch Hex Casement Awning Part Number C2004 - Roto America 5/16 Inch Hex Casement and Awning Folding Crank Handle Part Number C2005 - SX Interlock Friction Hinge Set Cascade Casement Awning Windows Part Number C2006 - 4-1/8 Inch Black Top Spacer - Interlock Roto Part Number C2009  - Interlock Connect Arm w/ modified Clip 160MM 6 7/8" Long Arm Part Number C2011 - Clamp Washer Part Number C2012 Brootom Back Plastic Shim Part Number C2013 DIE CAST BRACKET WITH ARM STAINLESS STEEL CONNECT ARM NOTCHED OUT  -Roto operator bracket 5 3/8"

    53 in stock

    $ 35.00

  • S1039 - Ashland Optima Dyad Split Arm Casement Window Operator. Left Hand Part Number S 1491-565, S1-1491-60; W1497-500, 2003589

    Ashland S1039 - Ashland Optima Dyad Split Arm Casement Window Operator

    18 in stock

    Part # S1039  Optima™ Standard Dyad Operator For Casement Windows - Ashland Hardware Systems Operators are Handed: Left Hand and Right Hand. Please verify handing by comparing our labeled pictures to your operator.  Recommended Cover and Handle Sold Separately:  Part # S1043 Ashland Evolution Cover and Handle Part # C2001 Expressions Cover and Handle Recommended Fasteners: #8 x 3/4" SS Phillips Pan Head Per Manufactures Specifications Typical Standard Dyad Operator Application For Window Sizes 15 ½" [393 mm] to 24" [609 mm] Known Part Numbers: S 1491-565; S1-1491-60; S1491-665; W1497-500; W1497-600; 2003589; 2003590 Corresponding Parts Sold Separately:  Part # S1043 Ashland Evolution Cover and Handle Part # C2001 Expressions Cover and Handle Part # S1069 Ashland Casement and Awning Standard Operator Sash Brackets SST   Known Brands: Cascade Windows and Many Other Window Manufactures

    18 in stock

    $ 70.00

  • C2005 SX Interlock Friction Hinge Set For Casement and Awning Windows. Known Part Number: 12C-IS23, 28-135C,  C2005 Known Part Numbers: 12C-IS23, 12C-IS23 RE, Interlock 12C-IS23 RE, XS Interlock 12C-IS23 RE, Interlock WORLD/PATS P1090 AI

    Roto C2005 SX Interlock Friction Hinge Set For Casement and Awning Windows

    31 in stock

    Part Number: C2005 XS Interlock Friction Hinge Set For Casement and Awning Windows Comes with Qty 2 hinges- 1 Left and 1 Right for Awning windows or 1 upper and 1 Lower for Casement Windows. (No screws included) Known Brands: Interlock, Roto, Cascade, Milgard, Ply Gem Known Part Numbers: 12C-IS23, 12C-IS23 RE, Interlock 12C-IS23 RE, XS Interlock 12C-IS23 RE, Interlock WORLD/PATS P1090 AI This hinge is to be used in conjunction with part # C2002 Interlock Roto Operator and many more.  Follow Related Parts Are Sold Sold Separately: Part Number C2002 -  Roto America Interlock Casement Split Arm Operator Part Number C2003 - Roto Interlock Non Folding Handle 5/16 Inch Hex Casement Awning Part Number C2004 - Roto America 5/16 Inch Hex Casement and Awning Folding Crank Handle Part Number C2005 - SX Interlock Friction Hinge Set Cascade Casement Awning Windows Part Number C2006 - 4-1/8 Inch Black Top Spacer - Interlock Roto Part Number C2009  - Interlock Connect Arm w/ modified Clip 160MM 6 7/8" Long Arm Part Number C2011 - Clamp Washer Part Number C2012 Brootom Back Plastic Shim Part Number C2013 DIE CAST BRACKET WITH ARM STAINLESS STEEL CONNECT ARM NOTCHED OUT  -Roto operator bracket 5 3/8"

    31 in stock

    $ 60.00

  • Replacement  Operator Folding Crank Handle for Amesbury Truth 11/32 Spline Operators  Known Part Numbers: Truth, 45393, U.S. PAT. 351490, 5560082, 131, Truth 3,

    Amesbury Truth 131 Amesbury Truth Folding Handle for Casement and Awning Operator 11/32 Inch Spline

    161 in stock

    Part Number: 131   Folding Crank Handle for Amesbury Truth 11/32 Spline OperatorsColors: Aluminum, Beige, Black, Bright White, Bronze, Chestnut Bronze, Clay, Faux Oil Rubbed Bronze, New Goldtone, Tuscan Bronze White  Special order Colors: Goldtone, Oil Rubbed Bronze, Bright Brass are a non returnable item- no returns for these items Large Quantities Order: orders with QTY 50 or more are special order items no returns or order cancellations.  Related Parts: Part # 101 Truth Maxim Dual Arm Casement Operator Part # 102 Truth Maxim Split  Arm Dyad Casement Operator Part # 209 Truth Maxim Awning Operator  Part # 111 Truth Ellipse Style Split Arm Dyad Casement Operator  Part # 105 Truth Ellipse Style Straight Arm Casement Operator  Other Amesbury Truth Operators  Part # 131 Folding Handle was primarily used on Part # 101, 102 and 209 Truth Maxim casement and awning operators). Replacement part for Hurd Casement and awing window operators Vintage Classic Style: 02/02/1998 - 9/17/2007. Also used on many other window brands that use Truth Hardware  Known Part Numbers: Truth, 45393, U.S. PAT. 351490, 5560082, 131, Truth 3, 037189, 037188, 091691, 11329-32, HCSE31, A3-2104, A4-2149, A4-2150, A4-2147, A4-2148, 00-0000  Replacement Parts for: Hurd, Semco, Marvin, Cascade, Caradco, BiltBest, Milgard, Sierra Pacific, Vetter, Allsco and more. Updated 7/24/23

    161 in stock

    $ 27.00 - $ 145.00

  • S1043 Ashland Evolution Cover and Handle Kit for Casement and Awning Window Operators Known Part Numbers: P-1490-00, SUP-37675, SUP-37674, 1920071, W1490-700A-KY6, 1920093, W1490-800A-KY6 Known Part Number On Back Side of Cover: P-1490-100, P1490-200

    Ashland S1043 Ashland Evolution Cover and Handle Kit for Casement and Awning Window Operators

    127 in stock

    Part number: S1043 Ashland Evolution Cover and Handle Kit for Casement and Awning Window Operators (operator sold separate see associated parts list below)   Stock Colors: White, Beige or Pontiac Gold Handing: Left Hand Or Right Hand To determine handing Match up your window operator or cover and handle kit to our pictures  Remove cover and handle from operator on the underneath side of the cover is L for "left hand" or R for "Right hand" stamped on the cover. Left hand is used with Gold colored spline on operator  Right hand is used with Sliver colored gear spline on operator  Known Manufacture Discontinued Colors: Bronze/Dark Bronze Manufacture Installation Instructions:  Make sure window is closed and locked. Than position handle to fold correctly onto cover. Last open handle and tighten set screw. Product Note: Both Evolutions S1043 and Expressions C2001 handle and cover kits can be used on same operator system interchangeably. Known Part Number On Back Side of Cover: P-1490-100, P1490-200 Known Part Numbers: P-1490-00, SUP-37675, SUP-37674, 1920071, W1490-700A-KY6, 1920093, W1490-800A-KY6 Associated Parts Sold Separately:  C2000 Ashland Optima Dual Arm Casement Window Operator S1039 - Ashland Optima Dyad Split Arm Casement Window Operator Manufacture Installation Instructions:  Make sure window is closed and locked. Than position handle to fold correctly onto cover. Last open handle and tighten set screw.

    127 in stock

    $ 30.00

  • C1035 Amesbury Truth Gemini II  PD Dual Action Mortise Lock with Flat face plate   (PAT#: 6,264,252  - PAT # : 5.820.170) 2815 SERIES and 2817 SERIES = 2777 LOCK + 2448 PLATE

    Amesbury Truth C1035 Amesbury Truth Gemini II PD Dual Action Mortise Lock

    19 in stock

    Part Number C1059 C1035 Amesbury Truth Gemini II  PD Dual Action Mortise Lock with Flat Trim Plate  (PAT#: 6,264,252  - PAT # : 5.820.170) 2815 SERIES and 2817 SERIES = 2777 LOCK + 2448 PLATE The Gemini II 2-point mortise locks has set the standard for 2-point locking in the sliding door industry. Gemini II locks are compatible with all industry standard handle sets and features opposing hooks that can be adjusted individually for proper keeper engagement. We offer a variety of keepers that are compatible with the Gemini II 2-point lock system to accommodate any application. There is also a “keeper locator” available to help ensure proper operation of the lock and keeper. The Gemini II lock has been built to help customers meet industry standard forced entry requirements with the ability to withstand 1,500 pounds of force. The lock also features an anti-slam pin that prevents damage to the door or locking system hooks by not allowing the hooks to extend unless the door is closed against the frame. Product Highlights: Recommended for:  aluminum, composite, vinyl, and wood Lock can withstand up to 1,500 lbs. of forced entry Hooks oppose one another to prevent panel lift Individual adjustment of hooks Anti-slam button to prevent false lockup Faceplate options to fit any application Steel and stainless-steel material options Keepers available in various heights and material choices Lock actuator is centered for 3-hole machining or offset by ¾ inches for 4-hole machining Keeper Locator available to ensure good alignment between the lock and keeper in the application Same Style Mortise Box with Different Face Plate Part Number: 558 Amesbury Truth - Gemini II PD Dual Action Mortise  Lock With Recessed Faceplate  - 2 Point - For Sliding Patio Door

    19 in stock

    $ 35.00 - $ 45.00

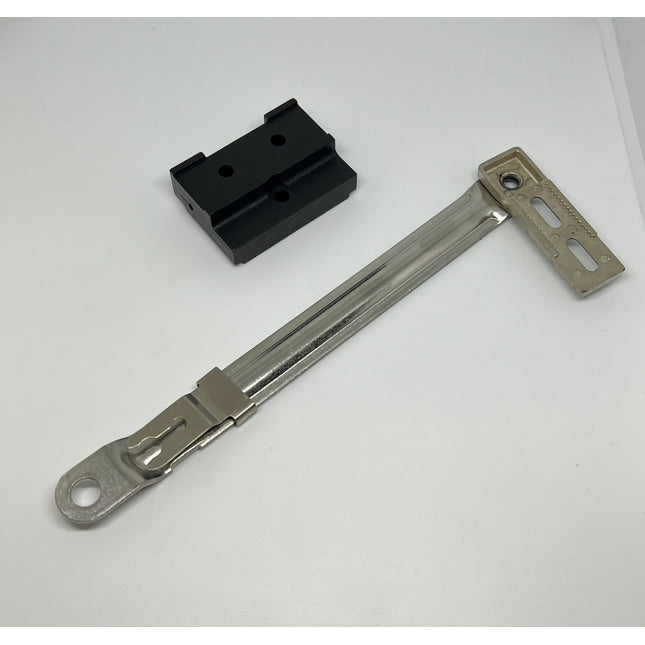

  • Last stock! C2009 - Interlock Connect Arm w/ modified Clip 160MM. Part number C2009, 39-791

    Interlock C2009 - Interlock Connect Arm w/ modified Clip 160MM

    1 in stock

    Part Number: C2009  Interlock Connect Arm w/ modified Clip 160MM Size: 6 7/16" Long Arm Following Related Parts Are Sold Separately: Part Number C2002 -  Roto America Interlock Casement Split Arm Operator Part Number C2003 - Roto Interlock Non Folding Handle 5/16 Inch Hex Casement Awning Part Number C2004 - Roto America 5/16 Inch Hex Casement and Awning Folding Crank Handle Part Number C2005 - SX Interlock Friction Hinge Set Cascade Casement Awning Windows Part Number C2006 - 4-1/8 Inch Black Top Spacer - Interlock Roto Part Number C2009  - Interlock Connect Arm w/ modified Clip 160MM 6 7/8" Long Arm Part Number C2011 - Clamp Washer Part Number C2013 DIE CAST BRACKET WITH ARM STAINLESS STEEL CONNECT ARM NOTCHED OUT  -Roto operator bracket 5 3/8"

    1 in stock

    $ 35.00

  • C2003 Roto Interlock Non Folding Handle 5/16 Inch Hex Cascade Casement Awning Window. Color White. Part Number P4601, 37-157W, C2003Known Part Number: C2003, P4601, 7-1849BW

    Roto C2003 Roto Interlock Non Folding Handle 5/16 Inch Hex Casement Awning Window

    44 in stock

    Part Number: C2003  Roto Interlock Non Folding Handle 5/16 Inch Hex For Casement Awning Window Operator Crank  C2003 Non folding is the old style and no longer available to order in all colors. Replacement new style is C2004 Folding Style and is available in multiple colors  C2003 Non Folding Colors Available: Blue White (white is on back order from the factory as of 6/7/22) C2004 Folding Colors Available: White, Blue White, Euro White, Almond and Clay - to order please to go C2004 product page  How to tell white colors apart: When you have the handle on white copy paper the Euro White has a yellow hue compared to the paper, Bright White matches the color of the copy paper and Blue White has a blue tint compared to the paper. (Note the above is from comparing brand new handles. The sun can fade, change and yellow colors over time, if your handles are older try to use a handle that does not get direct or intense sunlight).  Brand: Interlock, Roto, Cascade, Milgard Follow Related Parts Are Sold Sold Separately: Part Number C2002 -  Roto America Interlock Casement Split Arm Operator Part Number C2003 - Roto Interlock Non Folding Handle 5/16 Inch Hex Casement Awning Part Number C2004 - Roto America 5/16 Inch Hex Casement and Awning Folding Crank Handle Part Number C2005 - SX Interlock Friction Hinge Set Cascade Casement Awning Windows Part Number C2006 - 4-1/8 Inch Black Top Spacer - Interlock Roto Part Number C2009  - Interlock Connect Arm w/ modified Clip 160MM 6 7/8" Long Arm Part Number C2011 - Clamp Washer Part Number C2012 Brootom Back Plastic Shim Part Number C2013 DIE CAST BRACKET WITH ARM STAINLESS STEEL CONNECT ARM NOTCHED OUT  -Roto operator bracket 5 3/8" Known Part Number: C2003, P4601, 7-1849BW

    44 in stock

    $ 0.00 - $ 35.00
