Sliding Patio Door Handle Set & Parts
Fasco Vanguard S3005 - Sliding Patio Door Handle - For Vinyl and Wood Sliding Door - Fasco and Vanguard
Part Number: S3005 Sliding Patio Door Handle with mortise latch with upper body thumb turn - For Vinyl and wood Sliding Door Handing: Left Hand Or Right Hand (see pictures or watch video below to determine what handing you need). Color: White or Beige Dimensions: 4" Screw Hole Spacing Interior Handle Dimensions: 9 7/8" Long X 1 1/4 Wide Exterior Handle Dimensions: 7 7/8" Long X 1 1/8" Wide Mortise Lock Box Dimensions: 8" Long X 9/16" Wide X 1 3/8" Deep - See product note about this mortise lock box and keeper Product Note: S3005 comes with Vanguard mortise lock Box (locking mechanism) and keeper as shown in pictures, factory drawing and video. S3005 is a kit from the factory, We can not piecemeal parts as the S3005 is a kit and always sold to us with the mortise box and keeper as shown, we can not order just the handle without a keeper or mortise lock box. It has come to our attention some door manufactures did not use Vanguard mortise lock box and keeper in this kit but other styles. If your door has a different mortise lock and keeper you may need to reuse your existing one. Some customers door had C1035 mortise lock box and S3016 Keeper. (see links below for product page to compare to yours if you need the S1035 and S3016 you will need to order them with the S3005 kit) Associated parts Sold Separately: C1035 Amesbury Truth Gemini II PD Dual Action Mortise Lock S3016 - Dual Hook Strike Keeper for Sliding Patio Door Replacement parts: If you would like to order just the Vanguard Mortise lock book and keeper only please see part # S3009 No other replacement parts are available you must purchase a compete new Handle set, the factory does not sell any other parts separately. Known Part Numbers and Brands: Fasco and Vanguard. PO# 31729, Pat.# US6672632, VA-3200115, V Series 915 Mortise Handle. Used on Mercer Sliding Patio Doors and many other vinyl and wood sliding patio doors. This patio door handle set is a Multi-Point lock set that comes with a White or Beige Left Handed or Right Handed inside handle and an upper body thumbturn. The inside handle mounts onto a mounting bracket that is installed onto the door. The outside handle is a White or Beige Diecast pull that can be keyed with the E 2000 cylinder. This set is often used on Vinyl or Wood patio doors. The set comes with a unique keeper and Multi-Point Lock. Material: Diecast Finish: Powder Coated Color: White or Beige Hole Center to Center: Multiple Hole Center Latch Style: Mortise Style Handle Type: Surface Mounted Key Option handles come standard as Non Keyed (door can only be locked or unlocked from the inside) For Keyed add add part number 830 to order: (Door can also be locked and unlocked from the outside with key) For Keyed Alike (for 2 or more handle sets ordered and can used the same key)add part number 830KA to order keyed alike Pro Tip for keyed handle sets only: If after you tighten the handle and the dead bolt won’t lock or unlock or really hard to turn, the tail part is too long and needs to be snipped down. See directions in pictures above. Grooves are on tail part to be snipped down so it can be used on multiple thicknesses of doors.
$ 155.00
-
Amesbury Truth C1035 Amesbury Truth Gemini II PD Dual Action Mortise Lock
Part Number C1059 C1035 Amesbury Truth Gemini II PD Dual Action Mortise Lock with Flat Trim Plate (PAT#: 6,264,252 - PAT # : 5.820.170) 2815 SERIES and 2817 SERIES = 2777 LOCK + 2448 PLATE Use with Keeper Part Number C1059 or C1061 Known Associated Parts Sold Separately: Part Number: C1059 Amesbury Truth PD GEMINI KEEPER 2-3 panel Part Number : C1061 Truth Keeper Part Number C1024 Patio Door Handle Set - Used on Cascade Vinyl Patio Door Cascade and WinPro Series. Part Number S3016 Dual Hook Strike Keeper White Part Number: S3010 - Offset Latch Handle Set For Sliding Patio Doors Part Number S3017 - Center Latch Handle Set for Sliding Patio Doors Same Style Mortise Box with Different Face Plate Part Number: 558 Amesbury Truth - Gemini II PD Dual Action Mortise Lock With Recessed Faceplate - 2 Point - For Sliding Patio Door
$ 35.00 - $ 45.00
-
Amesbury Truth S3019 - Patio Door Handle Thumb Turn Replacement Kit With Full Tail Amesbury Truth
Part Number S3019 Patio Door Handle Thumb Turn Replacement Kit With Full Tail Amesbury Truth Available colors: White, Black, Bronze, Brushed Chrome, Antique Brass Discontinued Color No Longer Available: Almond Replacement part for handle set S3010 and S3017 other Amesbury Truth handle sets
$ 25.00 - $ 45.00
-
Amesbury Truth 516 - W&F Upgrade Handle Handle Set Brass and Wood Handle - See Description to Order Replacement Option
516 - W&F Upgrade Handle (Brass and Wood) Is No Longer Available. Use replacement options below. How to order replacement handle set - please read all instructions below, view pictures and watch our how to videos before you place your order! Verify you have the "A" screw hole position on your W&F mounting plate (see picture) Please watch videos below! Pictures and video show a Hurd Classic Sliding Patio Doors that Used W&F Brass and Wood handle Set. If you find you have the "B" Screw Hole Click Here Parts to order: 1. Handle set: Part Number 522 Handle Set offset latch for "A" Screw Hole Position. Your choice of function: Non keyed, Keyed or Dummy - see additional details for faction explanation. 2. Mortise Lock: Remove your mortise lock from your door to see what you have! The W&F handle set used a 90 degree cylinder which does not work with the 522 handle set. You will need to replace the mortise lock box with a 45 degree cylinder mortise lock box. Depending on your door manufacture you need one of the following # 518 Gray cylinder 45 degree (Hurd Brand Doors and others) # S3007 45 Degree (other brand doors) #S3011 45 Degree (other brand doors) If your mortise lock box does not look like any of the above please email us picture's before you place your order so we can help you find the correct parts. 3. Binding Post Screw - as shown in the how to video the 522 handle set is not as long as the old W&F handle set you are replacing. You will have to fill the top screw hole that will be left over from the old handle set. Easiest solution to this is to use a Binding Post Screw. Part# 546 - your choice of finish 4. White Shim - as shown in how to video you door thickness may require a shim. Shim is known to be needed on Hurd Doors Part Number: 522SHIM Additional Info: 522 Handle Set Function Explanation: Non-Keyed: Means you can lock and unlock your door only from the inside with the lock latch. But you can NOT lock or unlock from the outside. Most Colors are a stock item. Keyed: Keyed Means you can Lock and Unlock your door from the inside using the lock latch AND Lock and Unlock your door from the outside using a key. Most Colors are a stock item. Shafts for the keyed lock may need to be cut depending on your thickness of door your have. Otherwise handle will be loose on your door (see instructions that come with the handle set that is also pictured above). If you want to avoid the possibility of having to cut the shafts order the NON KEYED version. (see trouble shooting install at bottom of page for more details on cutting shafts) Dummy: No Locking or unlocking capability. Used mostly on 4 wide doors where 2 panels operate. Dummys are mounted on the secondary door. Dummy Handle set DO NOT need new Mortise lock as there is no locking feature! Trouble Shooting Install:If when using they keyed handle set and the turn lever for the lock and the turn lever for the keyed cylinder are hitting and pushing each other out of the the latch: This could be because you have the french style Hurd door and the panel is a different thickness. What you will need to do is cut the shafts so they both can fit into the mortise lock and the handle set can be screwed down tightly. Easiest is to put on the outside handle in place and mark the shaft where it comes through. Take it off and do the same for the inside handle. Then you can cut just shy of that mark on both shafts and then they should meet in the middle. Double check your marks so you cut on the correct side and don't cut too short. This handle set is made as a replacement option for many door thickness which is why you get multiple length screws and can cut the shafts to fit. If you want to avoid doing this all together order the non keyed version. See instructions that come with the handle set that is also pictured aboveNever use power tools when installing handle sets you run the risk of stripping out the screws. Known Part Numbers On W&F Handle : P/N 120-50, PAT. # 5,092,114 Mounting Plate Known part Numbers: 011771, P/N 120-60; PAT. # 5,092,144 If your mounting plate and handle uses the "B" Screw Holes See Part Number S3006 Replacement Kit
$ 0.00
-

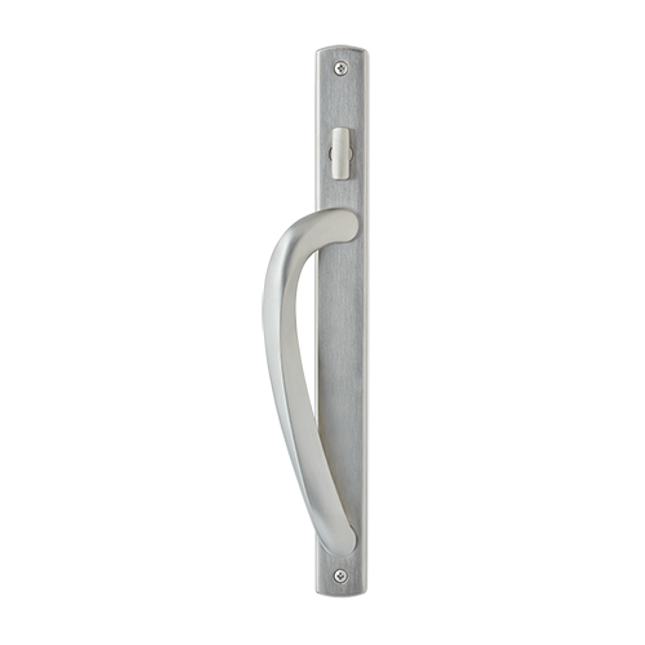

AmesburyTruth 544 -AmesburyTruth Signature Style Handle Set Two Point Locking For Sliding Patio Door
Part Number 544 Amesbury Truth Signature Style Handle Set Two Point Locking For Sliding Patio Door Signature Style Handle Set 40.94 and 40.68- Truth (mortise lock box and keeper not included) Model: Standard 40.94 - contour shape which is both elegant in style and easy to grasp. Contemporary 40.68 - sleek modern design resulting in a contemporary look that is sure to compliment your door system. (If replacing 40.68 on existing door with 40.94 with dual mortise lock you will need to purchase Contemporary style keeper sold separately) Style: Active with key - handle set comes with 2 keys and keyed cylinder, for exterior locking and unlocking capability. Dummy - for 4 wide sliding patio doors, secondary panel. no locking capability. Product Used On Hurd Energy Saver Sliding Patio Door. Direct replacement for Old style Energy Saver Handle Set #501Special Order Item - No Returns - lead time 2-3 weeks.NOTE: Part # 501 Handle set that is a Truth part and used on Hurd Energy Saver Sliding patio doors was used up until about February 2014. The Current handle set is called their Signature Style #544 and is slightly different from the #501. However they are interchangeable and # 544 will work on your door. Some staining or touch up may be required but screw holes are the same. Related Product Sold Separately: Mortise Box and Keeper for Old Style 501 Handle Set: Used with Part # 555 - Amesbury Truth 2 Point Recessed Mortise Lock & Keeper Kit Current Style Mortise box part number 558 Current Style Keeper Part Number C1059 40.94 Contemporary style keeper sold separately
$ 149.99 - $ 389.99
-
Amesbury Truth SS30002 - Amesbury Truth 2998 Series Bottom Lever Mounting Flushmount Sliding Patio Door Handle Set
Amesbury Truth 2998 Series - Part Number SS30002 Bottom Lever Mounting Flush mount Sliding Patio Door Handle Set Comes with everything shown in picture. Mortise Lock Sold Separately - See Part Number SS30000. Non Handed Sliding Patio Door Handle - NON Keyed fits 3 15/16” hole centers Color: White Beige Chestnut Bronze White Interior with Black Exterior handle White Interior with Chestnut Bronze Exterior Handle Beige Interior with Chestnut Bronze Exterior Handle Measurements: Inside Lever Black Plate Dimensions: 7 15/16" Long X 1" Wide Screw Hole Dimension Center to Center on face plate: 3 15/16" Patented is stamped on the back of the inside door handle. Known Brands: Amsbury Truth Hardware, 2998 Series, SuperSeal, Sierra Pacific Vinyl and Hurd Vinyl and more. VINYL 8000/8500 SERIES SLIDING PATIO DOOR (V-SPD) Known Part Number: 2998, ZZ00085870, ZZ00085869 Associated Parts Sold Separately: Part Number: SS30000 - Mortise Box Door Lock For Sliding Patio Door Part Number: C1035 - Dual Action Mortise Lock Box Gemini II Part Number: S3012 Double Point Mortise Lock Box Part Number: 1059 Keeper Gemini II
$ 75.00 - $ 125.00
-
Hoppe SP40001 - Hoppe Thumb Turn Shaft Bushing Washer and Spindle Fork Thumb Turn ShaftKit
Part Number: SP40001 Hoppe Thumb Turn Shaft Bushing Washer and Spindle Fork Thumb Turn Shaft Replacement part for: For Hoppe HLS 9000 Multipoint Sliding Door handle Crescent Thumb Turn Sliding Patio Door handle Set (not included) Style: Shaft Only STOCK or Kit SPECAIL ORDER What's Included In Shaft Only 1 Shaft What's Included In Kit( SEPCAIL ORDER NO RETURNS): 1 Bushing 1 Washer 1 Spindle Fork Thumb Turn Shaft (also called Thumbtrun Shaft Coupling) To Have Been Used on: Hoppe HLS 9000 Genoa and Verona, Sierra Pacific CA Sliding Patio Doors Known Part Numbers: HPS2070803BU / HPS2080737WS / HPS2061421SP To Install: Remove Handles trim from door. Remove the set screw from the Crescent Thumb Turn Replace the shaft Bushing, Washer and Spindle Fork Reattach Crescent Thumb Turn with set screw (set screw will insert into hole opposite side of the prong fork end of the spindle). Reinstall handles set trim Hoppe HLS 9000 Multipoint Sliding Door handle Installation Instructions (you will be redirected to Hoppe website) Accessories Sold Separately: Crescent Knob Cylinder Knob Set Screw HLS 9000 Sliding Door Hardware
$ 9.00 - $ 15.00
-
Cascade C1024 - PD1530 Vinyl Patio Door Handle Set
Part Number C1024PD1530 Patio Door Handle Set Kit comes with everything you need for one complete new handle.You have the option to order for this handle set. Non-keyed or Keyed (Keyed version is shown in picture and is not a stock item and will be special order item no returns or exchanges).Handle Sets can be handed for either style door XO or OX operation - Handle set is reversible to use on both handing's based on where you place the lock latch.Non Keyed Kit Comes with the following: 1 Handle set, 1 Keeper, 1 mortise lock, all screws needed and screw caps.Keyed Kit Comes with the following: 1 Handle set with hole for cylinder, standard Keeper, standard mortise lock, all screws screws and 2 screw caps, 1 keyed cylinder, and 2 keys. (Keyed version is shown in picture and is not a stock item and will be special order item no returns or exchanges).Handle Set for Winpro and Cascade Sliding Patio Door.Handle set is reversible to use on both handings by where you place the lock latch.Colors: White, Almond or ClayLead Time Can Be 2-3 week for this handle set. Known Part number on interior handle stamped on back side: PD1530-04 Associated parts Sold Separately Replacement keyed Cylinder see part number C3036 Replacement Upgrade Dual Action Mortise Lock Part Number C1035 Replacement Upgrade Amesbury Truth PD GEMINI KEEPER 2-3 panel(DUAL MORTISE) Part Number C1059
$ 55.00 - $ 110.00
-
Truth S3010 -Truth - Amesbury Olympus Handles Offset Latch Handle Set For Sliding Patio Doors
Part Number: S3010 Free standard shipping on all orders - no minimum (USA only). Amesbury Truth - Olympus Handles For Gliding Doors Offset Latch Handle Set For Sliding And Gliding Patio Doors This is handle set only (the internal mortise lock box is sold separately as many different ones are used with this handle set. It depends on what the door manufactured used on the door see associated products) Non Keyed Style Comes In Colors: White, Black and Brushed Chrome (non keyed is where you can lock on unlock the door only from the inside) Keyed Style Comes In Colors: White or Black - Includes keyed cylinder and 2 keys. Other Info: Used on vinyl, composite, wood and aluminum doors Compatible for style thickness from 1 1/4” - 2 1/4” Known Manufactureres: Jeld-Wen doors and doors with stamp JW on handle set and many other door manufacture Associated Products Sold Separately: Part Number: C1035 Dual Point Mortise Lock Box Part Number S3012: Double Point Mortise Lock Box Part Number S3019: Thumb Turn Replacement Kit With Full Tail Part Number S3017 For Olympus Center Latch Style Handle Set
$ 110.00 - $ 160.00
-
R&R Windows & Doors S3012 - Double Point Mortise Lock For Sliding Patio Doors
Part Number: S3012 Double Point Mortise Lock For Sliding Patio Doors current style: direct replacement for old style. And has cylinders in both the top on bottom positions to to be used for multiple different handle set (see pictures) Known Associated Products Sold Separately: Part Number: S3010 - Offset Latch Handle Set For Sliding Patio Doors Part Number S3017 - Center Latch Handle Set for Sliding Patio Doors
$ 75.00
-
Amesbury Truth C1059 Amesbury Truth Gemini II Lock PD GEMINI KEEPER 2-3 panel(DUAL MORTISE)
C1059 Amesbury Truth PD GEMINI KEEPER 2-3 panel(DUAL MORTISE) Part Number: C1059 Dimensions: 5/8 inch wide x 10 7/8 inch long x 1/2 inch deep Style: Standard made of Zink or Coastal is non corrosive Stainless for Coastal or wet applications Used on Cascade Patio Door PD GEMINI KEEPER For 2-3 panel (Used with DUAL MORTISE Lock) and Sierra pacific and Hurd Sliding all wood and wood clad patio doors Associated parts Sold separately: Part Number C1035 Mortise Lock with Flat face plate Part number 558 Mortise lock with recessed flat plate Use with Mortise Lock Box (PAT#: 6,264,252 - PAT # : 5.820.170) 2815 SERIES and 2817 SERIES = 2777 LOCK + 2448 PLATE Known part number ADH-7007-00 2447 Keeper and ADH-3007-87 2447 Keeper
$ 25.00 - $ 35.00
-
SuperSeal SS30000 - Mortise Box Door Lock For Sliding Patio Door
Part Number SS30000 Mortise Lock Has been used for SuperSeal Sliding Patio doors and other door manufacturer brandsFace Plate Dimensions: 3/4" Wide X 6 1/16" Tall Mounting Screw Holes: 4 11/16" Center to Center of Holes Can be used with Part number SS30003 Handle Set (Sold Separately) Known Brands: Amsbury Truth Hardware, 2998 Series, SuperSeal, Sierra Pacific Vinyl and Hurd Vinyl and more. VINYL 8000/8500 SERIES SLIDING PATIO DOOR (V-SPD)
$ 25.00
