Part Number: 1172 - 1 1⁄2” x 11” Brass Plates, Concord Style - For Semi-Active Door EMTEK MULTI POINT LOCK TRIM DOOR CONFIGURATION 1 3 5/8" Center-to-Center (see diagram) Non-Keyed, Passage - For Semi-Active Door NOTE! - This is for Configuration style 1 doors only. Read all information below and review all diagram drawings and pictures before you place you order to confirm this trim handle set will work with your door. Made to order - allow 1-3 week lead time - no returns or order cancelations - pricing includes factory shipping costs Reference: Atrium®, G-U®, KML by Andersen®, Andersen®Marvin Integrity®, Paddock Lockmaster™, Superior® - see diagram to confirm this will work for your door. Each Multi Point Lock Trim now includes the Spring Assist functionwhich returns the lever to the neutral position and eliminatessagging handles. Handing Required (see diagram!!!) • Key codes may be specified. Fits standard door thickness of 13⁄4”. Specify if thicker in check out order comments.• Set includes plates, handles and cylinders (where applicable). Multi Point lock mechanism is not included. Finish: Polished Brass - Lifetime (US3) French Antique (US7) Oil Rubbed Bronze (US10B) Satin Nickel (US15) Pewter (US15A) Flat Black (US19) Polished Chrome (US26) Unlacquered Brass (US3NL) - Email for quote Style Lever: See Lever Options Picture see and choose your lever style - if lever option is not available for you to choose please email us what you would like and if available we will email you custom quote/invoice to order. Handle set trim could be longer then your original handle trim and a new screw hole may need to be drilled see diagram for Door Configuration 1 for screw hole placement. California Residents Proposition 65 Warning Same Style Handle Set with Other Operation Options: Part Number 1171 - Keyed with American Cylinder (Can lock or unlock door from inside and outside - comes with keys) Part Number 1172 - Non-Keyed Passage (NO LOCKING CAPABILITY) Part Number 1173 - Non-Keyed American Style Thumbturn Inside (can ONLY be locked or unlocked from the inside NO keys) Part Number 1174 - Non-Keyed Fixed Handle Outside, Operating Handle Inside (NO LOCKING CAPABILITY) Part Number 1175 - Dummy Pair ( Fixed - NO locking or door operation capability)

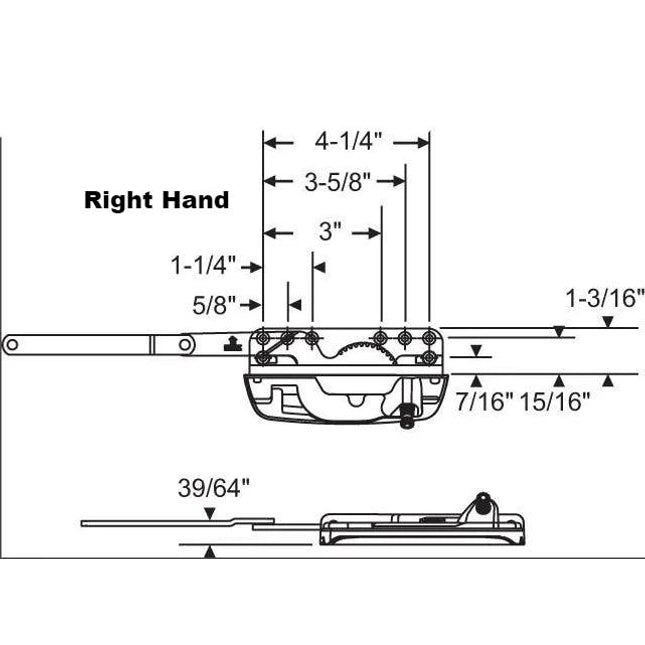

Part Number: 147 Amesbury Truth Encore Sill Mount Casement Operator - Reverse Dyad Arm style 50.60 The Encore series Dyad operator is designed for narrow windows and will operate sash size form 16" to 32" Wide , up to 72" Height and weighing up to 55 lbs. Handing Left Or Right - View pictures to determine that handing you need to order. 147 is the Operator Only read pro tip below - You will need to purchase the cover and handle kit part number 137 sold separately. Pro Tip: Please note these operators are used on narrow windows and are called reverse dyad. So it’s going to seem confusing but for example if your operator is a right hand operator it will will need a left hand cover and handle kit. Handing designation is determined by the manufacturer see Amesbury Truths product tips in pictures Manufacture Details: Encore Operators give you all the strength and performance characteristics of Maxim, but with the flexibility of a snap-fit cover and streamlined full-flip folding handle that eliminates collapse during operation. Encore Operators require 33% less effort to operate than previous operators and are designed to use the same mounting location as the Maxim system. Stainless steel components are available for coastal applications. These operators complement the Encore Multi-Point Locking System. Recommended Screws: (Qty 6) 8 X 1 Flat Head Sheet Metal Screw (Qty 2)For Rear Mount: #8-32 X 3/8 Pan Head Machine Screw Associated Parts Sold Separately: Part Number: 137 Encore Folding Handle and Cover Kit Manufacture Tech Note: Proper Installation of an Operator Cover & Nested Folding Handle. When installing the cover and handle on the operator you should follow theseinstructions:• Snap the cover onto the operator base.• Place the handle onto the spline of the operator and rotate the handle to closethe window.• Lock the window in place.• Rotate the handle Ľ turn back (towards opening direction) to reduce thepressure on the operator.• If the handle needs to be positioned in a nested cover you can remove thehandle at this time and re-position it so that it will rest correctly in the nestedcover.• Tighten the set screw on the handle.• Unlock the window and cycle the sash open and closed until the handle returnsto the starting position whereby there is no additional torque required to close the sash. Note: the sash should travel to a point that the lock can easily engageand seal the window.• If the window does not come all the way into the closed position, and more forceis required on the operator to close the window, you will need to review thewindow for the following; sash sag; racked window; lock points that are notproperly aligned; or hinges not installed correctly. These issues should becorrected prior to repeating the installation of the handle onto the operatorspline.Placing the operator and the handle under high stress and abusive loads can causepermanent failures to the handle or operator as the window is repeatedly opened andclosed. Known to be used on Hurd Windows narrow Casements 9/19/05 to Present, Anderson Windows 100 Series and many other window brands Known part number: 147, 36-371EN, 36-372EN
R&R Windows & Doors 215 Manual Window Wand For Clear Story Windows
Part Number 215 Manual Window Wand For Clear Story Windows Special Order Item - NO RETURNS or Order Cancellations - Estimated Lead time 2 - 3 weeks can be longer. Put those operable clearstory windows to energy-saving use with our clerestory extension crank. High mounted windows are excellent for capturing light while providing privacy, but they can also be “excellent” heat traps. It is now possible to vent the heat that rises to these areas as easily as opening any other window in the home.It’s inexpensive and can easily retrofit to existing or new window installations. By simple removal of the existing crank handle and replacement with an adapter (see Hex-Bolt part number 216 and 217 sold separately) the crank will open and close any operable clerestory window. It is not necessary to replace the current operator. Remember that you will only need one clerestory crank to operate all windows at the same height. Color: natural anodized aluminum Size: is the length of the Wand or Crank Length. (see Chart below) Styles available: Sill Mounted or Jamb Mounted (see picture or video) You must buy corresponding adapter to use wand (sold separately) . See part # 216 or # 217 Don't know what size to order? Distance from floor is the measurement from the floor to the window. Example if the distance from the floor to the window is 7' then its advised to get a 3' wand or Crank length. See Chart Below for factory recommendations on length. Chart: Distance From floor 7 foot = Factory Recommends 3 foot Crank LengthDistance From floor 8 foot = Factory Recommends 4 foot Crank LengthDistance From floor 9 foot = Factory Recommends 5 foot Crank LengthDistance From floor 10 foot = Factory Recommends 6 foot Crank LengthDistance From floor 11 foot = Factory Recommends 7 foot Crank LengthDistance From floor 12 foot = Factory Recommends 8 foot Crank LengthDistance From floor 13 foot = Factory Recommends 9 foot Crank Length (KD)*Distance From floor 14 foot = Factory Recommends 10 foot Crank Length (KD)*Distance From floor 16 foot = Factory Recommends 12 foot Crank Length (KD)* *KD = Knocked Down (wand shipped in 2 pieces and you have to screw them together). Parts sold separately: Part Number 216 - Crank Handle Adapter for ClereStory Windows "Female" Part Number 217 Clear Story Manual Window Wand Crank Adapter "Male"
$ 204.00 - $ 380.00
S1047 - Andersen Sill Mounted Casement Operator 9 3/8" Straight Arm operator only handle sold separately see below link. Color: Silver Satin Handing L or R Stamped on top of the Operator Arm to determine handing. Dimensions: Arm 9 3/8" Long" Special order item - no returns - Allow 2-3 weeks for your operator to arrive. Andersen windows manufactured from 1965 to 1974 Operator has a black nylon shoe Known Brand: Andersen Windows Known Part Number: S1047, 7095 750-1360012, 750-1361088 Associated parts Sold Separately: S1049 Andersen Casement and Awning Operator Handle
Part Number: S1049 Andersen Casement and Awning Operator Handle Color Sliver Satin 3/8" spline, Plastic knob, Set Screw 3/16" # 10-32 Special order item - no returns - Allow 2-3 weeks for your operator to arrive. Used on Andersen 400 Series casement (1966 to 1995) and awnings (1966 to 1996) and wood awning windows Associated Parts Sold Separately: S1047 - Andersen Sill Mounted Casement Operator 9 3/8" Straight Arm
Part Number: S1053 - 14 Inch Arm Replacement Operator Crank For Andersen Casement Windows Andersen Casement Straight Arm Crank Perma Shield Enhanced corrosion resistant. Comes with: 1 Operator, 5 Screws and 1 Adapter Plate (S1059). Handing: Left hand or Right Hand Color: Standard (in stock) or Corrosion Resistant (special order no return) Dimensions: 14" Arm. Screw hole placement is 2 5/8" center to center and 3 11/16" center to center This is a replacement style for the old Andersen window 14 Inch straight arm operator. New Operator will come with an adapter plate (S1059) for seamless retro fit installation. Replacement operator has rounded corners on the base and may not look the same as the operator being replaced. (extra adapter plates are available Part Number S1059). Use on Anderson CX & CXW windows manufactured from 1999 to present Prior to 2011 this operator was standard on all Anderson windows with a straight arm operator When replacing operators on windows manufactured 1995 to 1998 an adaptor plate, ( part number S1059 is included), is necessary for installation and a new operator cover will be needed Starting in 2011 all windows with straight arm operators use an operator with a 12" arm except the CX and CXW windows Accessories That Ares Sold Separately: Andersen Casement and Awning Window Classic Style Stone Cover Part Number S1057 Andersen Casement and awning Classic Style Stone Crank Handle Part Number S1058 Andersen Casement Window Classic Operator Crank Dyad Split Arm Part Number S1055 Andersen Casement Straight Arm Operator Track Part Number S1054 Extra adapter plates are available Part Number S1059. Andersen Casement 12 Inch Straight Arm Operator Part Number S1070 Known part numbers are: S1053, 750-1361405, 1 361 105 L, 1 361 935 HCR, C-9400-1, F9400-8, 1 361 404-R, 1 361, 934 HCR, (Old Operator Known part numbers are: 750-1361405, 1 361 105 L, 1 361 935 HCR, C-9400-1, F9400-8, 1 361 404-R, 1 361, 934 HCR).
$ 91.00 - $ 115.00
Part Number: S1054 Replacement Andersen Casement Track for Straight Arm Track Straight Arm Operator (Straight Arm Operator Part number S1053) Known Part Number Stamped On Track: 9052563 HCR, 9052583 HCR Accessories That Ares Sold Separately: Straight Arm Operator Part Number S1053 Classic Style Stone Cover Part Number S1057 Classic Style Stone Crank Handle Part Number S1058.
Part Number: S1055 Andersen Classic Perma-Shield Enhanced 400 Series Casement Dyad Split Arm Operator. Replacement Operator Crank For Andersen Casement Windows This is a replacement style for the old Andersen casement window split arm operator (Old Operator Known part numbers are 2 136 139 9, 9400-7). New Operator will come with an adapter plate for seamless retro fit installation. (extra adapter plates are available Part Number S1059). Color: Standard (in stock) and Corrosion Resistant (special order item allow 2-4 weeks lead time) This operator is NON handed. Sash Bracket Determines handing (Sash bracket sold separately part number S1056). Used on Anderson windows manufactured from 1995 to present with sprit arm style operator. Anderson Windows manufactured from 1995 through 1998 with sprit arm operator the adaptor plate is necessary. The Adapter will snap onto the operator with no modifications needed. Accessories That Ares Sold Separately: Sash Bracket Part Number S1056 Classic Style Stone Cover Part Number S1057 Classic Style Stone Crank Handle Part Number S1058. Extra adapter plates are available Part Number S1059. Known part numbers are: S1055, 2 1361399, 9400-7, C9400-1, F9400-8,
$ 85.65 - $ 103.01
Part Number: S1056 Andersen Sash Bracket for Classic Dyad Split Arm Operator This operator is NON handed. Sash Bracket Determines handing (Sash bracket sold separately). Comes in Standard and Corrosion Resistant Accessories That Ares Sold Separately: Classic Split Arm Dyad Operator Part Number S1055 Classic Style Stone Cover Part Number S1057 Classic Style Stone Crank Handle Part Number S1058 Known Part Number: 1361408 R, GO B, 750-1361408, 1361409 L, 750-1361409
Part Number: S1053 Replacement Andersen Classic Operator Cover - for Andersen Classic Style Casement and Awning Windows. Color: White and Stone Accessories That Ares Sold Separately: Classic Straight Arm Operator Operator Part Number S1053 Classic Dyad Split Arm Operator S1055 Classic Style Stone Crank Handle Part Number S1058 Known part numbers are: 1361357WH, 9457, 1361359ST, 1361529 WH, 1361530 ST, 4513, U.S. Patent No. DES 360,357
Part Number: S1058 Replacement Andersen Window Operator Classic Crank Handle 3/8" Spline Color: White and Stone ( in stock item) Accessories That Ares Sold Separately: Classic Straight Arm Operator Operator Part Number S1053 Classic Dyad Split Arm Operator S1055 Track Part Number S1054 Classic Style Cover Part Number S1057. Known part numbers are: 9455-2C, 9456-2C, U.S. PAT. NO. DES 350,357, 1361356 WH, 1361358 ST
Part Number: S1059 Andersen Classic Operator Adapter Plate Accessories That Ares Sold Separately: Andersen Casement Window Sash Bracket Part Number S1056 Andersen Casement and Awning Window Classic Style Stone Cover Part Number S1057 Andersen Casement and awning Classic Style Stone Crank Handle Part Number S1058 Andersen Casement Window Classic Operator Crank Dyad Split Arm Part Number S1055 Andersen Casement Crank Window Classic Operator Straight Arm Part Number S1053
