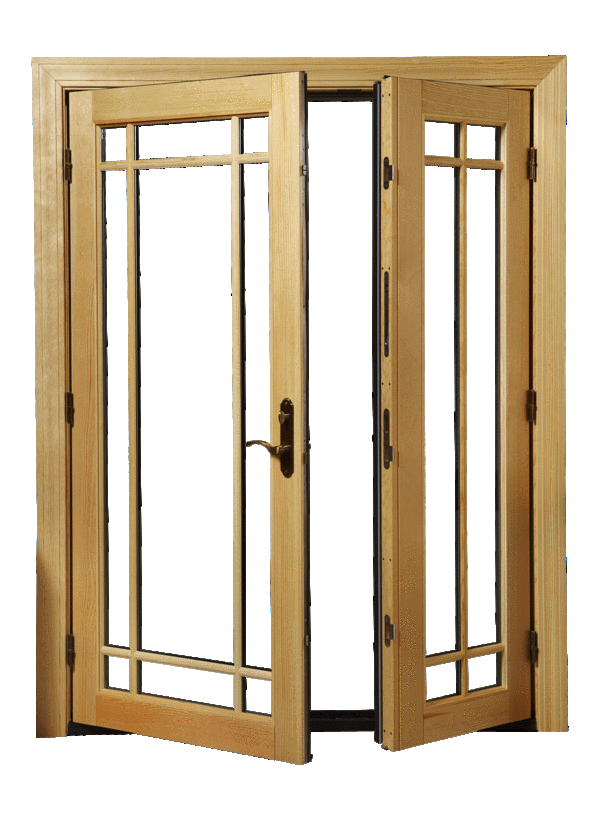

Swinging Patio Door Parts

Part Number S4004 - Guide Horizontal Adjustable Door Hinge  Before you place your order please read below and watch our how to video at the bottom of the product page to make sure you order the correct hinge you need. S4004 is non handed you can change the handing before you install by removing the hinge pin (see picture). For Left Hand and Right Hand Doors   Hinge is made of Steel S4004 is a Guide Hinge - Horizontal adjustment only . S4004 works in tandem with S4003 sold separately. See hinge  placement diagram in pictures and watch our video at the bottom of the product page. S4004 is the direct replacement and interchangeable with Hoppe Columbus 2-D Hinge part # S4002 . Colors Available In Stock: Bright Brass, no other finishes available *See Finish Note Discontinued Colors: Oil Rubbed Bronze, white  brushed chrome, Satin Nickel, Antique Brass , Black, Polished Chrome. (if you can add to cart we still have stock. Once stock is gone colors will be NLA and will not allow you to add to cart. No returns, all sales final on discontinued colors they are sold as is and have been marked down in price for quick sale). Other Color Finish Option: You can use as a replacement option the S4010 (it’s mate S4009)  - it has multiple finishes available in stock. they do have a different screw hole pattern and the leaf leg is slightly longer so to use them you need to replace all the hinges on the door panel so it don’t bind. Link to S4010 click here**** Condition: All hinges are NEW  To order Set Vertical Adjustment Hinge See Part # S4003  Set and Guide Hinge Placement - Also See Hinge Placement Guide Drawing: 3 Hinges Per Door Panel: Starting at top of door Top of door Guide (Part # S4004) Set (Part # S4003) Guide (Part # S4004)   4 Hinges Per Door Panel: Anytime you need 4 hinges you would just add another guide hinge Starting at top of door Top of door Guide (Part # S4004) Guide (Part # S4004)  Set (Part # S4003) Guide (Part # S4004 Horizontal Hinge Adjustment Instructions:  Always Adjust your vertical hinge first, then adjust your horizontal hinge. Using a Philips screw driver, adjust the panel side to side, by turning clockwise to increase margins, Turn counter clockwise to decrease the margins.  Horizontal hinge has approximately 7 turns from its extremes. Automatic screwdrivers are NOT recommended. The speed of the gun may strip the heads of the screws are over adjusted.  Replacement hinge for hinges with(watch video below) Pat. Nr. 5701636, Pat. Nr. 5,701,636 Pro Tip: Remove weight from the hinges by lifting up on the door before you adjust. Never use power tools only use hand screw driver to adjust the door so you do not strip out the adjustment screws.  Matching Screws are included with each hinge. Known to work on: Roto, Semco Doors, Hoppe Hardware, Hoppe Columbus, Windsor Doors and Superior Doors, Loewen Doors and more *Finish Note: Not for Coastal or High Humidity Applications. These hinges do not come in a sea coast or stainless material, high humidity or costal application can cause hinges to corrode this is not a product defect. IF THIS HINGE DOES NOT LOOK EXACTLY LIKE YOUR ADJUSTABLE HINGE. CLICK HERE TO SEE ALL THE ADJUSTABLE HINGES WE HAVE ON OUR WEBSITE TO ORDER. IF YOU ARE NOT FINDING YOUR HINGE PLEASE EMAIL OR TEXT OUR RESEARCH DEPARTMENT AND WE WOULD BE HAPPY TO ASSIST YOU

Read more less

Part Number: 815 / 816 Vertical and Horizontal Adjustable Door Hinge Hinges are handed! Match up your existing hinge to picture to determine what handing you need. Finishes:  In Stock: If you order more than what we have in stock the order will be considered pre-order and will ship out as soon as we receive in from the factory. If you would like what we have in stock partial shipped please leave a note in not comment section of your order stating to partial ship.  Pre-Order: If finish is a pre-order we will ship out as soon as we receive in from the factory. lead times can very but can be 6-8 weeks   Discontinued Finishes: Goldtone, Brushed Chrome and True Oil Rubbed Bronze. Limited stock available. The discontinued colors we have in stock may have some minor scratches - no returns or exchanges, they are sold as is. Once our stock is gone we will be unable to get more. Dimensions: Over all 3 3/4" W x 4 1/4" H Condition:  New - New product - unused  As Is - New product with finish flaws or scratches.  This item may be a customer return, vendor sample, or came in from the factory with finish flaws.  In some instances, these items are repackaged. Not available in all colors or handing.  All sales final, No returns.  Screw Pack: Screws are sold separately and not all colors are available. To order Screws with your hinges see 815/816 Screw Pack (1 screw pack will do 1 hinge). Or you can buy at your local hardware store the following: QTY 4 - #9 x 3/4" or 1” PH Screw (size change depends on what finish the screw is available in) QTY 4 - #7 x 1-1/4" PH Screw QTY 1 - #9 x 2-1/2” or 3” PH Screw (size change depends on what finish the screw is available in) Link To Hinge Adjustment Instructions Number to be found on back of Leaf 903 and on back of adjustable side of hinge 921. These hinges have been known to be used on Hurd Patio doors and BiltBest Patio Doors, Marvin Ultimate Inswing Patio Doors From 1993 - 1996 and other door brands. (Known part #: 815, 816 903, 291, 2443, 085439, 021791, 085442, 010294, 031239) IF THIS HINGE DOES NOT LOOK EXACTLY LIKE YOUR ADJUSTABLE HINGE. CLICK HERE TO SEE ALL THE ADJUSTABLE HINGES WE HAVE ON OUR WEBSITE TO ORDER. IF YOU ARE NOT FINDING YOUR HINGE PLEASE EMAIL OR TEXT OUR RESEARCH DEPARTMENT AND WE WOULD BE HAPPY TO ASSIST YOU.

Read more less

Part Number: 701 Our Bushing is Metal and has been modified to meet 85 degree rotation needed for older handle sets.You can order a new handle set which comes with a bushing kit that we still have in stock - Part # 852For handle set from 2004 and prior - See picture to match your handle set to correct bushing kitThis Bushing Kit is for Swinging Patio Doors Double Bore System ONLY.This will rebuild one interior or one exterior bushing.Two kits are needed to rebuild the complete door handle.For instructions on how to replace Bushing Kit please click on our Blog Link: Window Parts Center Blog Known Brands: W&F, Hurd, Jeldwen, Caradco, Peachtree known number stamped on some handles: pat no 4,671,089 Associated Parts Sold Sold Separately: W&F Interior and Exterior Replacement Handles W&F Door Handle Solid Shaft 870 - W&F Handle Extension

Read more less

852 - Handle Set for 6" Center to Center Bore Colors: Bright Brass, Satin Nickel, Oil Rubbed Bronze*, Polished Chrome**, White** *Color AS IS: Oil Rubbed Bronze Type Finish (ORB). We will not accept returns on it for any reason for this finish. See finish note below. When you place your order for ORB you are agreeing to these terms for the ORB item. **Discontinued Colors: White and Polished Chrome. Once our stock is gone these colors will no longer be available  Fits 2 1/8" Crossbore on 6" and 6 3/32" bore Centers. Can also be used on doors with 1 3/4" Crossbore. The lockset includes removable posts.  2 3/8" Back Set Mounting Screw Holes 6 1/16" center to center Durable Finish Fits Right or Left Hand doors East to install with Phillips screwdriver Known to work on Weather Shield, and Hurd, Peachtree Swinging Patio doors and replacement for W&F handle set with 6" Center to Center Bores. Tools Required for Install: Philips Screwdriver and Slotted Screwdriver.  Detailed Installation Instructions Enclosed.  Keyed and Keyed Alike: Standard: All handle sets come random Keyed with 2 Keys. You can order as Keyed Alike for a small upcharge per handle.  For 2 or more handle sets you can  have all of the handle sets come keyed the same.  (Example if you order QTY 4 handle sets you will also need to add QTY 4 keyed alike to to your under found under accessory items)  Allow an addition 1-2 weeks for keyed alike handle sets to ship We CAN NOT rekey handle sets to any existing keys you the customer may have for your home, you the customer would need to hire a lock smith for that. Known to have been used on:  Replacement for Peachtree  Part # 06200031. and is a replacement handle set for Hurd, Jeldwen, Caradco "Hallmark Leverset", and replacement handle for 6" center to center bore handle  sets for Hurd, W&F Weather Sheild an more. Known Part Numbers: 1200, 12001-1, 1200-1, 40061999, PAT NO's 4,671,089 D295,829, 14421-WR.  Part # 06200031 *Finish Notice For Oil Rubbed Bronze Type:  Has NO manufacture warranty on finish wear.  This product is sold AS IS and we will not accept returns on it for any reason. **Warning** Do NOT use a power driven tool to attach the handle set face plate retaining screws...thread damage can result and is NOT considered a product defect. No returns will be accepted if when inspected product has thread damage and not in new condition.  NOTE! 852 only works for  6 inch center to center bore and 6 1/16 inch center to center mounting screw holes, 2 1/8" standard double double bore with latch and dead bolt (see video and pictures with dimensions). (If you have the W&F multipoint hardware with 6 inch center to center 1 7/8" or  2 1/8" multipoint bore  and screw holes are 5 3/16" center to center see part number: D300, D301, D302, D303, D304 or D305 )   *Additional Finish Manufacturer Warranty info:  Warranty is for original consumer/purchaser Proof of product purchase is required. for Bright Brass, Stain Nickel and White only have a 1 year manufacturer warranty. Warranty does not cover normal wear and discoloration of Finishes, damage caused by scratches or abrasions, or any product that has been improperly installed, abused, worn out, altered or used for a purpose other than that for which it was intended, or used within 10 miles from the sea coast or body of salt water, or in a manner inconsistent with any instructions regarding its use or recommended care and maintenance, or that has been exposed to solvents, chemicals, or other harsh environments or foreign substances including any airborne foreign substances.  Pricing subject to change - cannot retro active any pricing on previous orders or hold pricing for future orders.

Read more less

Part Number S4003 - Vertical ONLY Adjustment  Before you place your order- S4003 vertical adjustment hinges must be used with S4004 horizontal adjustment hinge (sold separately) see hinge placement guide for more details. Adjustable Door Hinge -  Set Hinge With Non-removable pin - Vertical Adjustment  Non Handed - these hinges are for Left Hand and Right Hand Doors, by removing the set screw and hinge pin and changing the handing before you install it on your door. S4003 is a Set hinge- vertical adjustment only Pin is removable. S4003 works in tandem with S4004 sold separately. See hinge placement diagram in pictures and watch video below. Colors Available In Stock: Bright Brass no other finishes available *See finish note below Discontinued Colors: Oil Rubbed Bronze, white l, Brushed Chrome, Antique Brass , Black, Satin Nickel, Polished Chrome. (if you can add to cart we still have stock. Once stock is gone colors will be NLA and will not allow you to add to cart. No returns, all sales final on discontinued colors they are sold as is and have been marked down in price for quick sale). For Other Finish Options: You can use as a replacement option the S4009 Vertical hinge (it’s mate S4010 for horizontal adjustment)  - it has multiple finishes available in stock. they do have a different screw hole pattern and the leaf leg is slightly longer so to use them you need to replace all the hinges on the door panel so it don’t bind. Link to S4010 click here**** Condition: New - All hinges are new product All Sales Final = any color with "All Sales Final"  is a New product that has been discounted due  discontinued colors All sales final No returns on as is items. S4003 interchangeable and direct replacement for  Hoppe Columbus 2-D Hinge part # S4001 To Order Guide Horizontal Adjustment Hinge See Part # S4004 Set and Guide Hinge Placement - Also See Hinge Placement Guide Drawing: 3 Hinges Per Door Panel: Starting at top of door Top of door Guide (Part # S4004) Set (Part # S4003) Guide (Part # S4004) 4 Hinges Per Door Panel: Anytime you need 4 hinges you would just add another guide hinge Starting at top of door Top of door Guide (Part # S4004) Guide (Part # S4004)  Set (Part # S4003) Guide (Part # S4004) Vertical Hinge Adjustment Instructions:   Using a Phillips screwdriver, first adjust the panel up or down by turning the screw marked "V" on the set hinge. When turning the screw in the direction of the arrow (counter clockwise) the other leaf will be pushed in the direction of the arrow. Automatic screwdrivers are NOT recommended. The speed of the gun may strip the heads of the screws are over adjusted.  When the vertical adjustment is turned clockwise, the non-adjustable leaf will move in the direction of the arrow. The vertical adjustment has approximately 32 turns from its extremes. Replacement hinge for hinges with(watch video below) Pat. Nr. 5701636, Pat. Nr. 5,701,636 Pro Tip: Remove weight from the hinges by lifting up on the door before you adjust. Known Brands: Hoppe Hardware, Hoppe Columbus, Semco, Windsor Doors and Superior Doors, Loewen Doors, Roto and more. Matching Screws are included with each hinge. *Finish Note: Not for Coastal or High Humidity Applications. These hinges do not come in a sea coast or stainless material, high humidity or costal application can cause hinges to corrade this is not a product defect. IF THIS HINGE DOES NOT LOOK EXACTLY LIKE YOUR ADJUSTABLE HINGE. CLICK HERE TO SEE ALL THE ADJUSTABLE HINGES WE HAVE ON OUR WEBSITE TO ORDER. IF YOU ARE NOT FINDING YOUR HINGE PLEASE EMAIL OR TEXT OUR RESEARCH DEPARTMENT AND WE WOULD BE HAPPY TO ASSIST YOU How to Adjust video below updated 7/12/23

Read more less

Part Number: S4010 Before you place your order please read all below watch our video at the bottom of the product page to make sure you order the correct hinge.  S4010 HTL Ultimate 2-D Hinge - Hoppe Guide Hinge Horizontal Adjustment - Non Handed -  Removable Pin Style No Screws Included  Color / Finish Options Are as Follows:  Bright Brass  Polished Chrome Rustic Umber  Stainless Steel  Matte Black White  Antique Brass, Brushed Chrome - NO LONGER AVAILABLE - Use part number S4012 as direct replacement hinge. When factory discontinues a color for S4010 use S4012 as the direct replacement hinge.  Product Description:  S4010 is a Guide Hinge - Horizontal adjustment only . Comes in multiple finishes S4010 works in tandem with S4009 sold separately. See hinge guide placement in pictures  Steel Reinforcements – Makes this new hinge the "Ultimate" with door systems.• Corrosion Resistant – Specially coated components for improveddurability and strength.• Easy Adjustment – Set hinge is Part # S4009 sold separately has a vertical adjustment feature (+/- 2.5mm). S4009 works in tandem with S4010. Guide hinge (Part # S4010) has a horizontal adjustment feature (+/- 2mm). See hinge placement diagram in pictures. • Maintenance Free Bearings – No oiling required.• Simple Door Preparation – Quick and easy one pass routing.• Variety of Finishes – Available in finishes to match your HOPPE® handle sets.• Designed to carry up to 165lbs. per door.• Not to be used in commercial applications, especially not inconjunction with a door closer. Set and Guide Hinge Placement:  3 Hinges Per Door Panel:  Starting at top of door Top of door Guide (S4010) Set (S4009)  Guide (S4010) 4 Hinges Per Door Panel: Anytime you need 4 hinges you would just add another guide hinge Starting at top of door Top of door Guide (S4010) Guide (S4010   Set (S4009) Guide (S4010)  The Set hinge no matter what is always the 2nd from the bottom Pro Tips: These hinges are not handed! The pin is removable So you can reverse the handing for your door . (Scroll thru pictures above that show this) Pin can be tight - use a flat head screw driver and hammer to LIGHTLY tap out the pin from the bottom. Remove weight from the hinges by lifting up on the door before you adjust.  Never use power tools to adjust the hinge. ONLY use hand tools.  Hinge: S4010 Minimum of two per panel. These hinges only have the horizontal adjustment ± 2mm. When the vertical adjustment (S4009) is turned clockwise, the non-adjustable leaf will move in the direction of the arrow. The vertical adjustment has 32 turns from it's extremes, and the horizontal (s4010) has 7 turns. Adjust the horizontal by turning clockwise to increase the margins. Turn counter clockwise to decrease the margins Known Part # 850-8762435,  850-8762531, Pat.Nr. 5.701.636, 30033, 8762531, 5 310544 0 10708

Read more less

Part Number: 139 3 1/2 inch with 11/32 Inch Spline Replacement 3" Window Roto Operator Crank Handle for Amesbury Truth with 11/32" Spline Operators Truth Handle - Roto - Replacement Parts for Awning and Casement Windows operators.Colors: Bronze, New Goldtone, White, Beige, Brass, Goldtone, Clay, Aluminum, Chestnut Bronze, Medium Bronze, Brushed copper Nickel, Off-White, Black, Cocoa Brown, Blue White (aka Bright White), Tuscan Bronze, Oil Rubbed Bronze, Off White (aka Euro white) Special Order Colors:  Special order colors or Pre-order colors are non returnable and can have up to a minimum 3 week lead time. Large QTY orders of 10 or more will also be considered special order none returnable. ** Please note: That the Short Handle Roto Crank has been discontinued by the manufacturer. Once our stock is depleted we will ship out the longer version of the Roto Crank Handle that will work on your windows. Known to have been used on many window Brands: Biltbest, Crestline, Caradco, Peachtree, Vetter, Oldach, Windsor, Sliver Line, weather shield,  and Crank Handle standard Hurd used on  casement and awnings  manufactured pre February 1998 and more window brands that used truth hardware   Known Part Numbers: 139, 45054 31, HCSE29 known part numbers stamped on the back of the older style version of this handle: PAT 4.083.264   and    PAT 4.189.248, 45199, 30905 (older version no longer manufactured the 139 is the closest replacement option available)

Read more less

Part Number: S4009 Before you place your order please read below and watch our video at the bottom of the product page to make sure you are ordering the correct hinge. Hoppe HTL Ultimate 2-D Hinge - Hoppe Set Hinge (vertical adjustment) - Removable Pin Style These SET HINGES ARE NOT HANDED - you can remove the pin to swap the handing for your door. (For NON-Removable pin style see Part # S4011 and they ARE HANDED, if any of the S4009 become unavailable you will need to order S4011) No Screws Included, sold individually  Material: Steel Color / Finish Options Are as Follows:  Bright Brass  Polished Chrome Rustic Umber  Matte Black (available for pre-order will not be receiving more in till mid October 2023, no order cancellation - thank you for your patience).  Stainless Steel  White  AS IS- Antique Brass, Brushed Chrome - NO LONGER AVAILABLE once stock is gone no more can be ordered as is no reruns as this is a discontinued finish. Replacement option See part number S4011 direct replacement hinge. We stock these hinges- if you would like a QTY check on a color please e-mail or text us. Product Description:  S4009 is a Set hinge- vertical adjustment only . Comes in multiple finishes. Pin is removable. S4009 works in tandem with S4010 sold separately. See hinge placement diagram in pictures and watch video below. Steel Reinforcements – Makes this new hinge the "Ultimate" with door systems. • Corrosion Resistant – Specially coated components for improved durability and strength. • Easy Adjustment – Set hinge (Part # S4009) has a vertical adjustment feature (+/- 2.5mm) Guide hinge (Part # S4010 sold separately ) has a horizontal adjustment feature (+/- 2mm) and works in tandem with S4009 see hinge placement description below and diagram in pictures. • Maintenance Free Bearings – No oiling required. • Simple Door Preparation – Quick and easy one pass routing. • Variety of Finishes – Available in finishes to match your HOPPE® handle sets. • Designed to carry up to 165lbs. per door. • Not to be used in commercial applications, especially not in conjunction with a door closer.   Set and Guide Hinge Placement (see picture diagram): 3 Hinges Per Door Panel: Starting at top of door Top of door Guide (use part # S4010) Set (use part # S4009) Guide (use part # S4010)   4 Hinges Per Door Panel (see picture diagram): Anytime you need 4 hinges you would just add another guide hinge Starting at top of door Top of door Guide (use part # S4010) Guide (use part # S4010)  Set (use part # S4009) Guide (use part # S4010) The Set hinge no matter what is always the 2nd from the bottom Pro Tip: Remove weight from the hinges by lifting up on the door before you adjust.  Pro Tips: Remove weight from the hinges by lifting up on the door before you adjust.  Never use power tools to adjust the hinge. ONLY use hand tools.  Hinge S4009- 1 hinge per panel. Vertical adjustment  feature (+/- 2.5mm) When the vertical adjustment (S4009) is turned clockwise, the non-adjustable leaf will move in the direction of the arrow. The vertical adjustment has 32 turns from it's extremes, and the horizontal (s4010) has 7 turns. Adjust the horizontal by turning clockwise to increase the margins. Turn counter clockwise to decrease the margins Known Part # 850-8762439 and Pat. Nr. 5701636, Pat. Nr. 5,701,636

Read more less
