Part Number 855
Single Point GU Gear Box Hardware* Schlosskasten Security / Schlossk. Sec.
*Single point gear box is not interchangeable with multi point gear box system interior components are different.
For Swinging Patio Doors
Depending on vintage your sticker label color can be orange or white with the following numbers:
Orange Label:
6-29377-45-0-1 A
45-92-8 or 45-92-8 EINST.
White Label:
6-29377-45-0-1 B
Scholssk.Sec.U 45/92/8
Handing: Strike is reversible for both left hand and right hand doors. See video on how to reverse the latch
Brands known to been used on: GU, Hurd, Sierra Pacific and More.
Install Instructions:
Remove set screws on handle levers and remove
Remove mounting screws on faceplate estuation of the handle set
On side of door remove screw that lines up with the lock cylinder.
Remove the handle set
Remove all screws down the side of the door that holds on the gear box (keep all screws you will reuse them)
Install new multipoint with screws
Test for Operation
Reinstall handle set
Test for proper operation
*Single point gear box is not interchangeable with multi point gear box system interior components are different.
updated 7/18/23
Part Number: 856-857-858
GU Active Multi Point - 2006 - Current Product for Hurd and Sierra Pacific WI Product
Review size sheet to know what to order. If measurements do not match your GU hardware then this will not work on you door.
Special Order Item. No returns exchanges or order cancellations once order has been placed. Please allow 2-3 week lead time.
Part Number; 861
Door Bottom Seal / Door Sweep Color: Bronze OnlySize: 29 7/8 inch, 60 inch and 72 inch Long pcs only (samples can not be returned)
Brands Known to be used on but not limited to: Hurd Out Swing Energy Saver Patio Doors and other door brands.

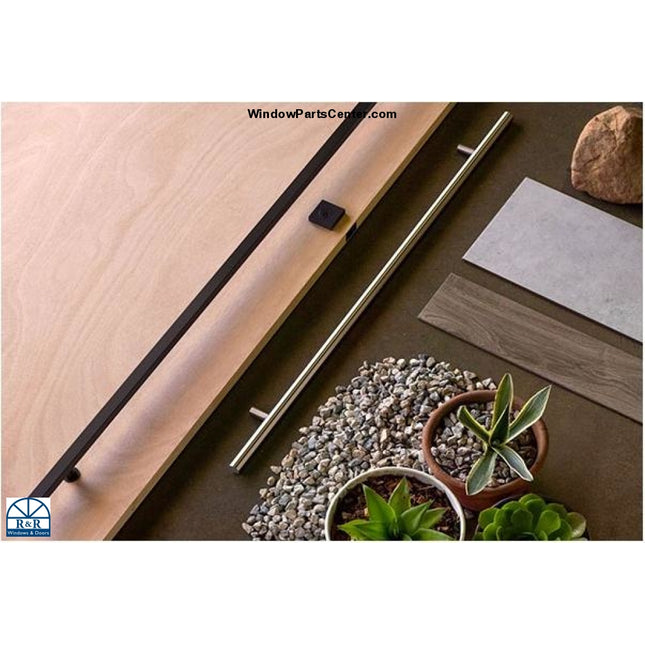

Emtek 48 inch Stainless Steel Door Pulls
Part number: 86187 and 86189
Made to order Allow 1-2 weeks for your order to ship - Special Order No Returns or cancellations. FREE STANDARD SHIPPING
Size: 48 inch
Color:
Flat Black (US19)
Stainless Steel (SS)
Polished Stainless Steel (PSS)
Style:
Square - 86187
Round - 86189
Finish (Mounting Option):
Standard (Thru-Bolt with Decorative Caps)
Concealed Surface
Back to Back
Door Thickness:
Fits door thickness of 1-3/4" - 2- 1/4" - let us know your door thickness in the comments of your order. If thicker than noted above please email or text for quote
Made to order - Special Order No Returns or cancellations. Allow 1-2 weeks lead time due to Covid or during holiday seasons
California Residents Proposition 65 Warning Proposition 65
Proposition 65, also known as the Safe Drinking Water and Toxic Enforcement Act of 1986, is a California law that was approved by voters in November 1986. Its primary purpose is to protect California citizens from exposure to toxic chemicals by safeguarding the state’s drinking water sources. The statute prohibits businesses from knowingly discharging listed chemicals into drinking water sources.Proposition 65 also requires that a business selling products that contain certain identified chemicals in excess of defined levels, provide a clear and reasonable warning of the potential hazard. For many listed Proposition 65 chemicals, no warning is required on products determined not to exceed “Safe Harbor” levels of exposure. Proposition 65 is administered by the California Office of Environmental Health Hazard Assessment (OEHHA), which publishes a list of chemicals known to cause cancer or birth defects. This list is periodically updated and currently contains over 800 chemicals. The list is accessible at www.oehha.ca.gov/chemicals.We at EMTEK are committed to providing safe and compliant products for our customers. Our goal is to continually work with our vendors, supply chain partners, and resellers to source responsibly and to comply with regulatory and reporting requirements, including providing product warnings to our customers as required by laws like Proposition 65.Approved Warnings – New OEHHA warning regulations that took effect on August 30, 2018, require more detailed product labelling. EMTEK ensures that its products that require Proposition 65 warnings are labelled in accordance with these new regulations, including identification of specific chemicals and exposure types. Specific product labels reflect the chemical composition of the labeled product. Below is an example of a label which may appear on EMTEK products in order to comply with this regulation:WARNING: This product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.If you have a specific need or question related to these policies, please contact us at:ProductCompliance.Americas@assaabloy.com

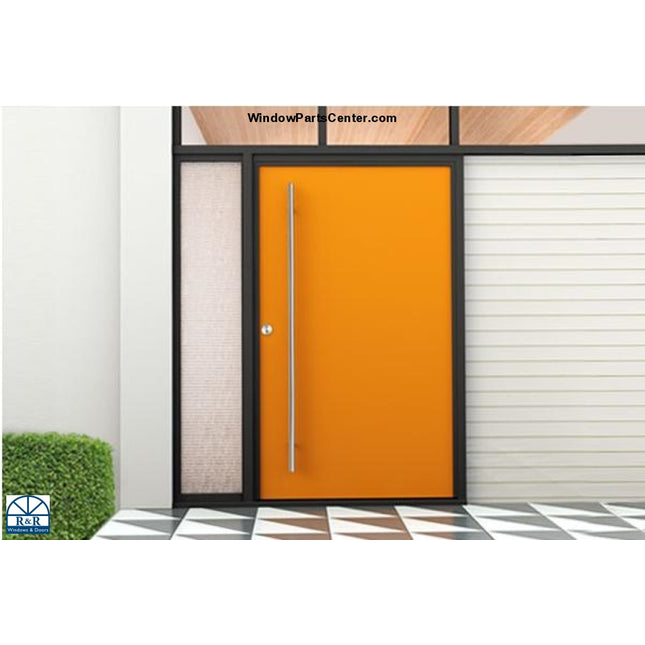

Emtek 72 inch Stainless Steel Door Pulls
Part number: 86190
FREE STANDARD SHIPPING. Made to order - Special Order No Returns or cancellations. Allow 1-2 weeks lead time due to Covid or during holiday seasons
Emtek's new durable stainless steel pulls are available in 3 finishes, 2 profile styles (Round and Square), and in 2 overall lengths of 48" or 72". Thick walled tubing allows for reliable product performance without bulk, and the solid milled stems include an optional disc base for secure mounting and increased aesthetic adaptability.
Choose from 3 mounting options for flexibility in most applications: Thru Bolt, Back to Back or Concealed Surface Mount.
Size: 72 inch
Color:
Flat Black (US19)
Stainless Steel (SS)
Polished Stainless Steel (PSS)
Style:
Square - 86188
Round - 86190
Finish (Mounting Option):
Standard (Thru-Bolt with Decorative Caps)
Concealed Surface
Back to Back
Door Thickness:
Fits door thickness of 1-3/4" - 2- 1/4" - let us know your door thickness in the comments of your order. If thicker than noted above please email or text for quote
Made to order - Special Order No Returns or cancellations. Allow 1-2 weeks lead time due to Covid or during holiday seasons
California Residents Proposition 65 Warning Proposition 65
Proposition 65, also known as the Safe Drinking Water and Toxic Enforcement Act of 1986, is a California law that was approved by voters in November 1986. Its primary purpose is to protect California citizens from exposure to toxic chemicals by safeguarding the state’s drinking water sources. The statute prohibits businesses from knowingly discharging listed chemicals into drinking water sources.Proposition 65 also requires that a business selling products that contain certain identified chemicals in excess of defined levels, provide a clear and reasonable warning of the potential hazard. For many listed Proposition 65 chemicals, no warning is required on products determined not to exceed “Safe Harbor” levels of exposure. Proposition 65 is administered by the California Office of Environmental Health Hazard Assessment (OEHHA), which publishes a list of chemicals known to cause cancer or birth defects. This list is periodically updated and currently contains over 800 chemicals. The list is accessible at www.oehha.ca.gov/chemicals.We at EMTEK are committed to providing safe and compliant products for our customers. Our goal is to continually work with our vendors, supply chain partners, and resellers to source responsibly and to comply with regulatory and reporting requirements, including providing product warnings to our customers as required by laws like Proposition 65.Approved Warnings – New OEHHA warning regulations that took effect on August 30, 2018, require more detailed product labelling. EMTEK ensures that its products that require Proposition 65 warnings are labelled in accordance with these new regulations, including identification of specific chemicals and exposure types. Specific product labels reflect the chemical composition of the labeled product. Below is an example of a label which may appear on EMTEK products in order to comply with this regulation:WARNING: This product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.If you have a specific need or question related to these policies, please contact us at:ProductCompliance.Americas@assaabloy.com

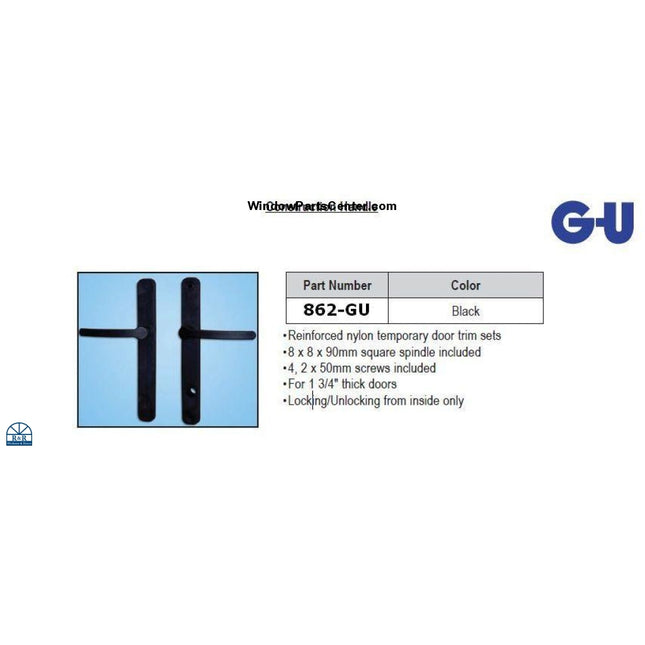

Part Number: 862
Construction Handle for GU, Hoppe and W&F Brands - Special Order NO Returns
During construction use the construction handle on your patio doors and save your nice handle sets from getting damaged.

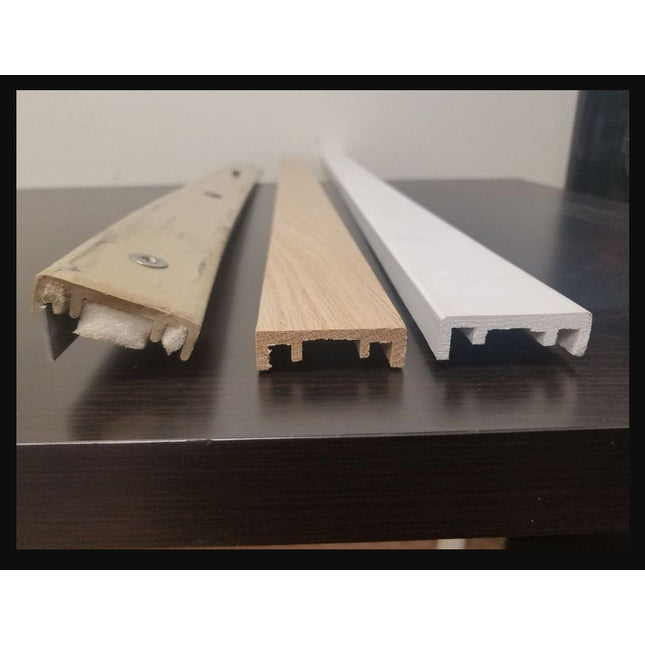

Part Number: 863 Adjustable Threshold Plastic For Hurd In Swinging DoorMaterial: White PVC (paintable) or Wood Oak - Will need to be stained.Dimensions: 1 3/4" x 1/2" x 36"Only Sold in 36" lengthComes with: Threshold, 4 Screws and Nuts, Foam863 is the Old Style that came before part # 837 but these are NOT interchangeable.#863 Directions for Installation:1. #863 comes in 36" length - customer will need to cut to size to fit their size door if smaller than 36” wide.2. You will need to use your old Threshold as a template to drill screw holes in proper place in your new #863 threshold3. Please transfer the metal supports that are located on the bottom of your old threshold that are held on by the adjustment screws. You will use these supports for your new #863 threshold along with the new adjustment screws. (Metal supports are discontinued item and no longer manufactured).4. Tighten screws as needed to adjust up or down

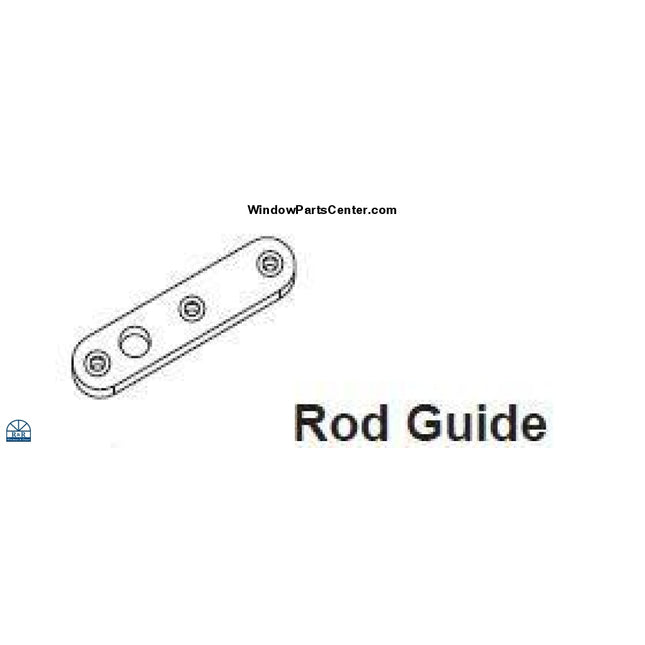

866 - GU Rod Guide - For Manual Shoot Bolt Locking System - Multi Point Semi Active Side
Stainless Steel
No Screws Included
Known Brands: GU, Hurd, Sierra Pacific and more

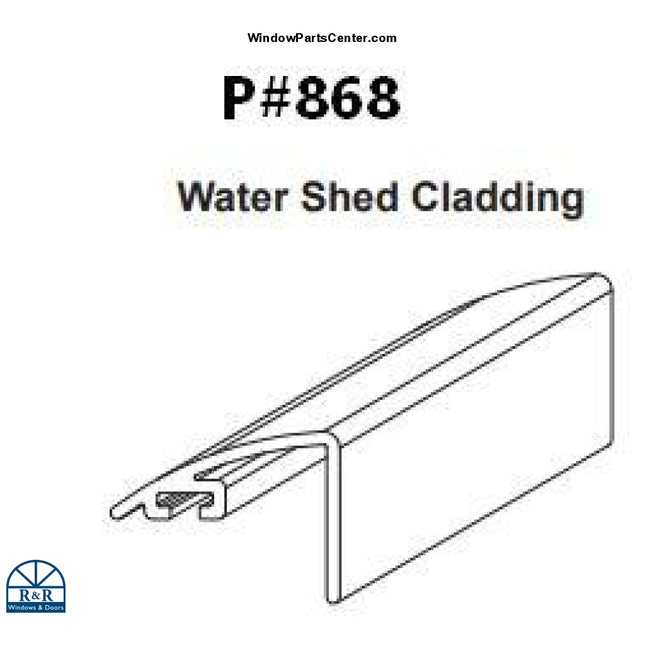

Part Number 868
Panel Water ShedSwinging Patio Door Alum Panel Water Shed
Part Number 868 is a non stock special order items no returns. Please allow 2-3 week lead time.
Color: White
Sizes: 24”, 36” 48”Customer can trim to size if needed
Used on Hurd and Sierra pacific WI Swinging Wood/Clad patio doors
Part #869
Sold individually- see bulk pricing chart
Grandeur Screen Door Retainer Clip
Color: Clear
(12 NEEDED PER INSERT Per Rite Screen)
Used on Hurd and Sierra Pacific Out swinging Hinged Screen Doors
part number 870As is - New Condition old stock (may have minor scuffs, etc.) - No returns all sales final. Once our stock is gone this item will no longer be available.
1200 SERIES 3/4 INCH HANDLE EXTENSION - POLISHED BRASS and Antique Brass
W&F Door Handle Extention. Comes with 1 Extension, 1 Screw and 1 black Spacer and instructions.
Colors: Bright Brass and Antique Brass
Known Part Number: 40042, 037234, 037233, 870
Used On: W&F 1200 Series Handle Sets, Hurd Swinging Patio Doors and More.

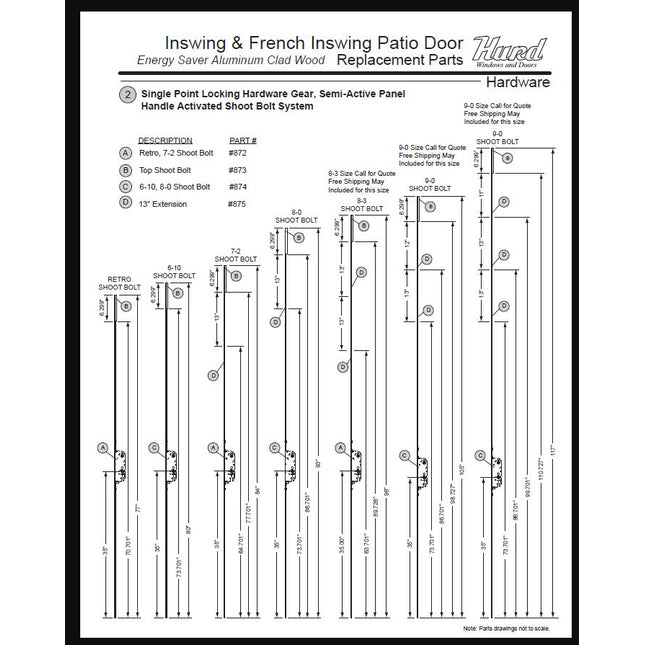

Part Number:872-873-874-875
GU Semi Active Shoot Bolt2006 - Current Product Energy Saver Hurd Swinging Door - if your door is not Hurd it will not work!For semi-active for secondary door panelShoot Bolt System Only - Handle Set Sold SeparatelySold in multiple styles. Click on picture to enlarge to see product dimensions.Special Order Items Lead Time 3-6 weeks No returns, exchanges or cancellations once order is placed. Lead times may be extended due to matieral shortage.
