Hurd Casement Parts

Part Number 113 Sash Keeper Lock Amesbury Truth Sold Individually  Handing: Left Hand or Right hand*****Keepers ARE handed****** To determine if you have a left or right hand keeper: Looking from the inside at your window if the lock is on the LEFT hand side you need a LEFT hand keeper and if your lock is on the RIGHT hand side you need a RIGHT hand keeper.Colors: come in beige and black. Black is on old color. once our black stock is gone beige will automatically be shipped out in its place. Used on multiple window brands that use Amesbury Truth Hardware. Hurd, sierra pacific and more

Read more less

Part Number: 906 Amesbury Truth Window Kurf Mounted Foam-Tite Seal Window Weather-Strip. Old Style No Longer available when we run out of stock the current version will ship automatically   Colors: White and Bronze  Seamless compression seals are almost 100% closed cell to prevent water from penetrating foam cells. Skin proves a UV resistant barrier that enhance the window weather strip sealing performance.  Fits .125"/.375 Kerf Slot Sold by the foot Rolled: Larger QTY's maybe shipped in multiple rolls. Example if you order 300 feet you may receive QTY 6 - 50 foot rolls. Some rolls maybe in increments of 25 feet. (full spool comes in 1,500 feet only)  no returns of rolls of less than 25 feet Returns will only be accepted for full uncut rolls in increments of 25, 50 and 100 feet. Sold By The Roll in 1 Foot Increments. Anything less then 1500 feet will come in a roll. Special order a spool select 1,500'Spools are special order items no returns, refund or order cancellations  lead time can be between 1-3 weeks depending on factory stock. No returns for samples. Known Brands: Amesbury Truth, Hurd Windows, Vetter Windows and Crestline Windows  Known Part Numbers: 906, 12003 AMESTRUTH 12003112191500 Weather Strip Seals are an maintenance item. You should replace your weather strip every 10-15 years depending on your climate and weather conditions of the area you live in so windows seal properly.

Read more less

Part Number 220 Sold individually  Amesbury Truth Hinge Clip for Casement and Awning windows. Dimensions: 1/2 Inch wide x 15/16 inch long

Read more less

Part Number: 1001  Hoppe French Casement Hardware Handle 38MM (1.5 inch) Shaft Part Number 1001 has been known to have been used on Hurd, Sierra Pacific, Marvin and more French Casement Windows. Replacement option for old FUHR hardware that was bought out by Hoppe Color In stock  White is the only color we stock.  ( #37 White, Brushed Chrome, Champagne, Satin Taupe, Matte Black  is no longer available)  All other colors are Special Order items: Rustic Umber - also called Oil Rubbed Bronze FB by Hurd and Sierra Pacific. FB finish which means means its a stable finish and NOT a living finish that will change over time.  Antique Finishes from HOPPE North America deliver the unique aesthetic of an aged finish for the discerning hardware connoisseur. Intended to simulate the natural and inconsistent qualities that come with tarnish and age, Antique Brass and Antique Nickel finishes are the result of carefully handcrafted process that have been thoroughly refined. Antique Brass and Antique Nickel finishes by HOPPE will maintain their original appearance and are not considered “living” finishes. These finishes feature coatings that protect each surface from tarnish.  When considering Antique Finishes, the user should be aware these finishes will exhibit variation in color and shade just as an actual tarnished piece of brass or nickel would show. Curved and shaped surfaces will show greater contrast and highlights of golden brass or shiny nickel as shown above. Slight variations can also be expected from one piece to the next. HOPPE maintains a careful balance of consistency blended with purposeful variation to yield the desirable aesthetic of an Antique Finish. The result is a unique hardware piece created with an artisan’s touch. If more consistent appearance is desired, HOPPE recommends Polished Brass (F71, F77-R) in place of Antique Brass and Satin Nickel (F42, F42-R) in place of Antique Nickel. All other colors are special order items NO returns, exchanges or cancellations. We DO NOT stock them. Customers please expect  a 3-6 week lead time All color finishes  are very nice and that is why the price is so much more (except for the #37 White as already noted)  Related Parts Sold Separately:  Part Number 1000 - French Casement Connector Shaft FC Adaptor Part Number 1001 - French Casement Handle 33MM (1.5") Shaft  Part Number 1002 - French Casement Mounting Plate Part Number 1003 - French Corner Drive VS S-ES A0055 Part Number 1004 - French Casement Eurogroove Cover, Long Part Number 1005 -  French Casement Eurogroove Cover, Short Part Number 1006 - French Casement Gear S-ES 115/16 2MV FH Part Number 1007 - French Casement FC Linkage Part Number 1008 - French Casement Strike Lead-In S-ES Part Number 1009 - French Casement Strike

Read more less

Part Number: 176 176 - Amesbury Truth EntryGard (EntryGuard) Dyad (Split) Arm Casement Operator Truth EntryGard Dyad Arm Operator. The dyad operator is also know as a hinged single arm operatorHanding Left Hand and Right Hand: See Pictures to identify the correct handing you needDetached chips can be reversed in the field.Size: "A" Measurement is 6 Inches For other A measurement styles as shown on chart see links below to order from our Factory Parts Drop Ship website Styles:  Link Offset Comes in Link Down as shown in picture (33/64" Measurement) and Link Up (21/32" Measurement) Link Down Option is a Stock Item and shown in picture. For other styles shown on chart see links below to order from our Factory Parts Drop Ship website  Replacement Parts for: Hurd, Semco, Marvin (ULTIMATE AND ULTIMATE WOOD CASEMASTER DISC LA PRE 2010), Cascade, Caradco, BiltBest, Milgard, Sierra Pacific, Allsco and more. Screw Recommendation (screw not sold with item): 5 - #8x 1" Phillips flat head wood screws  Associated parts Sold Separately:  Part Number S1004: Truth EntryGard Cover and Nesting Handle Part Number 139: Handle Roto Crank - 3 1/2" with 11/32" Spline Part Number 166: EntryGard Plastic Covers Known Part Number: 45275, PAT. NO. 4.840.075, 31368, 10815400, 10815401, 15-76-00-001, 15-76-00-002, 36-177, 36-178 Other Arm Sizes Links to Order Read chart in pictures above to determine your A Measurements match part numbers on chart to links below: Click here to order 36-177MOD Click here to order 36-178MOD Click here to order 36-193 Click here to order 36-194 Click here to order 36-199 Click here to order 36-199CG Click here to order 36-200 Email for Quote 36-200CG Info on our parts catalog factory direct website Cut Sheet for EntryGard Dyad Arm Casement Operator 15 Series

Read more less

Part Number: 999 - Link Lock Accessory NOTE: lock sold separately  see part number 987 Color: Aluminum  Sold Individually  Part Number 999 is a link lock accessory. This accessory link allows you to replace your old style lock (see pictures) that is no longer manufactured to the current version. To successfully retro fit the new lock you need to order part number 999 along with part number 987 - they are sold separately  Pictures shown are examples of how the link and the replacement style lock work together. Again they are sold separately you need to order lock part number 987 if you also want to receive the new style lock Known associated Part Number: 2791, 34-182-33W, 39-940

Read more less

part number: 142 Each Kit Comes with: 1 metal Pin plungers, 1 Spring, 1 Cap (your choice of white or black caps)Replacement window screen part for Hurd casement and awning Classic vintage window screen. 142 is also a replacement option for  pre 1987 Hurd screen pins where both the cap and pin plunger plastic.  Those are no longer made but the current 142 screen pin kit works as replacement. The plunger is metal instead of plastic but the cap that you pull on is the same.

Read more less

Part Number: 103 Casement Wood Bottom Sill Cover Used On Hurd Casement and Awning Windows 7' PC - Pine - Current Style - Can be used to retro fit on Old style Hurd Casements - Customer may have to plane down or shim up depending on vintage.For old style with bottom groove for weather strip- customer will have to cut in groove for weather strip. Dimensions are: 7' L x 1 7/8 W (or Depth) x 13/16 H (front Face of sill cover) For  8' long please e-mail. for quote

Read more less

Part Number 107 Beige Sash Lift with adhesive backing. Located on the under side of sash - approximately 3 1/8" of edge of wood on the sash (See picture - click on picture to enlarge)Used on Hurd Casement Windows

Read more less

Part Number: 988 Truth Multi-Point Locking Handle For Casements and AwningsLocks are handed! Left Hand and Right HandColor: Bright White is a stock item.  Known to have been used on Hurd Monument Vinyl Windows, Allsco and more. Known Part Number: 24-84-32-001, 24-84-32-002 stamped on arm: Truth 31402 or Truth 31401  stamped inside lock housing: 45121 stamped on inside lock handle: 45081 or 45082

Read more less

Part Number: S1122 Sold in: Packs of 4 or 10 Replacement Window Lock and Keeper Screws Philips 1 1/4 Inch x #8 In Stock Colors: E-guard (used on keepers), New Goldtone, Goldtone, White, Bronze Specials Order Colors: Chestnut Bronze, Beige, Coppertone, Clay (allow 1-2 weeks for your order to ship)

Read more less

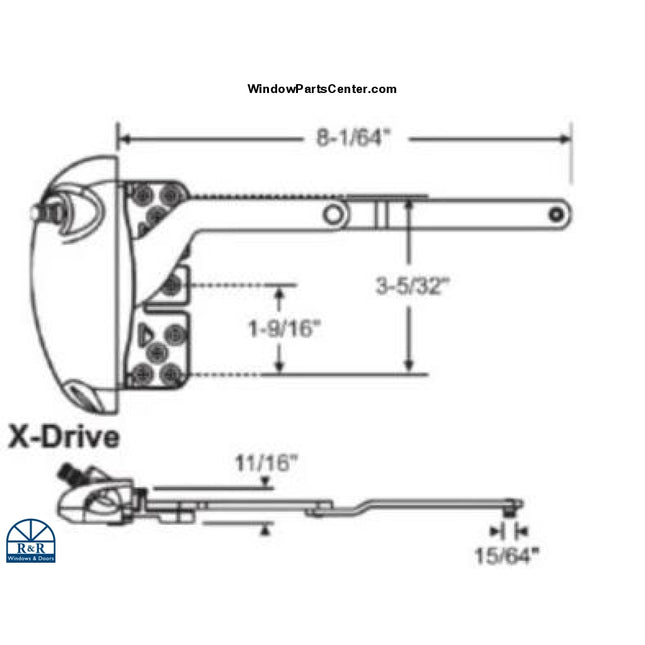

Part Number: SS10010 AS IS  Sold Individually Discounted Window Operators Scratch and Chipped  AS IS: NEW PARTS BUT HAVE AESTHETIC SCRACHES AND CHIPS ON THE FINISH  - THESE ARE NON RETURNABLE ITEMS AS THEY ARE AS IS. The extent of finish Damage varies from operator to operator  - picture's are examples. Website will only allow you to order the QTY that is stock. Price is firm. To order SS10010 that DO NOT have any scratches please click here Roto X Drive and Pro Drive Split Arm Dyad Casement Operator With Notched Base with Underside Arm Post (see pictures) Material: X Drive Standard, Style: Left Hand Or Right Hand (See pictures) Color X Drive: Euro White X Drive Known to have been used on SuperSeal, Hurd and Sierra Pacific Vinyl Windows X Drive: Known Part Number Stamped on Underside of Operator OP06-1508, OP06-7512- Pro Drive: OP05 X Drive: OP06 X Drive Associated Parts Sold Separately:  S10012 - Roto X Drive Handle for Casement and Awning Window Operator SS10018 Roto Casement Sash Operator Bracket  Pro Drive Associated parts Sold Separately:  S1066 - FOLDING HANDLE FOR ROTO PRO DRIVE OPERATORS 5/16IN HEX END
