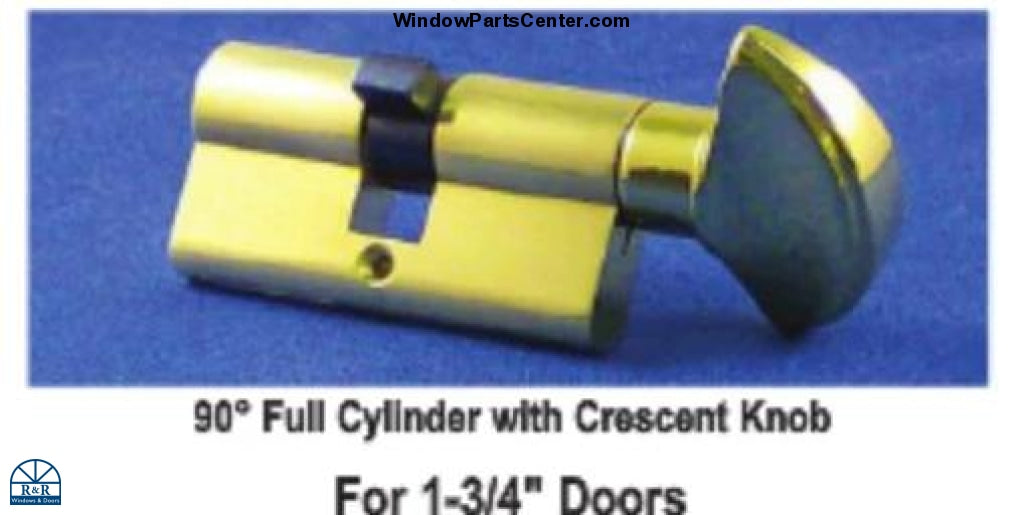

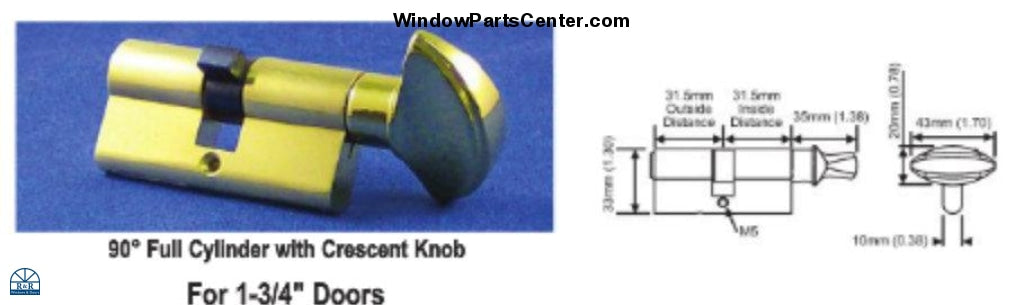

S4102 Hoppe 90 Degree Profile Full Cylinder with Crescent Knob For 1 3/4 Inch to 2 1/2 Inch Thick Doors
S4102 Hoppe 90 Degree Profile Full Cylinder with Crescent Knob For 1 3
$ 180.00
Part Number S4102
Hoppe 90 Degree Profile Full Cylinder with Crescent Knob For 1 3/4 Inch to 2 1/2 Inch Thick Door Panel
Can be converted from 90 degree to 360 degree - see pictures for instructions and videos below.
NOT A STOCKED ITEM!!! Special order item no returns, exchanges or refunds!!! Please expect a lead time of 1-4 weeks.

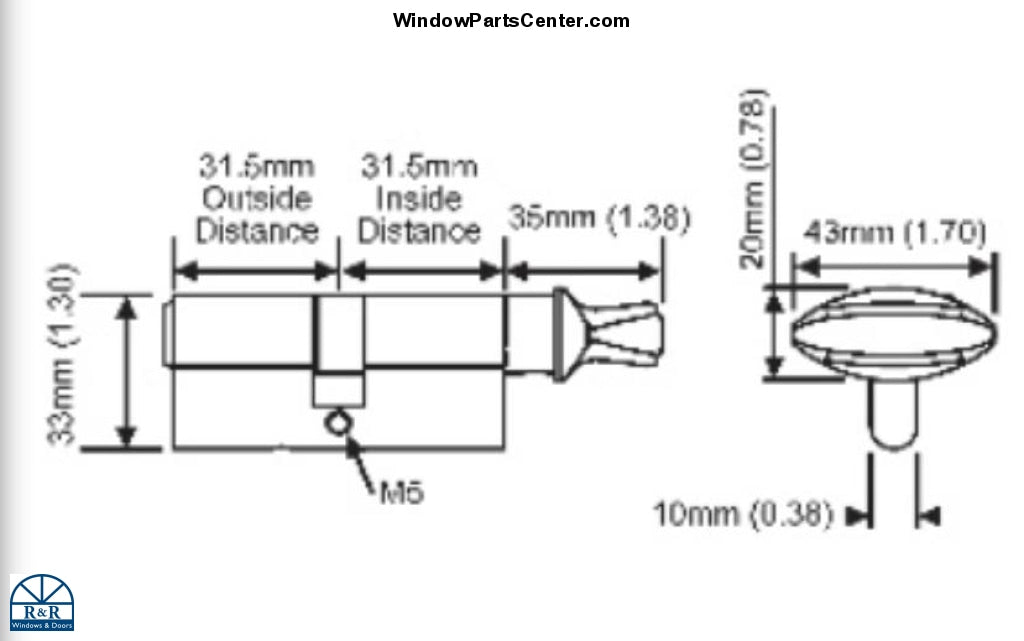

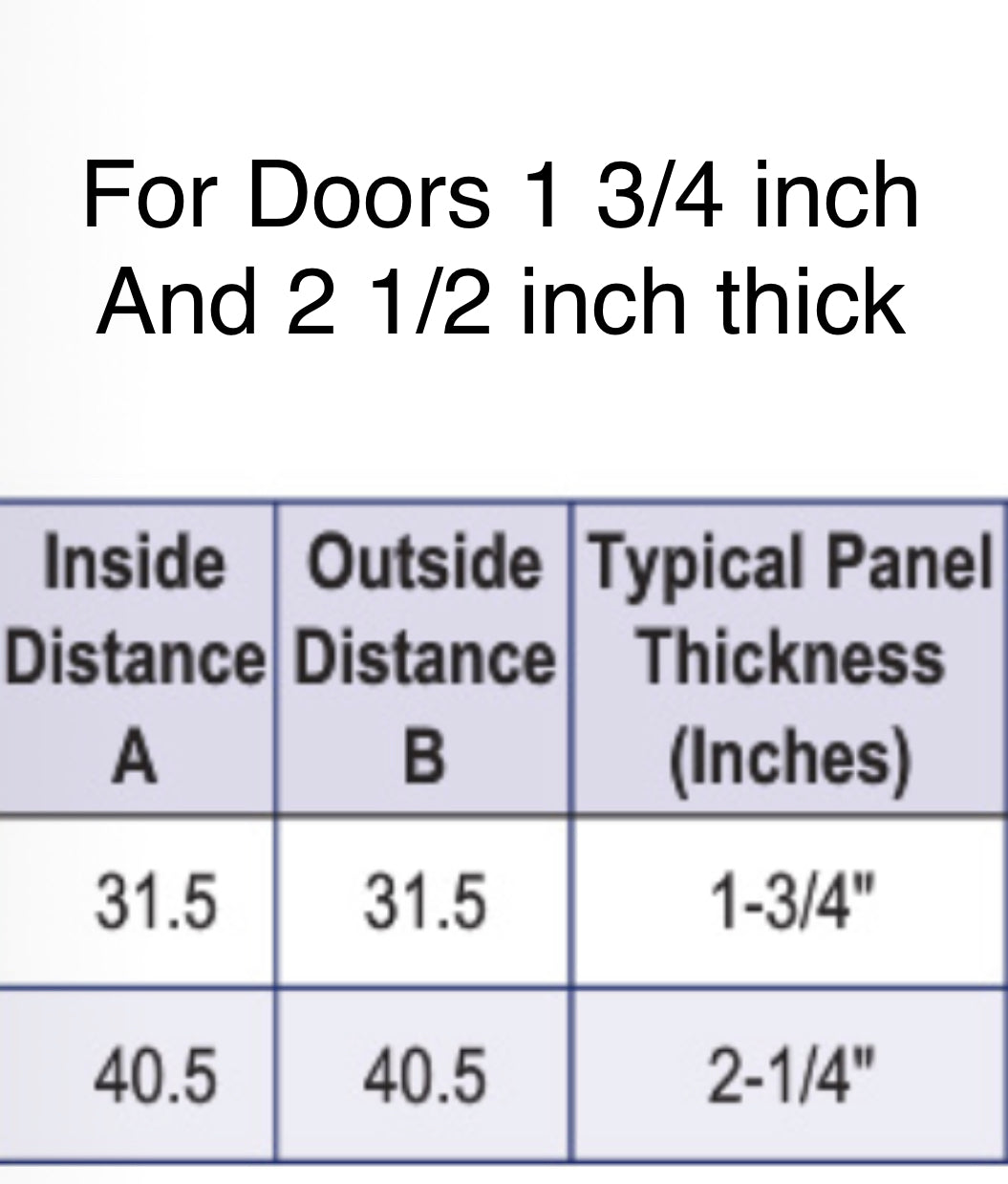

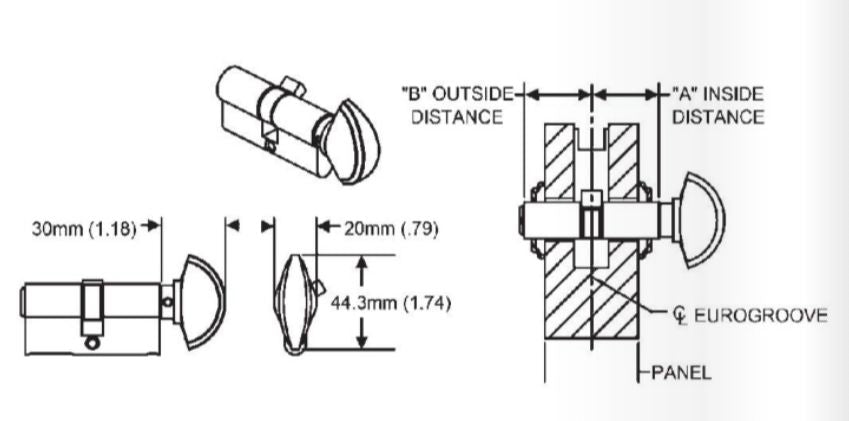

Cylinder Sizing: Verify Door Thickness and Cylinder size by using chart "Inside Distance A" and "Outside Distance B" according to door thickness, Euro groove location and the style of back plate used.
Related Parts Sold Separately:
- Part Number S4103 - Hoppe Short Cylinder Insert
- Part Number S4105 - 2mm or 5/64" Hex Wrench
- Part Number S4107 - Set Screw

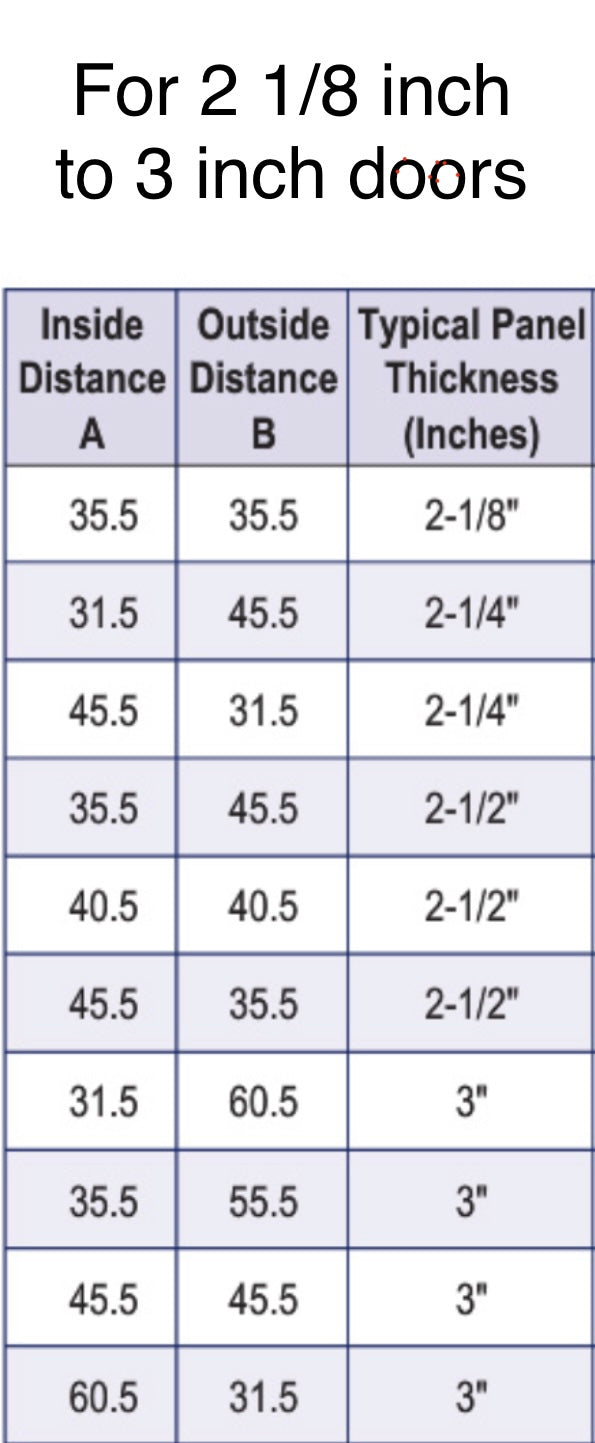

- For 2 1/8 inch to 3 Inch Thick door panel Full Cylinder see part number
Trouble shooting:
If you cannot get the cylinder to line up and go in you need to lower the pin beneath the thumb turn. That frees the cylinder to move and line up for install. Then once put in and turned the cylinder will operate. It is a newer safety feature on these cylinders. Please watch video below.
