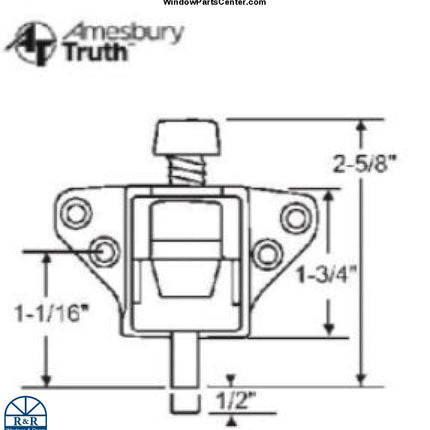

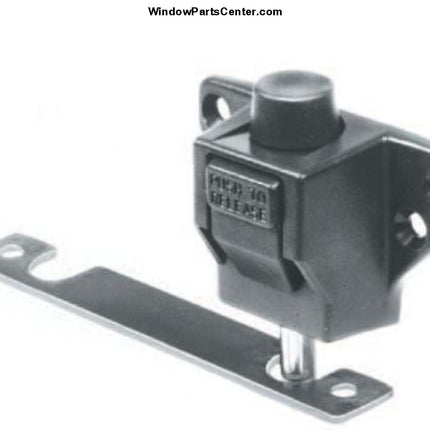

540-A Secondary Patio Door Limiter Foot Bolt Sliding Patio Doors

Description

Part Number: 540-A With Wings 41.10

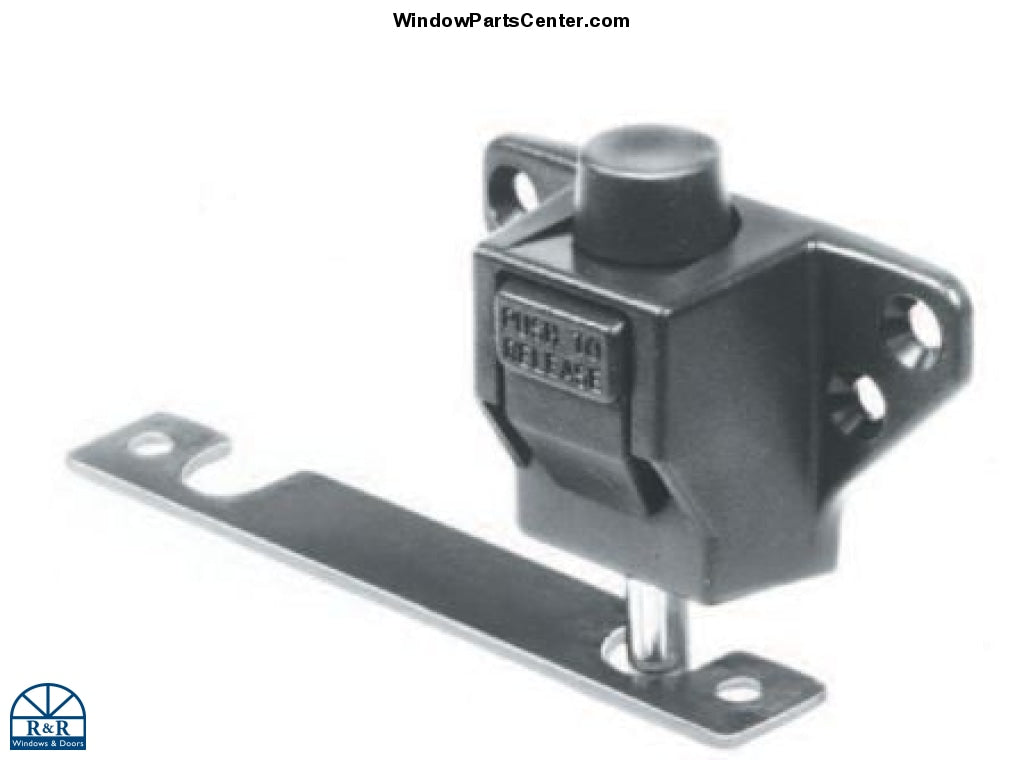

Secondary Patio Door Limiter Foot Bolt Sliding Patio Doors (Foot Operated Lock)

Spring loaded and foot-operated, this sturdy device easily engages to provide a more secure door and easily releases to provide a ready means of escape. In fact, this patio door limiter has been tested to withstand a forced entry attempt of 400 lbs. of force

Made in the U.S.A. Amesbury Truth

Style: 41.10

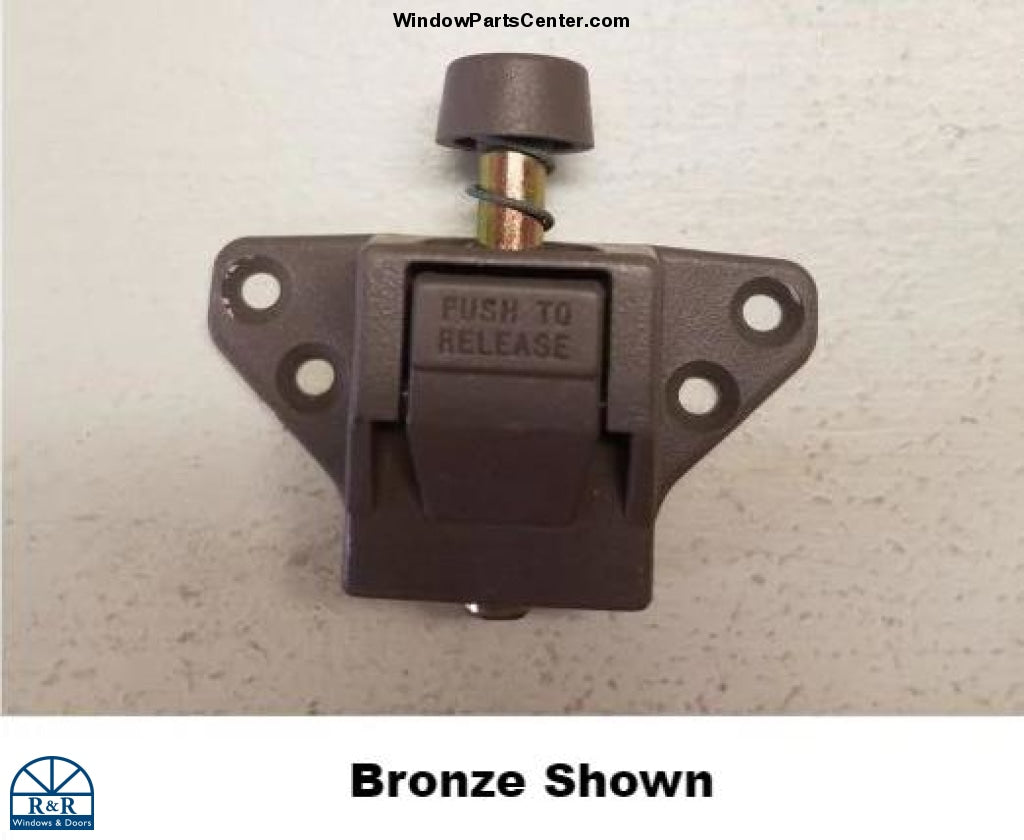

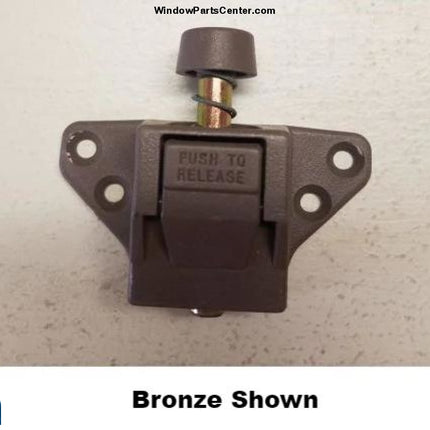

Color: White Or Bronze

Keeper Option:

  • 20824 (in stock)
  • 30680 (in stock)
  • 30672 (NOT in stock special order)

Material: Acetal body, release lever and button. Cold-rolled steel bolt.

RECOMMENDED SCREWS: (Screws Not Include)

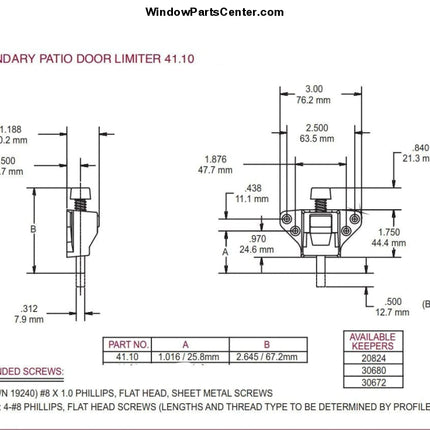

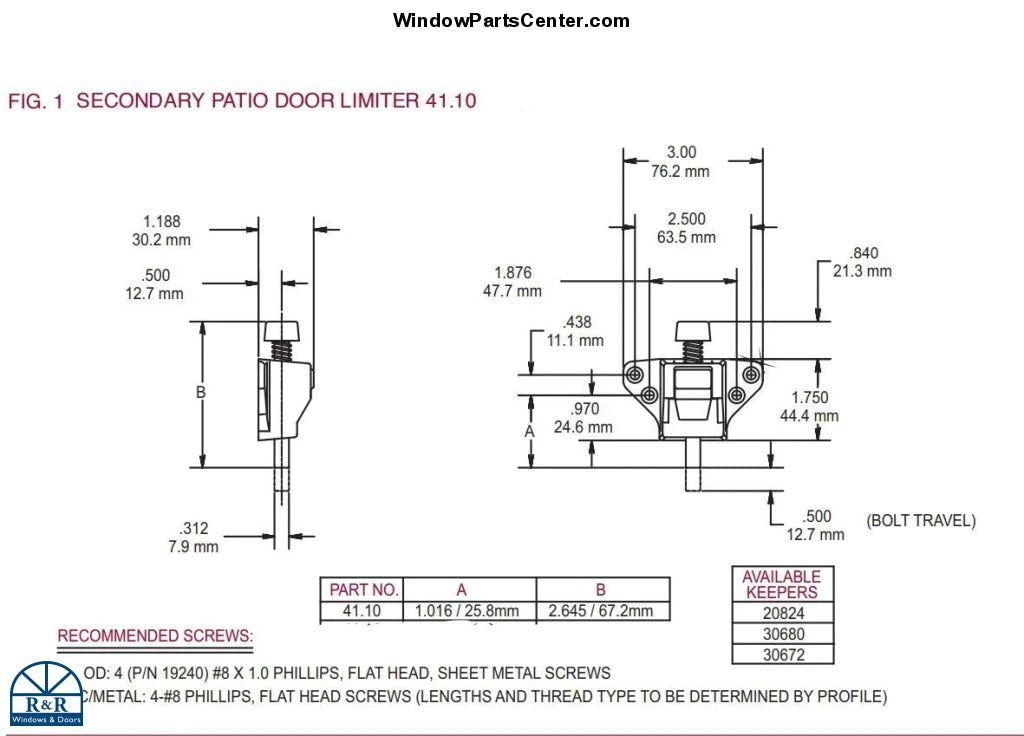

  • SECONDARY PATIO DOOR LIMITER 41.10
    • WOOD: 4  #8 X 1.0 PHILLIPS, FLAT HEAD, SHEET METAL SCREWS
    • PVC/METAL: 4-#8 PHILLIPS, FLAT HEAD SCREWS (LENGTHS AND THREAD TYPE TO BE DETERMINED BY PROFILE)

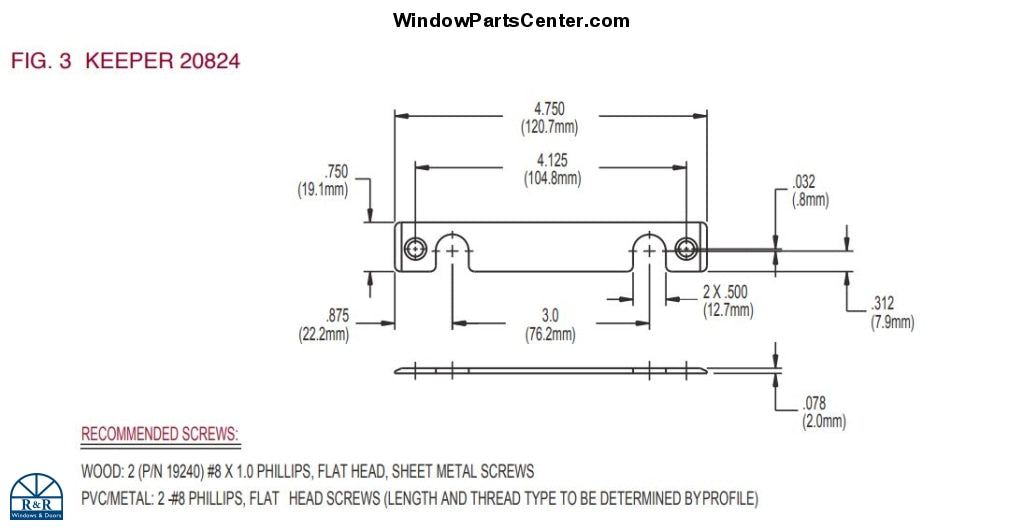

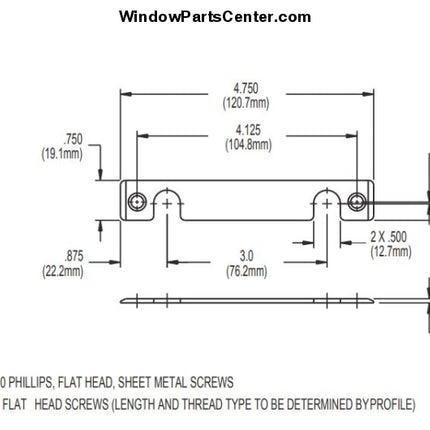

  • For Keeper 20824
      • WOOD: 2  #8 X 1.0 PHILLIPS, FLAT HEAD, SHEET METAL SCREWS
      • PVC/METAL: 2 - #8 PHILLIPS, FLAT HEAD SCREWS
      • (LENGTH AND THREAD TYPE TO BE DETERMINED BY PROFILE)

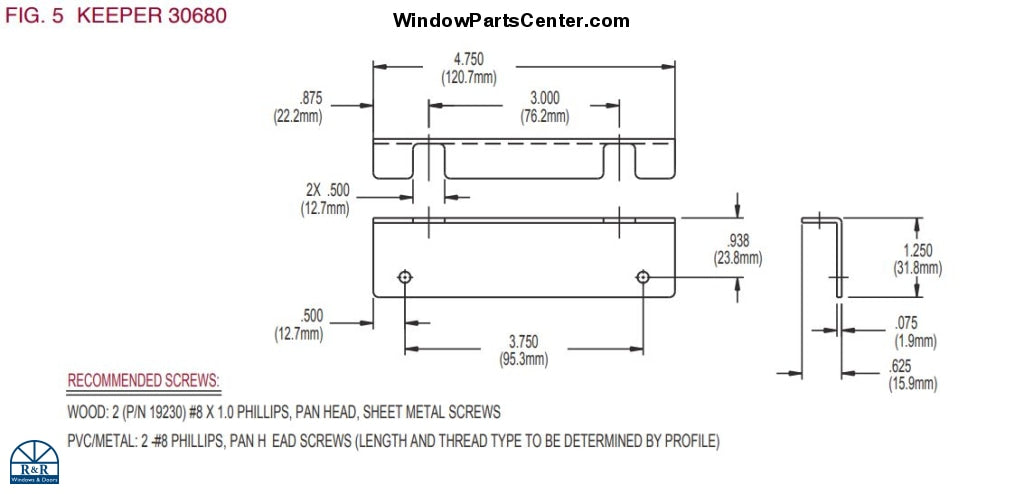

  • For Keeper 30680
      • WOOD: 2  #8 X 1.0 PHILLIPS, PAN HEAD, SHEET METAL SCREWS
      • PVC/METAL: 2 - #8 PHILLIPS, PAN H EAD SCREWS
      • (LENGTH AND THREAD TYPE TO BE DETERMINED BY PROFILE)

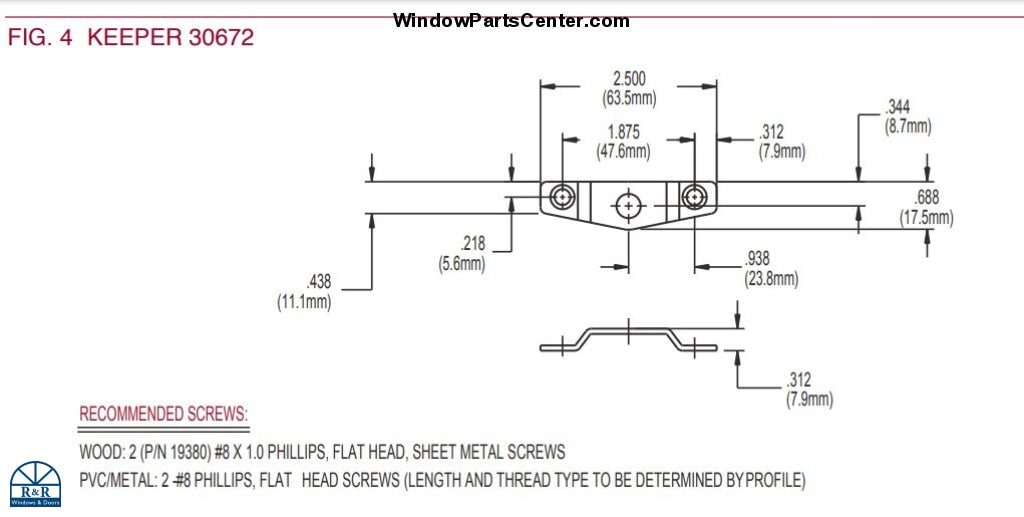

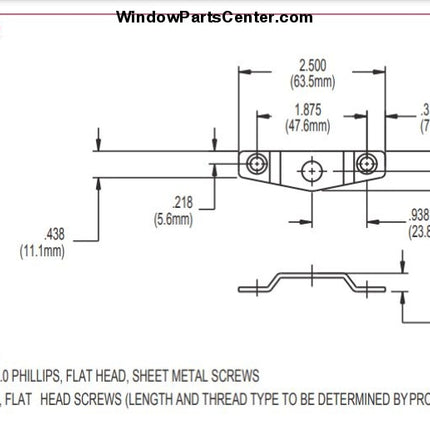

  • For Keeper 30672
      • WOOD: 2 #8 X 1.0 PHILLIPS, FLAT HEAD, SHEET METAL SCREWS
      • PVC/METAL: 2 - #8 PHILLIPS, FLAT HEAD SCREWS
      • (LENGTH AND THREAD TYPE TO BE DETERMINED BY PROFILE)

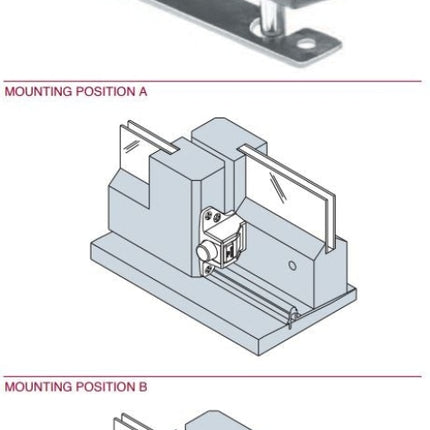

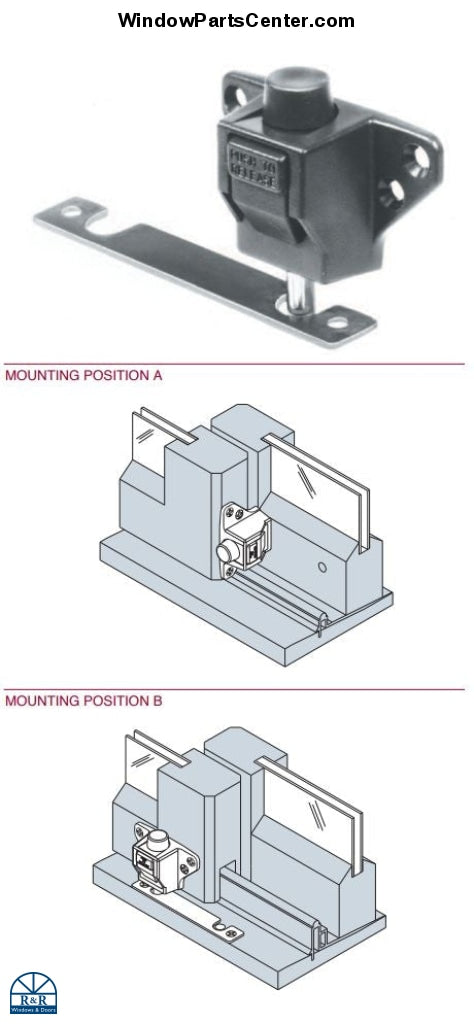

Mounting: Mounts to bottom rail of sliding door and engages in sill, or into the face of the stationary door. See mounting positions “A” and “B”.
Made in the U.S.A. Amesbury Truth


(Stamped on Back 45010, and 30680)

Product form

Out of stock

$ 42.00

  •  Will ship as soon as in stock

Description

Part Number: 540-A With Wings 41.10

Secondary Patio Door Limiter Foot Bolt Sliding Patio Doors (Foot Operated Lock)

Spring loaded and foot-operated, this sturdy device easily engages to provide a more secure door and easily releases to provide a ready means of escape. In fact, this patio door limiter has been tested to withstand a forced entry attempt of 400 lbs. of force

Made in the U.S.A. Amesbury Truth

Style: 41.10

Color: White Or Bronze

Keeper Option:

  • 20824 (in stock)
  • 30680 (in stock)
  • 30672 (NOT in stock special order)

Material: Acetal body, release lever and button. Cold-rolled steel bolt.

RECOMMENDED SCREWS: (Screws Not Include)

  • SECONDARY PATIO DOOR LIMITER 41.10
    • WOOD: 4  #8 X 1.0 PHILLIPS, FLAT HEAD, SHEET METAL SCREWS
    • PVC/METAL: 4-#8 PHILLIPS, FLAT HEAD SCREWS (LENGTHS AND THREAD TYPE TO BE DETERMINED BY PROFILE)
  • For Keeper 20824
      • WOOD: 2  #8 X 1.0 PHILLIPS, FLAT HEAD, SHEET METAL SCREWS
      • PVC/METAL: 2 - #8 PHILLIPS, FLAT HEAD SCREWS
      • (LENGTH AND THREAD TYPE TO BE DETERMINED BY PROFILE)
  • For Keeper 30680
      • WOOD: 2  #8 X 1.0 PHILLIPS, PAN HEAD, SHEET METAL SCREWS
      • PVC/METAL: 2 - #8 PHILLIPS, PAN H EAD SCREWS
      • (LENGTH AND THREAD TYPE TO BE DETERMINED BY PROFILE)
  • For Keeper 30672
      • WOOD: 2 #8 X 1.0 PHILLIPS, FLAT HEAD, SHEET METAL SCREWS
      • PVC/METAL: 2 - #8 PHILLIPS, FLAT HEAD SCREWS
      • (LENGTH AND THREAD TYPE TO BE DETERMINED BY PROFILE)



Mounting: Mounts to bottom rail of sliding door and engages in sill, or into the face of the stationary door. See mounting positions “A” and “B”.
Made in the U.S.A. Amesbury Truth


(Stamped on Back 45010, and 30680)
