Discontinued style no longer available . See part number 522 for replacement
As Is - New product that has been either: old inventory that has been sitting in stock, customer return, vendor sample, came in from the factory with finish flaws or discontinued item. There maybe some minor finish flaws or scratches. In some instances, these items are repackaged. All sales final No returns on as is items.
038545 CHES Elite "C" Handle Set - Hurd Sliding Patio Door
Handle Set For Hurd Classic Style Patio Door
This style handle is discontinued. What we have in stock is all that is available. See part # 522 to order new style "C" Elite handleset that comes in multiple colors.
W&F part # 120-80-1000, 120-80, 120-84-0
Part Number D306

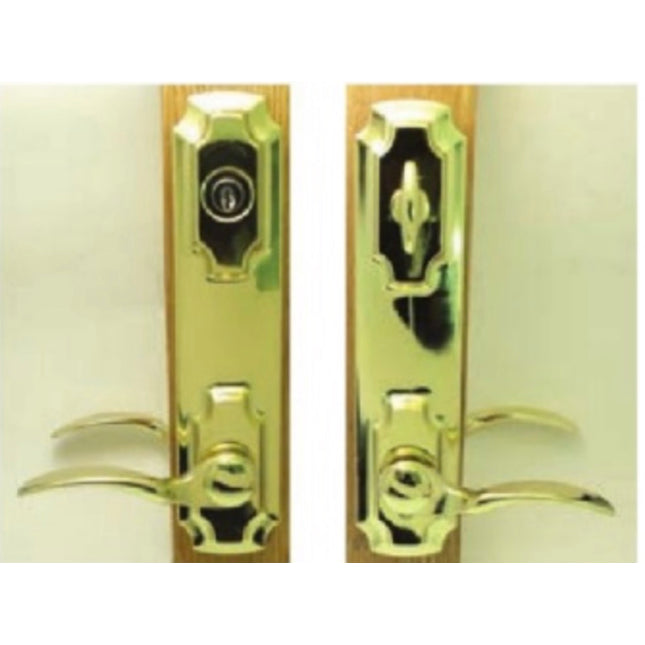

W&F Original 1200-126 Trilennium Handle
color: bright brass
Handle set includes backsets and strike plates. What is pictured is what you get.
6 inch center to center bore. And 5 1/4” center to center screw holes
sold As IS - no returns. New unused - old stock
D306 is a discontinued product.
PAT. NO. 4,671.89
Once stock is gone the replacement would part numbers D300 and we have to modify for backset application please email for quote to info@windowpartscenter (no backsets included with D300 handle either).
Part Number: D300*
W&F Trilennium 6 Inch CTC multipoint bore D300 is the new Replacement Handle Set - Non stock item special order - Allow 1-2 weeks for your order to ship (unless otherwise noted on our website about extended lead times) - No order cancellations or returns
D300 is for doors with: 6 inch center to center 1 7/8" or 2 1/8" diameter bores and screw hole placement 5 3/16" Center To Center.
Requires: 1 11/16" or 2 1/8" crossbore
Model: D300 Standard Set**
Screw Hole Placement: 5 3/16" Center To Center
Size: for Door Thickness 1 3/4" or 2 1/4"
Colors: Victorian Bronze, Bright Brass, Satin Nickel, Black
Style:
Active Standard 150 Degree- Has Thumb Turn, Keyed Cylinder and Lever is Operational*** For Single and French Active door panels. (Degree is how far the lever handle rotates for newer style multi point see pictures)
Active Modified 180 Degree- Has Thumb Turn, Keyed Cylinder and Lever is Operational*** For Single and French Active door panels. (Degree is how far the lever handle rotates for older multi point and double bore systems see pictures)
Dummy - No Thumb Turn, No Key Cylinder and Fixed Lever**** For Inactive panels in French doors - that is fixed or has independent astragal installed
Tumbturn for 3020 - Has Thumb Turn, No Key Cylinder and Fixed Lever**** For Inactive panels in French doors that has 3020 lock installed only***
Handing: Universal - Non handed works for both LH and RH swing doors
Handle Sets have been known to have been used on Bayer, Pella, Peachtree and other door brands.
Known W&F old handle set Pat No. 4,671,089 stamped on back of trim plate
Notes for other options for this style hardware on older doors:
D300 is manufactured for the current multipoint system and will work for you right out of the box - order Active Standard 150 Degree (see pictures).
If you have older style multipoint or backset lock and dead bolt with 6” center to center bore and screw hole placement is
5 3/16" Center To Center then Active Modified 180 Degree (see pictures)
If your door has a 6 inch center to center 2 1/8" standard double bore with back set latch and dead bolt and screw holes are also 6" center to center you need to order part number 852).
If you are not sure what type of system your door has, please send us pictures of your handle set with the door panel open so we can see the hardware that the handle set connects to inside the panel. Email pictures to: info@windowpartscenter.com
footnotes:
*Non stock - Allow 1 week for your order to ship - No order cancellations or returns
**This handle set also comes in other Models: See part numbers: D300, D301, D302, D304
***Operational Lever: Can move up and down when door is unlocked
**** Fixed Lever: Inactive, and is intended for push/pull function.
*****Do NOT use a power driver tool to attach the handle set face plate retaining screws. Thread damage can result and is NOT considered a product defect.
Associated Parts Sold Separately:
S4112 - Peachtree Multipoint Mortise Lock Citadel IPD Citation
For Trilennium Multi Point - Email us for quote. Info@WindowPartsCenter.com
Discontinued Product. no longer manufactured See part # 522 for replacement handle for this handle set. Multiple finish to choose from.
085472 - CHES Elite "C" Dummy Handle Set Bronze - Hurd Sliding Patio Door
Discontinued Product. What we have in stock is all that is available. See part # 522 for replacement handle for this handle set. Multiple finish to choose from.
W&F part # 120-70-1062
Part Number 1200-5.5 discontinued
Replacement option that we still have available is part number S4110 -W&F French Series Handle Set - The Normandy 5 1/2 Inch Center to Cetner
W&F 1200 Series Handle Set
5 1/2 Inch Center to Center Bore Handle Set
Color: Bright Brass
As is item no returns -this is our old stock new condition
What you see in the picture is what you will get.
Comes with interior and exterior face plates, 2 lever handles, 2 strike pales mounting screws, keyed cylinder and 2 keys (DOES NOT include backset latch or dead bolt)
Stamped on back: Patented Number: PAT # 4,671,089 P/N1200-74
Associated Parts Sold Separately:
For 6 Inch Center to center bore see part number 852 (not a replacement for the 5.5 inch center to center handle set)
Part Number D308
The old style with the groove in the middle is no longer available. the replacement that you will receive is solid. -See pictures.
Mortise Lock Drive Rods Handset Spindles Shaft
Pack of 2
7 mm square x 18 mm long
For Trilennium, W&F and Endura handle sets
Known Pat. NO. On Handle Set: 4.671.089
Part Number: D304*
W&F Trilennium 6 Inch CTC multipoint bore D304 is the new Replacement Handle Set -- Non stock item special order - Allow 1-2 weeks for your order to ship (unless otherwise noted on our website about extended lead times) - No order cancellations or returns
D304 is for doors with: 6 inch center to center 1 7/8" or 2 1/8" diameter bores and screw hole placement 5 3/16" Center To Center.
Requires: 1 11/16" or 2 1/8" crossbore
Model: D304 Standard Set**
Screw Hole Placement: 5 3/16" Center To Center
Size: for Door Thickness 1 3/4" or 2 1/4"
Colors: Victorian Bronze , Satin Nickel, Bright Brass
Style:
Active Standard 150 Degree- Has Thumb Turn, Keyed Cylinder and Lever is Operational*** For Single and French Active door panels. (Degree is how far the lever handle rotates for newer style multi point see pictures)
Active Modified 180 Degree- Has Thumb Turn, Keyed Cylinder and Lever is Operational*** For Single and French Active door panels. (Degree is how far the lever handle rotates for older multi point and double bore systems see pictures)
Dummy - No Thumb Turn, No Key Cylinder and Fixed Lever**** For Inactive panels in French doors - that is fixed or has independent astragal installed
Tumbturn for 3020 - Has Thumb Turn, No Key Cylinder and Fixed Lever**** For Inactive panels in French doors that has 3020 lock installed only***
Handing: Universal - Non handed works for both LH and RH swing doors
Handle Sets have been known to have been used on Bayer, Pella, Peachtree and other door brands.
Known W&F old handle set Pat No. 4,671,089 stamped on back of trim plate
Notes for other options for this style hardware on older doors:
D304 is manufactured for the current multipoint system and will work for you right out of the box - order Active Standard 150 Degree (see pictures).
If you have older style multipoint or backset lock and dead bolt with 6” center to center bore and screw hole placement is
5 3/16" Center To Center then Active Modified 180 Degree (see pictures)
If your door has a 6 inch center to center 2 1/8" standard double bore with back set latch and dead bolt and screw holes are also 6" center to center you need to order part number 852).
If you are not sure what type of system your door has, please send us pictures of your handle set with the door panel open so we can see the hardware that the handle set connects to inside the panel. Email pictures to: info@windowpartscenter.com
footnotes:
*Non Stock. Allow 1 week for your order to ship - No order cancellations or returns
**This handle set also comes in other Models: See part numbers: D300, D301, D302, D304
***Operational Lever: Can move up and down when door is unlocked
**** Fixed Lever: Inactive, and is intended for push/pull function.
*****Do NOT use a power driver tool to attach the handle set face plate retaining screws. Thread damage can result and is NOT considered a product defect.
Associated Parts Sold Separately:
S4112 - Peachtree Multipoint Mortise Lock Citadel IPD Citation
For Trilennium Multi Point - Email us for quote. Info@WindowPartsCenter.com
Part Number: D303*
W&F Trilennium 6 Inch CTC multipoint bore D303 is the new Replacement Handle Set - Non stock item special order - Allow 1-2 weeks for your order to ship (unless otherwise noted on our website about extended lead times) - No order cancellations or returns
D303 is for doors with: 6 inch center to center 1 7/8" or 2 1/8" diameter bores and screw hole placement 5 3/16" Center To Center.
Requires: 1 11/16" or 2 1/8" crossbore
Model: D303 Standard Set**
Screw Hole Placement: 5 3/16" Center To Center
Size: for Door Thickness 1 3/4" or 2 1/4"
Colors: Victorian Bronze, Satin Nickel, Black
Style:
Active Standard 150 Degree- Has Thumb Turn, Keyed Cylinder and Lever is Operational*** For Single and French Active door panels. (Degree is how far the lever handle rotates for newer style multi point see pictures)
Active Modified 180 Degree- Has Thumb Turn, Keyed Cylinder and Lever is Operational*** For Single and French Active door panels. (Degree is how far the lever handle rotates for older multi point and double bore systems see pictures)
Dummy - No Thumb Turn, No Key Cylinder and Fixed Lever**** For Inactive panels in French doors - that is fixed or has independent astragal installed
Tumbturn for 3020 - Has Thumb Turn, No Key Cylinder and Fixed Lever**** For Inactive panels in French doors that has 3020 lock installed only***
Handing: Universal - Non handed works for both LH and RH swing doors
Handle Sets have been known to have been used on Bayer, Pella, Peachtree and other door brands.
Known W&F old handle set Pat No. 4,671,089 stamped on back of trim plate
Notes for other options for this style hardware on older doors:
D303 is manufactured for the current multipoint system and will work for you right out of the box - order Active Standard 150 Degree (see pictures).
If you have older style multipoint or backset lock and dead bolt with 6” center to center bore and screw hole placement is 5 3/16" Center To Center then Active Modified 180 Degree (see pictures)
If your door has a 6 inch center to center 2 1/8" standard double bore with back set latch and dead bolt and screw holes are also 6" center to center you need to order part number 852).
If you are not sure what type of system your door has, please send us pictures of your handle set with the door panel open so we can see the hardware that the handle set connects to inside the panel. Email pictures to: info@windowpartscenter.com
footnotes:
*Non Stock Allow 1 week for your order to ship - No order cancellations or returns
**This handle set also comes in other Models: See part numbers: D300, D301, D302, D304
***Operational Lever: Can move up and down when door is unlocked
**** Fixed Lever: Inactive, and is intended for push/pull function.
*****Do NOT use a power driver tool to attach the handle set face plate retaining screws. Thread damage can result and is NOT considered a product defect.
Associated Parts Sold Separately:
S4112 - Peachtree Multipoint Mortise Lock Citadel IPD Citation
For Trilennium Multi Point - Email us for quote. Info@WindowPartsCenter.com
Part number 519
Manufacture has discontinued this mounting plate and the handle sets it goes to.You will need to replace your full handle set. To know which style of replacement handle set to order for your door - Identity If your mounting plate uses the "A" screw Holes or "B" Screw Holes and follow to the corresponding links below for instructions and list of the parts you will need:"A" Screw Holes: Off set Latch needed (Used on Hurd Doors and other brands)Click Here for Instructions on how to order a Replacement Handle Set
"B" Screw Holes: Center Latch needed (Used on Other Brand Doors)Click Here for Instruction on how to order a Replacement Handle Set Mounting Plate Known part Numbers: 011771, P/N 120-60; PAT. # 5,092,144
As is - New Condition old stock (may have minor scuffs, etc.) - No returns all sales final. Once our stock is gone this item will no longer be available replacement is Only available as a replacement kit now see part # 522
085474 CHES Elite "C" Dummy Bright Chrom Hurd sliding Patio Door Handle set
Hurd DummyHandle Set. Discontinued Product What we Have in stock is all that is available. See part# 522 For new Replacement Handle get with Many Finishes avaliable.
W&F Part# 120-70-1060
Condition: As Is - New product that has been either: old inventory that has been sitting in stock, customer return, vendor sample, came in from the factory with finish flaws or discontinued item. There maybe some minor finish flaws, scuffs or scratches. In some instances, these items are repackaged. All sales final No returns on as is items.
Once our stock is gone this item will no longer be available
038545 CHES Elite "C" Dummy Handle Set - Hurd Sliding Patio Door
Dummy Handle Set Bright Brass
Discontinued Product. See part # 522 that is a direct replacement for this handle set.
W&F part # 120-70-1008, 120-71
