105 Amesbury Truth Operator 15 Series Traditional Case Long Arm 13 1/2" Ellipse Case 60 Series
105 Amesbury Truth Operator 15 Series Traditional Case Long Arm 13 1/2
Part Number: 105
Amesbury Truth Operator Tradition case 15 Series - Long Straight Long Arm (13 1/2") Discontinued and are no longer available.

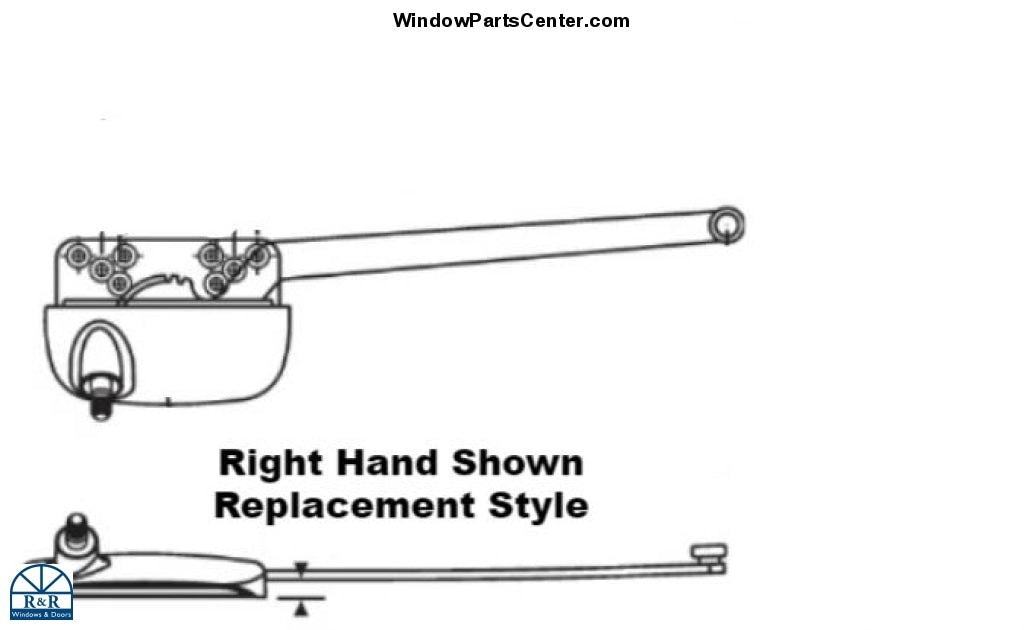

Replaced By Amesbury Truth Operator Ellipse Case 60 Series long Straight Long Arm (13 1/2")

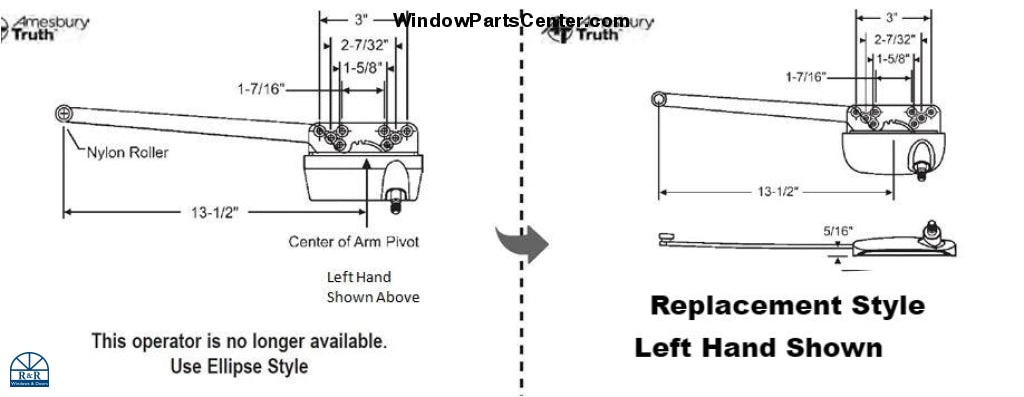

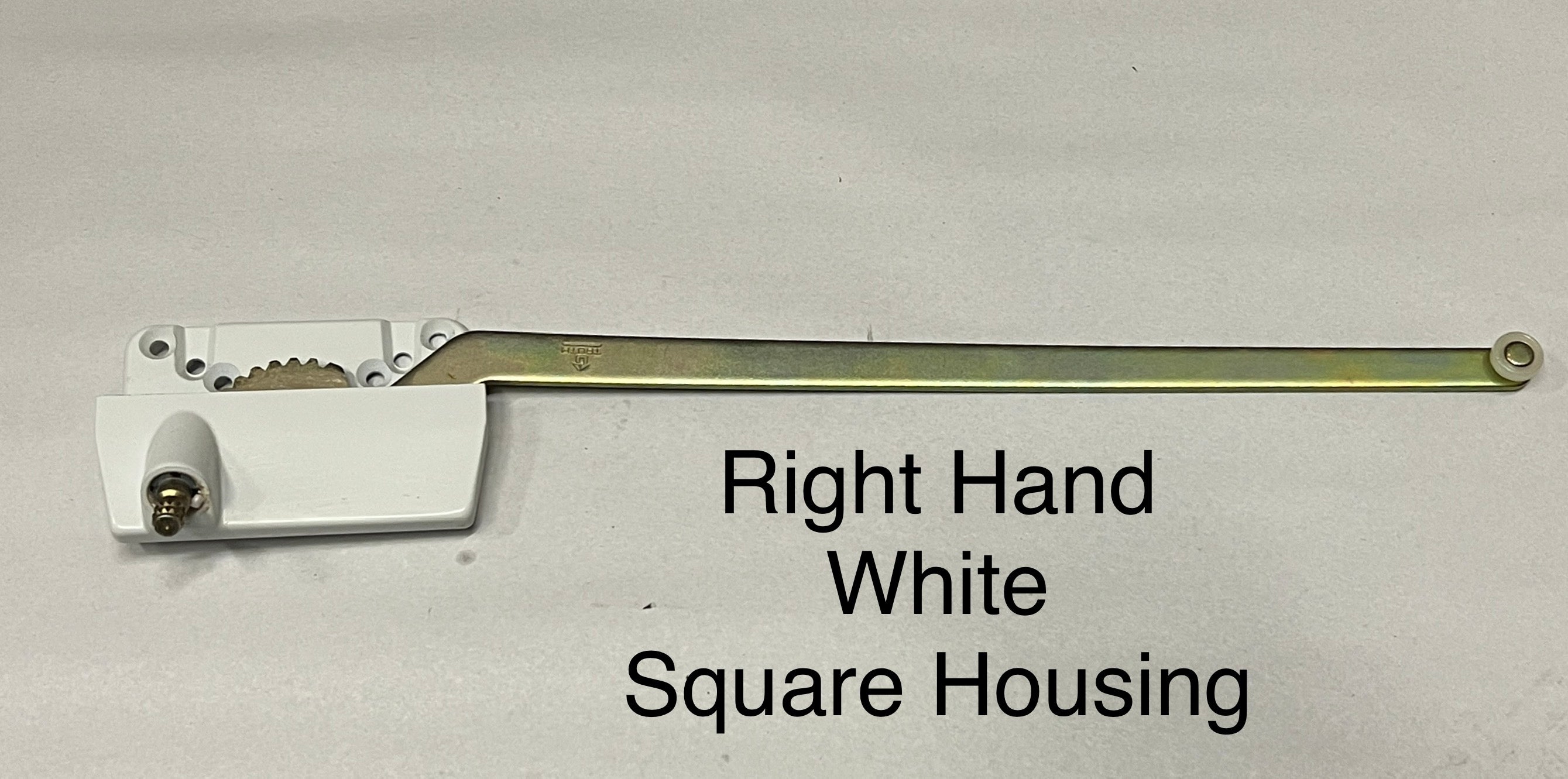

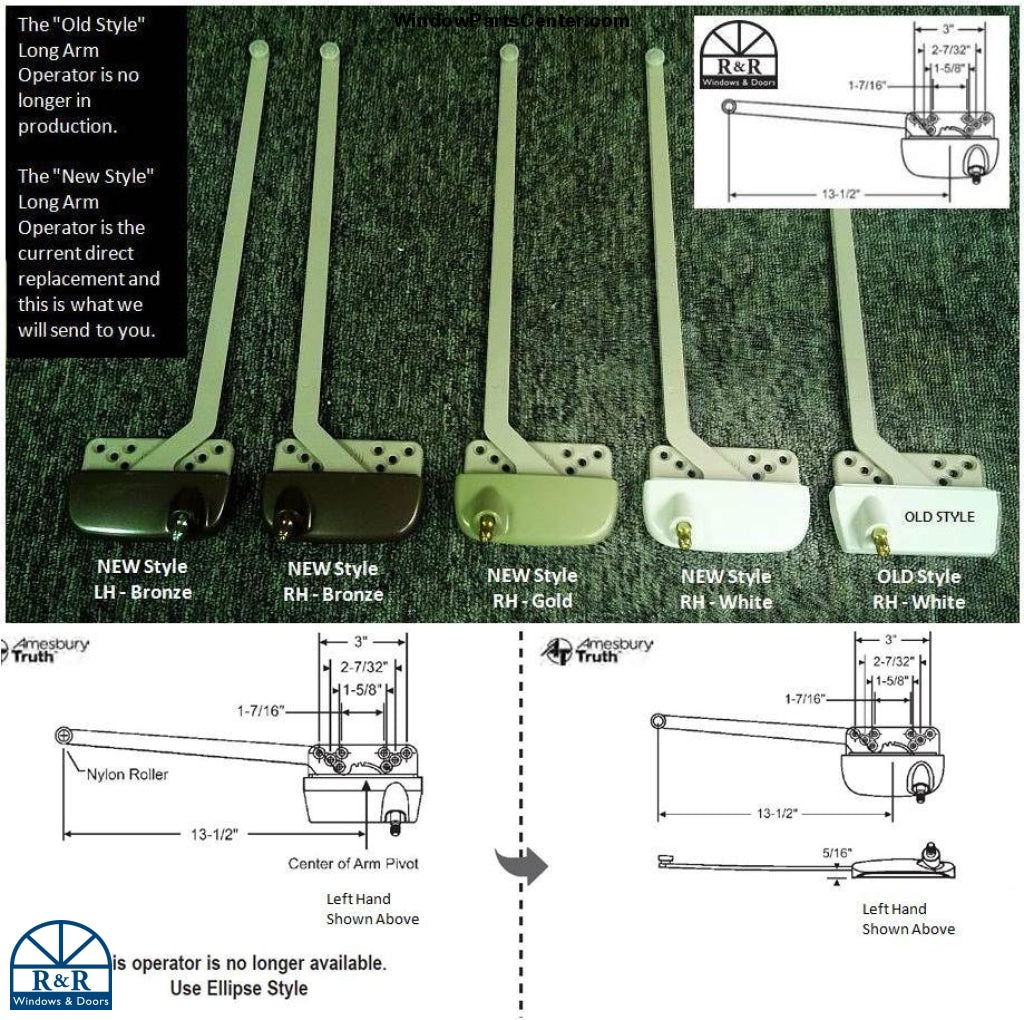

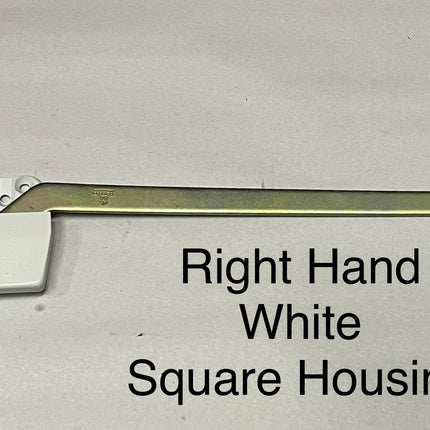

Amesbury Truth 15 Series "Traditional Square Case" has been replaced by the Ellipse Case 60 Series. They are a Direct Replacement, only difference is the case design. See pictures for more details.

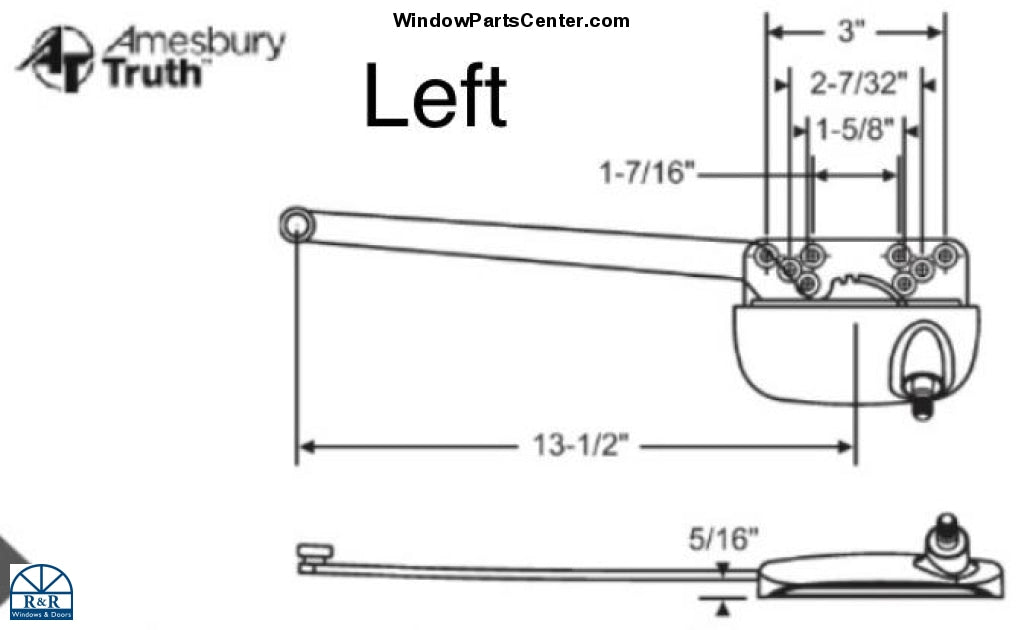

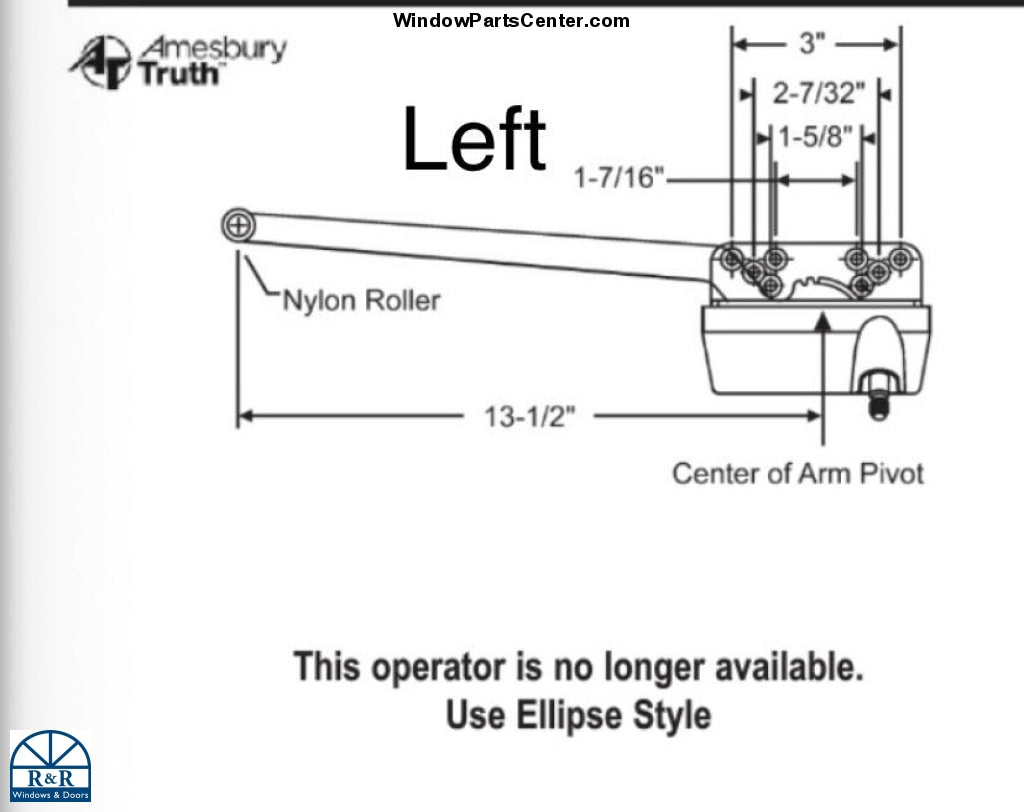

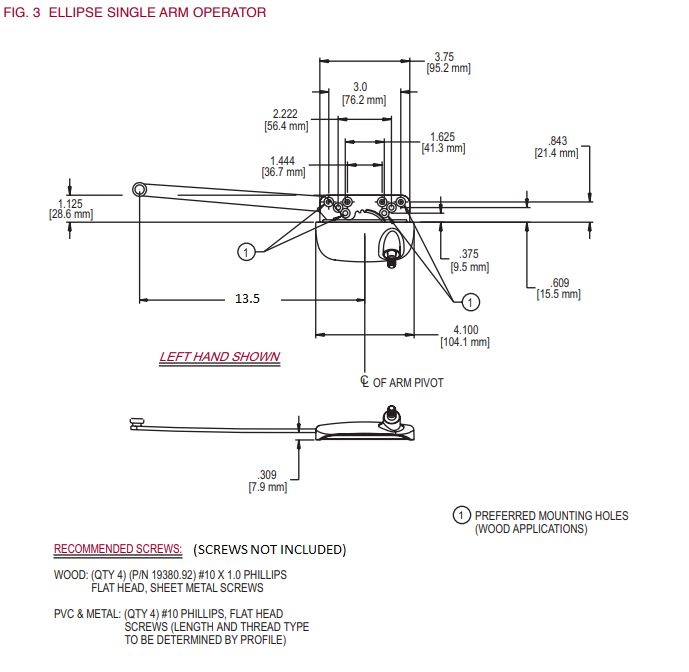

13 1/2" Measurement is taken from center of housing to center of nylon roller - see drawing to measure accurately on your operator.

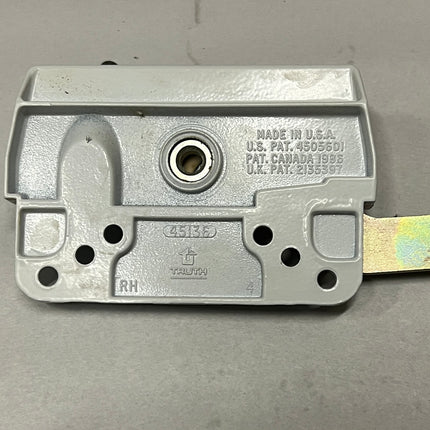

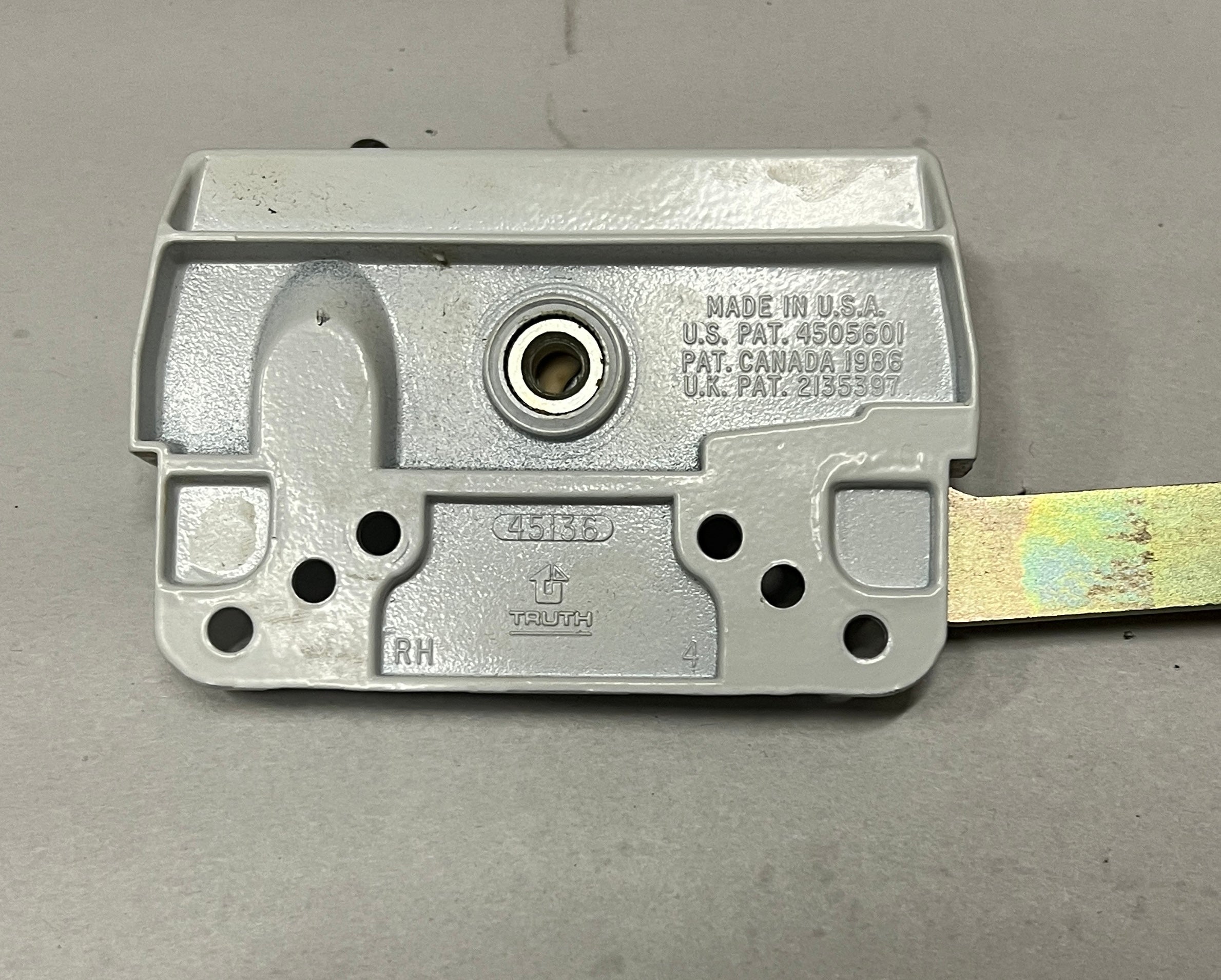

Known Part Number: 105, 45251, 45136, U.S. PAT. 4505601, PAT. CANADA 1986, U.K. PAT. 2135397, 7707, 15-32-32-062, 15-32-32-061
Replacement Parts for: Hurd, Caradco, BiltBest, Oldach, Allsco, Semco (1976-1986)
Operators with Similar Housing But Different Arm Lengths:
- Part Number S1082 - Truth/Wright Dyad Operator
- Part Number S1048 - Truth/Wright Dyad operator
- Part Number S1068 - Truth/Wright Dyad Operator
- Part Number 105 - Truth/Wright Straight Arm
- Part Number 115 - Truth/Wright Straight Arm
- Part Number 109 -Truth/Wright Straight Arm
- Part Number 112 - Truth/Wright Straight Arm
- Part Number S1037 -GU - Split Arm Dyad Operator
- Part Number S1038 GU - Split Arm Dyad Operator Kit
- Part Number 111 - Truth/Wright Split Arm Dyad Operator
