121 Amesbury Truth Adjustable Hinge Track Kit - 10 and 14 inch style
Hinge Track Kit Window Replacement Parts
Part Number: 121

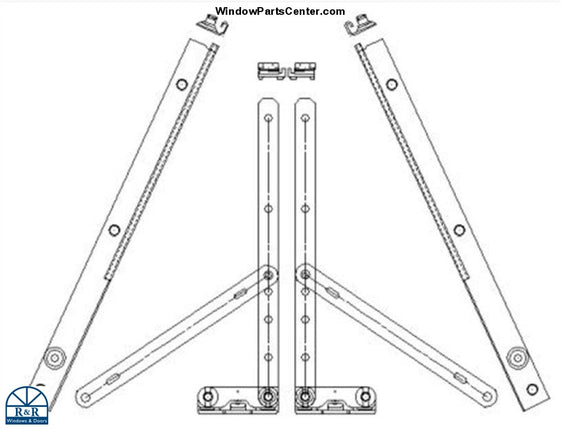

Amesbury Truth Adjustable Casement and Awning Hinge Track Kit
whats included: 1 left hand hinge track with hinge arm, 1 right hand hinge track with hinge arm (universal for both left and right handed casement Windows - hinges are used on the top and bottom of the casement window swap which one goes in top and bottom depending on how your window is handed).
Size: 10 inch, 14 inch (determine your size by measuring the track).
Finish: Standard (beige powder coat), Stainless Steel
Hinge track kits are adjustable. To order adjustable wrench see part # 190 (sold separately). Only one wrench is needed for multiple hinges

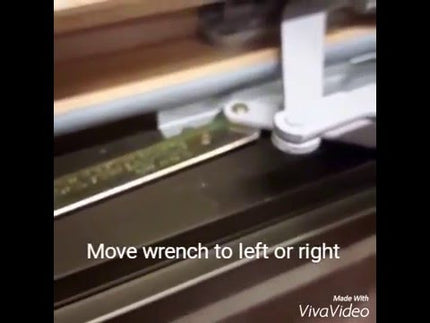

Adjustable hinges help with sash dragging. When you adjust the bottom hinge toward the locking side it raises up the lock side sash up. If it makes it worse adjust the other way.
If you have the old style hinges with the metal clip you MUST also replace the track too (which comes in the kit) as the new style hinges arms do not have a metal clip to hold it to the track. They now has a set ring on the track to hold everything in place. Old style hinges with clip are no longer available.
Known Part Numbers: 121, 30451, 30144, 30350, 20681, 30463, 31512, 31532
Associated Parts Sold Separately:
part number 190: Hinge Adjustment Wrench
