137 Encore Folding Handle and Operator Cover Kit

137 Encore Folding Handle and Operator Cover Kit

$ 27.00

Handing
Color
New Goldtone
Champagne
Coppertone
Bronze
White
Black
Bright Brass
Polished Chrome
Brushed Chrome
Brushed Nickel
Antique Brass
Oil Rubbed Bronze
Quantity

Part Number 137

Truth Amesbury Encore: Folding Handle and Operator Cover for Casements and Awning Operators

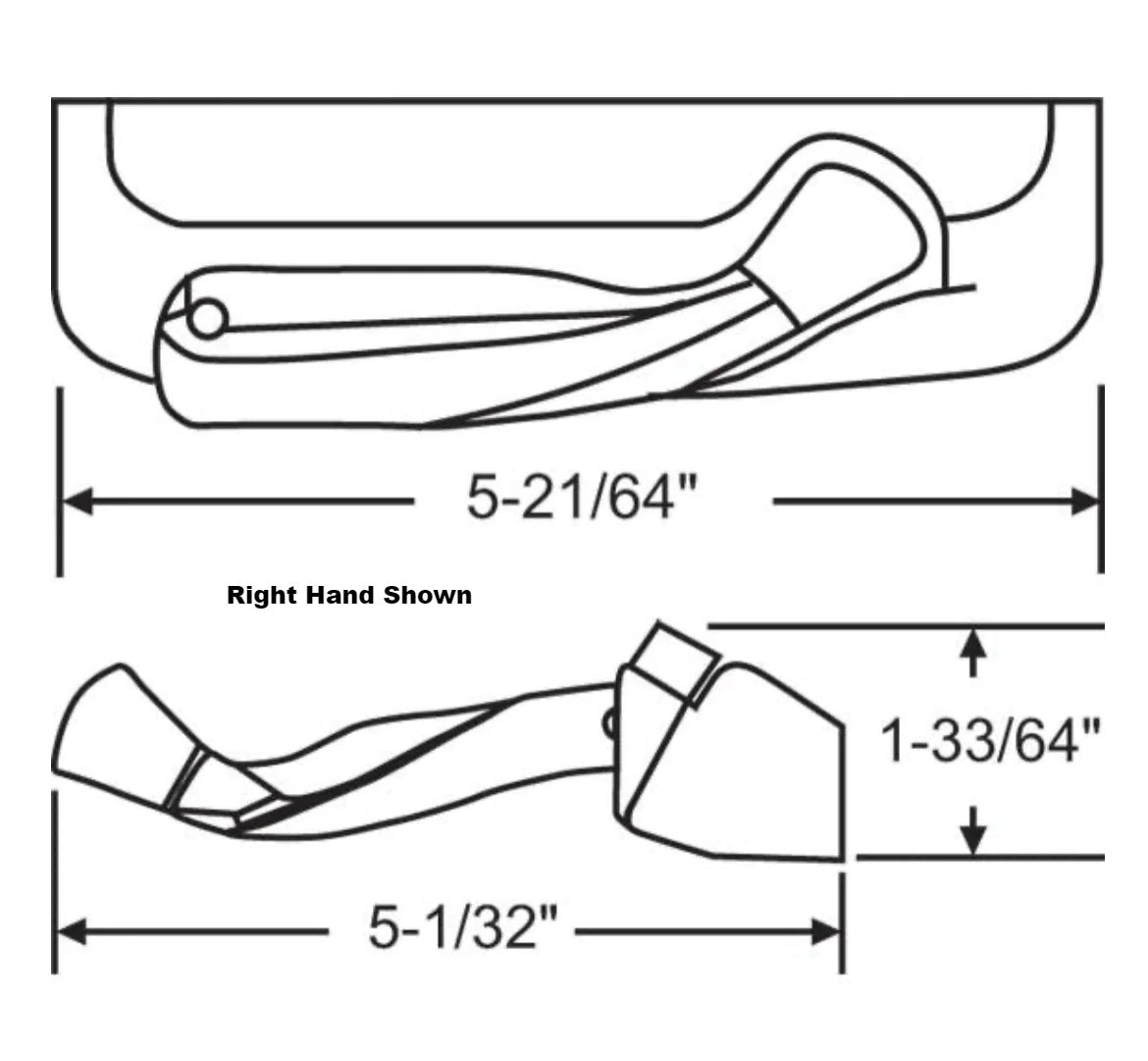

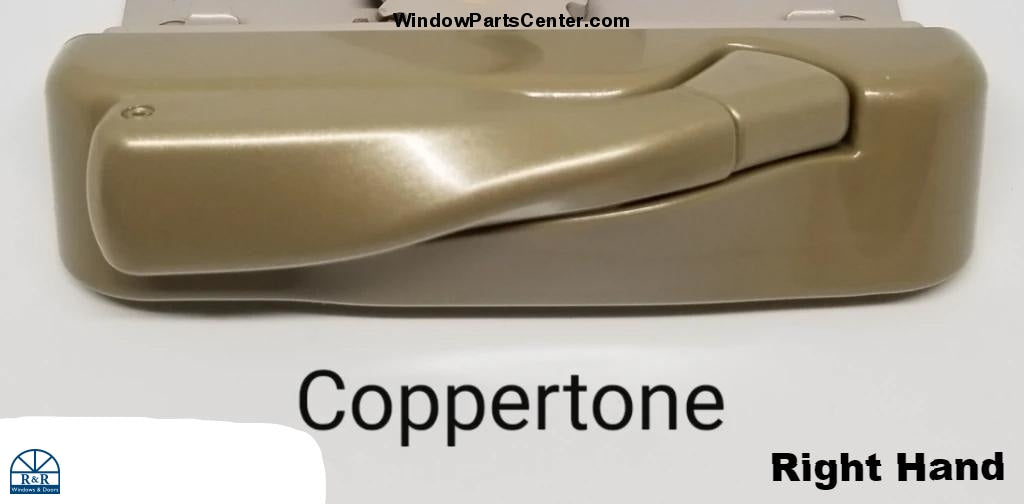

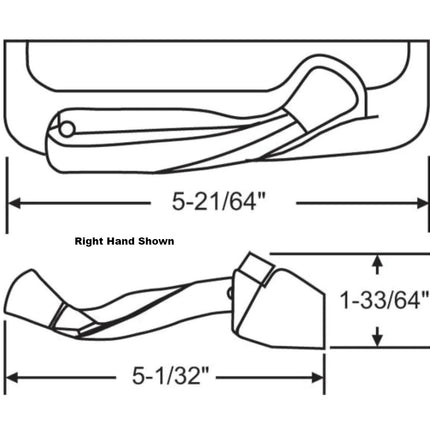

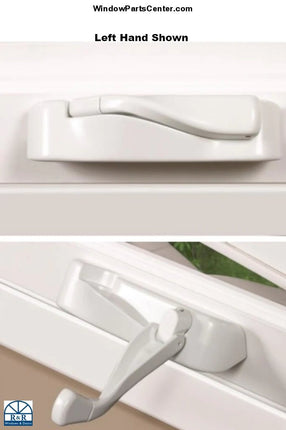

Handing: Casements can be left or right handed See pictures to determine handing you need to order. Awnings always will be Left Hand

Colors In Stock: New Goldtone, White, Bronze, Champagne

All other colors can have a 1-3 week lead time. Price depends on finish selected.

Operators Sold Separately:

Part Number: 119  Casement Encore Dual Arm Sill Mount Amesbury Truth

Part Number:  147 AmesbrutyTruth Encore Sill Mount Casement Operator-Dyad

Part Number: 158 AmesburyTruth Casement Sill Mount Operator-Encore-Single Arm

Part Number: 207 Awning Amesbury Truth Encore Awning Sill Mount Operator.


Bulk pricing available please give us a call or e-mail.


This video will show how to attached # 137 Encore Cover and handle to the # 119 Truth Encore Operator

Manufacture Tech Note: Proper Installation of an Operator Cover & Nested Folding Handle.

When installing the cover and handle on the operator you should follow these
instructions:

• Snap the cover onto the operator base.

• Place the handle onto the spline of the operator and rotate the handle to close
the window.

• Lock the window in place.

• Rotate the handle Ľ turn back (towards opening direction) to reduce the
pressure on the operator.

• If the handle needs to be positioned in a nested cover you can remove the
handle at this time and re-position it so that it will rest correctly in the nested
cover.

• Tighten the set screw on the handle.

• Unlock the window and cycle the sash open and closed until the handle returns
to the starting position whereby there is no additional torque required to close the sash. Note: the sash should travel to a point that the lock can easily engage
and seal the window.

• If the window does not come all the way into the closed position, and more force
is required on the operator to close the window, you will need to review the
window for the following; sash sag; racked window; lock points that are not
properly aligned; or hinges not installed correctly. These issues should be
corrected prior to repeating the installation of the handle onto the operator
spline.

Placing the operator and the handle under high stress and abusive loads can cause
permanent failures to the handle or operator as the window is repeatedly opened and
closed.



Known Part Numbers: 137, 096357, 096358, 096353, 096354, 096354, 096356
