158 AmesburyTruth Casement Sill Mount Operator-Encore-Single Arm 52.11

Description

Part Number: 158

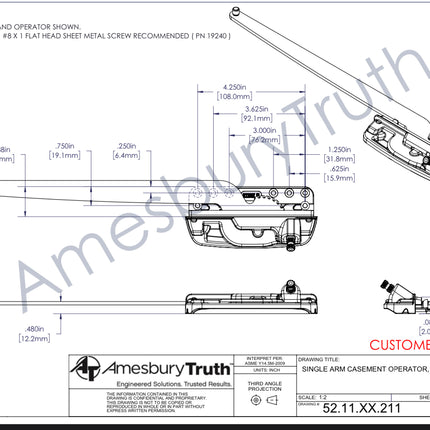

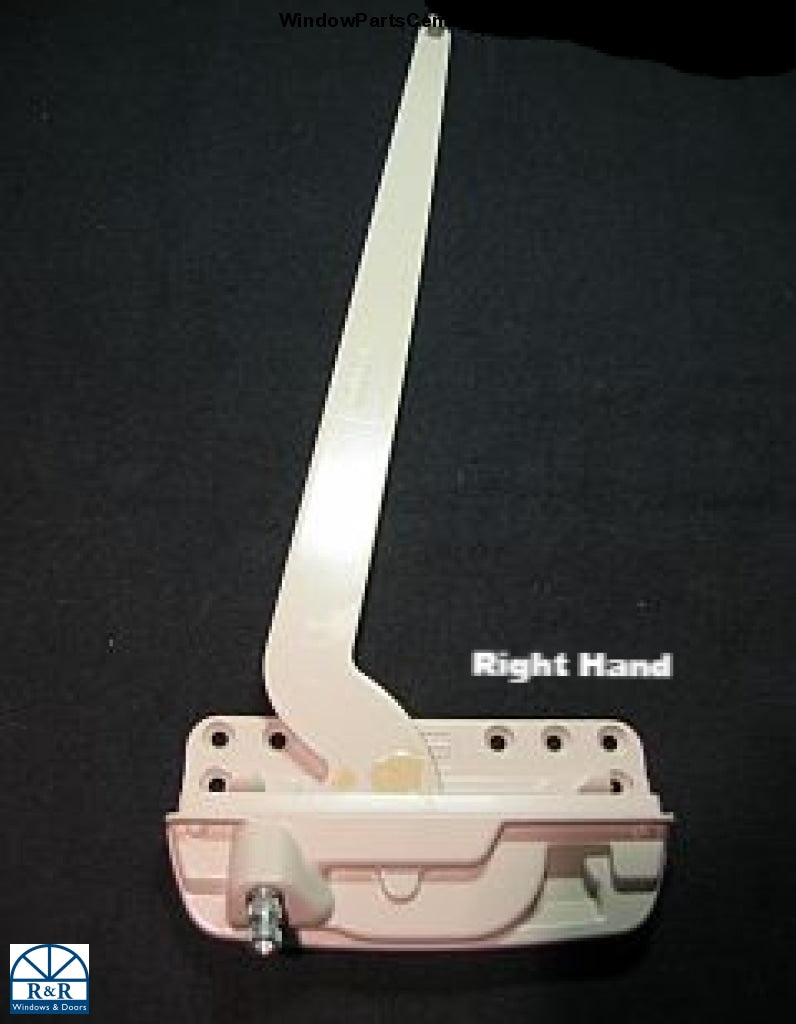

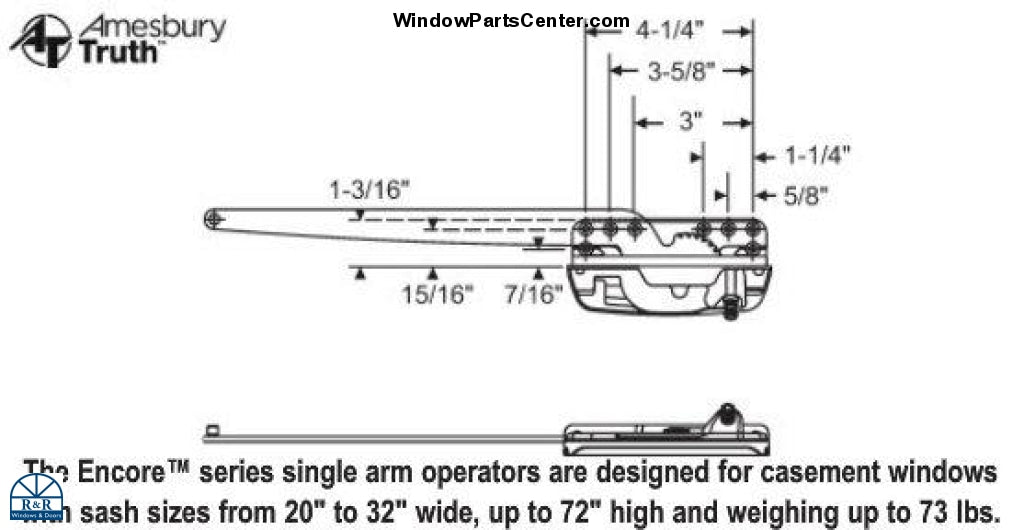

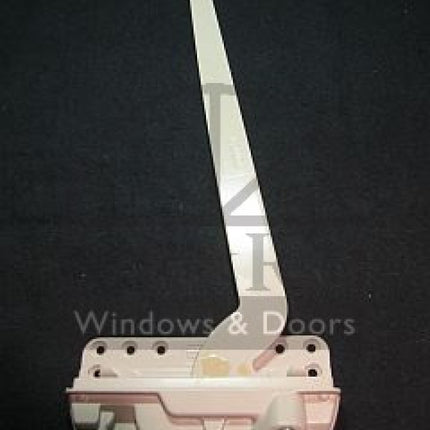

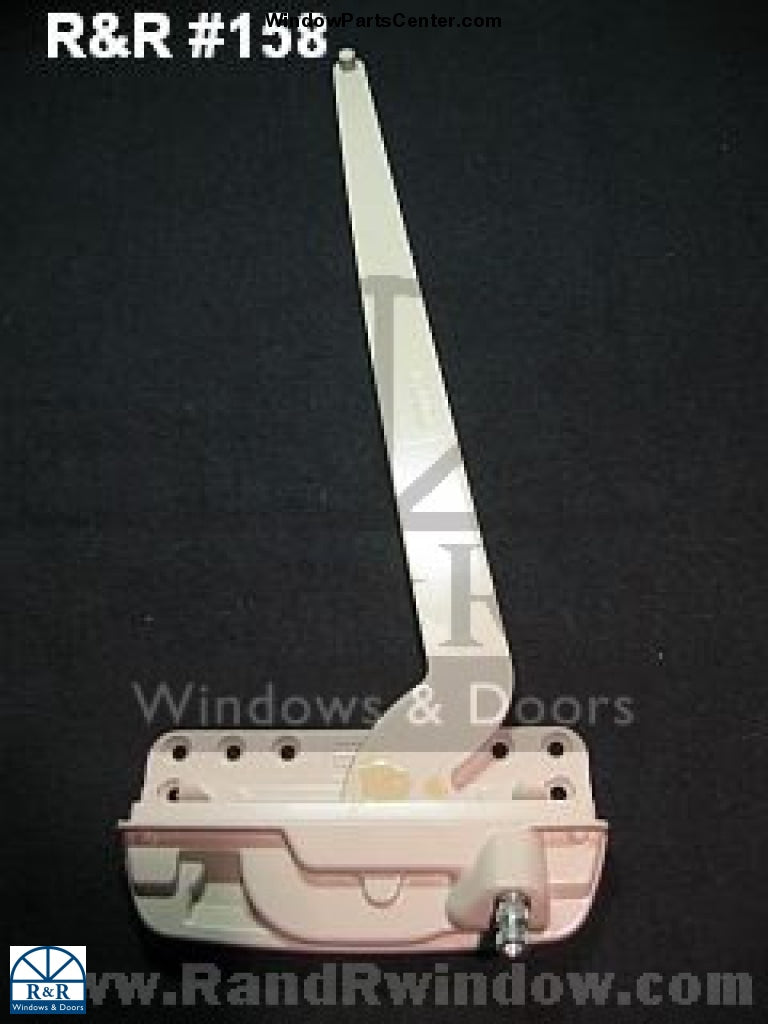

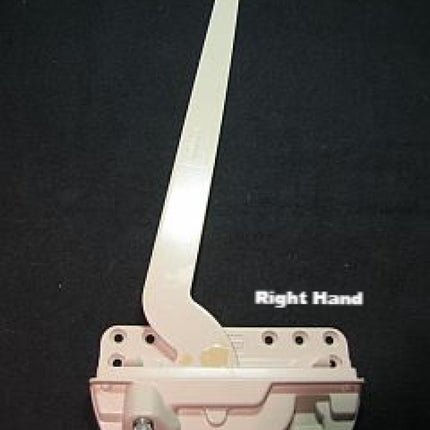

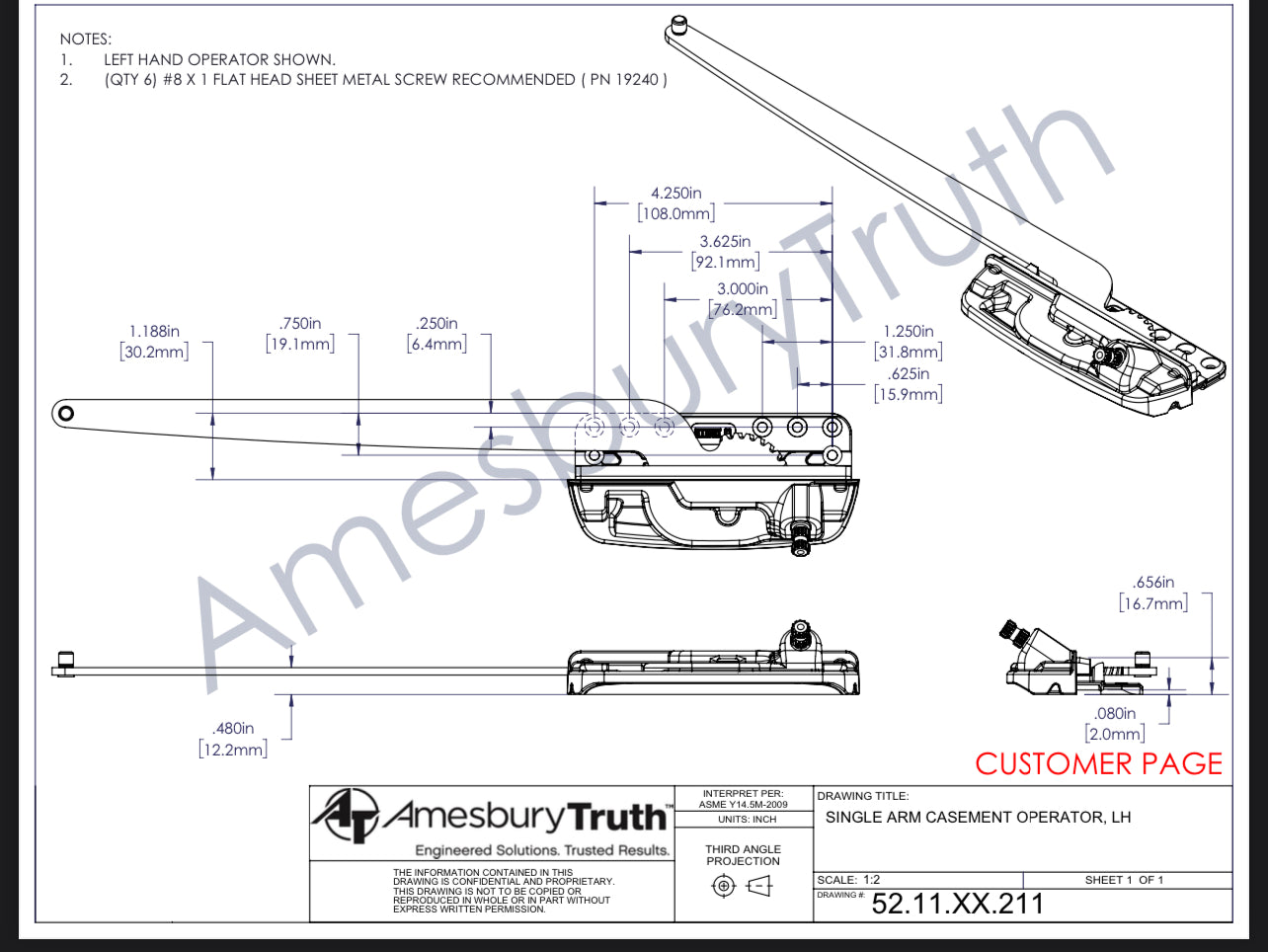

Amesbury Truth Casement Sill Mount Operator-Encore-Single Arm 52.11

 158 is the Operator Only - You will need to purchase the cover and handle kit part number 137 sold separately.

Manufacture Details:  Encore Operators give you all the strength and performance characteristics of Maxim, but with the flexibility of a snap-fit cover and streamlined full-flip folding handle that eliminates collapse during operation. Encore Operators require 33% less effort to operate than previous operators and are designed to use the same mounting location as the Maxim system. Stainless steel components are available for coastal applications. These operators complement the Encore Multi-Point Locking System.

 Brands Known to be used on: Hurd for 19"-27" wide casements, Weather Shield, Sierra Pacific

Associated Parts Sold Separately:

Part Number: 137 Encore Folding Handle and Cover Kit

Manufacture Tech Note: Proper Installation of an Operator Cover & Nested Folding Handle.

When installing the cover and handle on the operator you should follow these
instructions:

• Snap the cover onto the operator base.

• Place the handle onto the spline of the operator and rotate the handle to close
the window.

• Lock the window in place.

• Rotate the handle ¼ turn back (towards opening direction) to reduce the
pressure on the operator.

• If the handle needs to be positioned in a nested cover you can remove the
handle at this time and re-position it so that it will rest correctly in the nested
cover.

• Tighten the set screw on the handle.

• Unlock the window and cycle the sash open and closed until the handle returns
to the starting position whereby there is no additional torque required to close the sash. Note: the sash should travel to a point that the lock can easily engage
and seal the window.

• If the window does not come all the way into the closed position, and more force
is required on the operator to close the window, you will need to review the
window for the following; sash sag; racked window; lock points that are not
properly aligned; or hinges not installed correctly. These issues should be
corrected prior to repeating the installation of the handle onto the operator
spline.

Placing the operator and the handle under high stress and abusive loads can cause
permanent failures to the handle or operator as the window is repeatedly opened and
closed.

Part Number: 158, 36-402EN, 36-403EN

Product form

7 in stock

$ 60.00

    Description

    Part Number: 158

    Amesbury Truth Casement Sill Mount Operator-Encore-Single Arm 52.11

     158 is the Operator Only - You will need to purchase the cover and handle kit part number 137 sold separately.

    Manufacture Details:  Encore Operators give you all the strength and performance characteristics of Maxim, but with the flexibility of a snap-fit cover and streamlined full-flip folding handle that eliminates collapse during operation. Encore Operators require 33% less effort to operate than previous operators and are designed to use the same mounting location as the Maxim system. Stainless steel components are available for coastal applications. These operators complement the Encore Multi-Point Locking System.

     Brands Known to be used on: Hurd for 19"-27" wide casements, Weather Shield, Sierra Pacific

    Associated Parts Sold Separately:

    Part Number: 137 Encore Folding Handle and Cover Kit

    Manufacture Tech Note: Proper Installation of an Operator Cover & Nested Folding Handle.

    When installing the cover and handle on the operator you should follow these
    instructions:

    • Snap the cover onto the operator base.

    • Place the handle onto the spline of the operator and rotate the handle to close
    the window.

    • Lock the window in place.

    • Rotate the handle ¼ turn back (towards opening direction) to reduce the
    pressure on the operator.

    • If the handle needs to be positioned in a nested cover you can remove the
    handle at this time and re-position it so that it will rest correctly in the nested
    cover.

    • Tighten the set screw on the handle.

    • Unlock the window and cycle the sash open and closed until the handle returns
    to the starting position whereby there is no additional torque required to close the sash. Note: the sash should travel to a point that the lock can easily engage
    and seal the window.

    • If the window does not come all the way into the closed position, and more force
    is required on the operator to close the window, you will need to review the
    window for the following; sash sag; racked window; lock points that are not
    properly aligned; or hinges not installed correctly. These issues should be
    corrected prior to repeating the installation of the handle onto the operator
    spline.

    Placing the operator and the handle under high stress and abusive loads can cause
    permanent failures to the handle or operator as the window is repeatedly opened and
    closed.

    Part Number: 158, 36-402EN, 36-403EN
