Part Number: 216

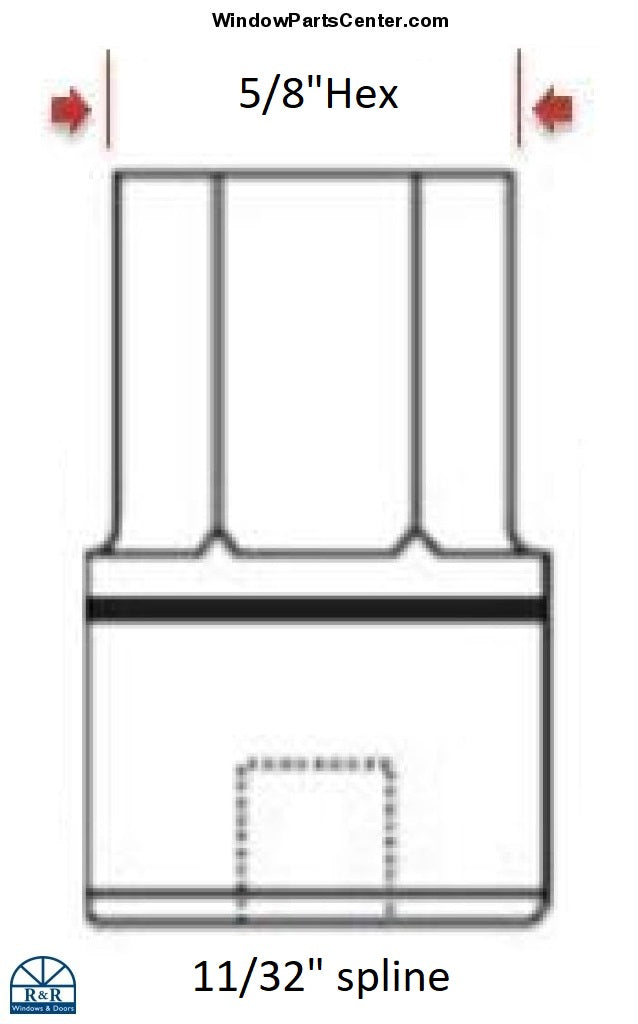

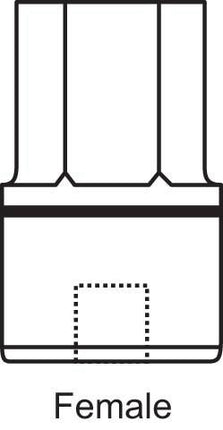

Crank Handle Adapter 5/8 Inch Hex Femail used with Clear Story Windows

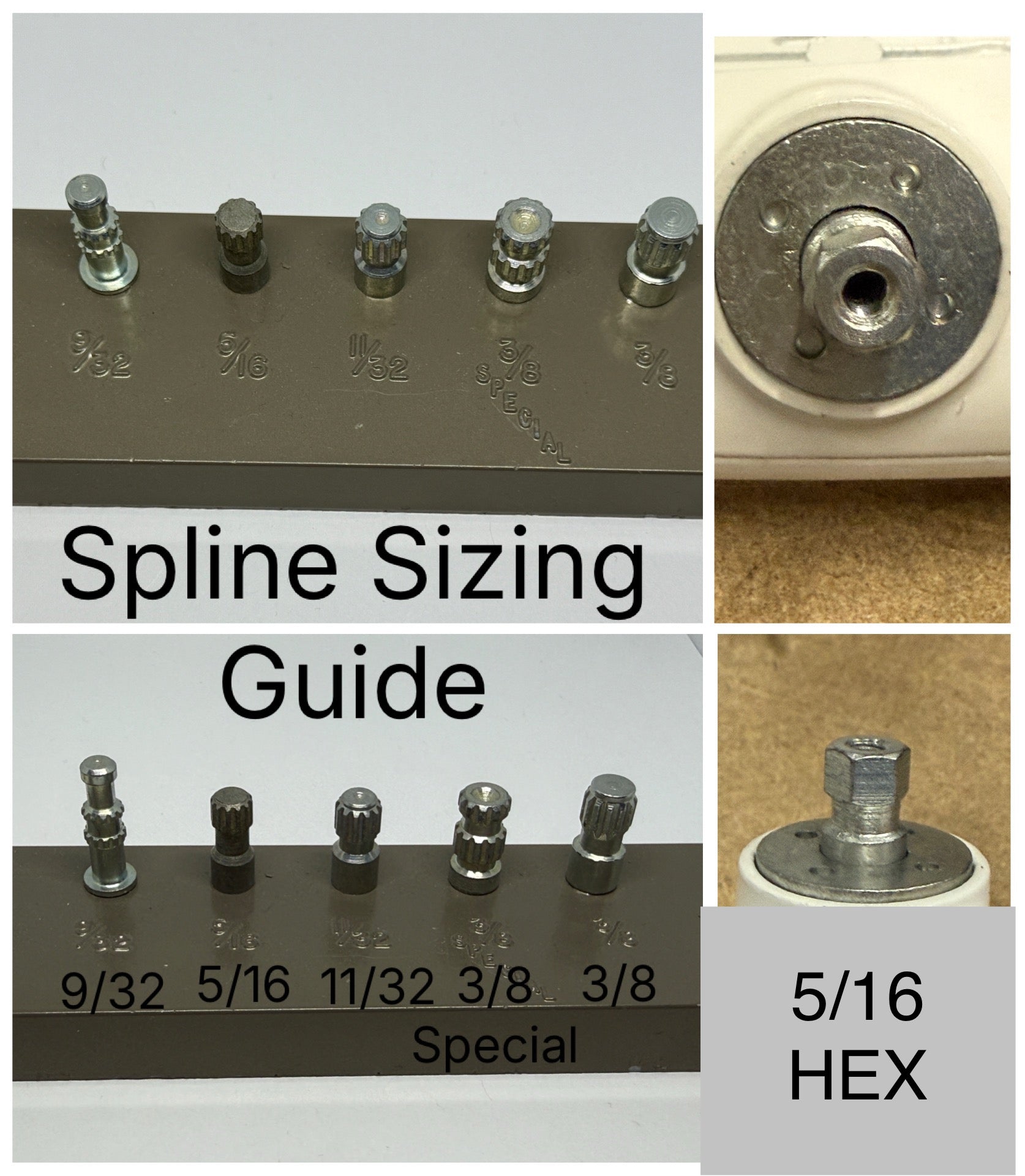

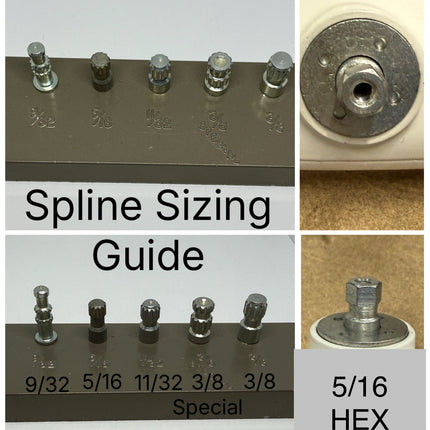

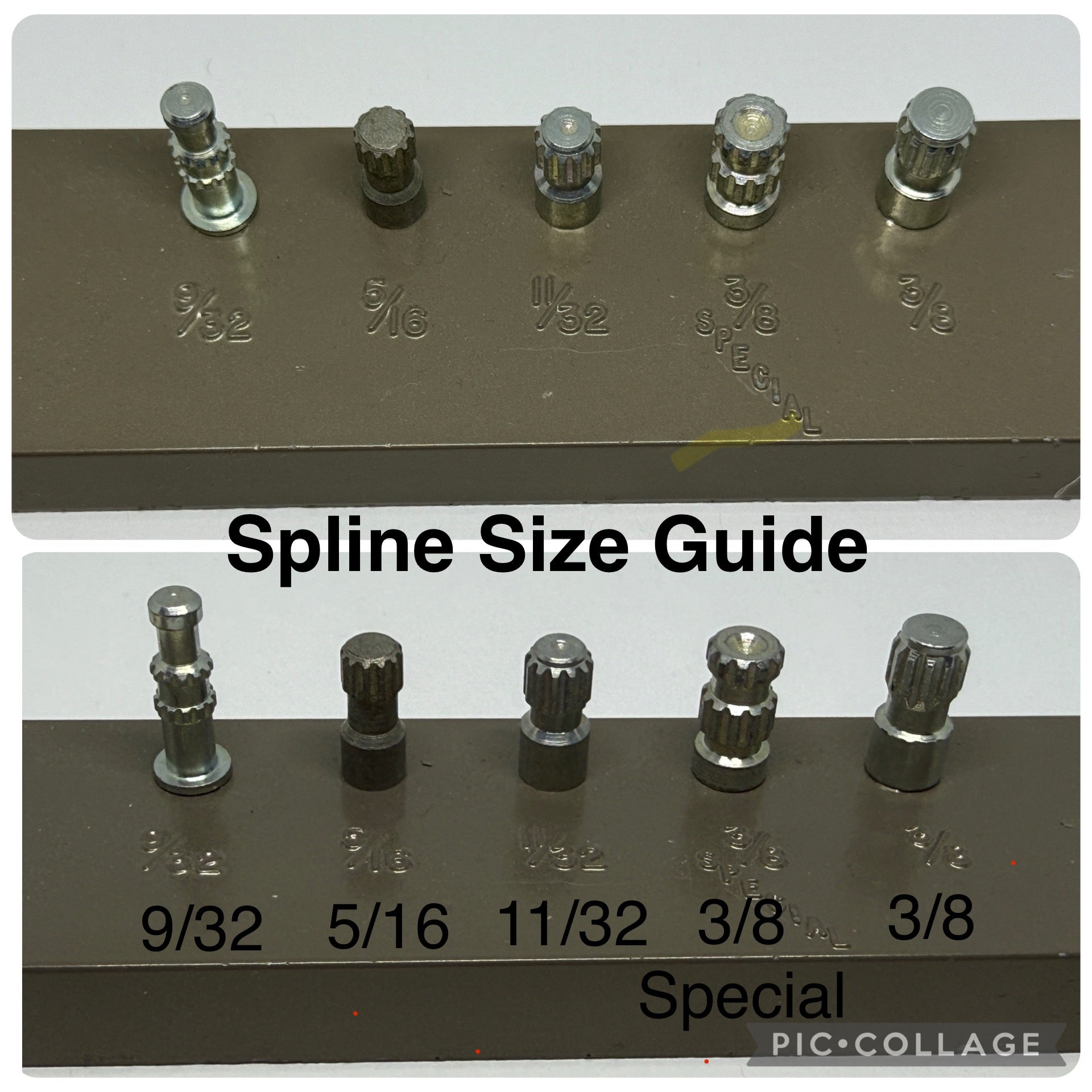

Size: Spline Size see list below
- 11/32 Spine Fits: Truth (Amesbury Truth): Marvin, Some Milgard, Caradco, Weather Shield, Hurd, BiltBest, Eagle, Vetter, Roto X Drive and Others
- 9/32 Spline Fits Peachtree and Getty
- 3/8 Special Spline Fits: Pella
- 3/8 Special Spline Fits: Anderson
- 3/8 Spline Fits: Some Milgard and Others
Finish: Mill (Special order colors email for pricing: White, Black and Champagne)
Put those operable clerestory windows to energy-saving use with our 39-series clerestory extension crank. High mounted windows are excellent for capturing light while providing privacy, but they can also be “excellent” heat traps. It is now possible to vent the heat that rises to these areas as easily as opening any other window in the home.
It’s inexpensive and can easily retrofit to existing or new window installations. By simple removal of the existing crank handle and replacement with an adapter (Hex-Bolt) the crank will open and close any operable clerestory window. It is not necessary to replace the current operator.
The removable extension crank is available in many standard sizes for either sill or jamb mounted operators. (See Manual Window Wands) The standard finish for the crank is natural anodized aluminum.
