Description
Part Number: 345
NOTE: Before you place your order review all information below and review all drawings and compare to your windows.

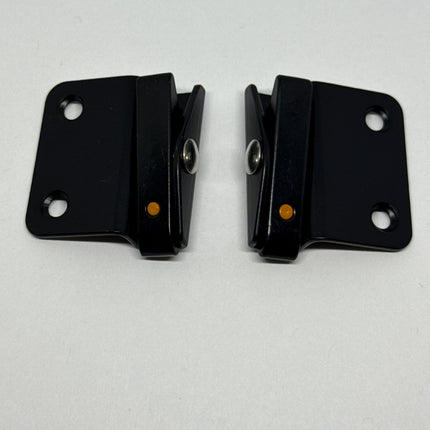

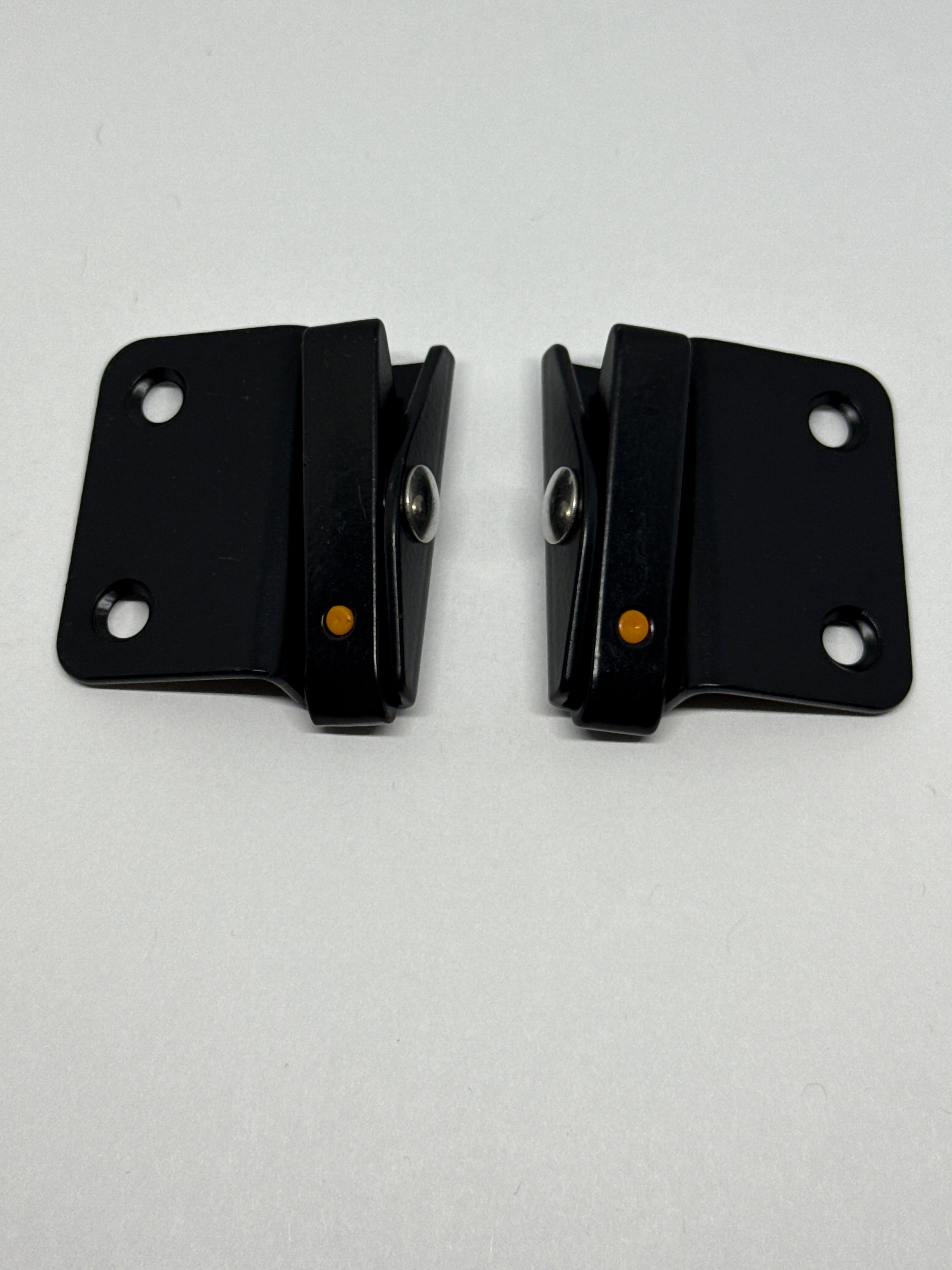

WOCD Standard Angel Ventlock Retrofit Window Opening Control Device Double Hung Windows
This Standard Retro Angel Ventlock is another ideal limit control devise for use in aftermarket applications. This Window Opening Control Device (WOCD) is mounted to the top sash on a double hung wood window.
The Standard Retrofit Angel Ventlock version fits into the style of the top sash and must be mounted to restrict the bottom sash open to less than four inches. These units are single action, so installing one on either side of the sash ensures compliance with the code ASTM F2090 - 2008 and 2010
Various Sizes and Finishes are Available. To determine what size you need by measuring the window gap between the top sash and bottom sash. Simply measure the distance between the two.
Colors: Blue White, Oil Rubbed Bronze (faux) and White

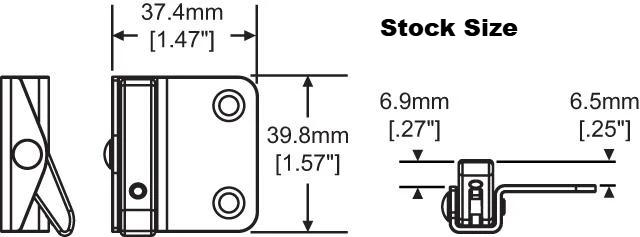

Stocked Size WOCD # 345 is for a Window Gap of: 1/8 inch to 5/32 Inch Sash to Sash (see drawing A Dimension) For other gab sizes options see picture of chart and email us for a quote at Info@WindowPartsCenter.com
Each Kit Includes:
- Left Opening Control Device. Right Opening Control Device. 6x 5/8’ Wood Screws. install Instructions
WOCD Complies with: ASTM F2090-17* (see instructions note WOCD was tested to and complies with the requirements of ASTM F2090, Versions 2008, 2010, 2013 and 2017)
Which Angel WOCD Do I Need?: Angel WOCD devices only work with windows where the sash to Frame gap is fixed and cannot vary (the "A" dimension" see drawing) . If you are unable to determine the "A" Dimension of your window or if this WOCD will work on your hung window or if it meets your local building code contact the window manufacture and your local building department for assistance on what WOCD you need for your window application. If unsure only order 1 kit to check fit before ordering more.
Returns: Only accepted for stock style size A Gap measurement of 1/8 inch to 5/32 inch. #345 must be in unused new WOCD See about us > Refund Policy for full return terms and conditions. No returns accepted for Bulk orders of QTY 25 of more or of the special order sizing no matter the QTY.
Stamped on Back for part: Mighton PCT/GB09/1526 24/06/30
For More Information on Angle Ventlocks Visit Manufactures Website: https://www.angel-ventlock.com/
