Description
Part Number: 346

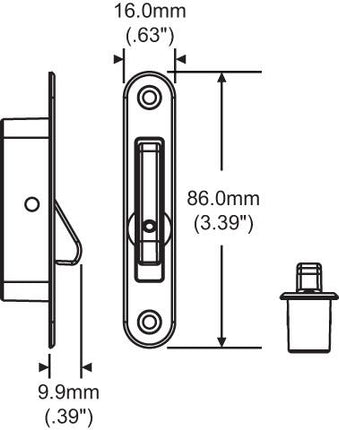

NOTE: Before you place your order review all information below and review all drawings and compare to your windows.
Angel Ventlock Face Fixed Single Action WOCD Window Operating Control Device
The Face Fix version is fitted into the stiles of the top sash - one on either side.
Styles: Sold as the following:
-
Kit Includes: 2 Lock Devises, 4 screws and 2 bumpers
-
Replacement Lock Only Includes: 1 Lock
Colors: White, Oil Rubbed Bronze, Satin Chrome, Chrome, Bright Brass (email for quote), Bronze, Satin Nickel, Black (not all colors are available in kit or lock only styles.)
The units are single action, so fitting two ensures compliance with ASTM F2090 2008 and 2010 The Unit is primary factory fitted as access to the sash is available prior to installation in the window frame. However, provided the sashes can be removed easily the Face Fixed version is also suitable for use where the sashes have already been installed
two screws are used to fix each unit in place. Fixing is though h the front of the unit and into the sash. The face fix version is for use on Timer, Vinyl, Aluminum and fiberglass Sashes. If not factory installed into the sash you will have to mortise out the pocket in the sash for the WOCD to insert into. You will be responsible for determining if your sash can accept the WOCD. If unsure only order QTY 1 before ordering more.
Returns: Only accepted for stock style size A Gap measurement of 1/8 inch to 5/32 inch. #346 must be in unused new WOCD See about us > Refund Policy for full return terms and conditions. No returns accepted for Bulk orders of QTY 25 of more or of the special order colors no matter the QTY.
Stamped on side of lock: VSP Patented
For More Information on Angle Ventlocks Visit Manufactures Website: https://www.angel-ventlock.com/
