Description
Part Number: 540-A With Wings 41.10 Security Hardware

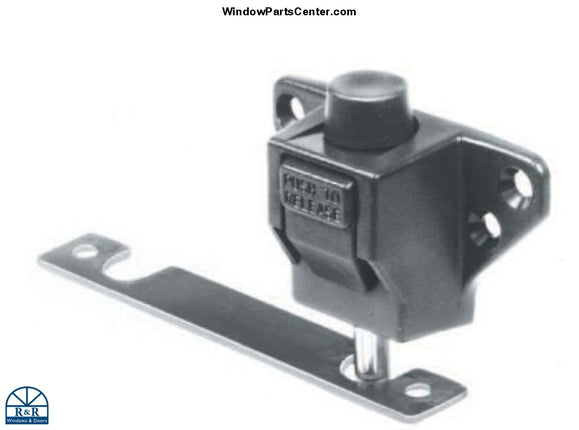

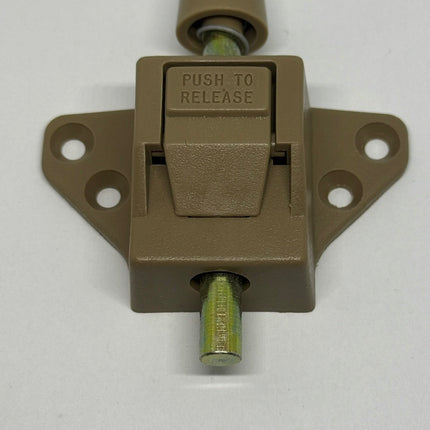

Secondary Patio Door Limiter Foot Bolt Sliding Patio Doors (Foot Operated Lock) Bolt Lock Only
Spring loaded and foot-operated, this sturdy device easily engages to provide a more secure door and easily releases to provide a ready means of escape. In fact, this patio door limiter has been tested to withstand a forced entry attempt of 400 lbs. of force
Made in the U.S.A. Amesbury Truth
Style: 41.10

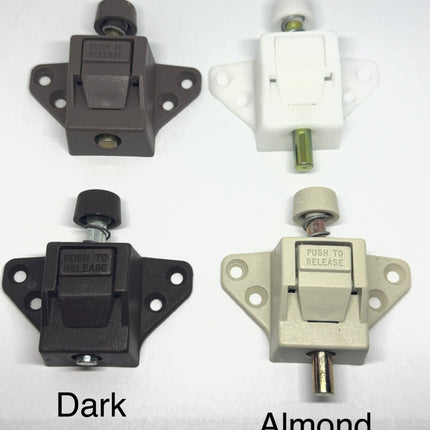

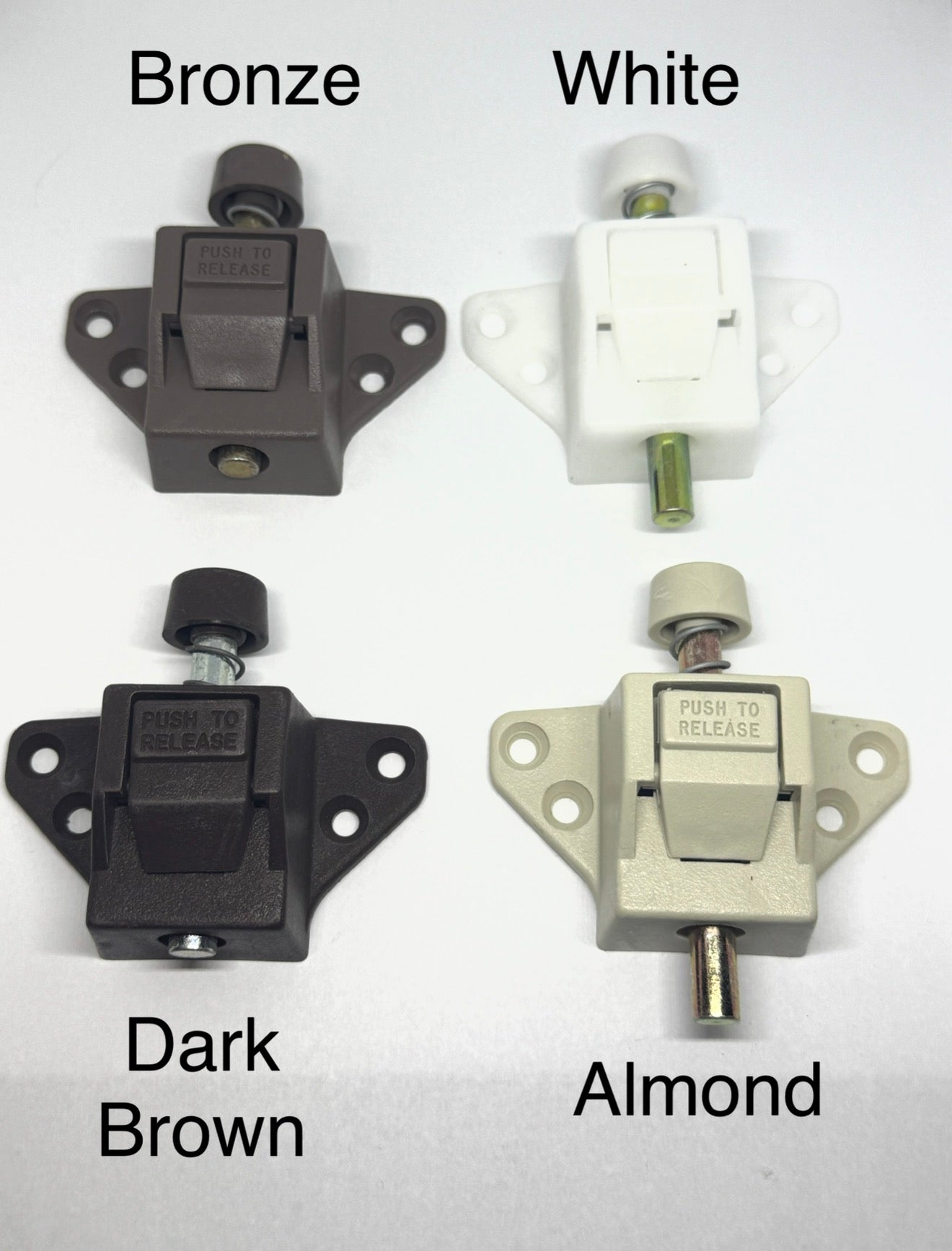

Color: White Or Bronze

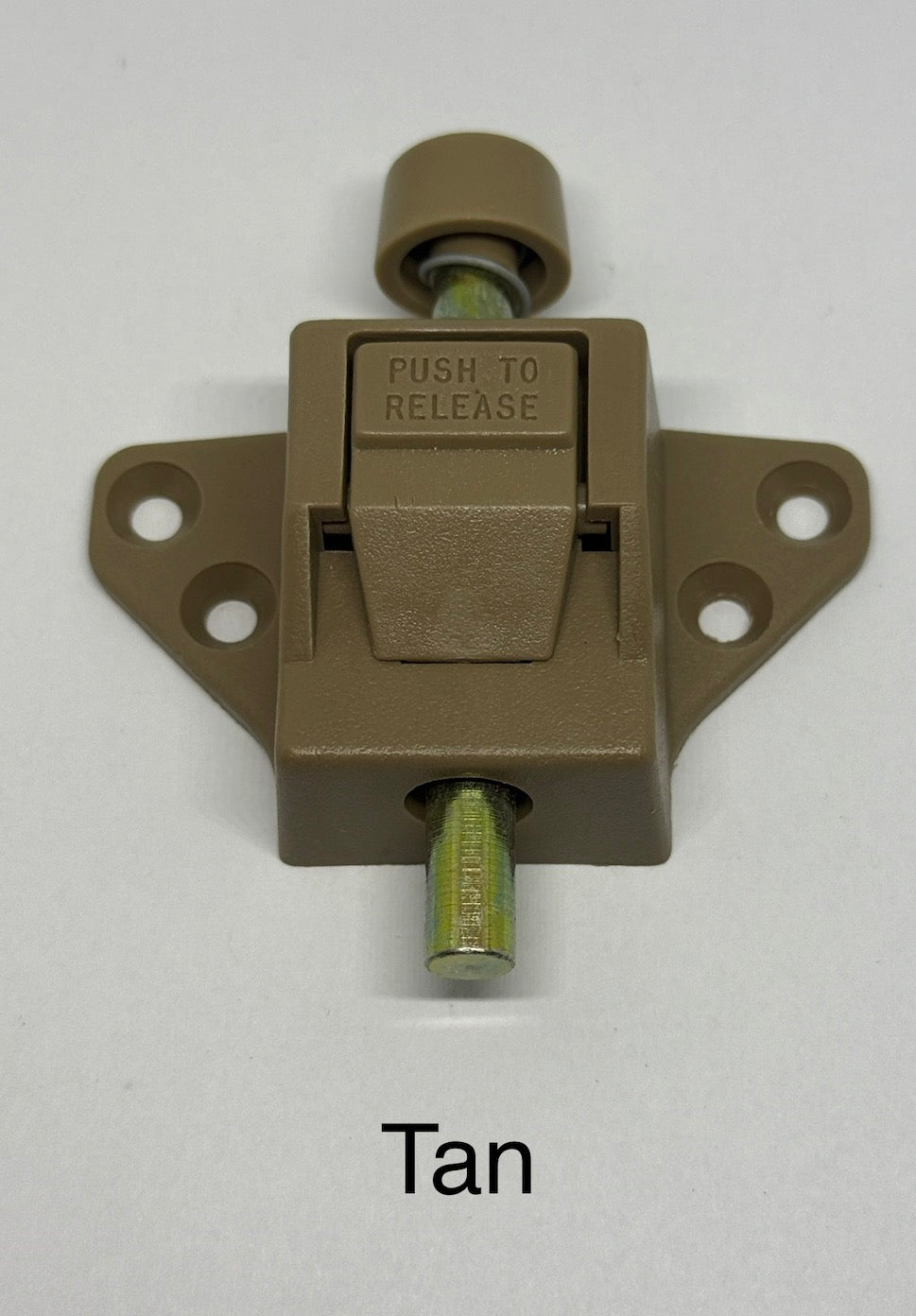

Limited QTY Colors: Dark Brown, Almond, Tan (Once stock is gone of these colors they will no longer be available)
Bolt Travel Measured from bottom of lock housing to bottom of bolt:
-
White, Almond and Tan have a longer bolt: Approx. 19/32 inch in unlocked position to approx. 1 inch in locked position.
-
Bronze and Dark Brown have a shorter bolt: Approx. 1/16 inch in unlocked position to approx. 9/16 inch in locked position
Material: Acetal body, release lever and button. Cold-rolled steel bolt.
Keeper Option Sold Separately:
- 540-20824
- 540-30680
- 540-30672
RECOMMENDED SCREWS: (Screws Not Include)
- SECONDARY PATIO DOOR LIMITER 41.10
- WOOD: 4 #8 X 1.0 PHILLIPS, FLAT HEAD, SHEET METAL SCREWS
- PVC/METAL: 4-#8 PHILLIPS, FLAT HEAD SCREWS (LENGTHS AND THREAD TYPE TO BE DETERMINED BY PROFILE)
-
For Keeper 20824
- WOOD: 2 #8 X 1.0 PHILLIPS, FLAT HEAD, SHEET METAL SCREWS
- PVC/METAL: 2 - #8 PHILLIPS, FLAT HEAD SCREWS
- (LENGTH AND THREAD TYPE TO BE DETERMINED BY PROFILE)
-
For Keeper 30680
- WOOD: 2 #8 X 1.0 PHILLIPS, PAN HEAD, SHEET METAL SCREWS
- PVC/METAL: 2 - #8 PHILLIPS, PAN H EAD SCREWS
- (LENGTH AND THREAD TYPE TO BE DETERMINED BY PROFILE)
-
For Keeper 30672
- WOOD: 2 #8 X 1.0 PHILLIPS, FLAT HEAD, SHEET METAL SCREWS
- PVC/METAL: 2 - #8 PHILLIPS, FLAT HEAD SCREWS
- (LENGTH AND THREAD TYPE TO BE DETERMINED BY PROFILE)
Mounting: Mounts to bottom rail of sliding door and engages in sill, or into the face of the stationary door. See mounting positions “A” and “B”.
Made in the U.S.A. Amesbury Truth
(Stamped on Back 45010, and 30680)
