540-B Secondary Patio Door Limiter 41.13 Foot Bolt Sliding Patio Doors

Description

Part Number: 540-B; 41.13 Wingless

Secondary Patio Door Limiter Wingless Foot Bolt Sliding Patio Doors

Spring loaded and foot-operated, this sturdy device easily engages to provide a more secure door and easily releases to provide a ready means of escape. In fact, this patio door limiter has been tested to withstand a forced entry attempt of 400 lbs. of force.

Material: Acetal body, release lever and button. Cold-rolled steel bolt

Color: White or Bronze

Keeper Option:

  • 20824 (in stock)
  • 30680 (in stock)
  • 30672 (NOT in stock special order)

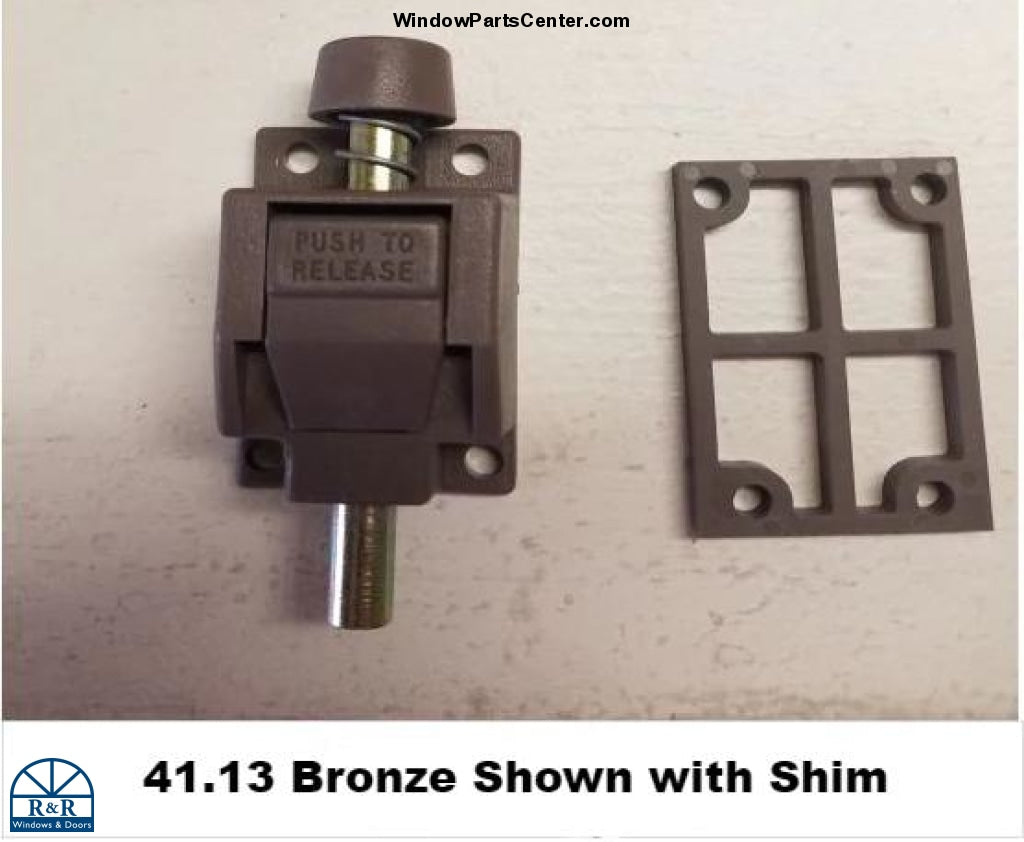

Shim: Shim is ONLY needed for Hurd Brand all wood and wood clad Sliding Patio Doors

Recommended Screws: (Screws Not Include)

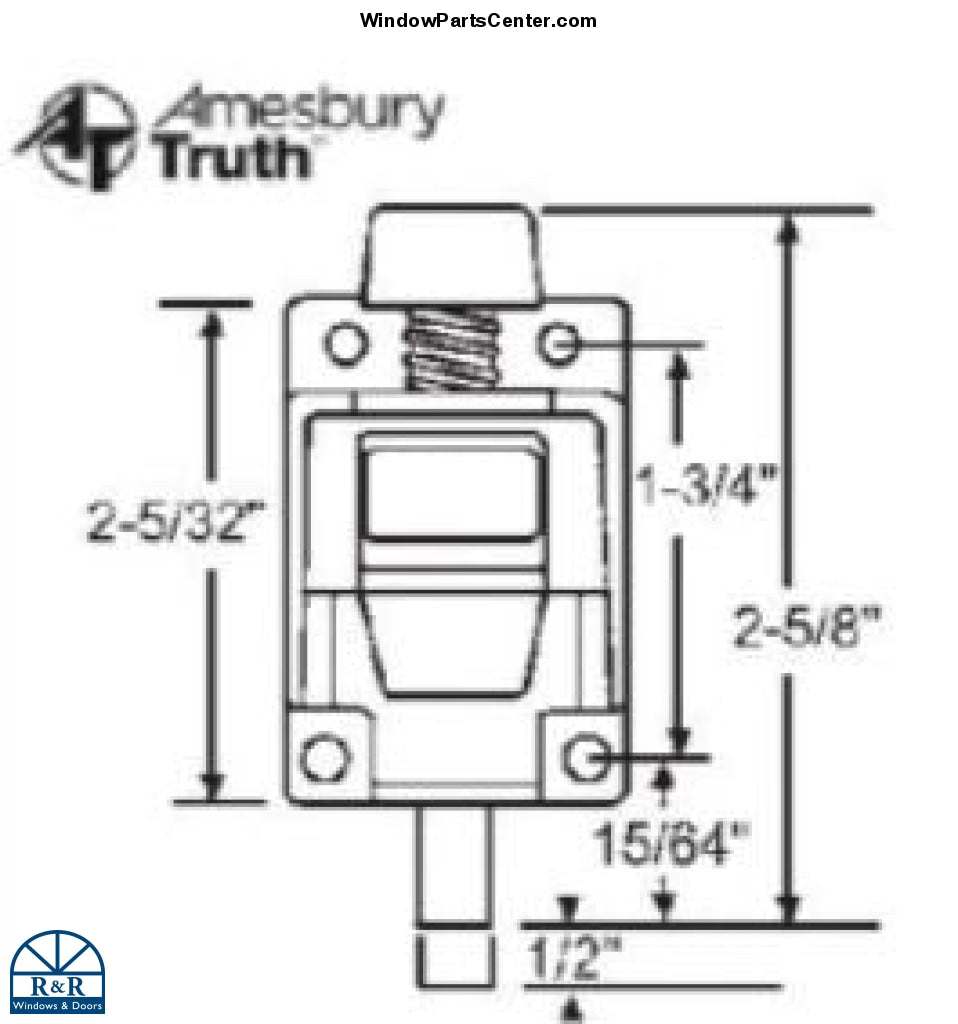

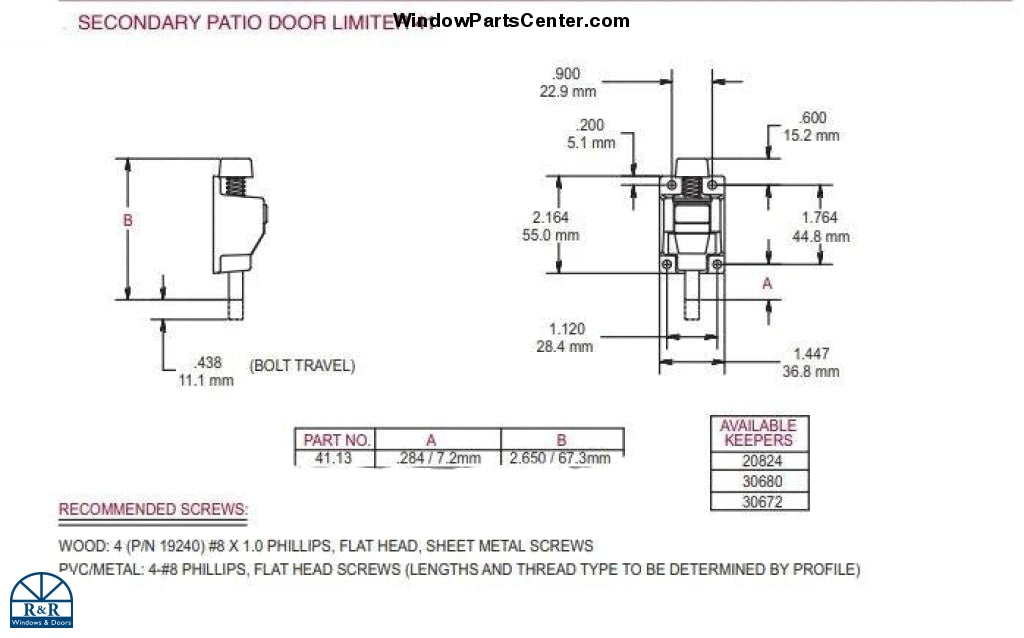

  • For 41.13 Door Limiter
    • WOOD: 4  #8 X 1.0 PHILLIPS, FLAT HEAD, SHEET METAL SCREWS
    • PVC/METAL: 4-#8 PHILLIPS, FLAT HEAD SCREWS
    • (LENGTHS AND THREAD TYPE TO BE DETERMINED BY PROFILE)

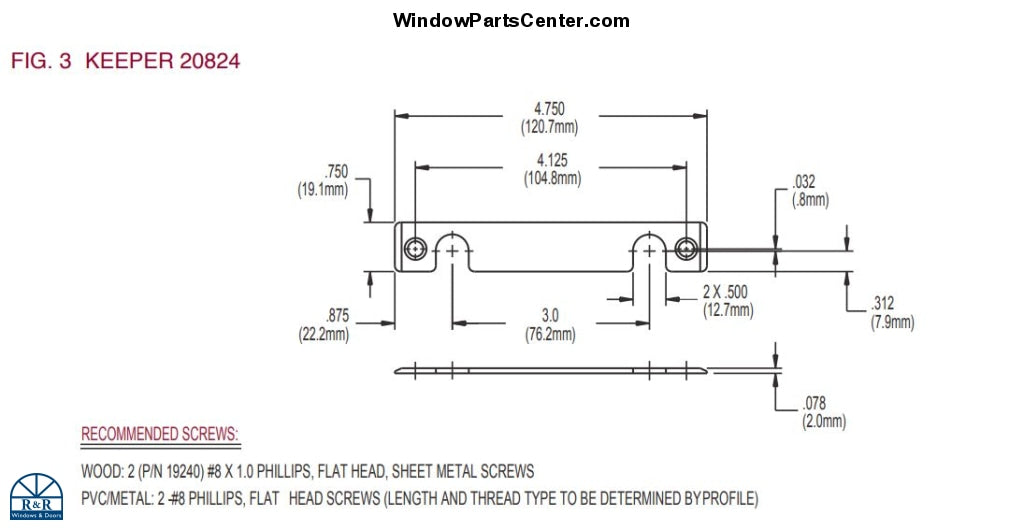

  • For Keeper 20824
    • WOOD: 2  #8 X 1.0 PHILLIPS, FLAT HEAD, SHEET METAL SCREWS
    • PVC/METAL: 2 - #8 PHILLIPS, FLAT HEAD SCREWS
    • (LENGTH AND THREAD TYPE TO BE DETERMINED BY PROFILE)

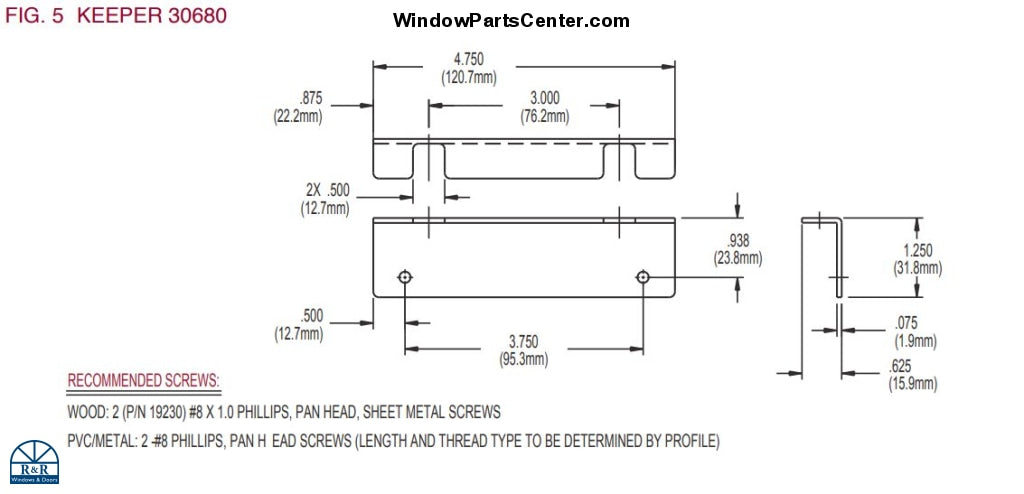

  • For Keeper 30680
    • WOOD: 2  #8 X 1.0 PHILLIPS, PAN HEAD, SHEET METAL SCREWS
    • PVC/METAL: 2 - #8 PHILLIPS, PAN H EAD SCREWS
    • (LENGTH AND THREAD TYPE TO BE DETERMINED BY PROFILE)

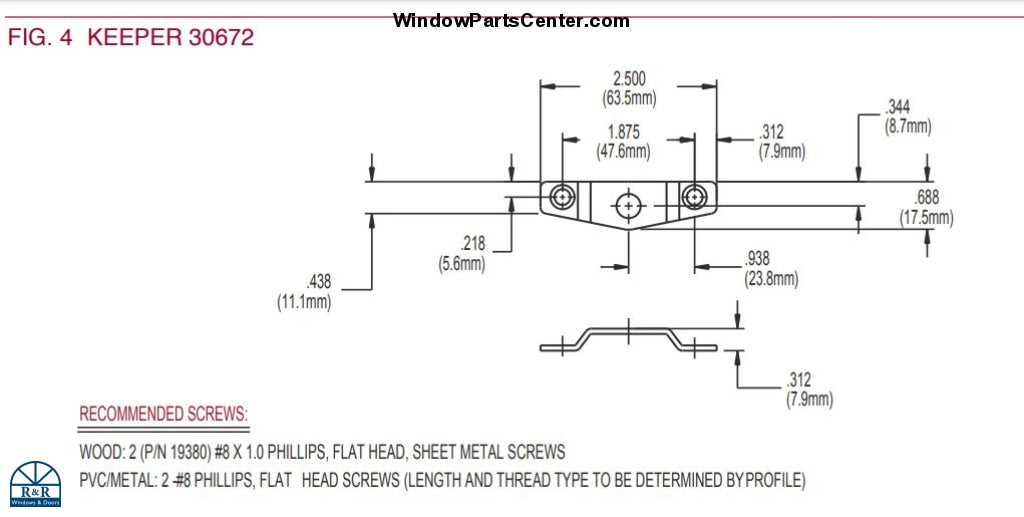

  • For Keeper 30672
    • WOOD: 2 #8 X 1.0 PHILLIPS, FLAT HEAD, SHEET METAL SCREWS
    • PVC/METAL: 2 - #8 PHILLIPS, FLAT HEAD SCREWS
    • (LENGTH AND THREAD TYPE TO BE DETERMINED BY PROFILE)

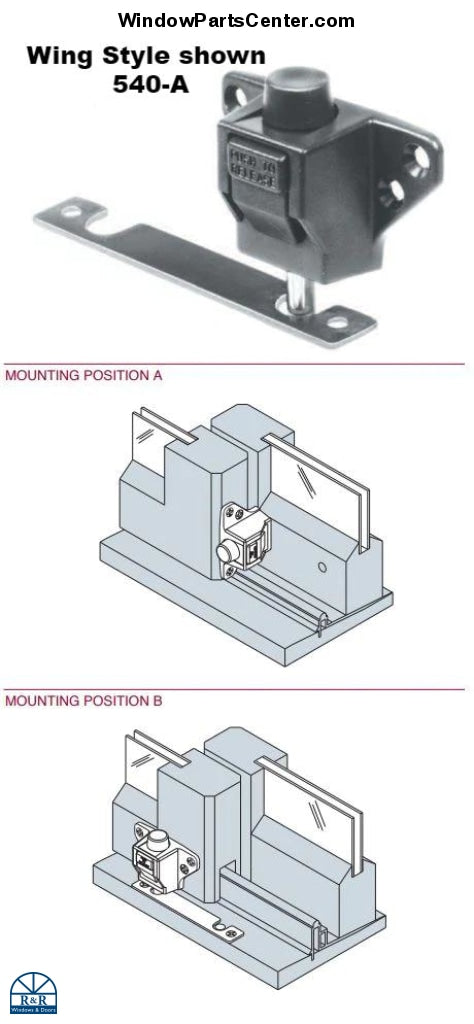

Mounting: Mounts to bottom rail of sliding door and engages in sill, or into the face of the stationary door. See mounting positions “A” and “B”.
Made in the U.S.A. Amesbury Truth

(Stamped on Back 45010, and 30680)

Product form

Out of stock

$ 42.00

  •  Will ship as soon as in stock

Description

Part Number: 540-B; 41.13 Wingless

Secondary Patio Door Limiter Wingless Foot Bolt Sliding Patio Doors

Spring loaded and foot-operated, this sturdy device easily engages to provide a more secure door and easily releases to provide a ready means of escape. In fact, this patio door limiter has been tested to withstand a forced entry attempt of 400 lbs. of force.

Material: Acetal body, release lever and button. Cold-rolled steel bolt

Color: White or Bronze

Keeper Option:

  • 20824 (in stock)
  • 30680 (in stock)
  • 30672 (NOT in stock special order)

Shim: Shim is ONLY needed for Hurd Brand all wood and wood clad Sliding Patio Doors

Recommended Screws: (Screws Not Include)

  • For 41.13 Door Limiter
    • WOOD: 4  #8 X 1.0 PHILLIPS, FLAT HEAD, SHEET METAL SCREWS
    • PVC/METAL: 4-#8 PHILLIPS, FLAT HEAD SCREWS
    • (LENGTHS AND THREAD TYPE TO BE DETERMINED BY PROFILE)
  • For Keeper 20824
    • WOOD: 2  #8 X 1.0 PHILLIPS, FLAT HEAD, SHEET METAL SCREWS
    • PVC/METAL: 2 - #8 PHILLIPS, FLAT HEAD SCREWS
    • (LENGTH AND THREAD TYPE TO BE DETERMINED BY PROFILE)
  • For Keeper 30680
    • WOOD: 2  #8 X 1.0 PHILLIPS, PAN HEAD, SHEET METAL SCREWS
    • PVC/METAL: 2 - #8 PHILLIPS, PAN H EAD SCREWS
    • (LENGTH AND THREAD TYPE TO BE DETERMINED BY PROFILE)
  • For Keeper 30672
    • WOOD: 2 #8 X 1.0 PHILLIPS, FLAT HEAD, SHEET METAL SCREWS
    • PVC/METAL: 2 - #8 PHILLIPS, FLAT HEAD SCREWS
    • (LENGTH AND THREAD TYPE TO BE DETERMINED BY PROFILE)

Mounting: Mounts to bottom rail of sliding door and engages in sill, or into the face of the stationary door. See mounting positions “A” and “B”.
Made in the U.S.A. Amesbury Truth

(Stamped on Back 45010, and 30680)
