Part Number: 815 / 816

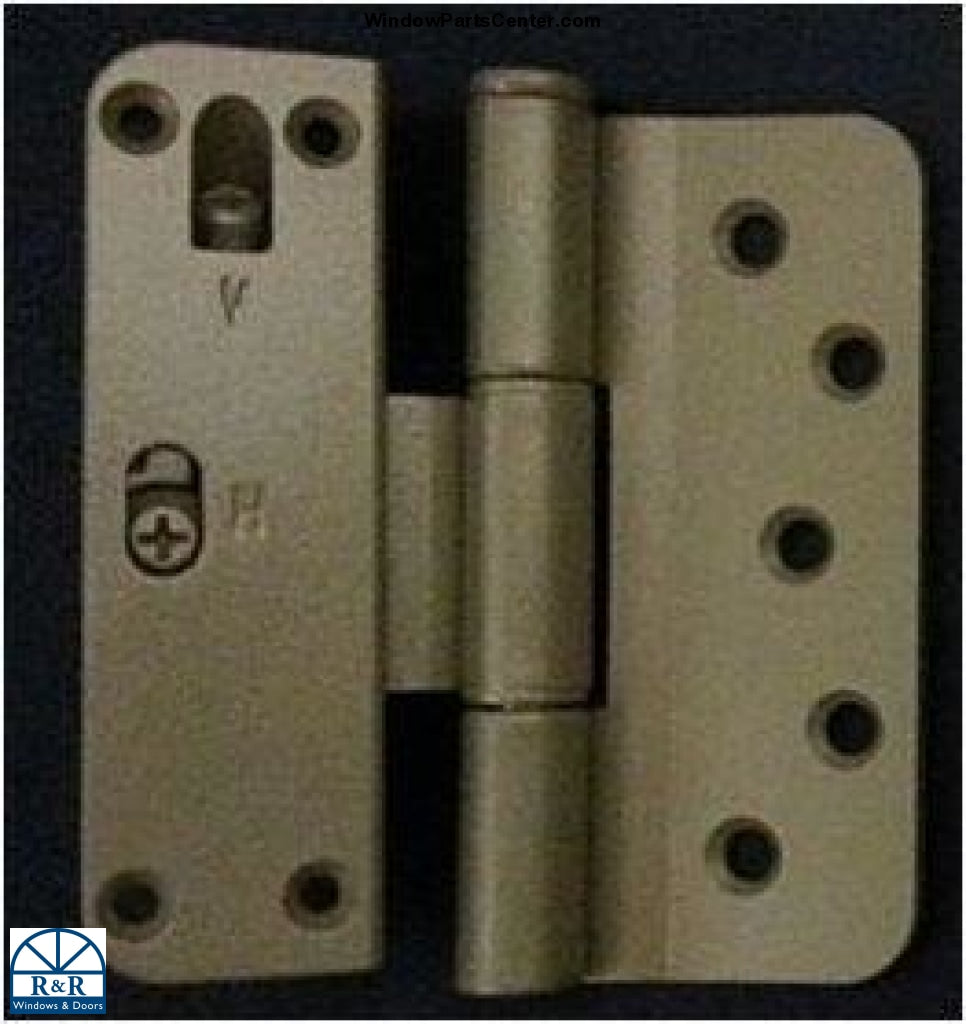

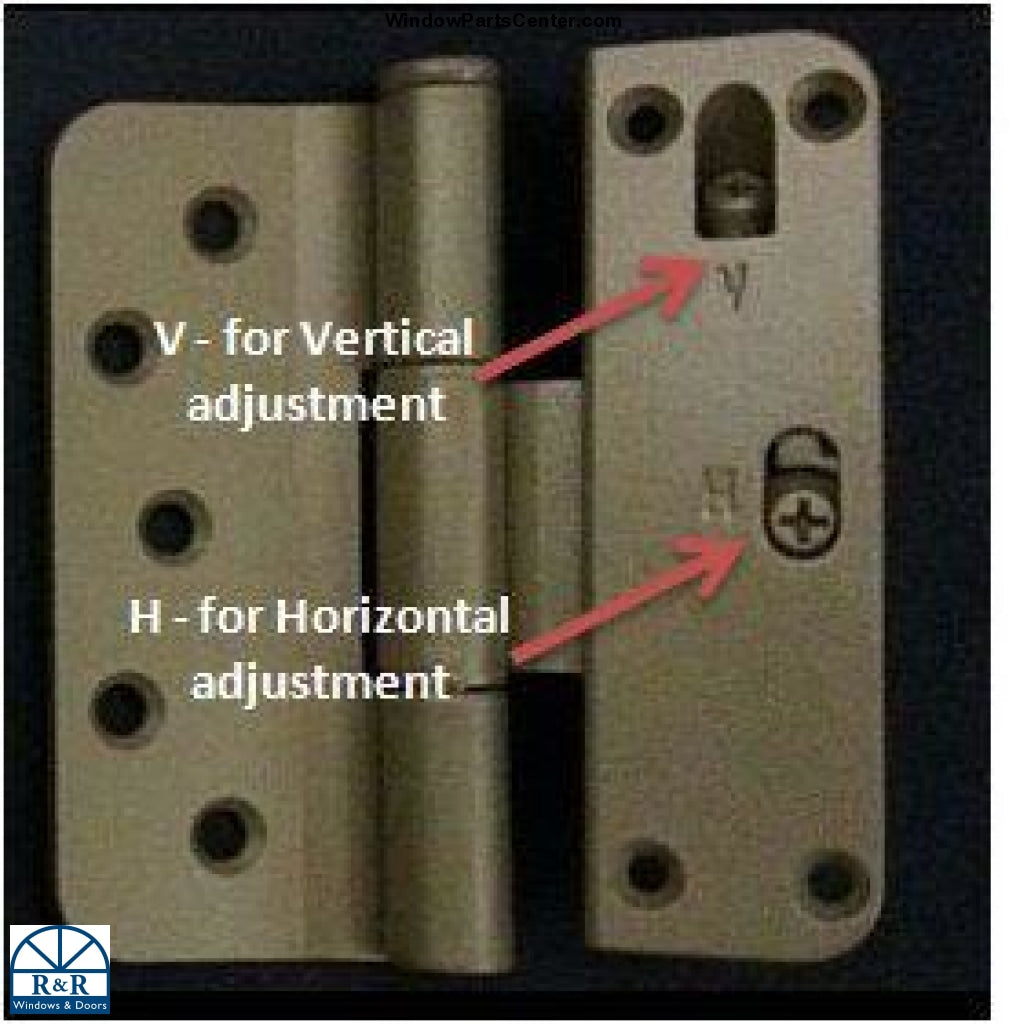

Vertical and Horizontal Adjustable Door Hinge

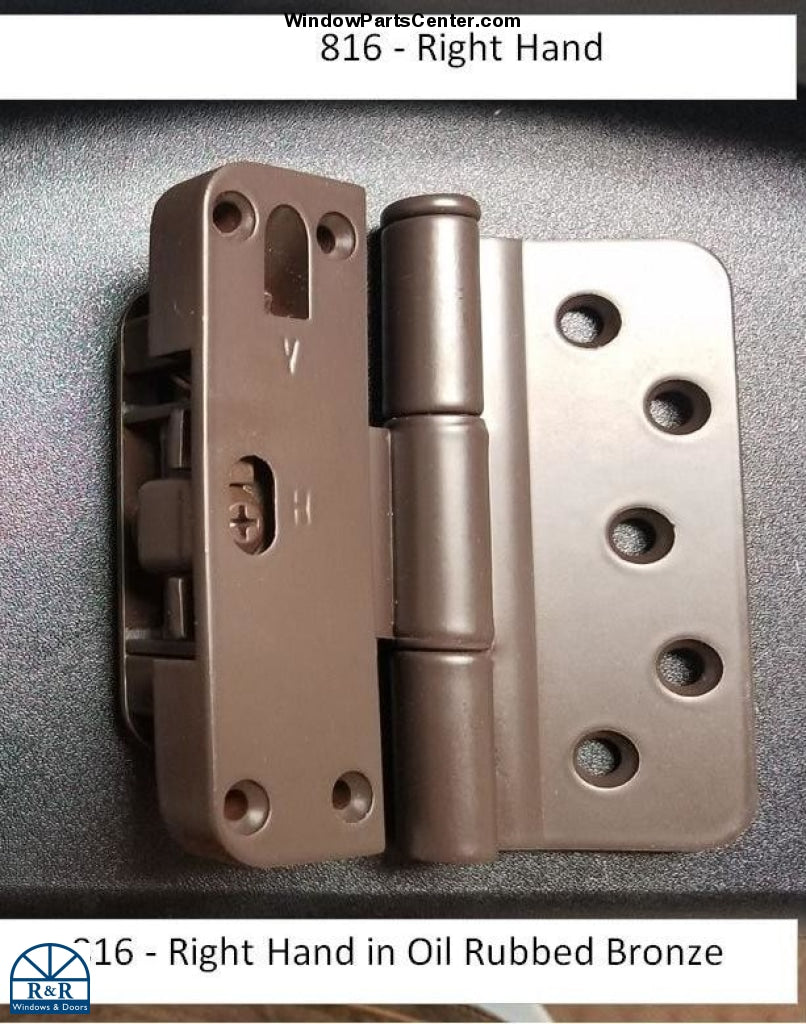

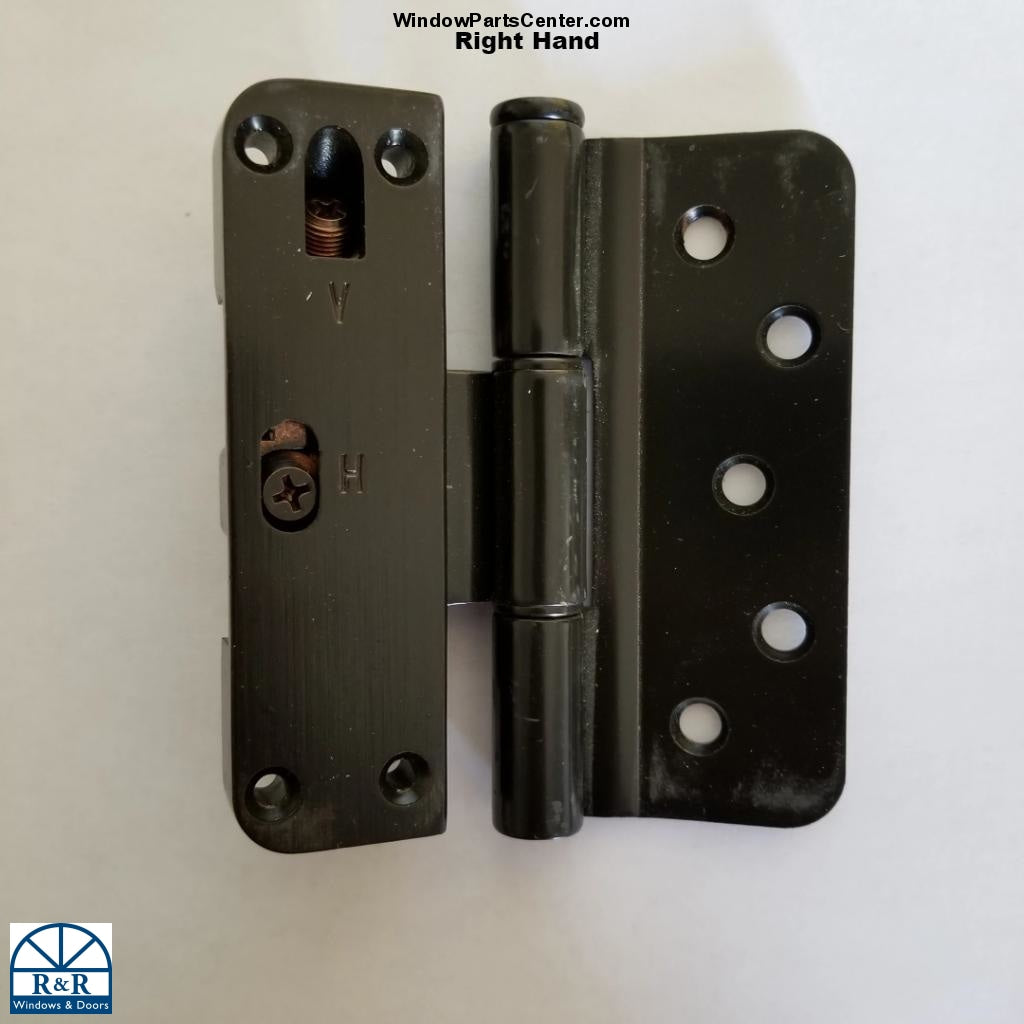

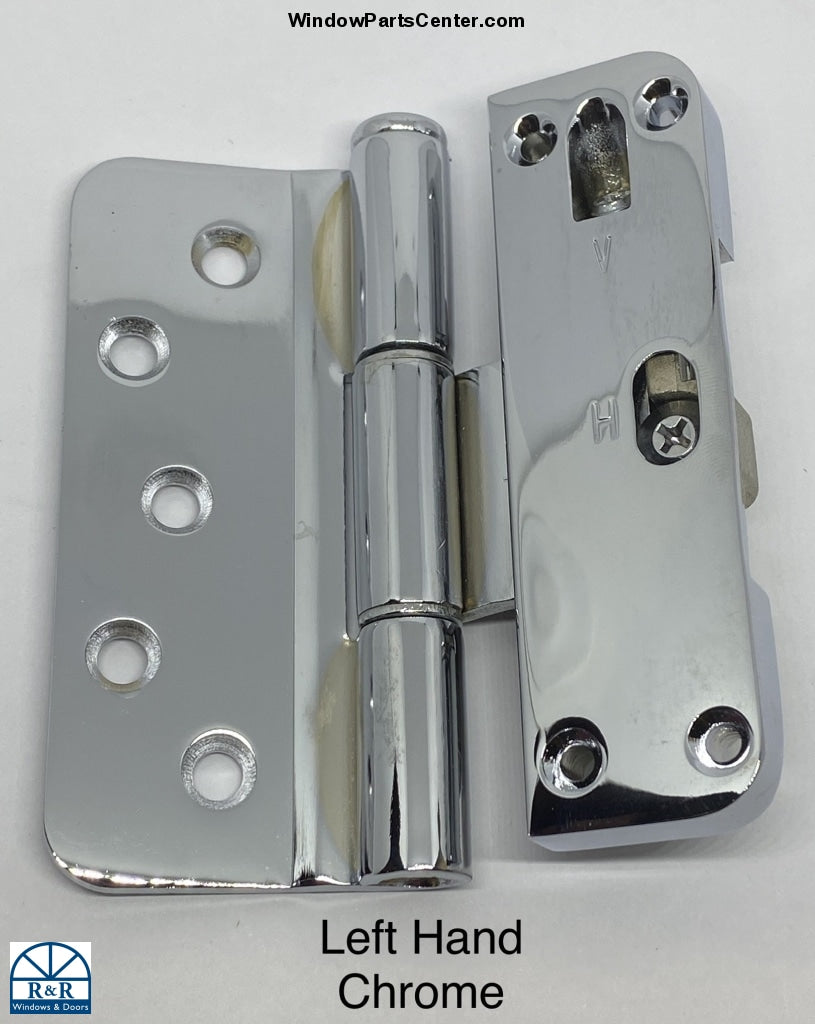

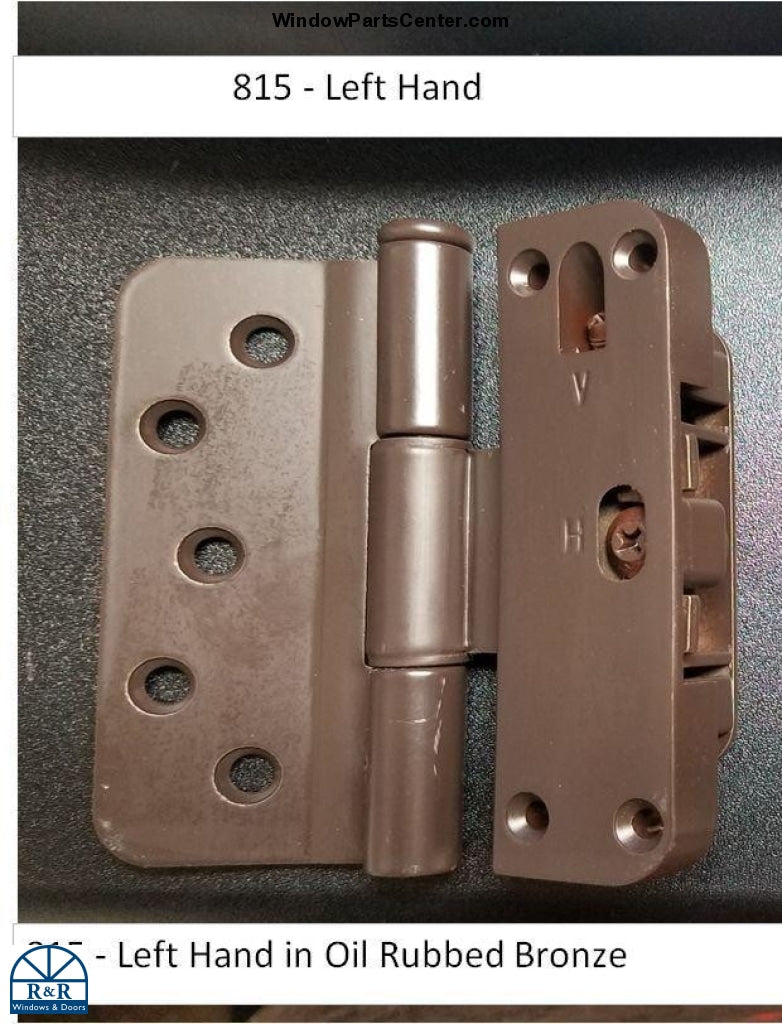

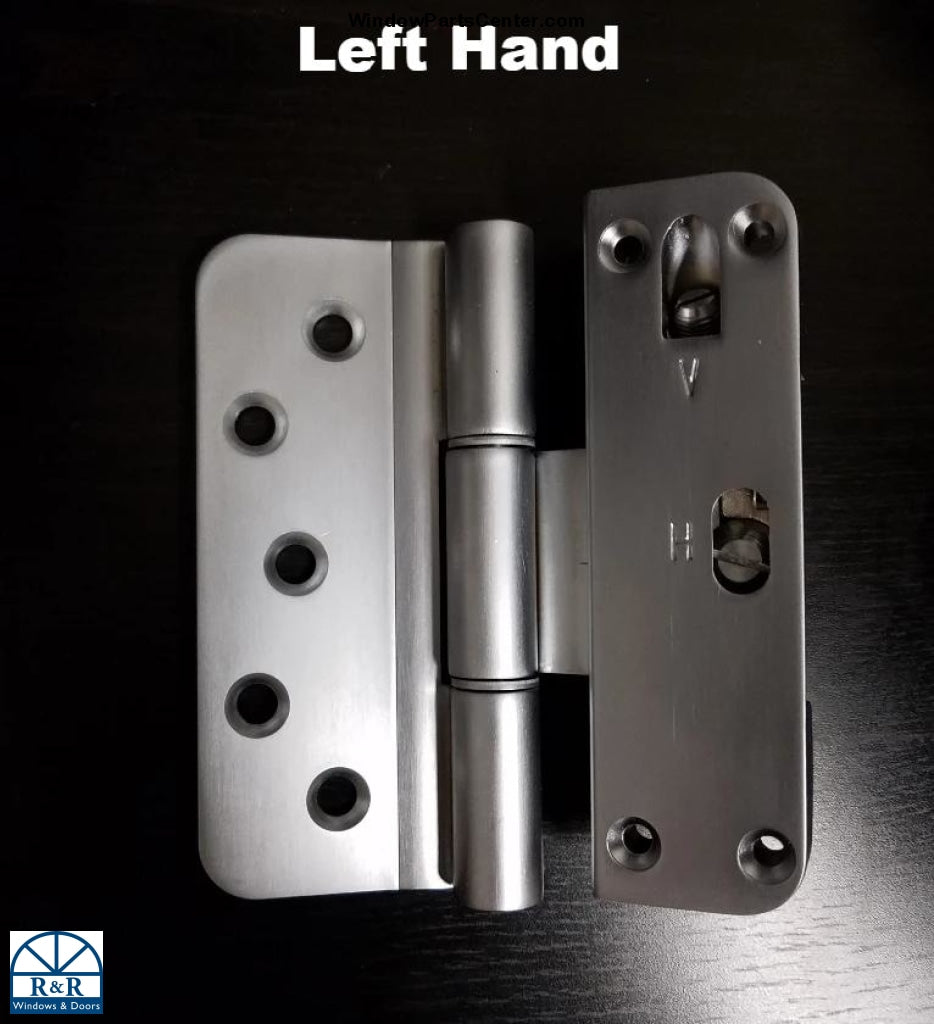

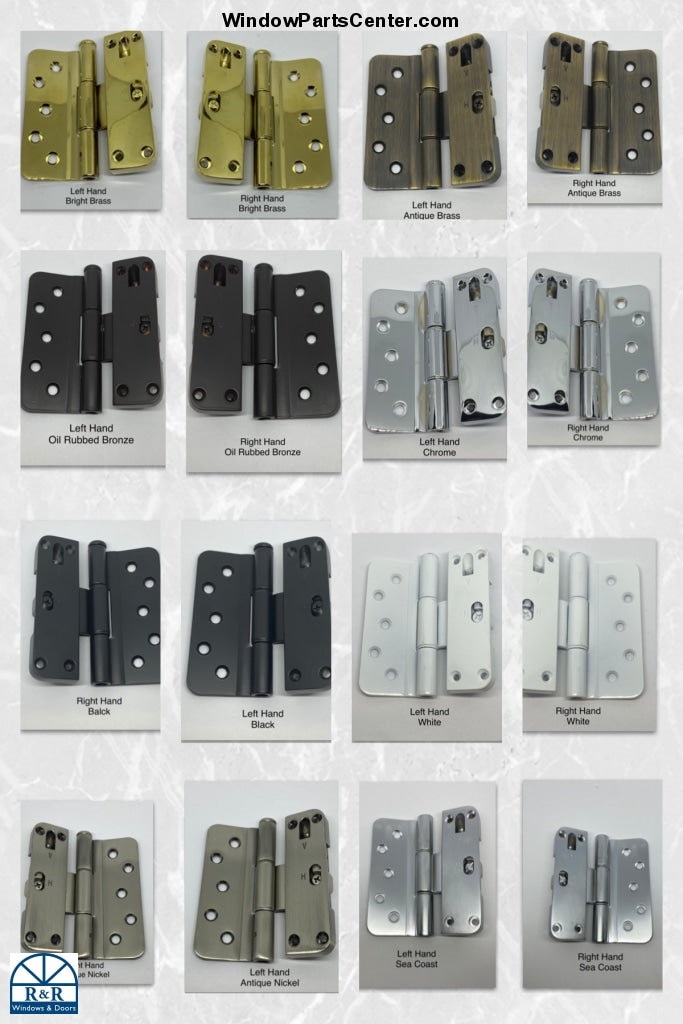

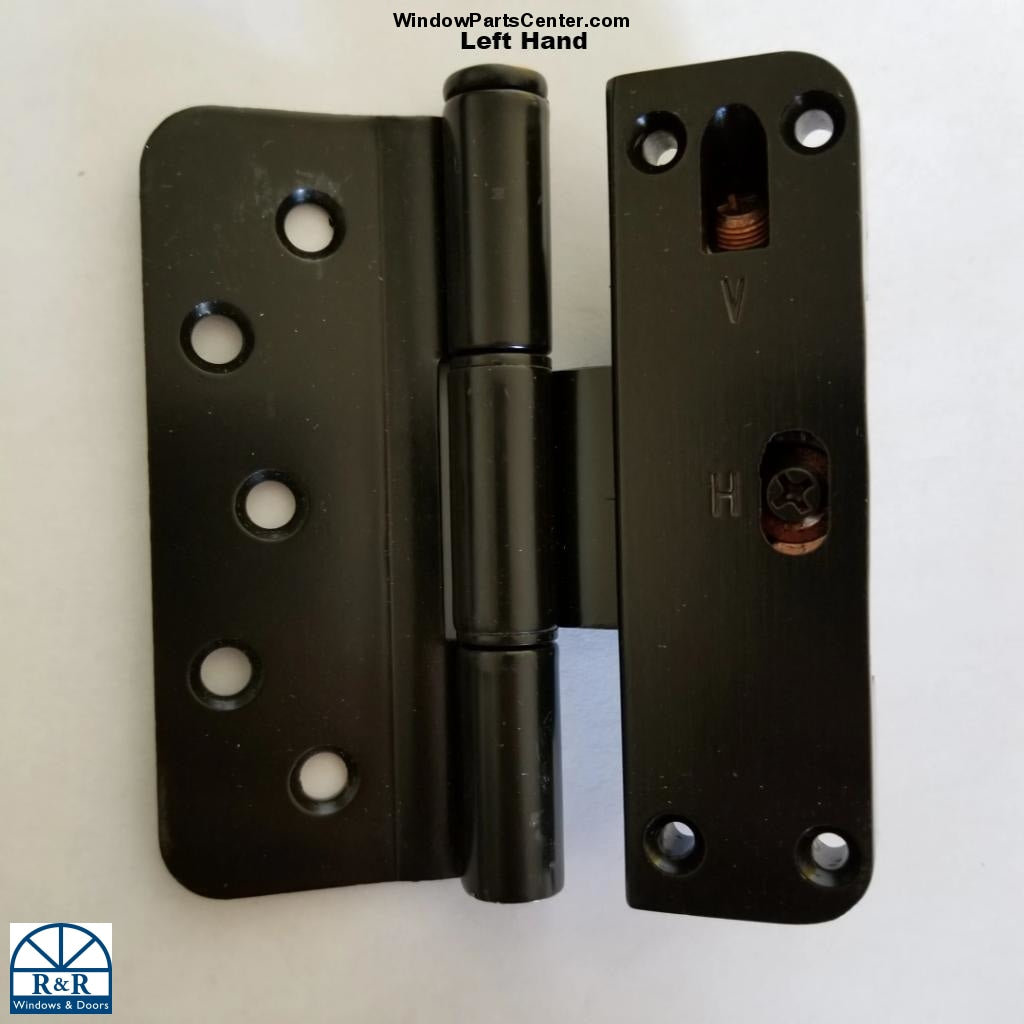

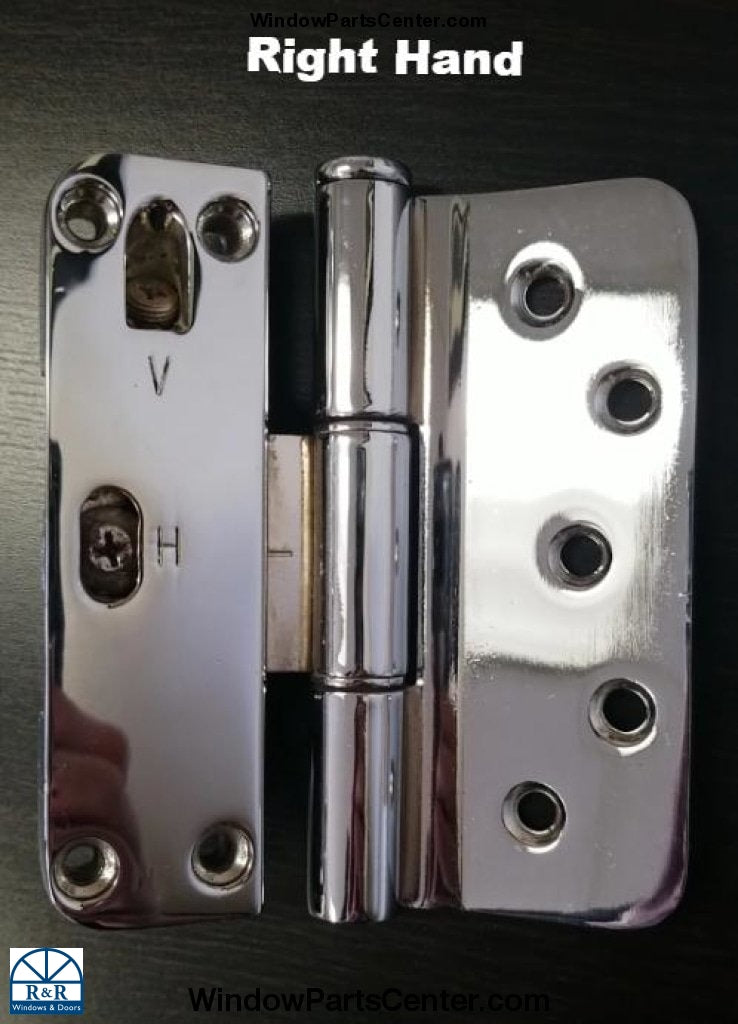

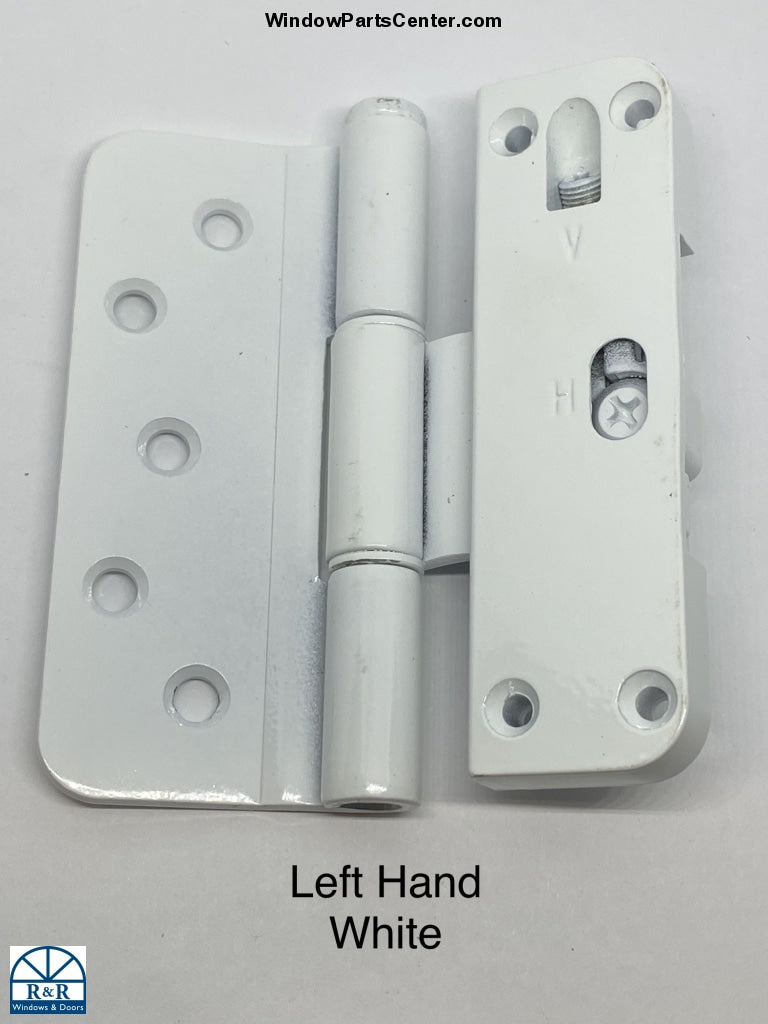

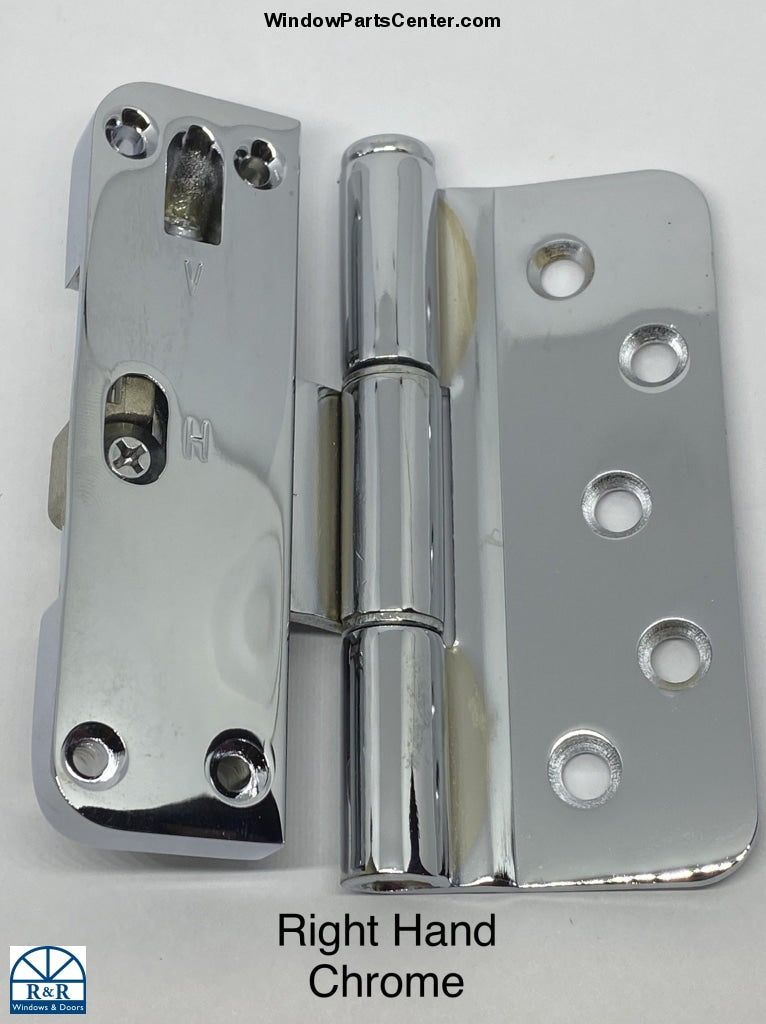

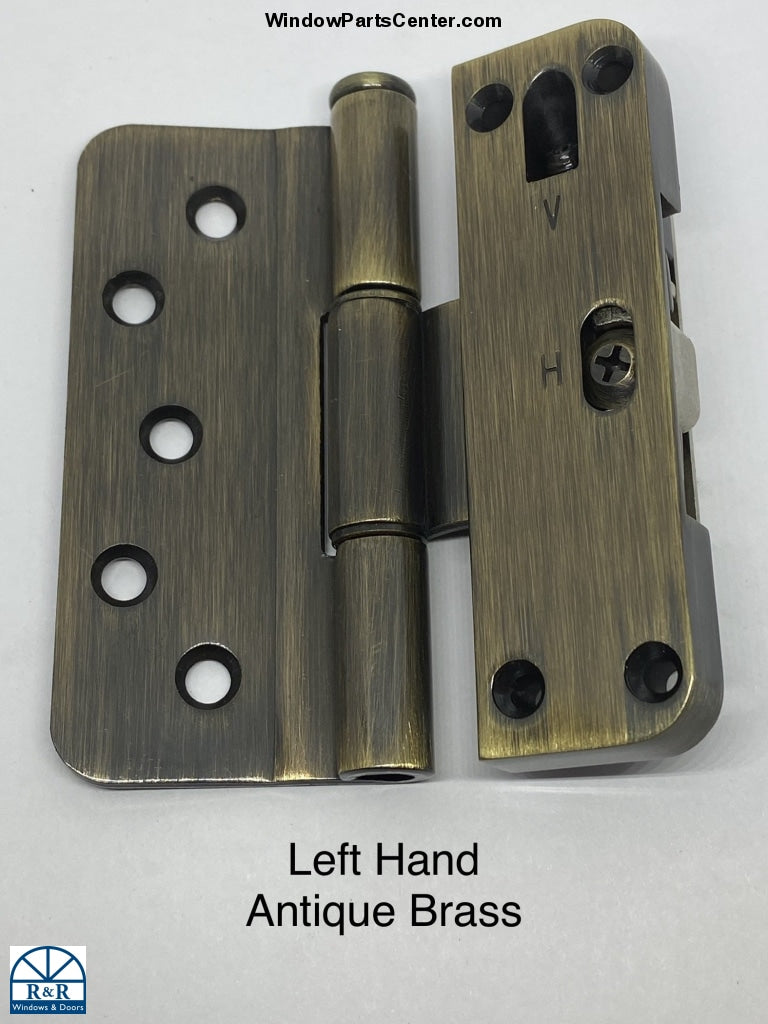

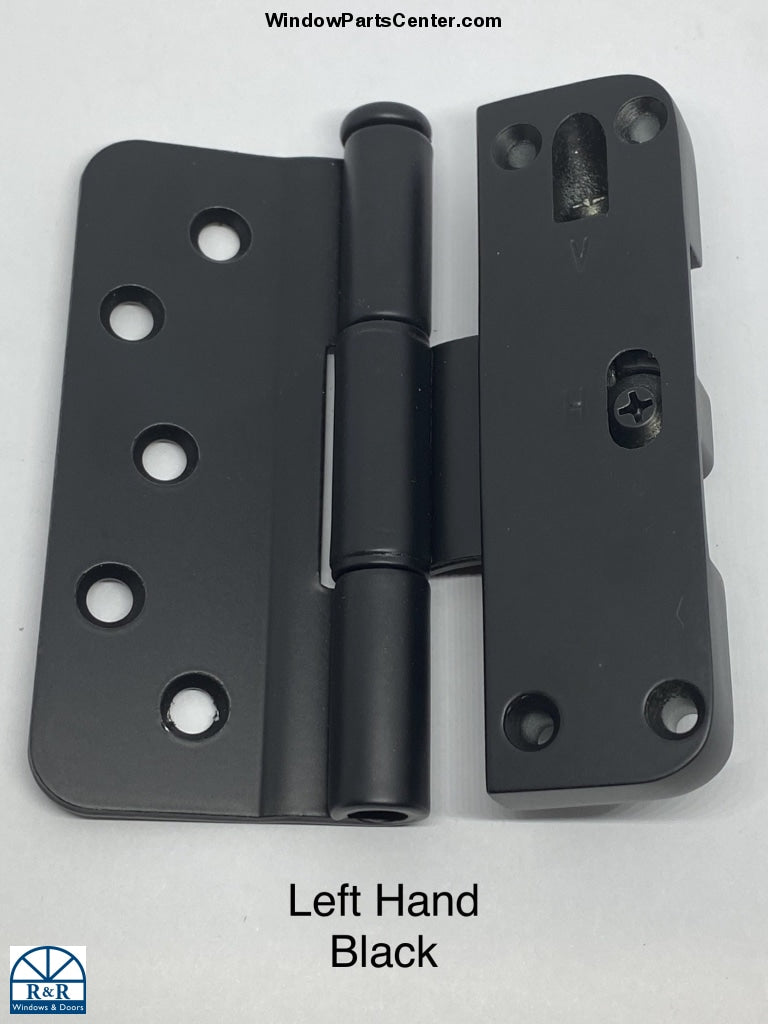

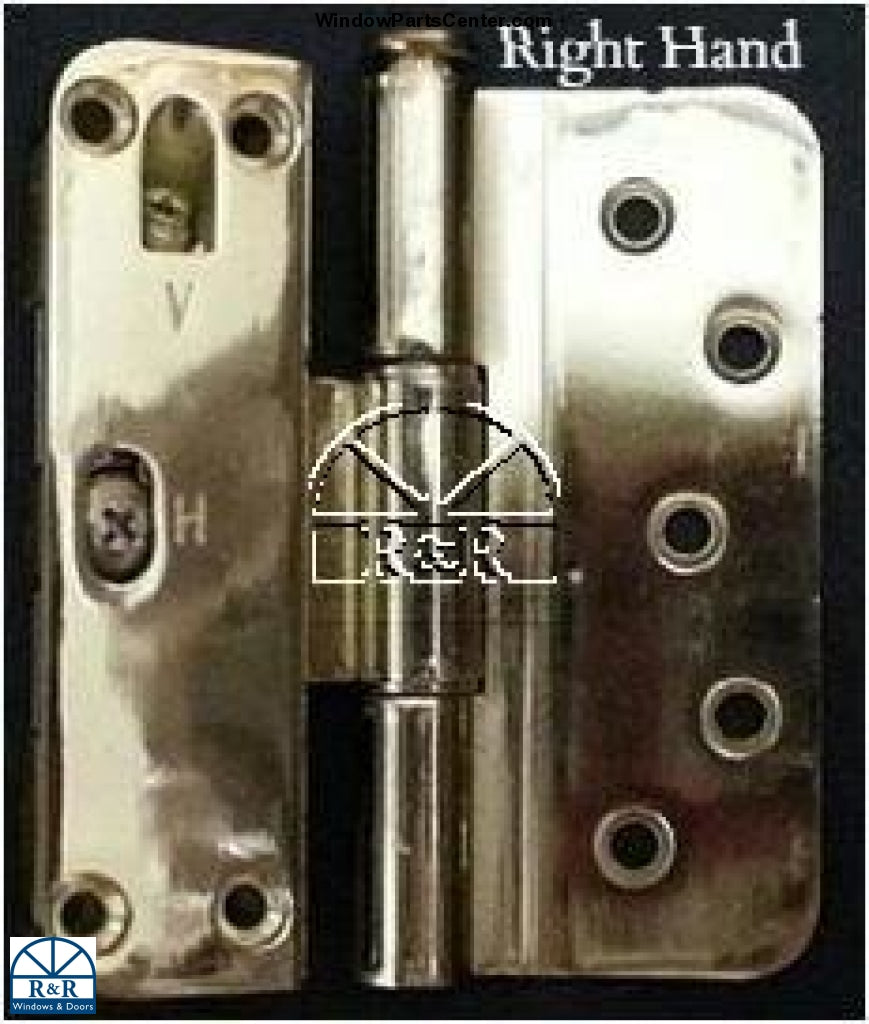

Hinges are handed! Match up your existing hinge to picture to determine what handing you need.
In Stock: If you order more than what we have in stock the order will be considered pre-order and will ship out as soon as we receive in from the factory. If you would like what we have in stock partial shipped please leave a note in not comment section of your order stating to partial ship.
Pre-Order: If finish is a pre-order we will ship out as soon as we receive in from the factory. lead times can very but can be 6-8 weeks

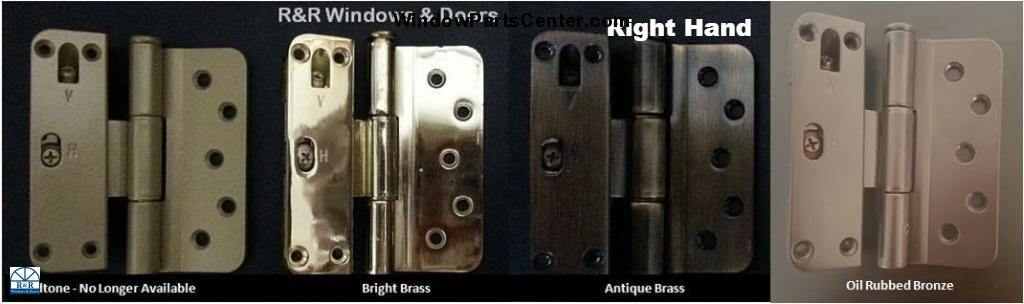

Discontinued Finishes: Goldtone, Brushed Chrome and True Oil Rubbed Bronze. Limited stock available. The discontinued colors we have in stock may have some minor scratches - no returns or exchanges, they are sold as is. Once our stock is gone we will be unable to get more.

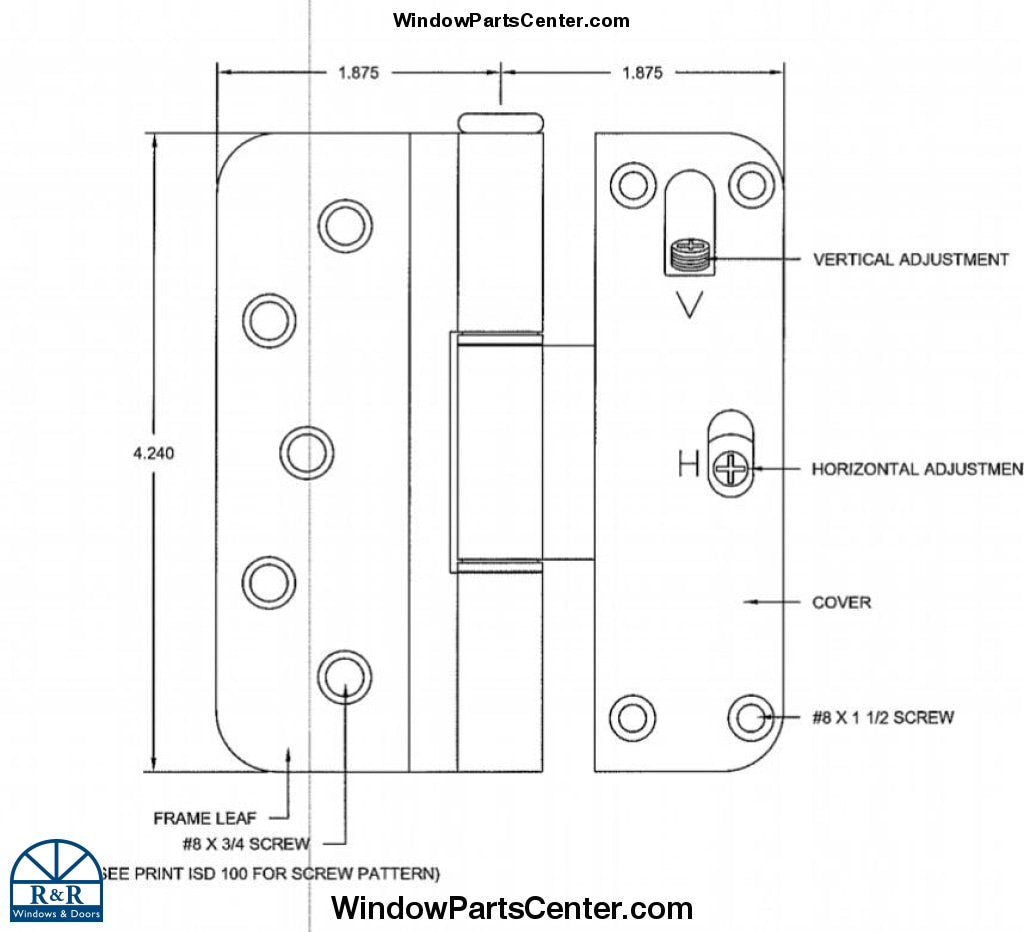

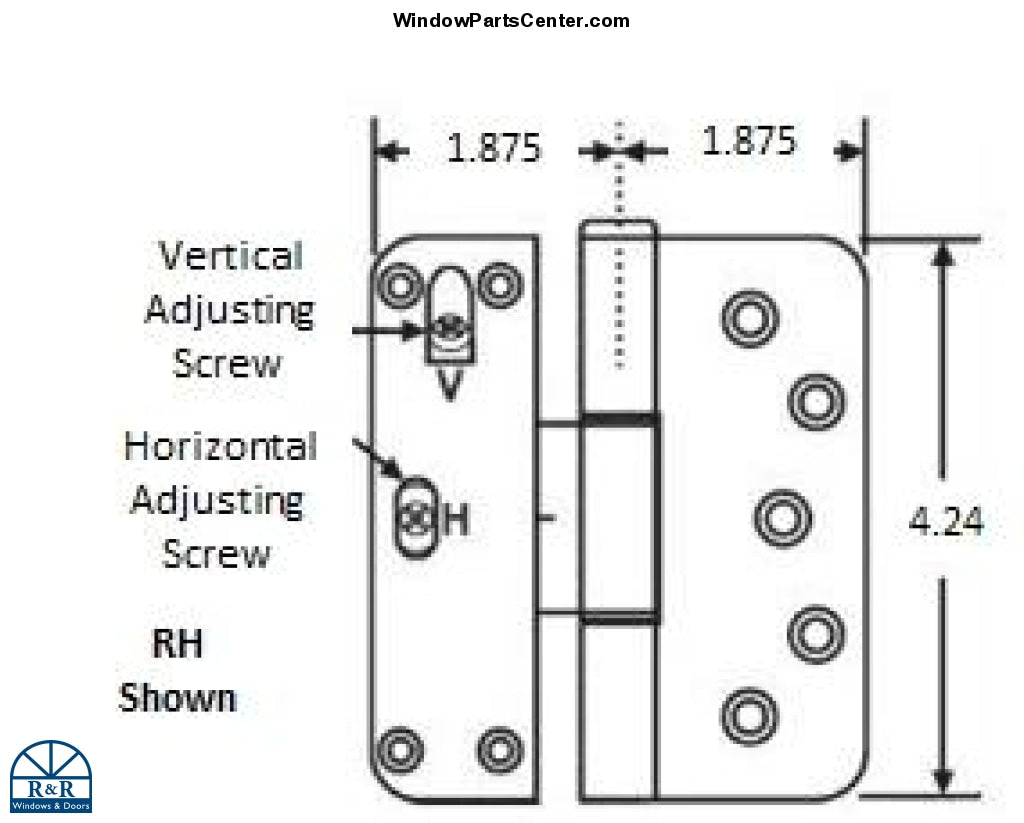

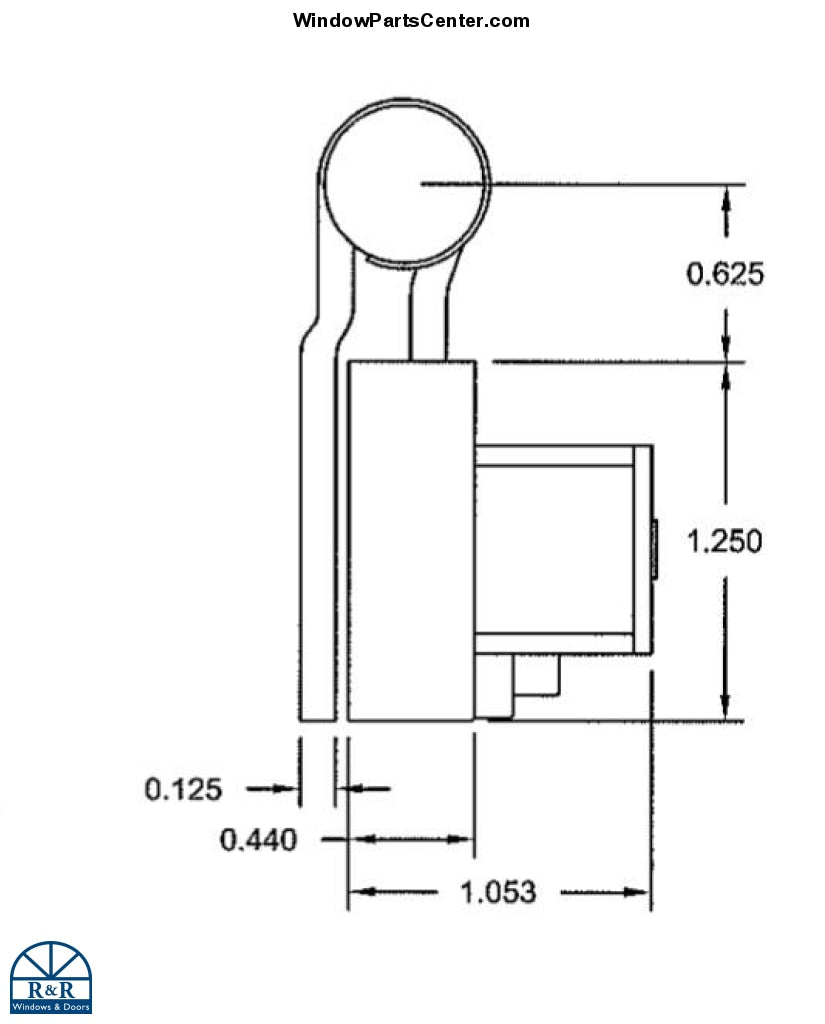

Dimensions: Over all 3 3/4" W x 4 1/4" H
New - New product - unused
As Is - New product with finish flaws or scratches. This item may be a customer return, vendor sample, or came in from the factory with finish flaws. In some instances, these items are repackaged. Not available in all colors or handing. All sales final, No returns.
Screw Pack: Screws are sold separately and not all colors are available. To order Screws with your hinges see 815/816 Screw Pack (1 screw pack will do 1 hinge).
Or you can buy at your local hardware store the following:
QTY 4 - #9 x 3/4" or 1” PH Screw (size change depends on what finish the screw is available in)
QTY 4 - #7 x 1-1/4" PH Screw
QTY 1 - #9 x 2-1/2” or 3” PH Screw (size change depends on what finish the screw is available in)

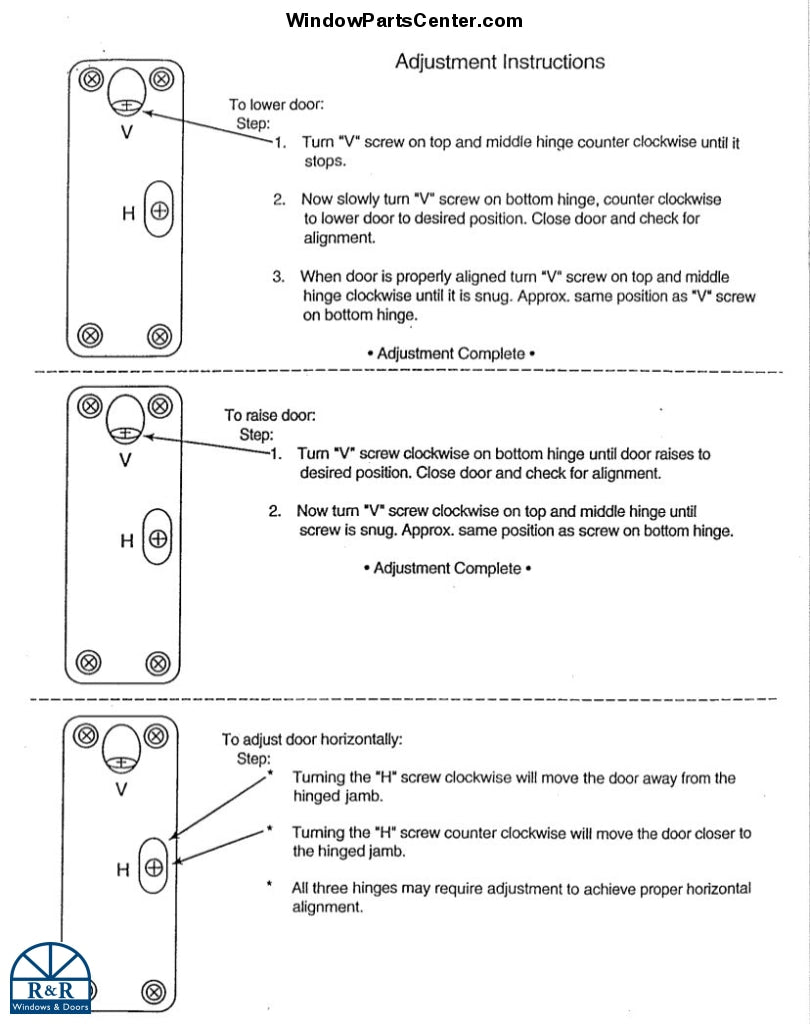

Link To Hinge Adjustment Instructions
Number to be found on back of Leaf 903 and on back of adjustable side of hinge 921.
These hinges have been known to be used on Hurd Patio doors and BiltBest Patio Doors, Marvin Ultimate Inswing Patio Doors From 1993 - 1996 and other door brands. (Known part #: 815, 816 903, 291, 2443, 085439, 021791, 085442, 010294, 031239)
IF THIS HINGE DOES NOT LOOK EXACTLY LIKE YOUR ADJUSTABLE HINGE. CLICK HERE TO SEE ALL THE ADJUSTABLE HINGES WE HAVE ON OUR WEBSITE TO ORDER. IF YOU ARE NOT FINDING YOUR HINGE PLEASE EMAIL OR TEXT OUR RESEARCH DEPARTMENT AND WE WOULD BE HAPPY TO ASSIST YOU.
