826 - Amesbury Truth E-Lon .825 Compression Seal Swing Door Kerf Weather Strip Foam Seal SERIES 12604
826 - Amesbury Truth E-Lon .825 Compression Seal Swing Door Kerf Weath
$ 25.25
Part Number: 826

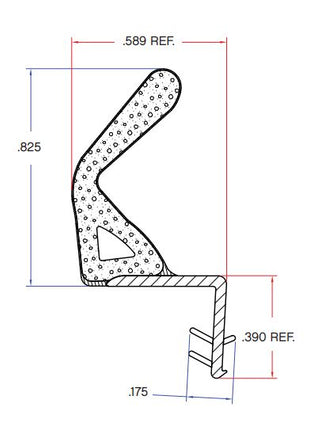

Amesbury Truth E-Lon .825 Compression Seal Swing Door Kerf Weather Strip Foam Seal
In stock: 3 foot 6 foot, 8 foot or 10 foot pcs
****SHIPPING NOTE*****Product is shipped rolled in a box. If you want product shipped straight in a long box please email info@windowpartscetner.com for quote. (3 foot, 6 foot and 8 foot only. We will not quote or ship out 10' pcs straight)
Special Order not in stock: White and Bronze 97 inch pcs Only Please email for quote to info@windowpartscenter.com - No returns for special order items, all sales final
Custom Orders: Custom sizes / colors available upon request. Minimum order of 24,000 feet would be required please email info@windowpartscenter.com for quote - no returns for custom orders. All sales final
SERIES 12604
PRODUCT APPLICATIONS
Compression Seal / Swing Door
MATERIAL
Closed cell foam
Thermoplastic Elastomers (TPE’s)
Rigid kerf material
KERF WIDTH
.125” (3.175mm)
KERF DEPTH
.50” (12.7mm)
COMPRESSION
50% (+10/-40)
RABBET DEPTH
2.125” (54mm)
COMPRESSION SET (AAMA 702 test method)
Less than 9% when compressed @
75% 22 hours @ 158F (70C)
WATER ABSORPTION
Float - 0.4% , 1” Wick - 1.0%, Submerge - 5.4%
INSTALLATION
Same profile seals the strike side, hinge side, and header.
Installs easily in most out of spec kerfs.
FIRE AND SMOKE RATINGS
- UL certification for 20 minute fire rating
- Equates to a category “J” rating
- UL certification to 1784 standard
- Equates to a category “H” rating for the gasket
- Having the “H” rating will allow customers to use the gasket in door assemblies that are rated for smoke and draft (an “S” rated door system).
