829 - Hoppe Split Shaft with Optional Set Screws
829 - Hoppe Split Shaft with Optional Set Screws
$ 25.00
Part Number: 829

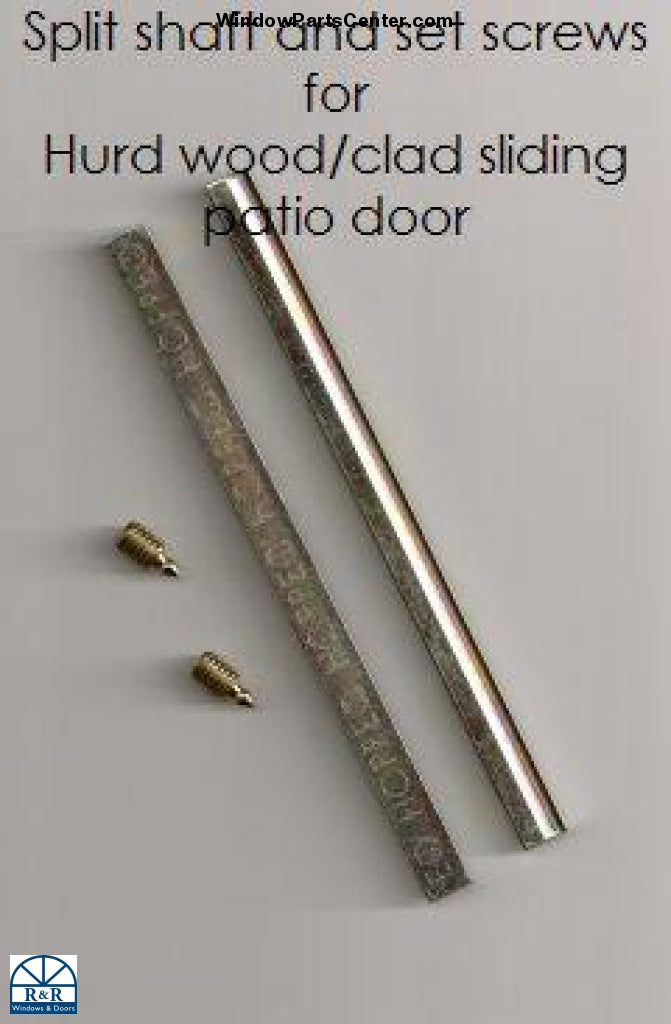

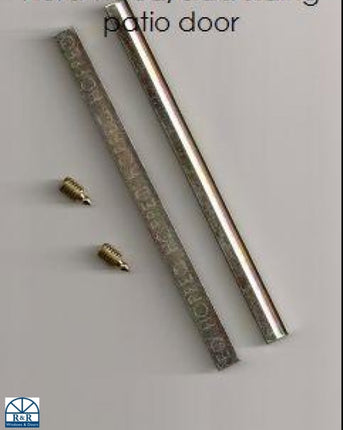

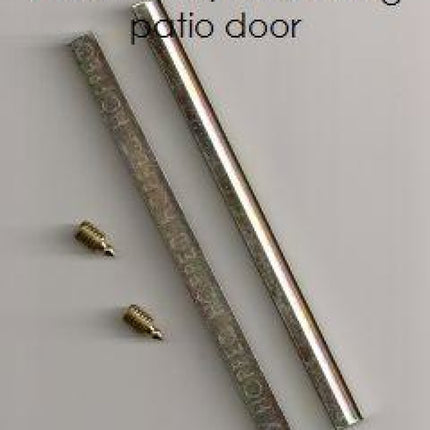

Hoppe Split Shaft
You can choose to add optional screw pack: Part Number: 840-031 Set Screws pack - 1 set of set screws for Hoppe handles (S3004 - metric 6-10)
Shaft Size Order By Length:
- 3 15/16 inch ( 5/16 inch x 3 15/16 inch or 8 mm x 100 mm)
- For Doors Smaller 1 3/4 inch thick
- Can be used as a replacement split shaft for old GU handle sets
- 4 21/64 inch (5/16 inch x 4 21/64 inch or 8mm x 110 mm)
- For Doors Smaller than 1 3/8 inch thick
- 4 11/16 inch (5/16 inch x 4 11/16 inch or 8 mm x 120 mm)
- For 1 3/4 Thick Doors
- Commonly used on Hurd and Truth hardware
- 5 1/2 inch (5/16 inch x 5 1/2 inch or 8 mm x 140mm)
- For 2 1/4" thick doors
- 6 1/4 inch (5/16 inch x 6 1/4 inch or 8 mm x 160 mm)
- used with the 1" Hoppe Handle extension part # 828 sold separately
- Commonly used on Hurd and Truth hardware that has extension 828
Screw Sizes: 2 sets of 2 sizes of set screws for Hoppe handles (1/4" 20 and metric 6-10)

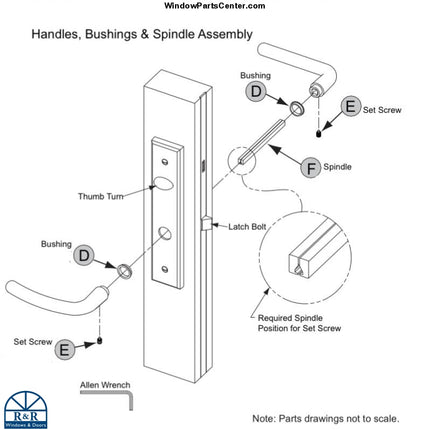

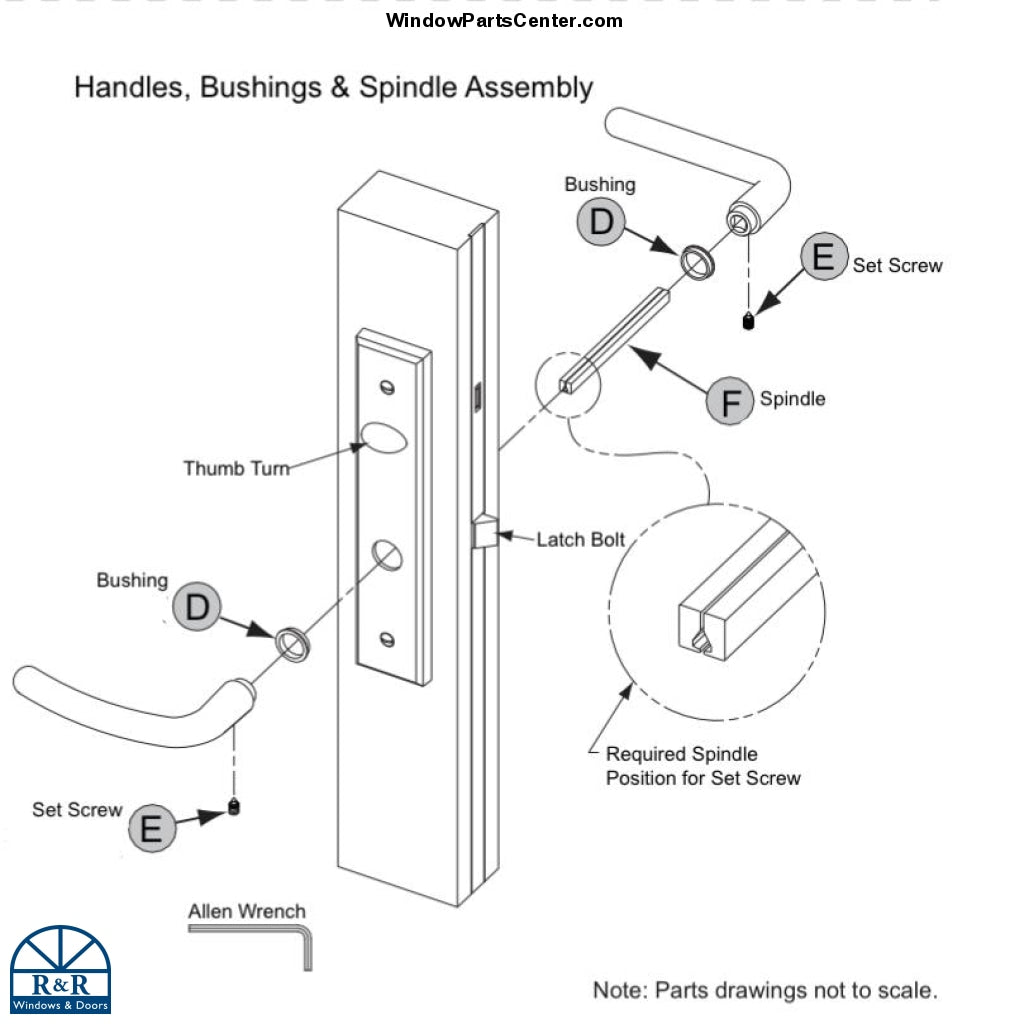

See figure F in drawing for correct split shaft spindle position installation.
Associated Parts Sold Separately:
- 6 1/4 is used with the 1" Hoppe Handle extension part # 828
