852 - Handle Set 6" Center to Center Bore (Weather Shield Handle)

852 - Handle Set 6" Center to Center Bore (Weather Shield Handle)

$ 205.00

Bright Brass
Polished Chrome
Satin Nickel
Antique Brass

Part Number: 852 - Handle Set 6" Center to Center Double Bore

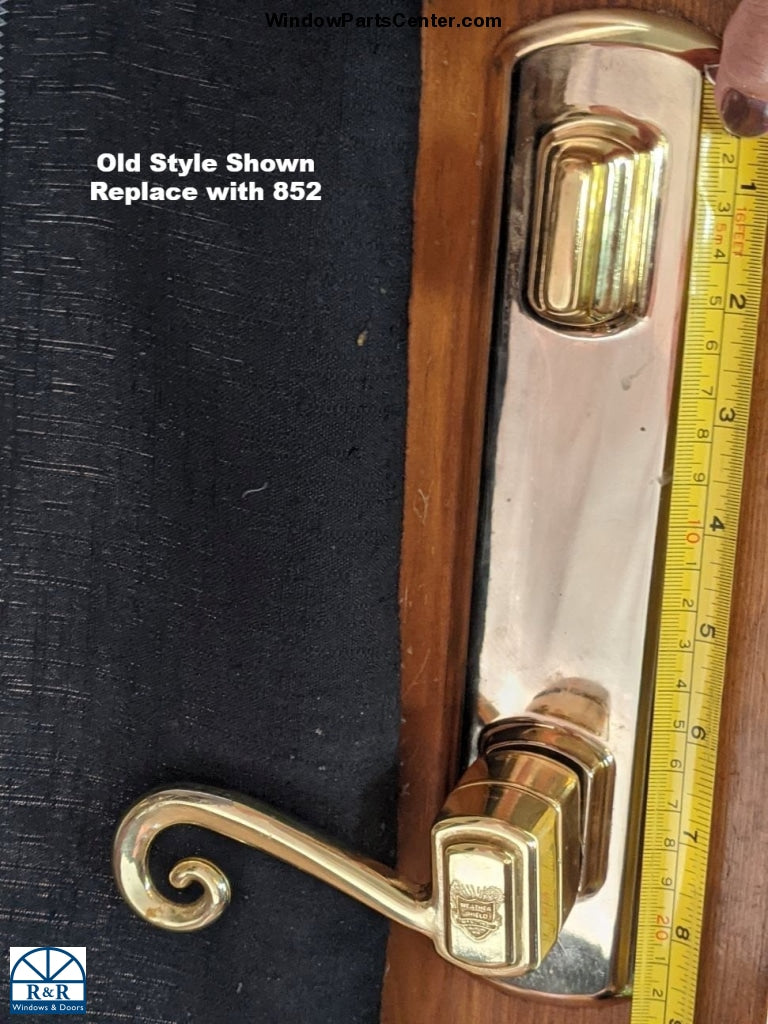

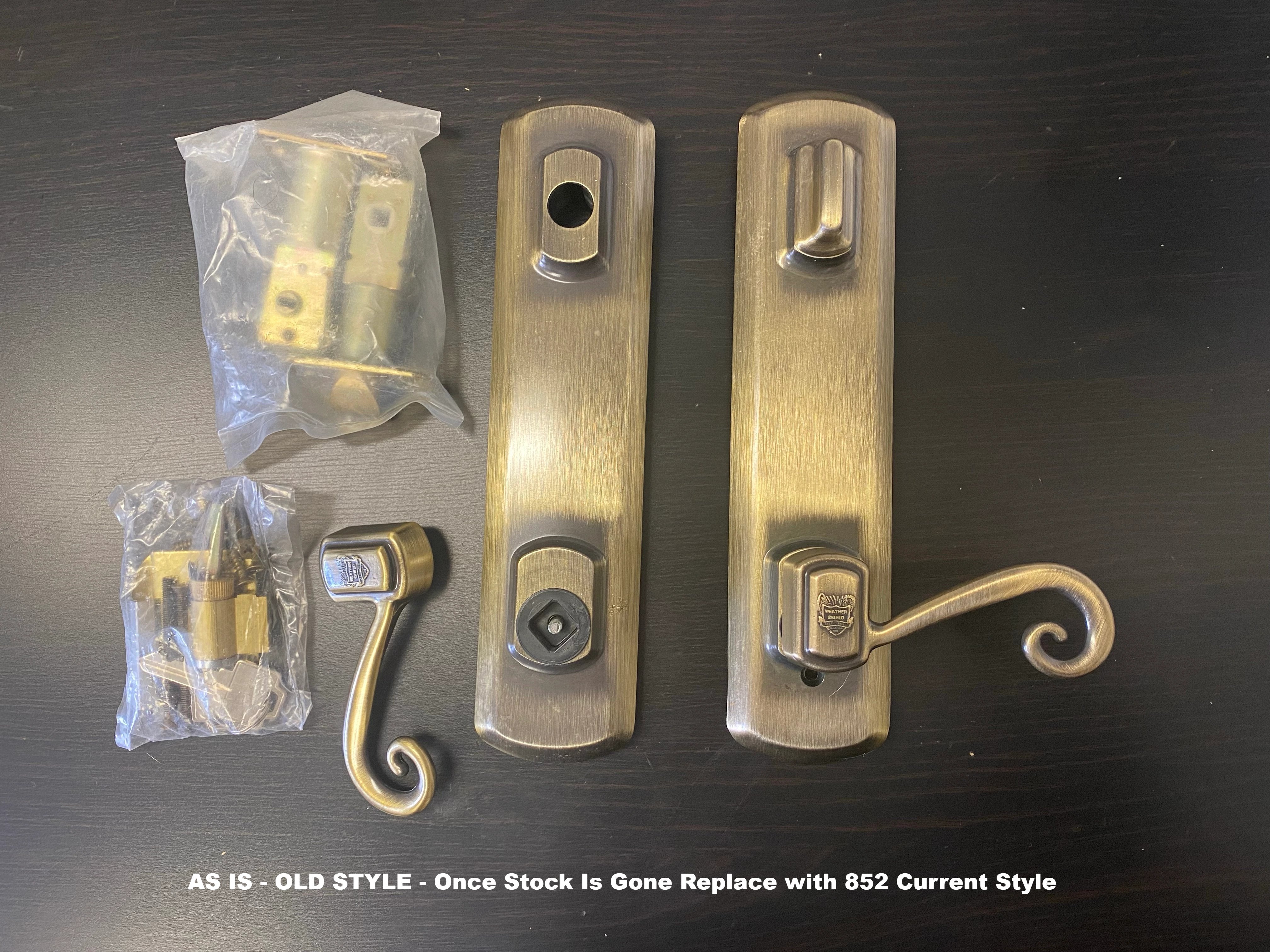

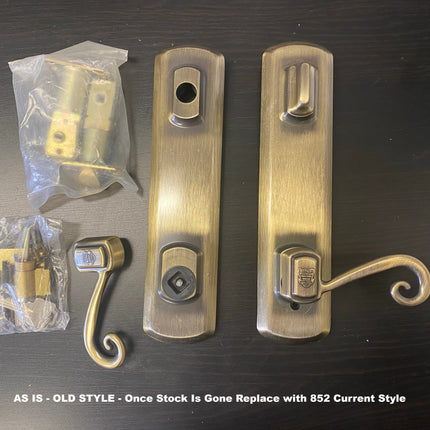

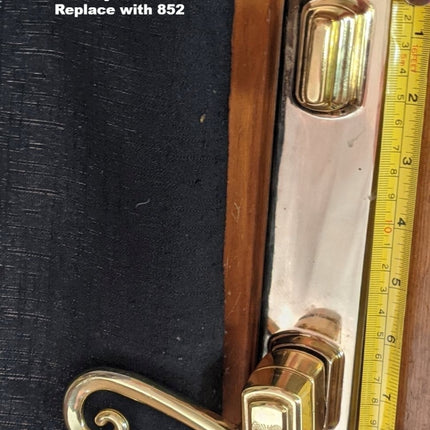

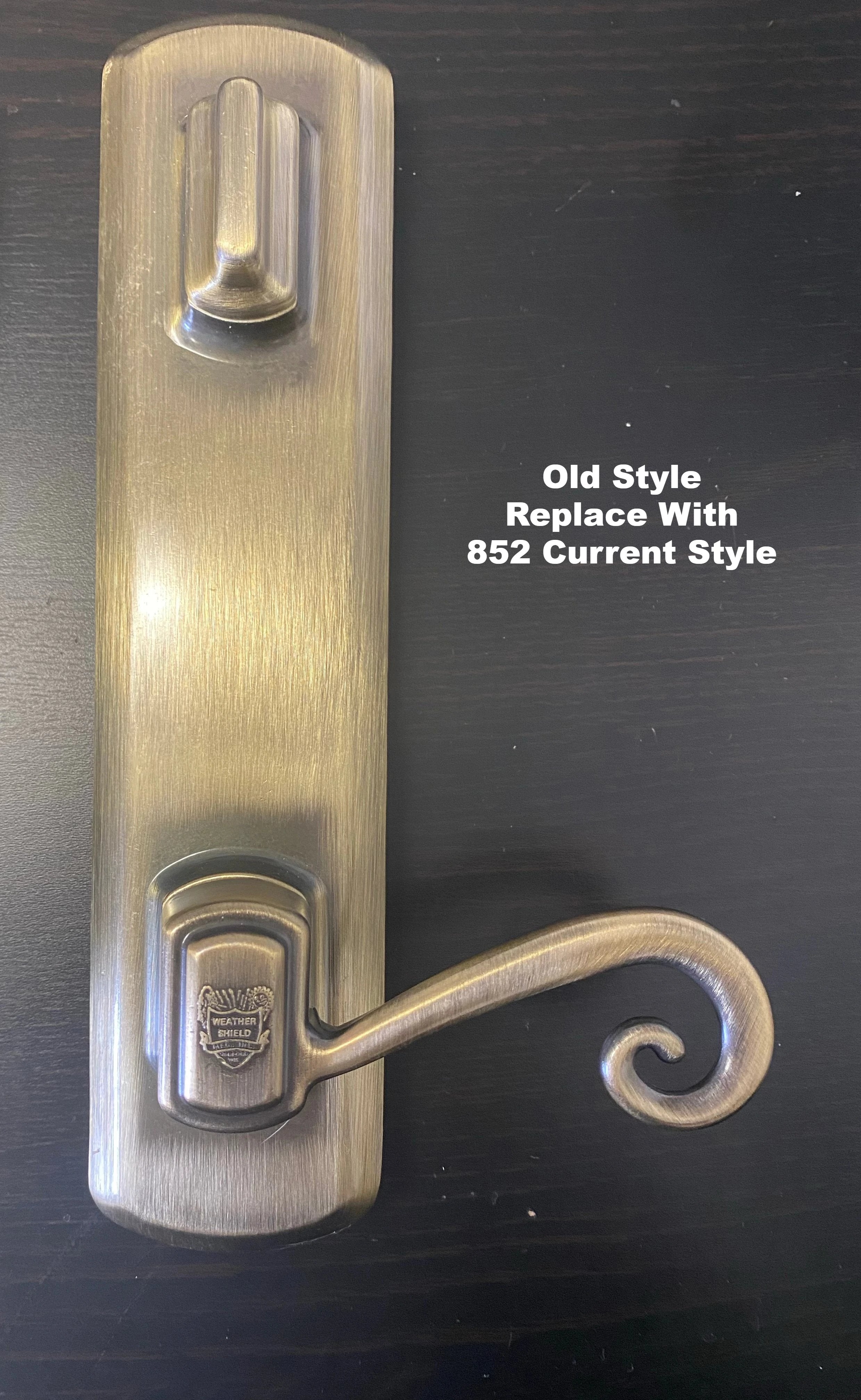

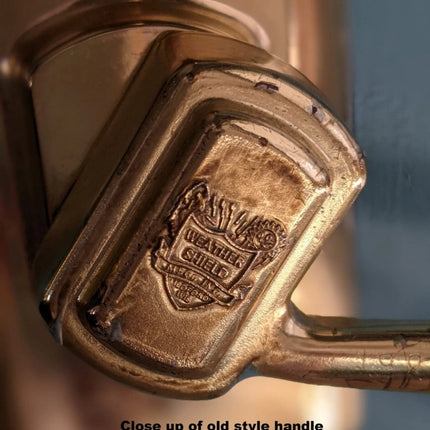

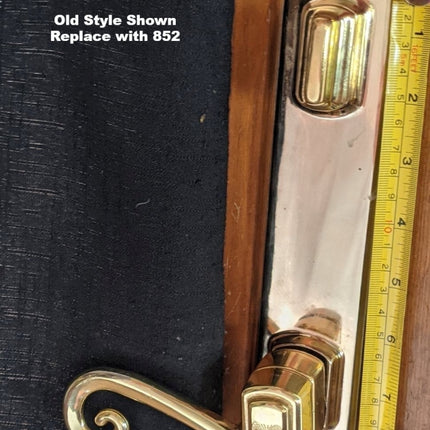

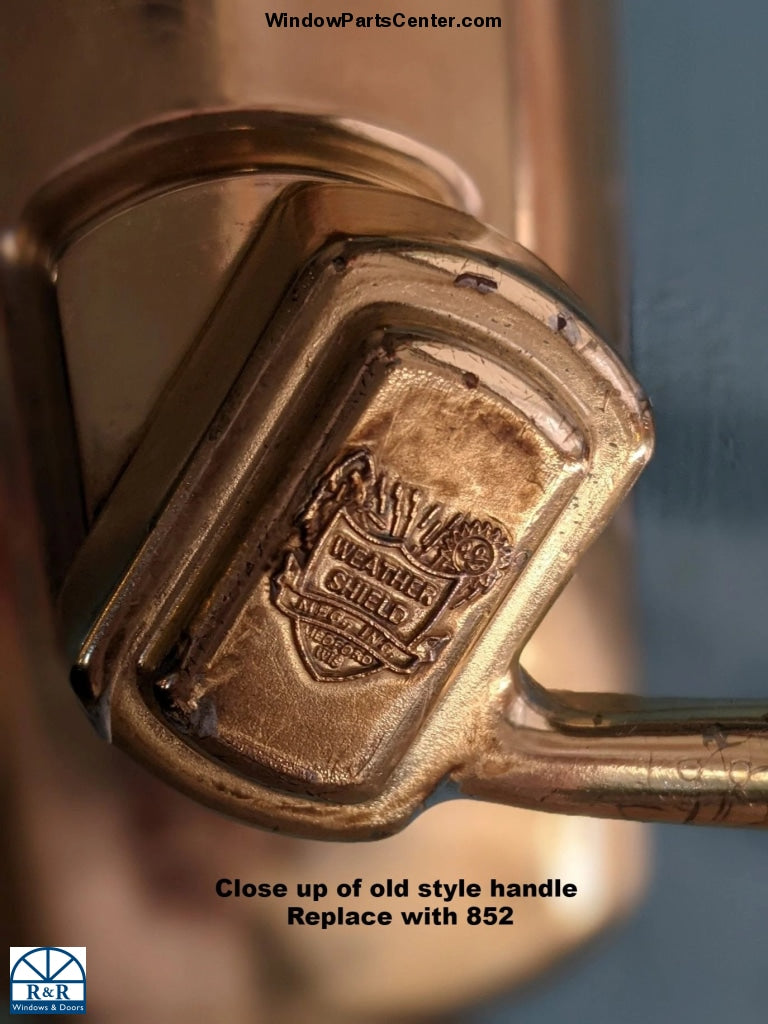

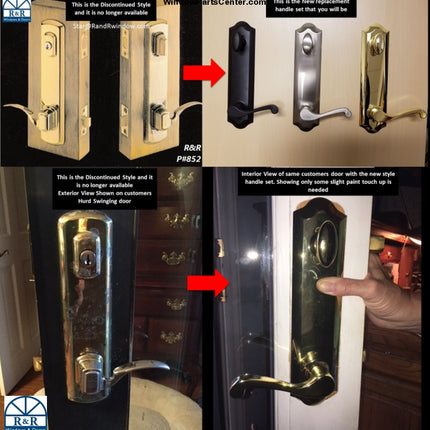

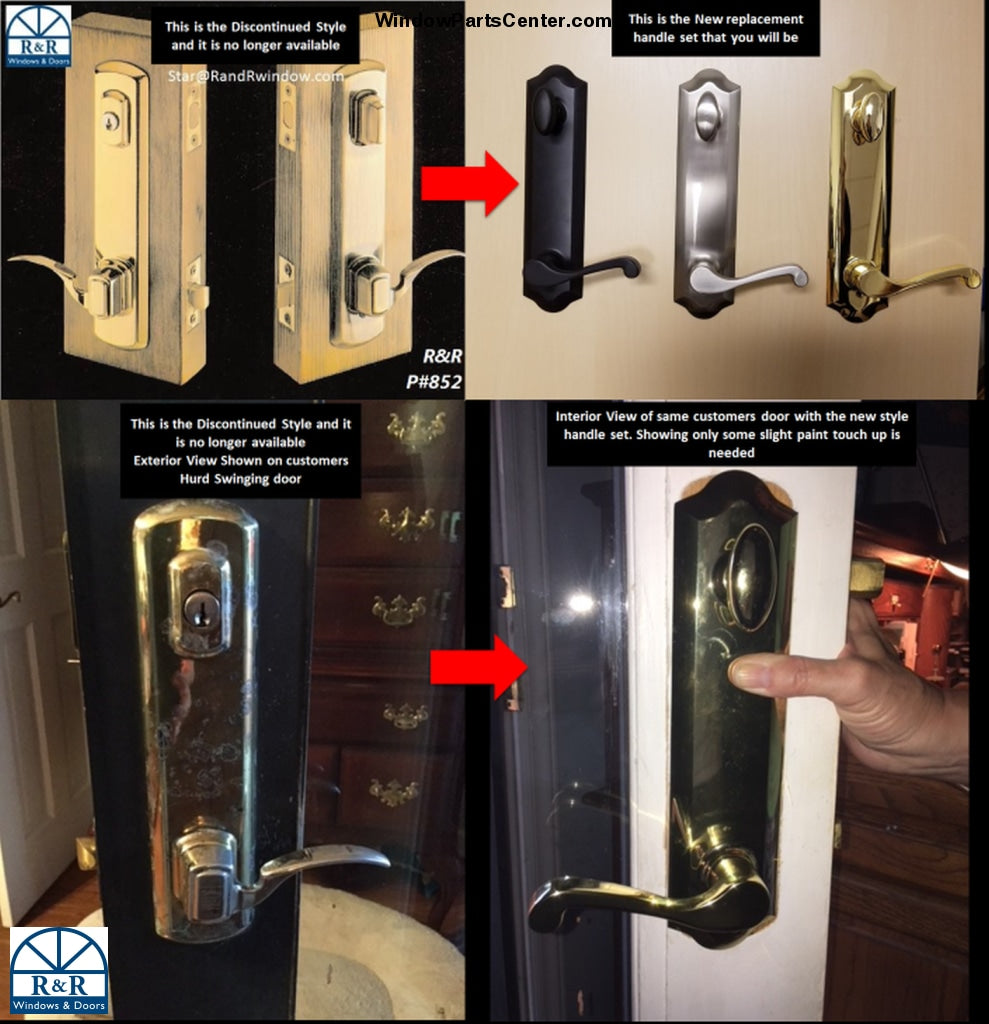

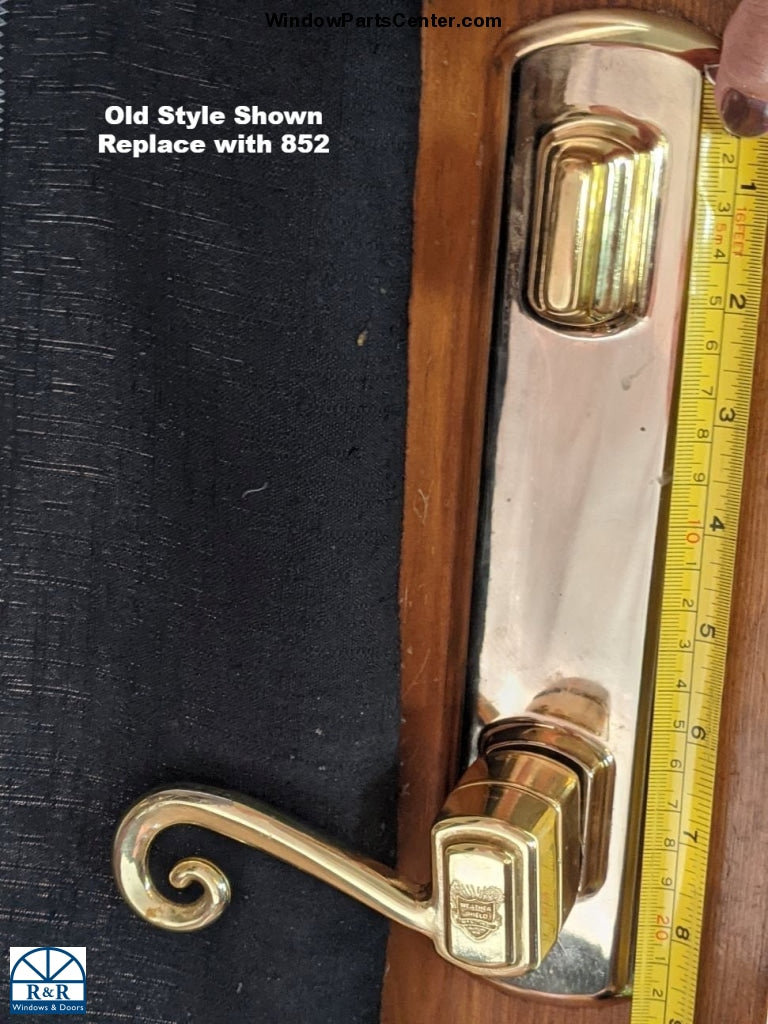

Old Style Handle Set is NLA (known number stamped on some old handles: pat no 4,671,089 D 295 829 Other Pat. Pending 1200-2-1). Part number 852 is the replacement style for the 6” center to center double bore  backsets - dead bolt and latch. and Mounting screw holes of 6 1/16" center to center (see pictures & video below). .

Colors In Stock: Bright Brass, White, Polished Chrome, Satin Nickel

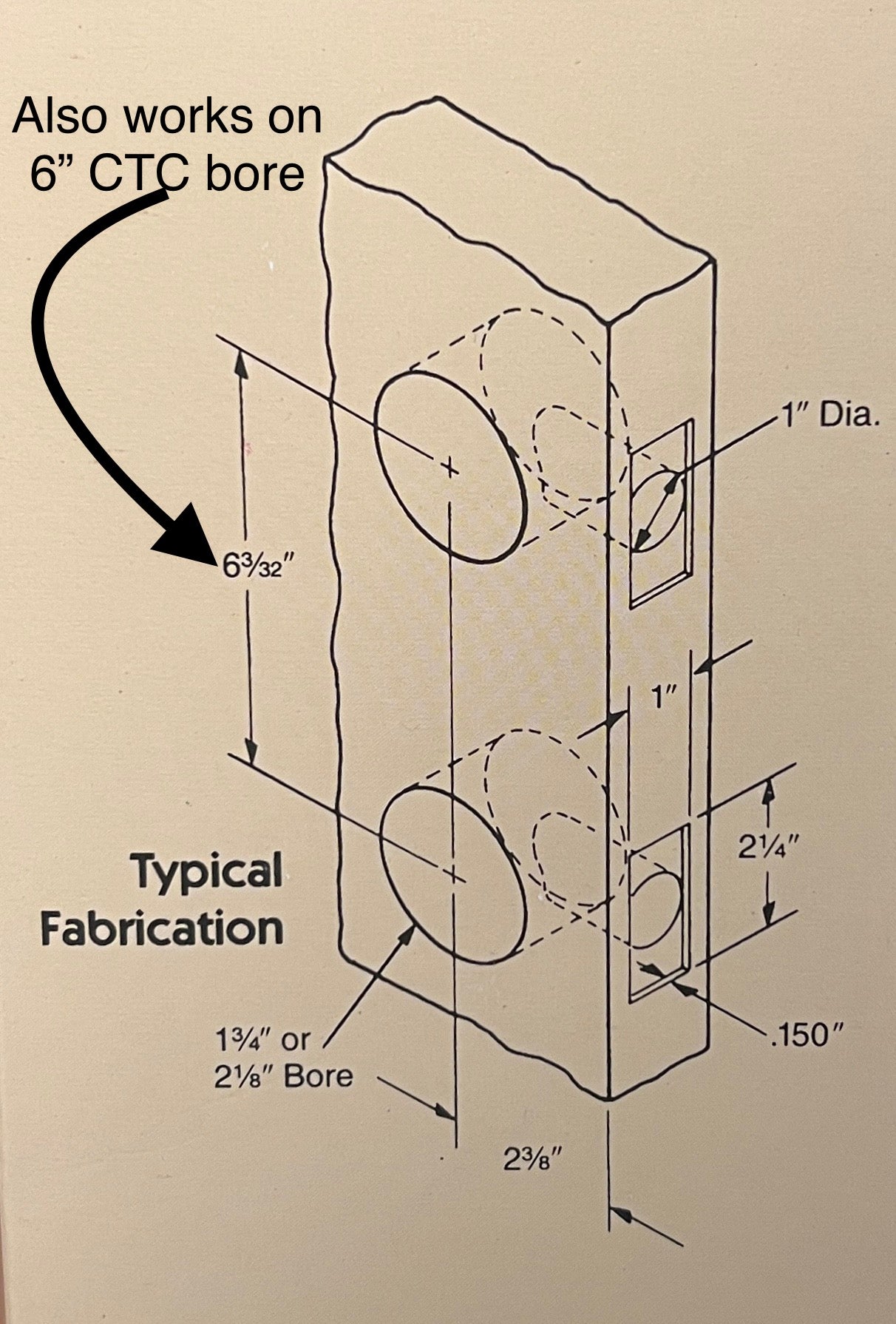

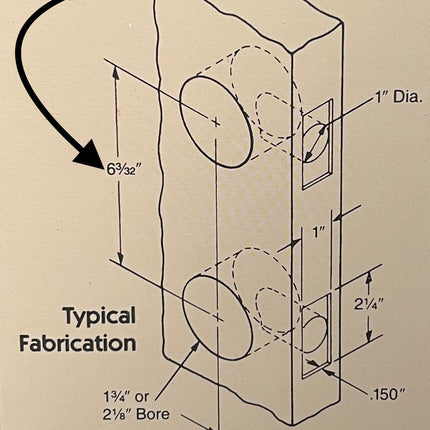

  • Fits 2 1/8" Crossbore on 6" and 6 3/32" bore Centers. Can also be used on doors with 1 3/4" Crossbore. The lockset includes removable posts.
  • 2 3/8" Back Set

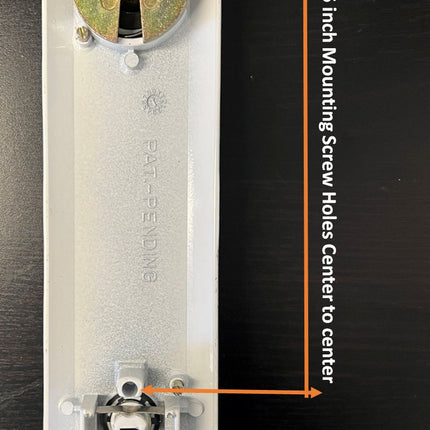

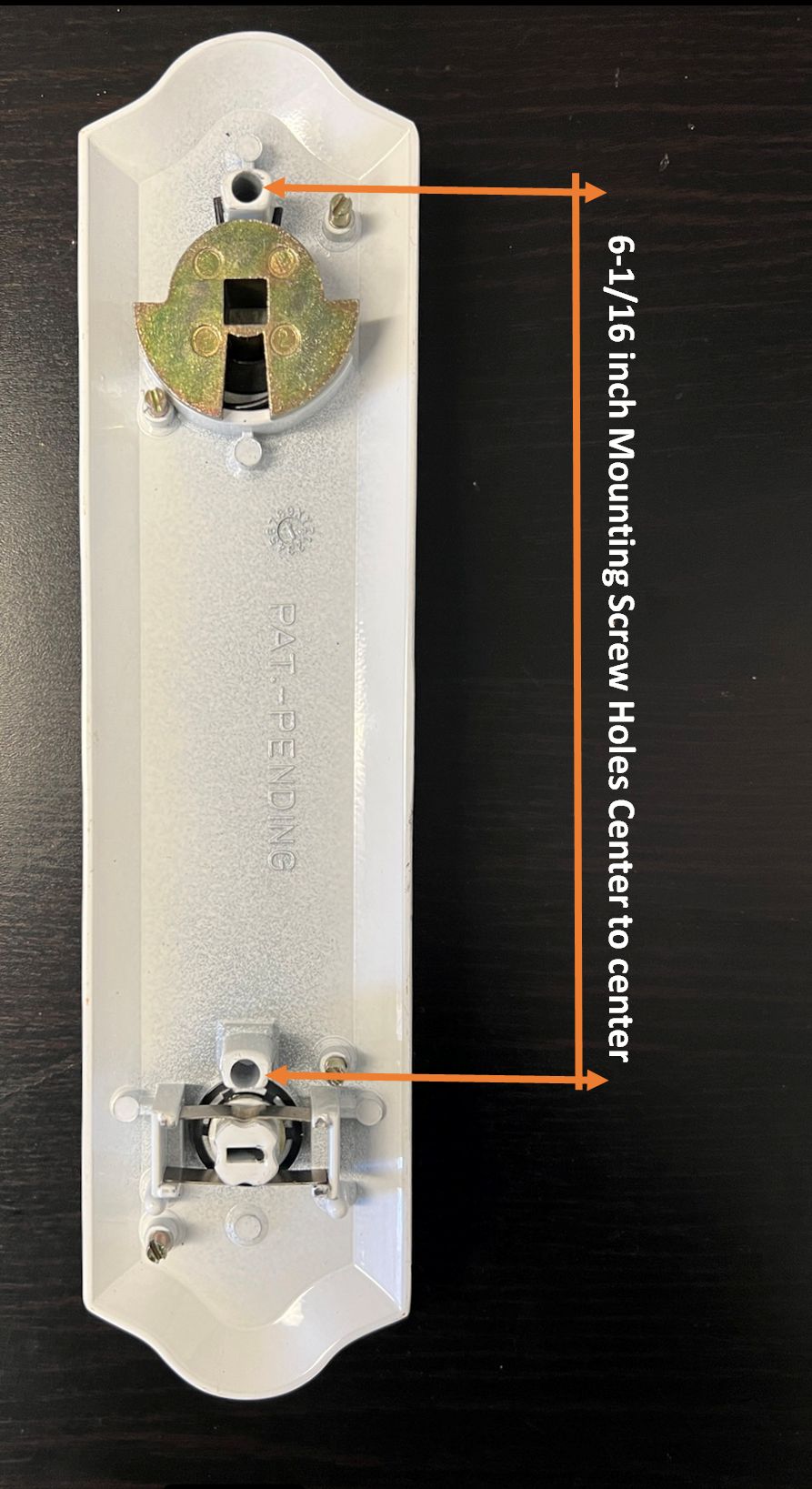

  • Mounting Screw Holes 6 1/16" center to center
  • Durable Finish

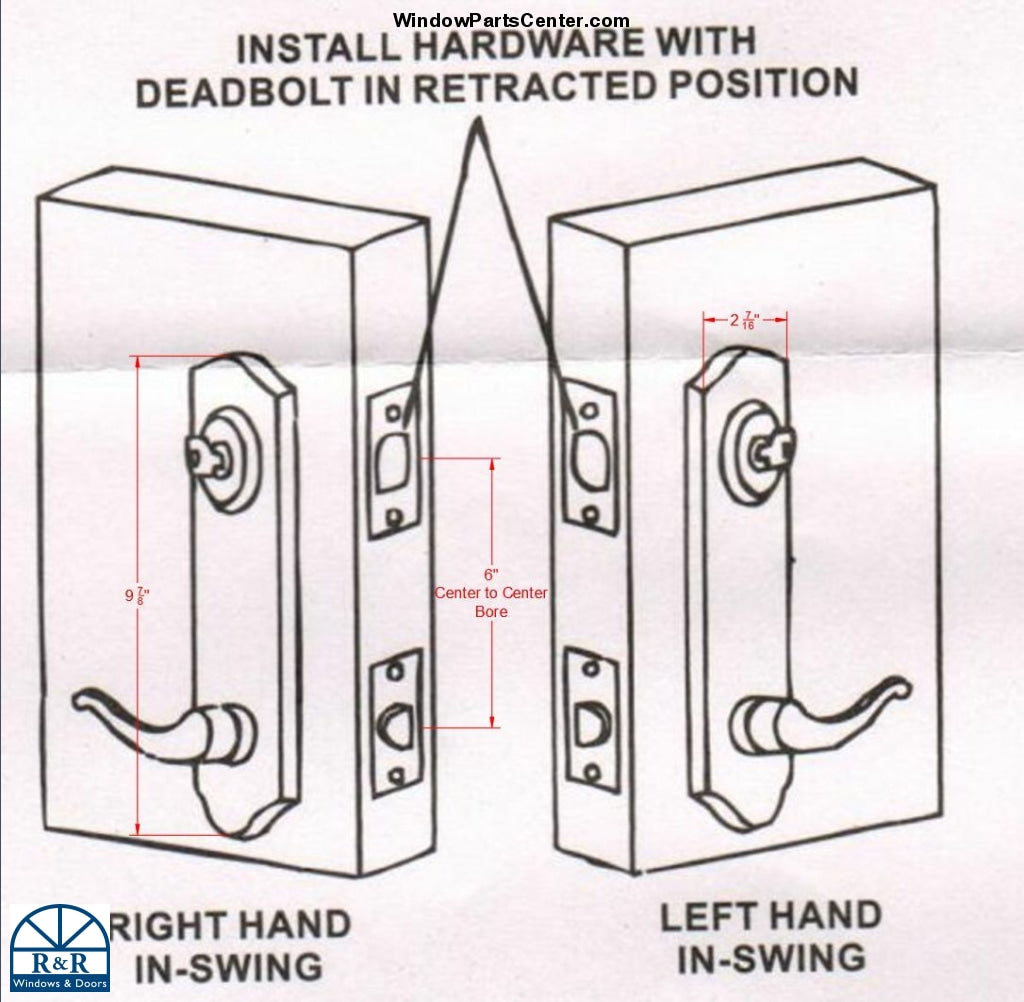

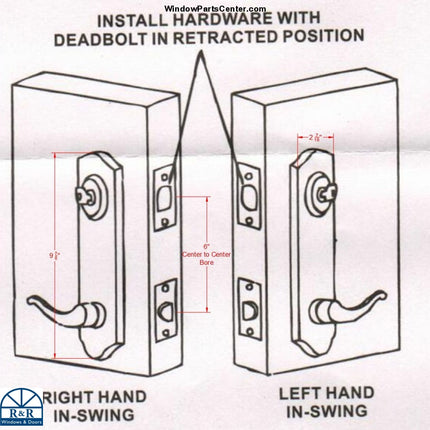

  • Fits Right or Left Hand doors
  • East to install with Phillips screwdriver
  • Known to work on Weather Shield, and Hurd Swinging Patio doors and replacement for W&F handle set with 6" Center to Center Bores.
  • Tools Required for Install: Philips Screwdriver and Slotted Screwdriver.

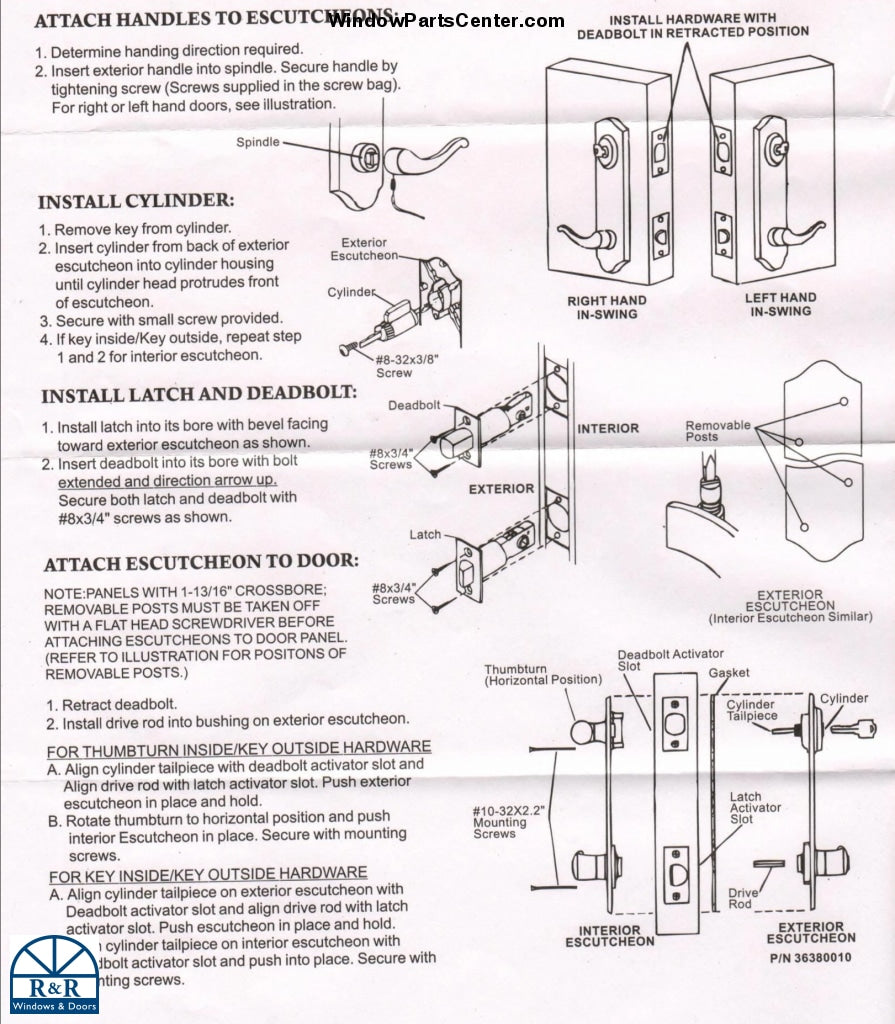

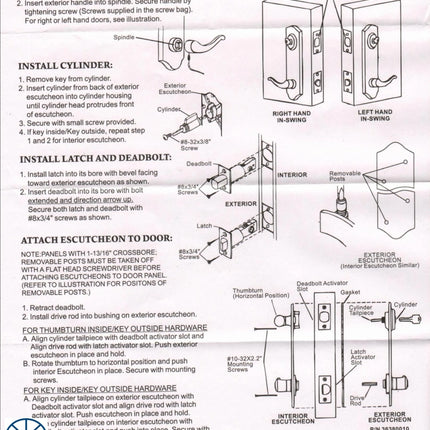

  • Detailed Installation Instructions Enclosed.

Keyed and Keyed Alike:

  • All handle sets come random Keyed with 2 Keys.
  • You can order as Keyed Alike for a small upcharge per handle. By ordering 2 or more handle sets select Keyed Alike then all handsets will come keyed the same.
  • Allow an addition 1-2 weeks for keyed alike handle sets to ship
  • We CAN NOT rekey handle sets to any existing keys you the customer may have for your home, you the customer would need to hire a lock smith for that.

W&F Replacement Parts Sold Sold Separately:

NOTE! 852 only works for  6 inch center to center 2 1/8" standard double double bore with latch and dead bolt (see video below). (If you have the W&F multipoint hardware with 6 inch center to center 1 7/8" or  2 1/8" multipoint bore  and screw holes are 5 3/16" center to center see part number: D300, D301, D302, D303, D304 or D305 )

No Longer Offered:  oil rubbed bronze we no longer carry as it has no warranty and the manufacturer changed the finish process for it to a painted finish and it would come off during shipping or soon after install

*Additional Finish Manufacturer Warranty info:  Warranty is for original consumer/purchaser Proof of product purchase is required. for Bright Brass, Stain Nickel and White only have a 1 year manufacturer warranty. Warranty does not cover normal wear and discoloration of Finishes, damage caused by scratches or abrasions, or any product that has been improperly installed, abused, worn out, altered or used for a purpose other than that for which it was intended, or used within 10 miles from the sea coast or body of salt water, or in a manner inconsistent with any instructions regarding its use or recommended care and maintenance, or that has been exposed to solvents, chemicals, or other harsh environments or foreign substances including any airborne foreign substances.

Pricing subject to change - cannot retro active any pricing on previous orders or hold pricing for future orders.
