Description

Ashland Sentinel MultiPoint Swing Door Lock System Facemount Active Lock Versions - Product Information page

Product Information page. We do not stock this at our Denver warehouse.  - Use links in blue  under "Versions" subheading below to see pricing and to order your version - Available to Order via our parts catalog website

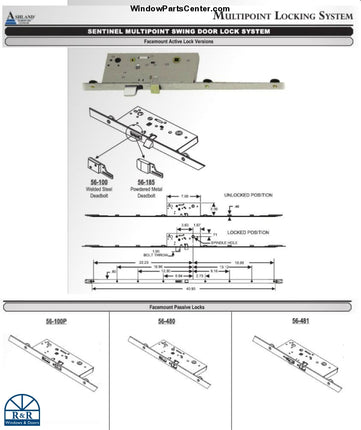

Versions:

  • Model 56-100 Facemount Active Lock Welded Steel Deadbolt - Click Here to Order
  • Model 56-185 Facemount Active Lock Powdered metal Deadbolt - Click here to Order
    • Key Features of 56-100 and 56-185
      • Made from the finest 300 series stainless steel for superior corrosion resistance
      • Incorporates the "Baby-Sitter Effect" that allows the consumer to operate the dead bolt and extension bolts independently of each other, eliminated the necessity for the consumer to lift the lever handle and engage the shoot bolts before activation the dead bolt.
      • Incorporates an" Anti-Slam" device that prevents the lock bolts from extending until the door is in the closed position, eliminating the potential for door frame damage by the consumer.
      • The shoot and dead bolts extend a full one-inch to meet the highest leaves of structural testing, and meets most local building codes.
    • Performance and Security of 56-100 and 56-185
      • Mechanism has anti-backdrive provision on the deadbolt and shoot bolts to help prevent tampering.
      • The extension bolt incorporates the necessary lead-in to provide signification pull-in of the door. Facemounted has .316" of pull in
      • Robust and durable handle return spring design to prevent handle sag over time
      • The handle is locked out when multipoint is in the locked position
      • Withstands abusive torques of over 500 lbs
      • Lab tested over 50,000 cycles
    • Manufacturing Flexibility and Ease
      • The lock unit is one of the easiest and quickest to reverse the direction of the latch
      • The very modular design gives flexibility to accommodate a variety of door sizes and options
      • Lock has 2 3/8" backset
      • Spacer sands offs are unitized to prevent the lock system from biding which mounting screws are accidently over tightened
      • A simple one stop route profile for easier fabrication
      • easy peg-hole connection for quick installation
  • Model 56-100P Multipoint Gearbox Passive - Click Here to Order
    • Mortise type no astragal
    • Has Deadbolt communication with the active panel lock
      • When shoot bolts are extended and the active deadbolt is fully extended, the passive lock shoot bolts cannot be retracted. This prevents the homeowner from opening the passive panel with active deadbolt extended, which might damage the panel. Prevents active lock deadbolt from extending unless the passive shoot bolts are extended. Tells the homeowner to lock the passive panel first.
    • Has latch communication with the active panel lock
      • If the active deadbolt has not been engaged when passive lock shoot bolts are extended and the active lock latch is fully extended, the passive lock shoot bolts cannot be retracted. This prevents the homeowner from opening the passive panel first, which might damage the panel.
      • Blocks active lock latch from full engagement into passive lock unless the passive shoot bolts are extended. Prevents damage to panels should passive panel be opened first and tells the homeowner to lock the passive panel first.
  • Model 56-480 Multipoint Gear Box Passive - Click Here to Order
    • After shoot bolt extension, it has a thumb turn mechanism to manually lock the passive shoot bots in the extended position.
    • Requires a passive trimset that has a thumb turn.
    • Has deadbolt communication like above if the astragal is thin enough to allow the deadbolt to engage the blocker. However, this is typically used for thicker  astragal applications with no communication with the active lock.
  • Model 56-481 - Multipoint Gear Box Passive - Click Here to Order
    • Communication with active lock deadbolt through a 5/8" thick astragal
    • No latch communication

     Known to have been used on Caradco French doors and many other swinging doors that used Ashland hardware.

    Known Component Number On Gear Box: 3295 3183 3194 68

    Known Patent No. 6,209,931
