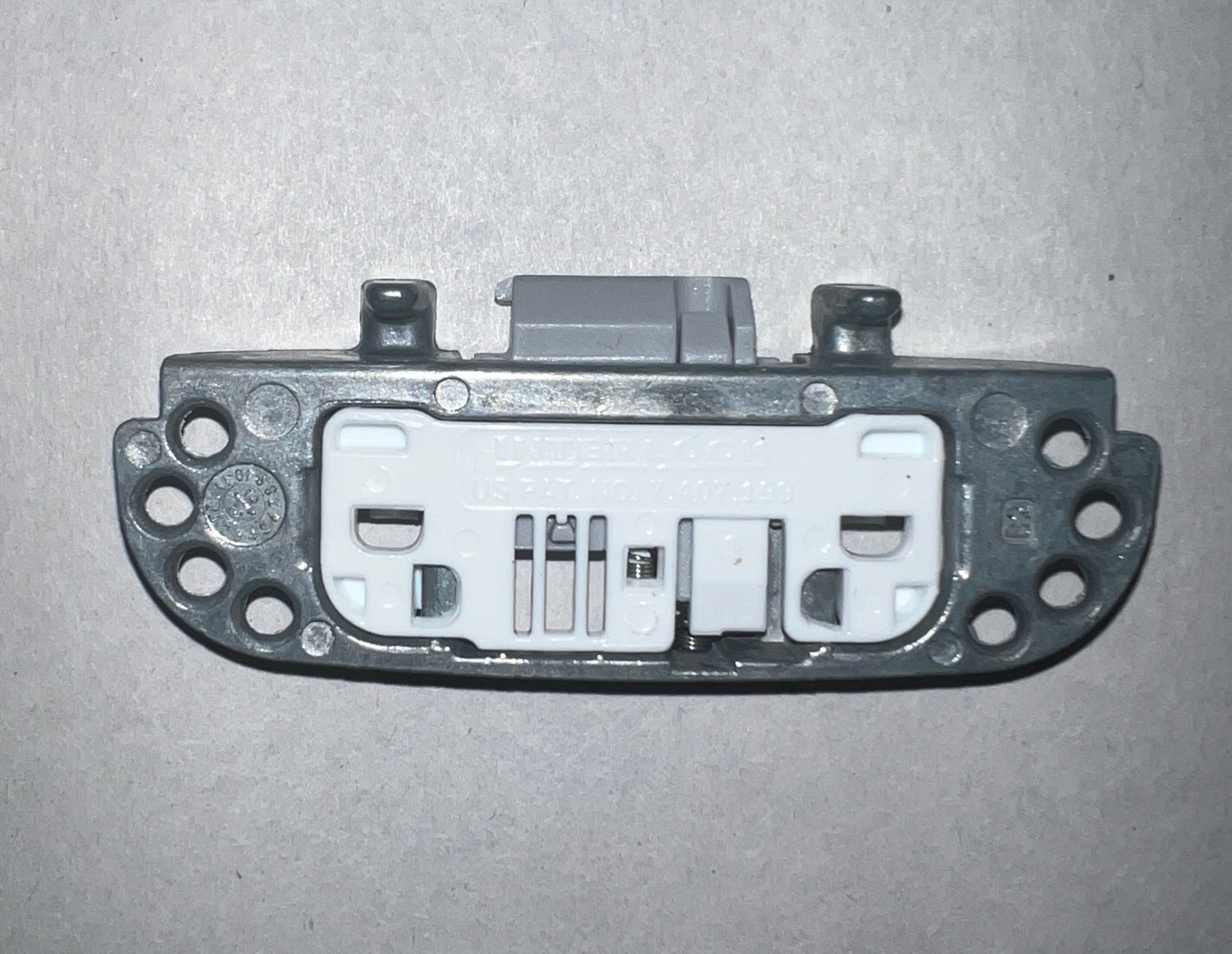

Description Part Number C10000M
Interlock ASSA ABLOY Tru Latch Pro Latch Mechanism Only. Replacement Part
The original standard in automatic sash lock solutions for hung and sliding windows.
PRO-Latch features a removable cover and the ability to provide cost-effective proprietary aesthetics as well as architectural finishes. Whether you’re looking for a composite or metal cover, or a mechanism that is surface mounted or recessed into the profile, Interlock’s PRO-Latch is the highly customizable sash lock system that delivers superior performance.
Dimension: 2 7/8 Inch
Sold Individually (for large orders of QTY 100 and QTY 300 this will be considered special order item no returns)
Interlock US PAT NO 7,407,119 stamped on Mechanism
Manufacture Features
Removable snap-on cover (composite or metal options)
Fits most sliding and hung window applications
Multiple fixing locations available
Hurricane rated in impact-certified applications
Robust dual hooks for superior FER resistance
Surface mounted or recessed into profile
Patented cover design
Manufacture Specifications
± 2.032 mm (0.080”) of misalignment tolerance in all directions ± 2.032 mm (0.080”) – ±4.064 mm (0.160”) of lateral adjustment depending on keeper design Passes all required FER testing requirements for sliding and hung windows Designed for Dade County impact window applications Has exceeded 145 kg (320 lbs) per lock in a pull test Endurance tested to 36,000 operating cycles Minimum 1,000 hours Neutral Salt Spray resistance
Parts Sold Separately:
Mechanism: Part Number C10000M
Mechanism Screws: Part Number C10000MS
Cover: Concealed Screw Cover Part Number C10000CSC Cover: ADA with pull string Part Number C10000ADAC Cover: With Exposed Screw Cover Part Number C10000ESC Cover: Slimline Composite or Zinc Cover Part Number C10000SLC Cover: With Exposed Screw Cover Part Number C10000ESC Keeper: Face Mounted Striker Keeper Part Number C10000FMK Keeper: Surface Striker Keeper Part Number C10000SSK Keeper Screes: Part Number C10000KS
Replaces old Part number: C1000NS
