Description
Part Number: C10000NS
Interlock Pro-Latch Auto lock
Featuring automatic locking action and a removable cover, Pro-Latch offers the ability to provide cost-effective proprietary aesthetics as well as architectural finishes.
The original standard in automatic sash lock solutions for hung and sliding windows.
PRO-Latch features a removable cover and the ability to provide cost-effective proprietary aesthetics as well as architectural finishes. Whether you’re looking for a composite or metal cover, or a mechanism that is surface mounted or recessed into the profile, Interlock’s PRO-Latch is the highly customizable sash lock system that delivers superior performance.
Features
- Removable snap-on cover (composite or metal options)
- Fits most sliding and hung window applications
- Multiple fixing locations available
- Hurricane rated in impact-certified applications
- Robust dual hooks for superior FER resistance
- Surface mounted or recessed into profile
- Patented cover designs

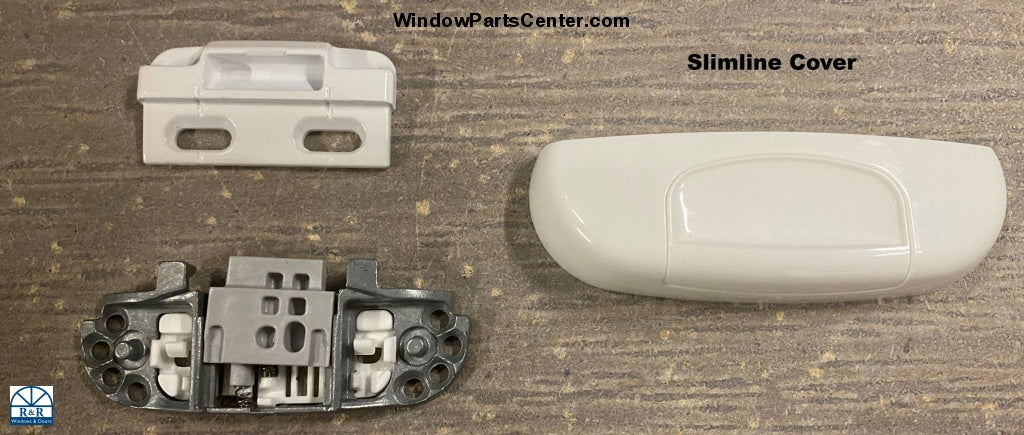

Each Pro-Latch Lock Kit will come with: 1 Pro-Lock Mechanism , 2 Lock Screws, 1 Pro Lock Cover (your choice in style), 1 Keeper (your choice of style), 2 Keeper Screws

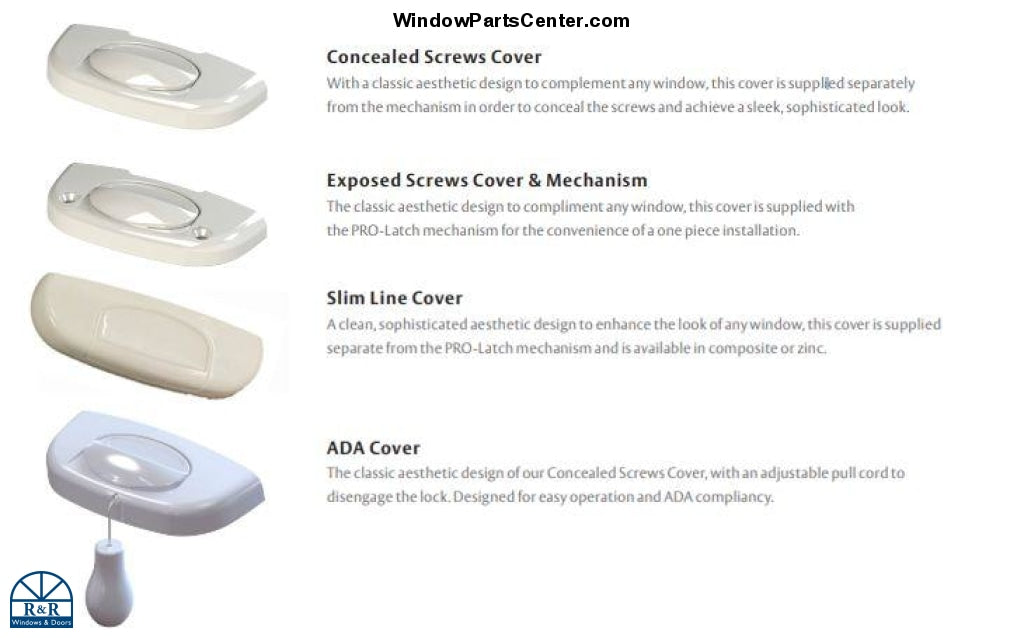

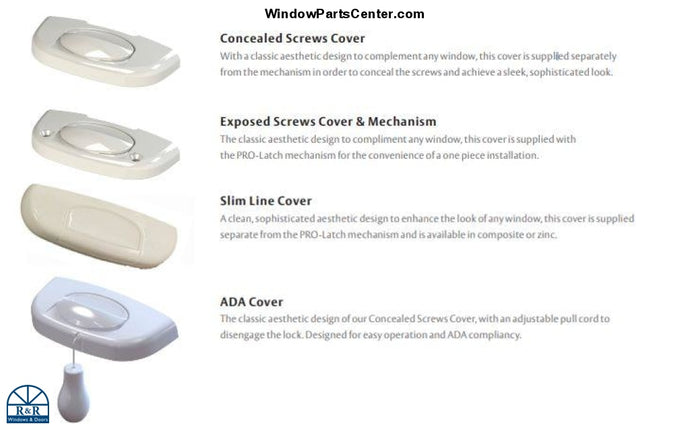

Style:
-

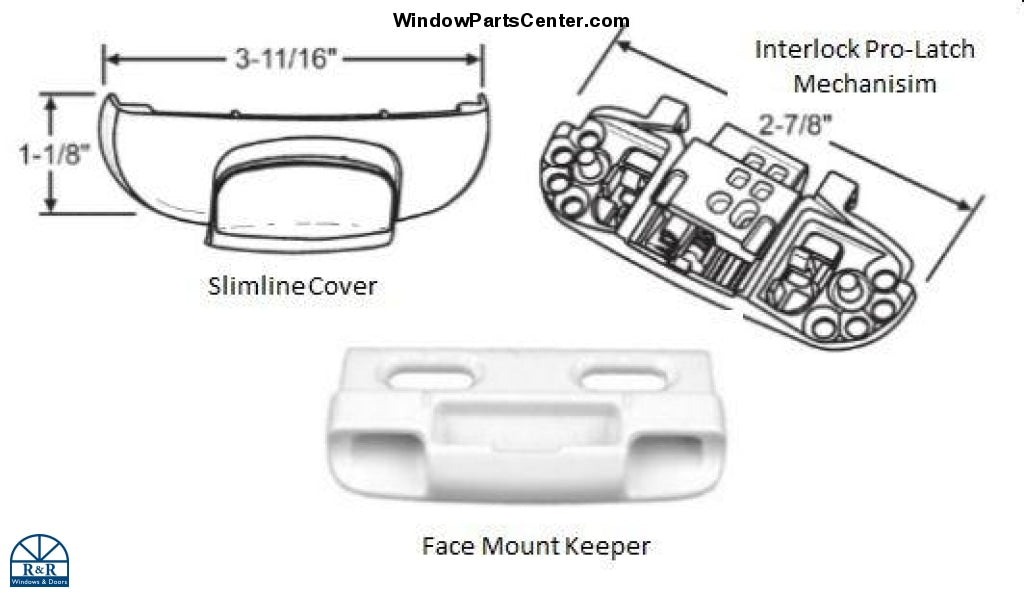

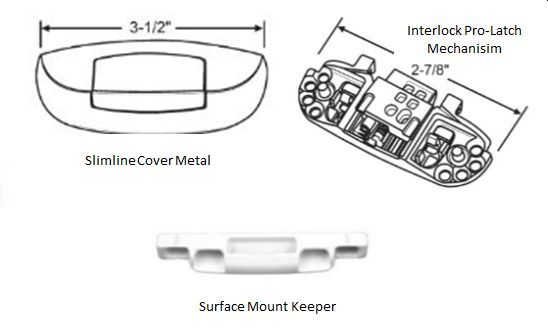

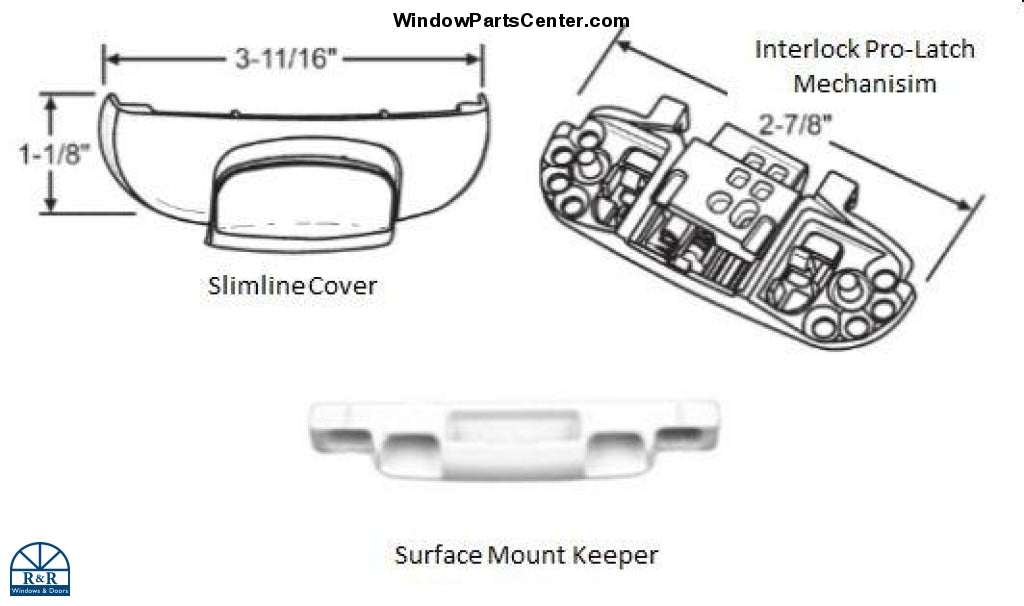

Slim Line Cover: A clean, sophisticated aesthetic design to enhance the look of any window, this cover is supplied separate from the PRO-Latch mechanism. Two piece installation and is available in composite.
-

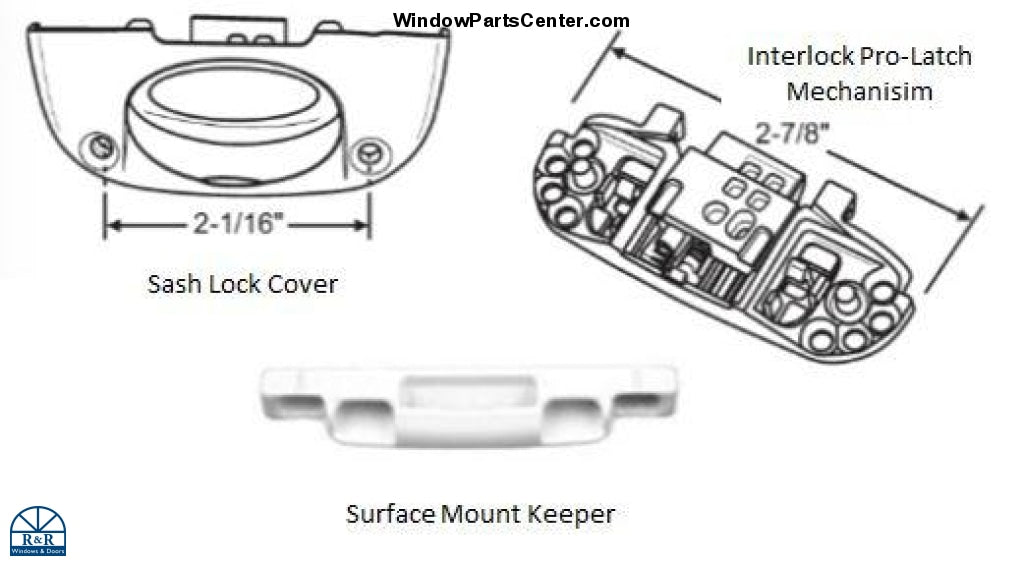

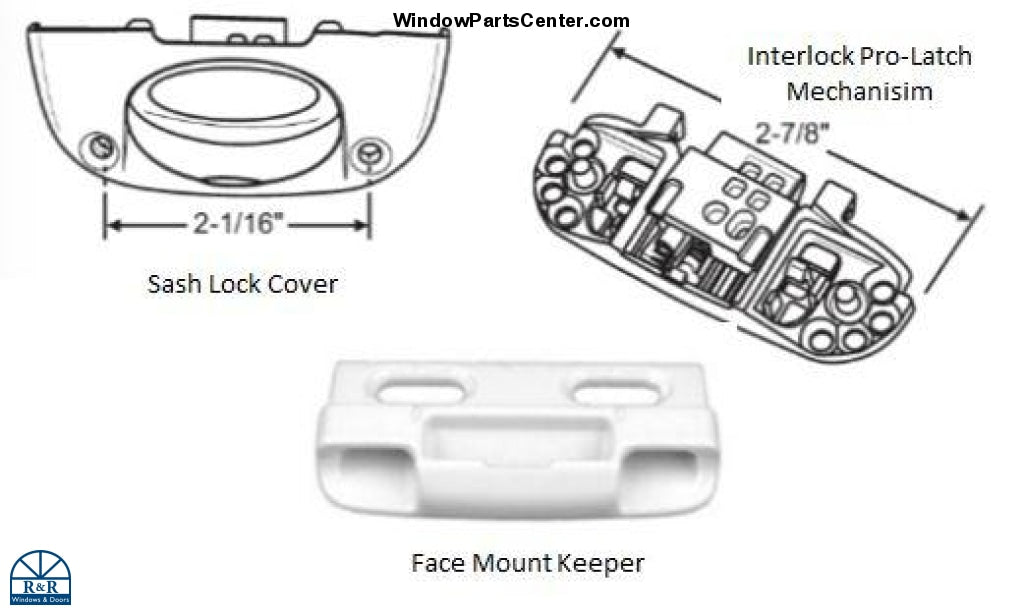

Exposed Screws Cover: The classic aesthetic design to compliment any window, this cover is supplied with the PRO-Latch mechanism installed in the cover for the convenience of a one piece installation.
-

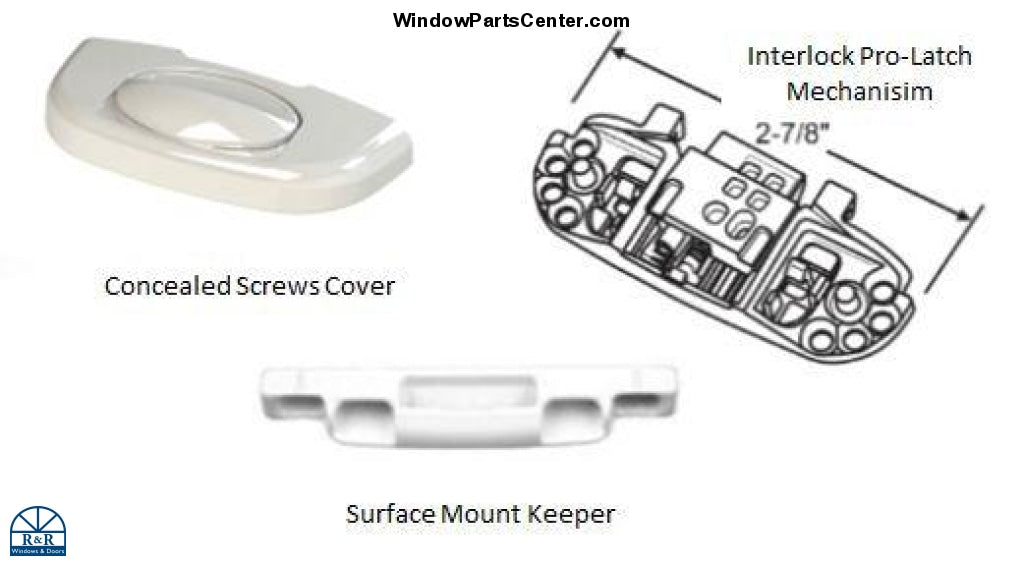

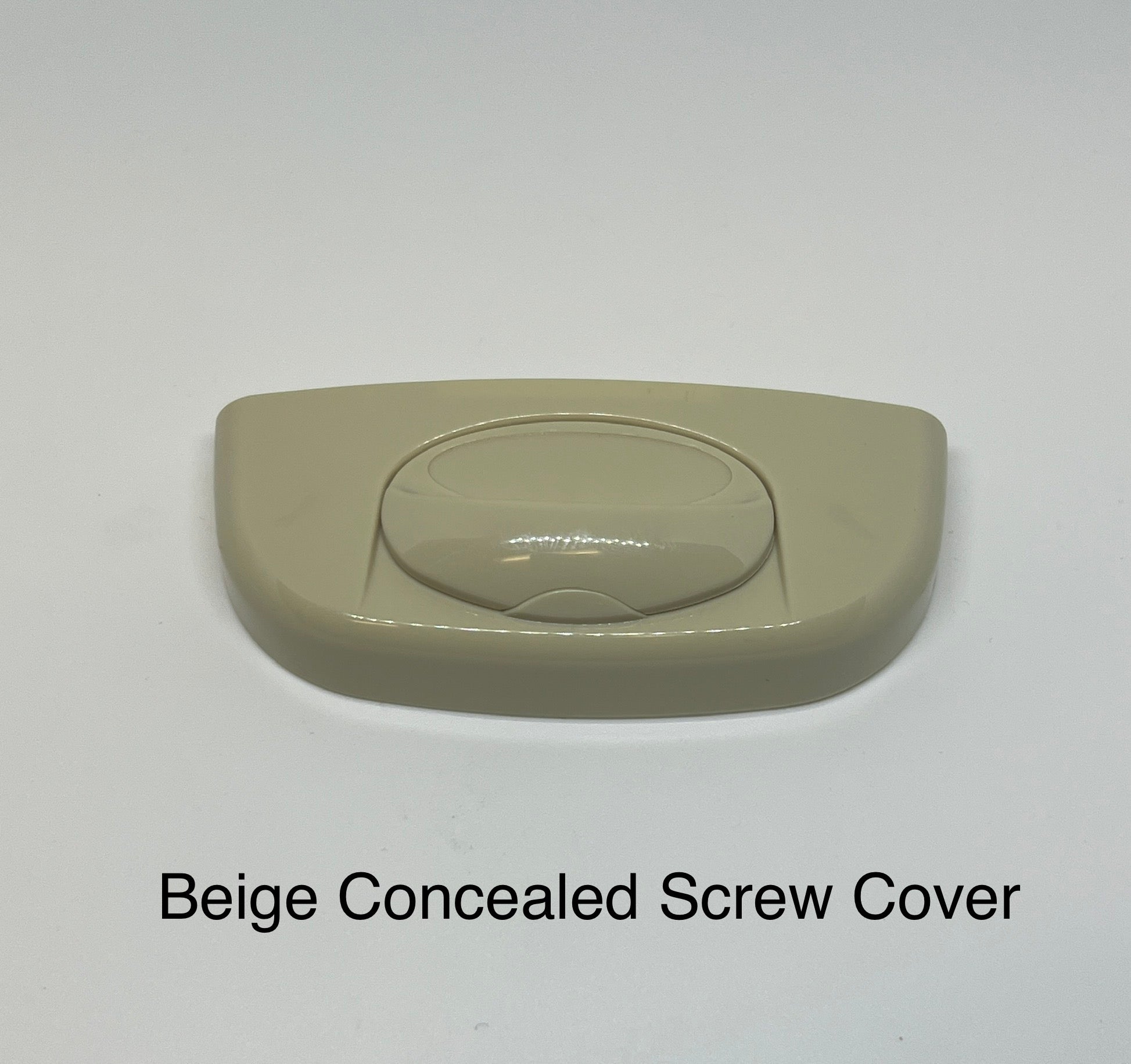

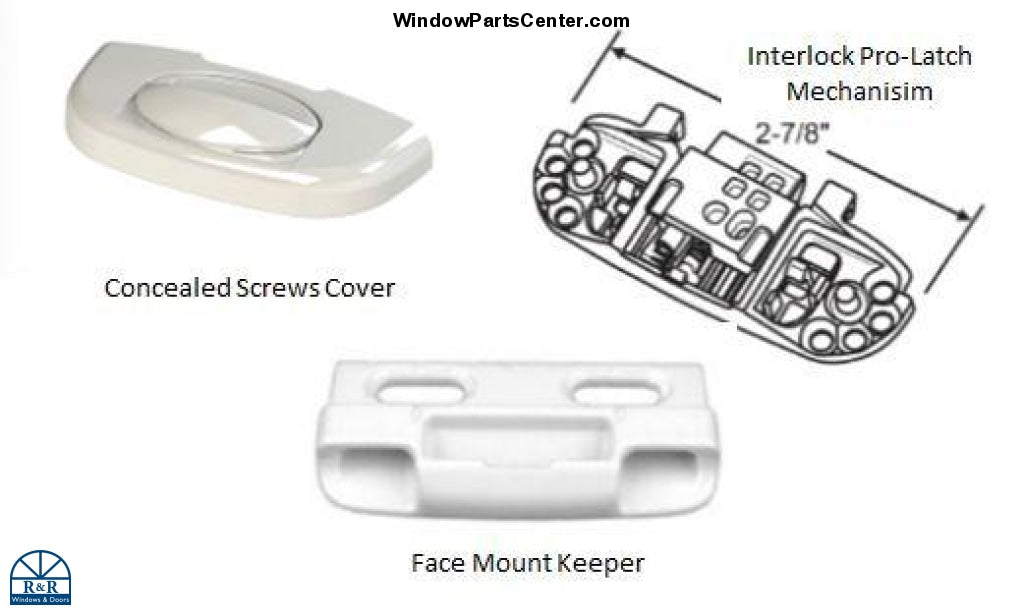

Concealed Screws Cover: With a classic aesthetic design to complement any window, this cover is supplied separately from the mechanism in order to conceal the screws and achieve a sleek, sophisticated look. Cover is supplied separate from the PRO-Latch mechanism. Two piece installation
-

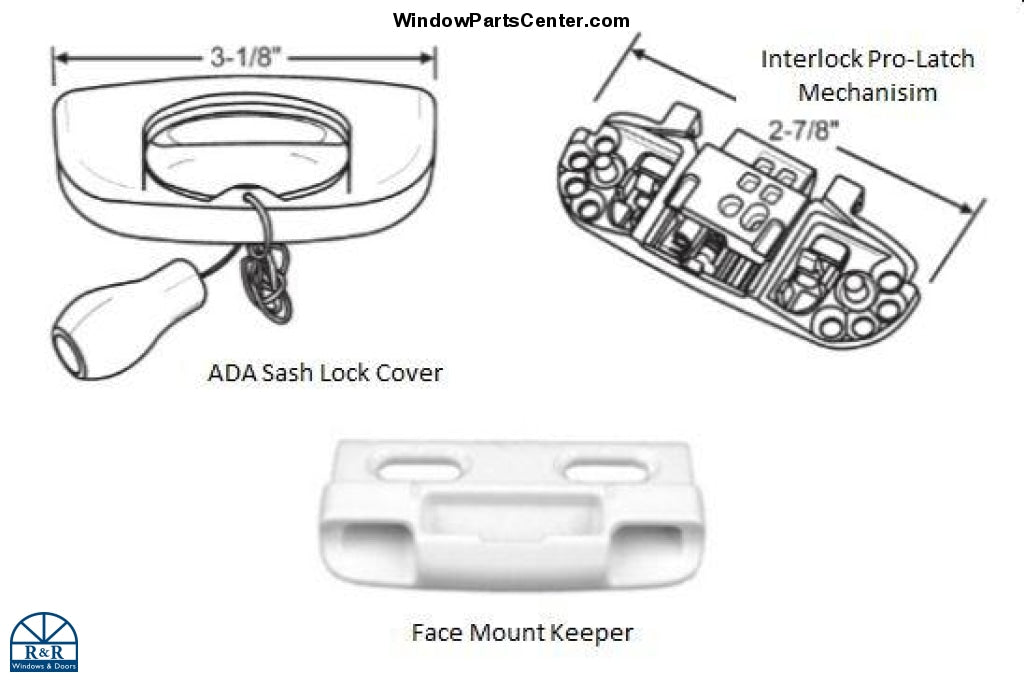

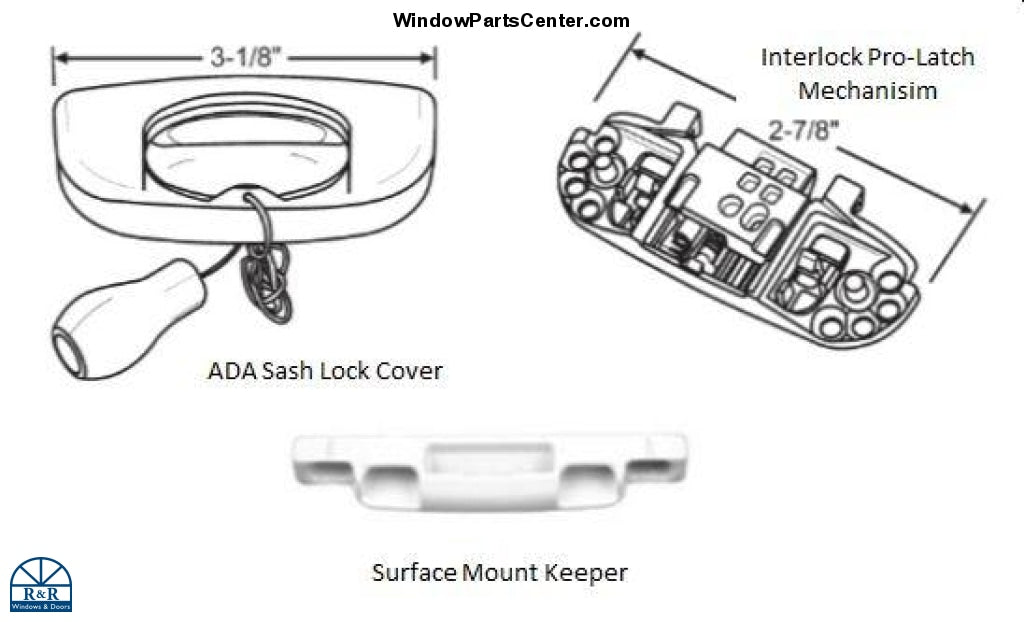

ADA Cover: The classic aesthetic design of our Concealed Screws Cover, with an adjustable pull cord to disengage the lock. Designed for easy operation and ADA compliancy. Cover is supplied separate from the PRO-Latch mechanism. Two piece installation
Color: Interlock White
Size (striker keeper):
- Face Mounted Striker Keeper Mounted on a vertical wall on the profile
- Surface Striker Keeper Mounted on a horizontal wall on the profile
Interlock US PAT NO 7,407,119 stamped on Mechanism
To order parts individually at bulk pricing:
Part Number C10000M - Interlock Pro Latch Mechanism Only. Replacement Part
