S4001 Hoppe 2-D Vertical Adjustable Door Hinge - Set Hinge

S4001 Hoppe 2-D Vertical Adjustable Door Hinge - Set Hinge 850-8755047

$ 50.00

Style
Color
Bright Brass
Antique Brass
Brushed Chrome
Polished Chrome
White
Black
Oil Rubbed Bronze
Quantity

Part Number S4001 - Dual adjustment discontinued

Hoppe Columbus 2-D Set Vertical Adjustment Hinge for Wood and Vinyl

S4001 Dual Adjustment Hinges HAS been discontinued and the replacement S4003. The S4003 is a vertical adjustment hinge only. For more information on the S4003 Vertical hinge click here.

If you also need Horizontal adjustment you will also need to order part number S4004 guide hinge Click Here. See hinge placement guide below or in the hinge placement drawing to know if you need to order the S4003 or S4004 hinge. By having the S4003 and s4004 hinge on your door you will be able to adjust it horizontally and vertically.

Hoppe 2-D Adjustable Door Hinge for Wood and Vinyl Products - Set Hinge Vertical Adjustment (+/- 3 mm)

Hinges are NON Handed - this hinge is for Left Hand and Right Hand Doors you can remove the hinge pin to change the handing for your door before you install.

Colors Available: Bright Brass, Antique Brass, Brushed Chrome, Polished Chrome, White and Black

Discounted Colors: Oil Rubbed Bronze - replacement option would be black.

Set and Guide Hinge Placement - Also See Hinge Placement Guide Drawing:

  • 3 Hinges Per Door Panel:
    • Starting at top of door Top of door
      1. Guide (Part # S4004)
      2. Set (Part # S4003)
      3. Guide (Part # S4004)



  • 4 Hinges Per Door Panel:
    • Anytime you need 4 hinges you would just add another guide hinge
    • Starting at top of door Top of door
    1. Guide (Part # S4004)
    2. Guide (Part # S4004)
    3.  Set (Part # S4003)
    4. Guide (Part # S4004)

Manufacture  Information and Product Detail:

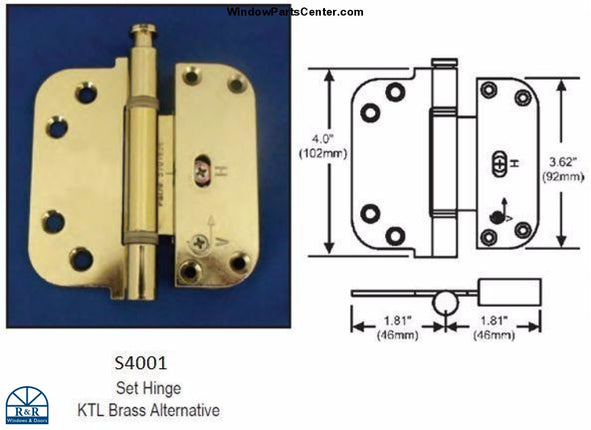

KTL Bright Alternative Shown in Picture

Settling of walls and floors can make door panels hard to open and close. The 2-D Adjustable Hinge allows easy adjustment of the door both horizontally (+/- 2 mm Guide Hinge Part # S4004) and vertically (+/- 3 mm Set Hinge Part # S4003) with just the turn of a screw. Each hinge is reversible and has maintenance free bearings.

There are two types of adjustable hinges for each door panel

A. Set hinge Part # S4003: One per panel. This has vertical adjustment  (+/- 3 mm).

B. Guide Hinge Part # S4004: Minimum of two per panel. These hinges only have the horizontal adjustment (+/- 2 mm)

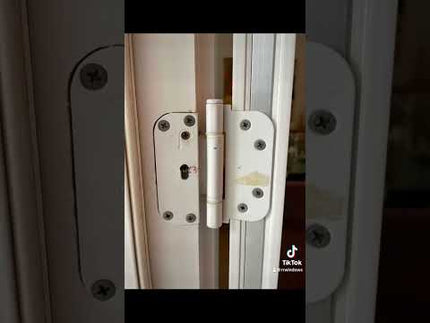

Adjustment Instructions:

Normal hinge replacement has the set hinge. Using a Phillips screwdriver, first adjust the panel up or down by turning the screw marked "V" on the set hinge. When turning the screw in the direction of the arrow (counter clockwise) the other leaf will be pushed in the direction of the arrow. Automatic screwdrivers are NOT recommended. The speed of the gun may strip the heads of the screws are over adjusted.

When the vertical adjustment is turned clockwise, the non-adjustable leaf will move in the direction of the arrow. The vertical adjustment has 32 turns from its extremes, and the horizontal has 7 turns.

Adjust the horizontal by turning clockwise to increase margins, Turn counter clockwise to decrease the margins.

Pro Tip: Remove weight from the hinges by lifting up on the door before you adjust. Never use power tools to adjust your hinge. Always use a hand screwdriver.

 Known Parts Numbers 122330200, 850-8755047, Pat Nr. 5.701.636

Known to work on: Semco Doors, Hoppe Hardware, Hoppe Columbus, Windsor Doors and Superior Doors
