Description Part number: S1043

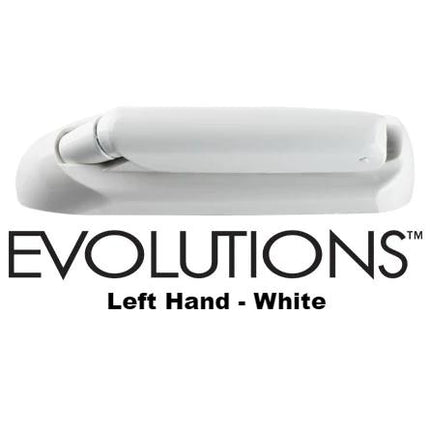

Ashland Evolution Cover and Handle Kit for Casement and Awning Window Operators (operator sold separate see associated parts list below)
Stock Colors: White, Beige or Pontiac Gold
Handing: Left Hand Or Right Hand
To determine handing
Match up your window operator or cover and handle kit to our pictures
Remove cover and handle from operator on the underneath side of the cover is L for "left hand" or R for "Right hand" stamped on the cover.
Left hand is used with Gold colored spline on operator
Right hand is used with Sliver colored gear spline on operator
Known Manufacture Discontinued Colors: Bronze/Dark Bronze
Manufacture Installation Instructions:
Make sure window is closed and locked. Than position handle to fold correctly onto cover. Last open handle and tighten set screw.
Product Note: Both Evolutions S1043 and Expressions C2001 handle and cover kits can be used on same operator system interchangeably.
Known Part Number On Back Side of Cover: P-1490-100, P1490-200
Known Part Numbers: P-1490-00, SUP-37675, SUP-37674, 1920071, W1490-700A-KY6, 1920093, W1490-800A-KY6
Associated Parts Sold Separately:
Manufacture Installation Instructions:
Make sure window is closed and locked. Than position handle to fold correctly onto cover. Last open handle and tighten set screw.
