Description
Part Number S1155
S1155 - Cam for Locking Bar SliverLine537 replacement attachment option

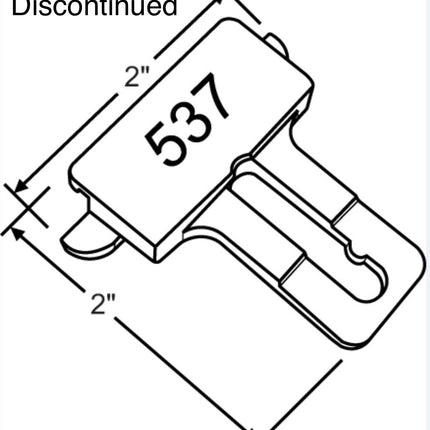

The old plastic part stamped 537 has been discontinued and is no longer available. The retrofit replacement is S1155.

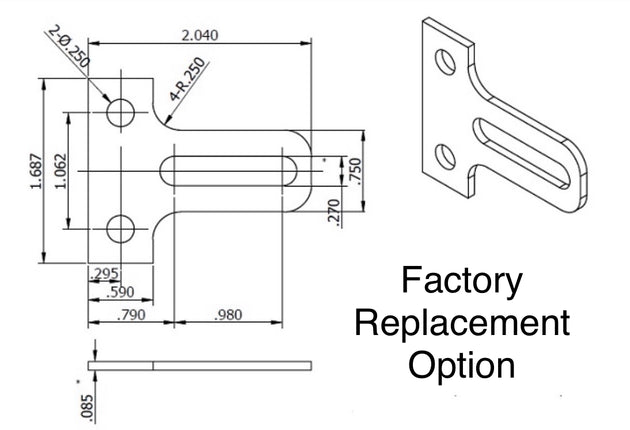

The S1155 replacement must be retrofit onto your existing plastic 537 part. You will receive the white metal S1155 part shown in the drawing.
Installation requires reusing your existing plastic part and attaching the S1155 using rivets or screws (not included). The factory recommends pre-drilling holes in the plastic part to accommodate the fasteners you choose.
All modifications are the customer’s responsibility. R&R is not responsible for damage, breakage, or failure of the plastic part resulting from this retrofit.
If you are not comfortable performing this modification, we recommend hiring a local window service technician to complete the installation.
Current Option Color: White
Current Option Materiel: Metal powder coated white
Note: Lock latch S1080 and guide S1156 is sold separately. To order locks see link under accessory options.
