Description
Part Number: S3029

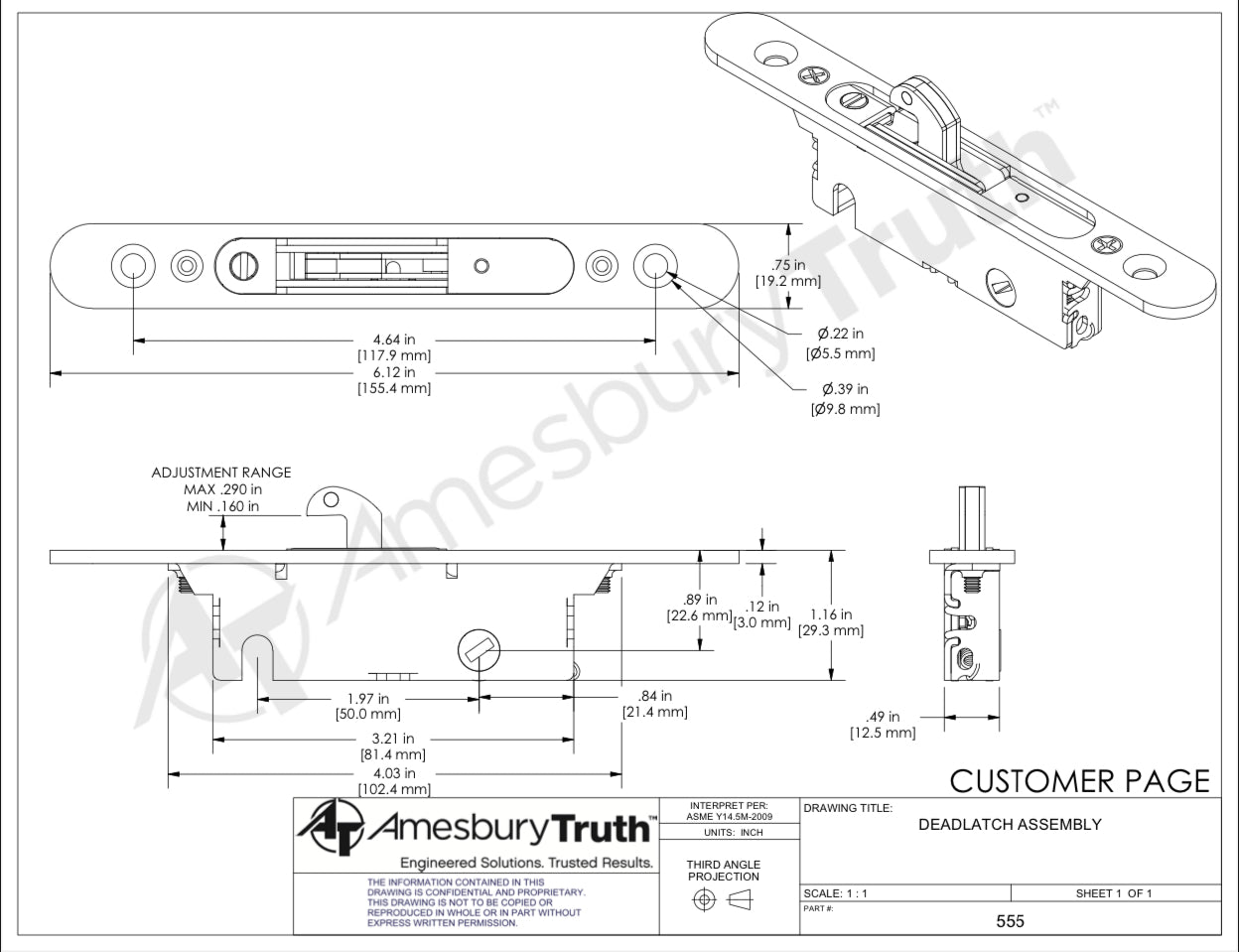

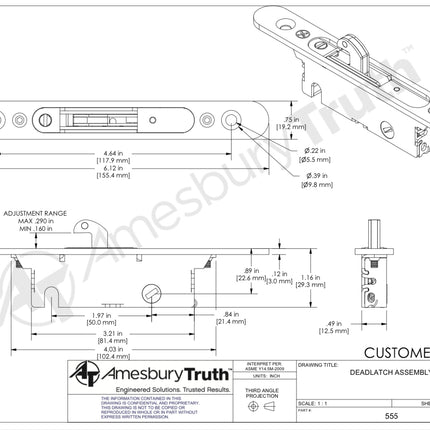

Amesbury Truth DS Surface Mount Mortise Lock 45 Degree latch with face plate Deadlatch Assembly
single-point sliding door lock is the work-horse in the industry, with proven reliability and strength. We incorporate a variety of trim-plate options, making our system compatible with all standard fabrication in the market today.
Can withstand forced entry loads in excess of 1000 lbs. Hook bolt has anti-slam feature that will retract the bolt if the boor is extended Adjustable reach hook bolt is actuated by 90 degree rotation of the hub
Manufacture: Amesbury Truth

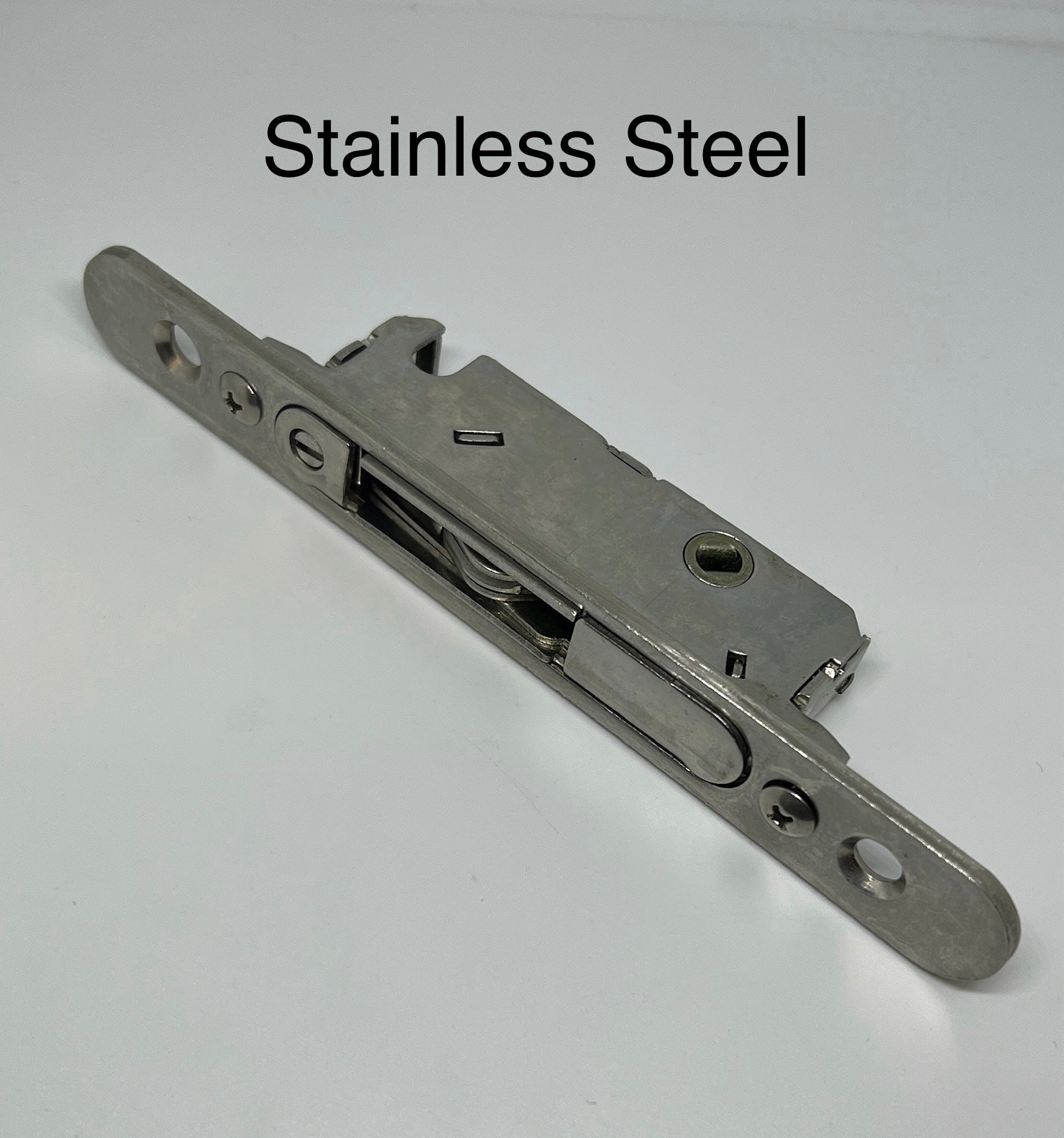

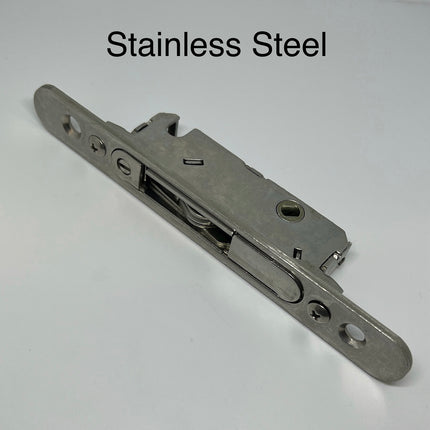

Material: Standard or Stainless
Cylinder: 45 Degree

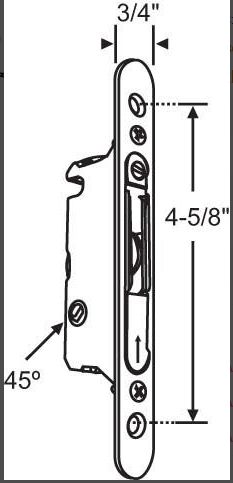

Faceplate mounting screw holes: 4 5/8 inch center to center
Known Part Number: 555, 555-84
Have known to been used on:, Jeld Wen vinyl sliding sliding patio doors, Amsbury Truth Hardware, and more
Videos below show different part number but install principles are the same:
