Part Number: S4005, S4006, S4007 and S4008
Dual Adjustable Swinging Door Hinge - Horizontal a d Vertical Adjustment
As of 3/9/2021 - all colors/styles in stock except for Steel Non Removable pin and Black Steel Non removable pin - allow 5 -8 week lead time for these.
Some hinge options have been discontinued by manufacture so we have combined the four part numbers on one product page to make it easier for you to see what is available. If a color you want says "unavailable" try changing the Style or Material selection.

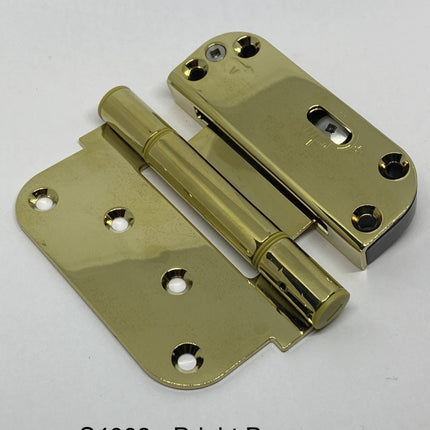

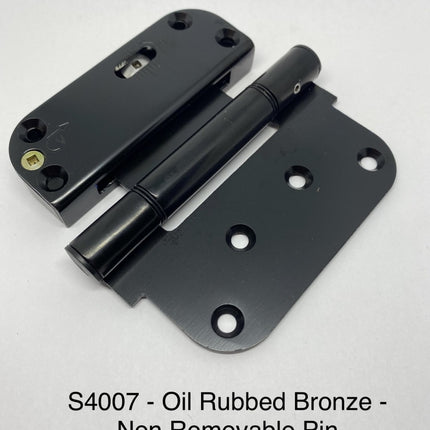

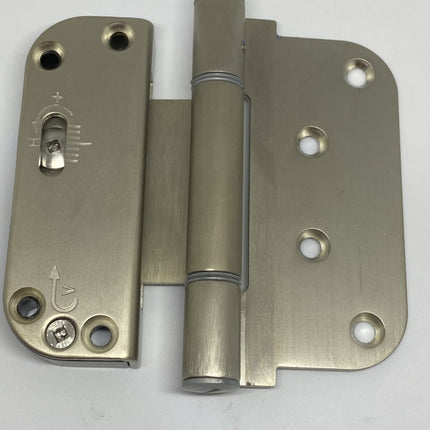

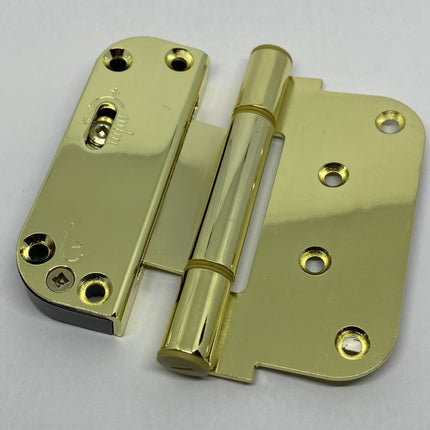

Color/Finish: Black, Oil Rubbed Bronze, Satin Nickel, Bright Brass (not all colors are available in all styles or materials).

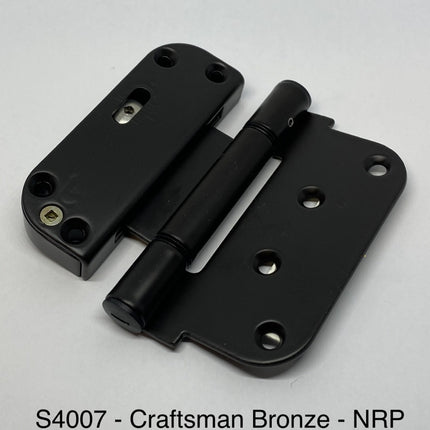

Discontinued Colors: Craftsman Bronze Removable Pin (Use Oil Rubbed Bronze Removable Pin or Craftsman Bronze Non Removable Pin as the replacement)

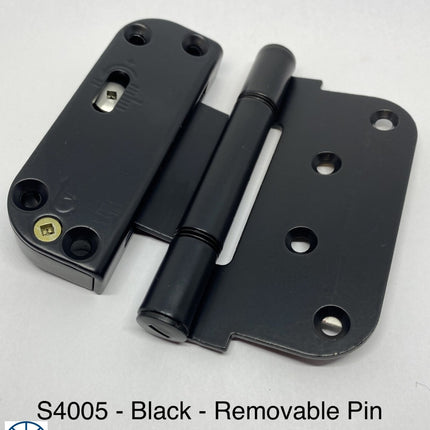

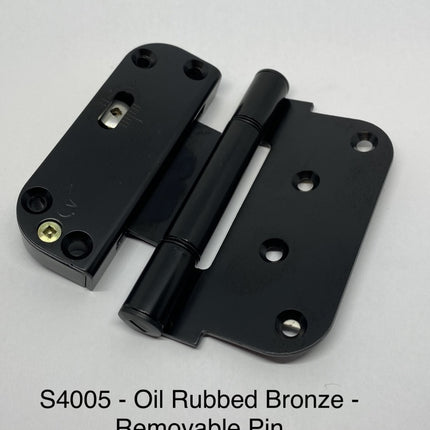

- Removable Pin - Suggested Use Inswing door

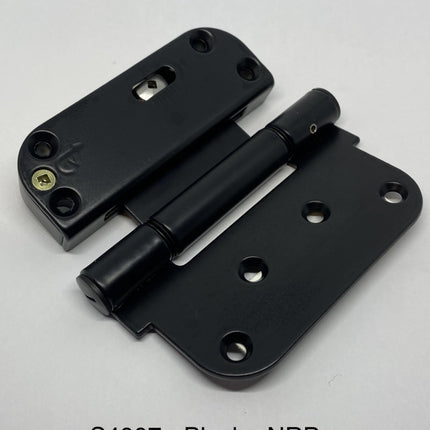

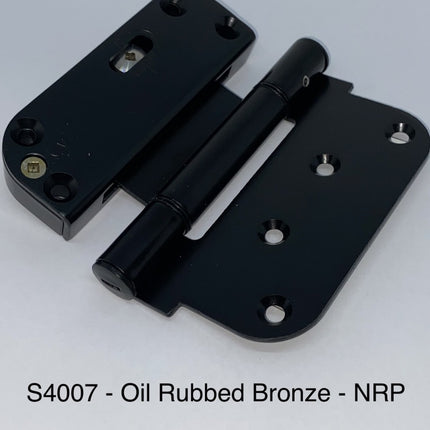

- NON Removable Pin (NRP)- Suggested Use Outswing Door
Material: Steel And Brass
Handing: Non Handed (works on both RH and LH doors)
Screws: Screws Not Included
Stamped on back of hinges: WWW.AMESBURY.COM/PATENTS
FEATURES AND BENEFITS

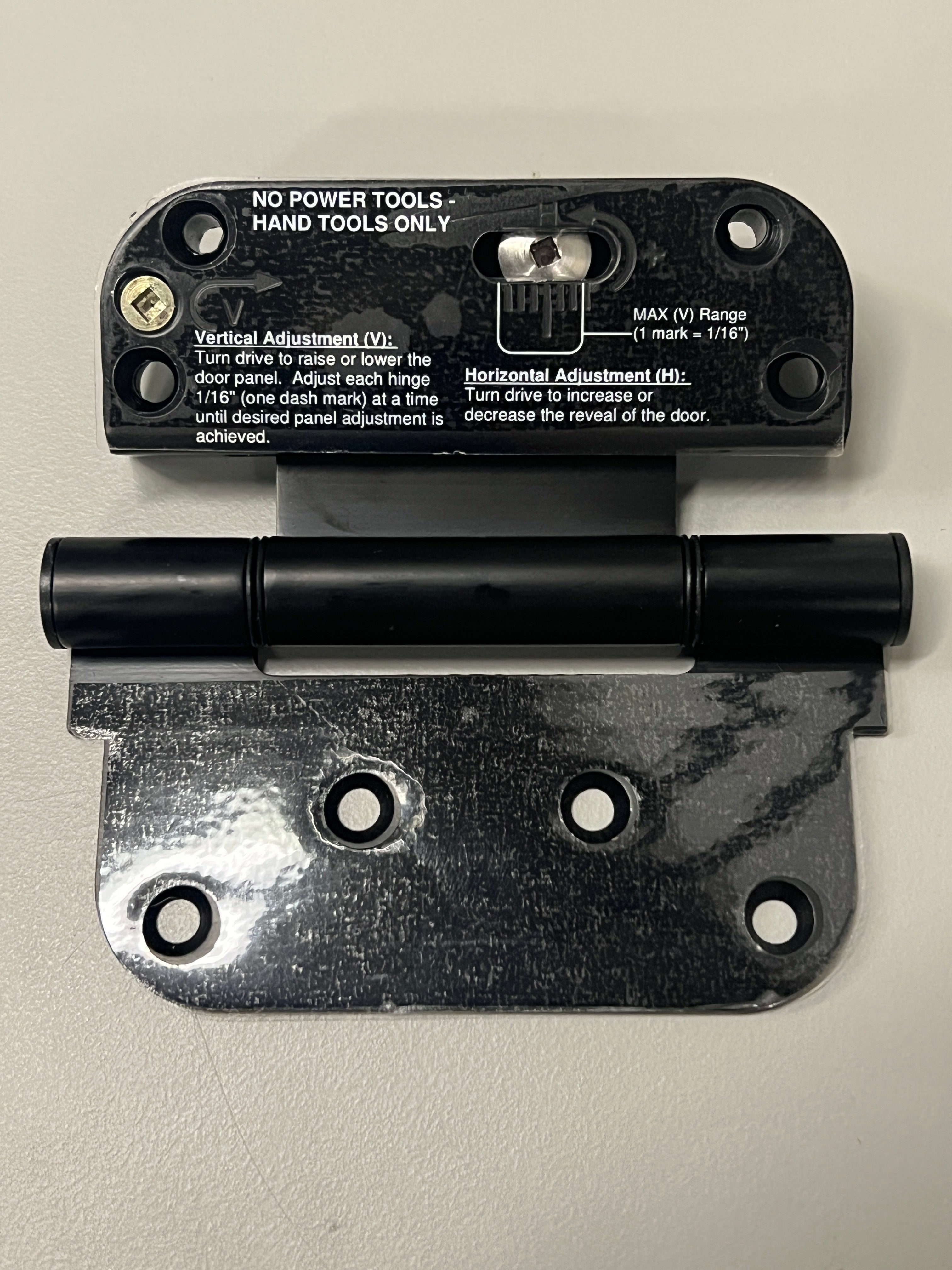

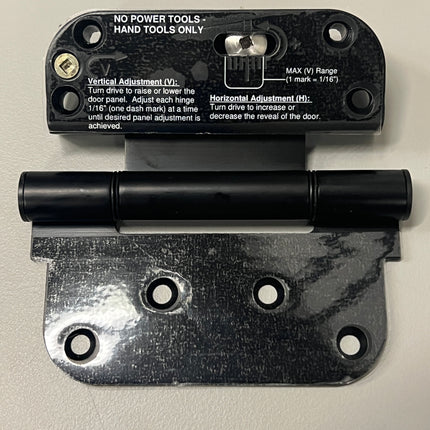

’ Both Vertically and Horizontally Adjustable.

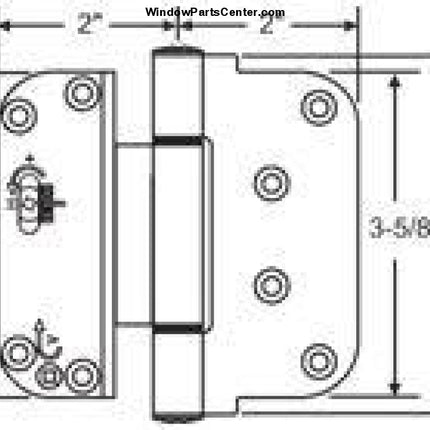

Horizontal Adjustment ± .156 Vertical Adjustment ± .200
’ Vertical Adjustment in Each Hinge Allows for Heavier Panels. ’ Adjusts with a Standard #2 Square Drive.
Square Drive Prevents Stripping Over Phillips or Slotted. ’ Secure Out-Swing Non-Removable Pin Hinges
’ Fits Common Fabrication within the Industry.
Special order item No returns - some colors maybe in stock at factory - please email to verify lead times but allow at least 1-3 weeks (longer during holiday season).
Pro Tip: Remove weight from the hinges by lifting up on the door before you adjust.
Known Part Number: HG210 HG200 Pat. Nr. 8,429,794, HG200-B-90, HG200-B-91
