S4015 - Truths Sentry Adjustable Door Hinge - Guide Hinges

Part Number: S4015 - Truths Sentry Adjustable Hinges - Guide Hinges

Special order Item No Returns - 1-3 week lead time

Screws Not Included

Engineered for maximum strength and security, Sentry Hinges exceed ANSI grade 3 requirements for
doors weighing up to 220 lbs. Sentry Hinges exceed ANSI grade 1 impact specifications. Sentry Hinges are
made of extruded brass and extruded aluminum that provides superior strength and corrosion resistance.
Sentry Hinges provided with non-removable pins for maximum security.

• Robust, Reliable and Attractive

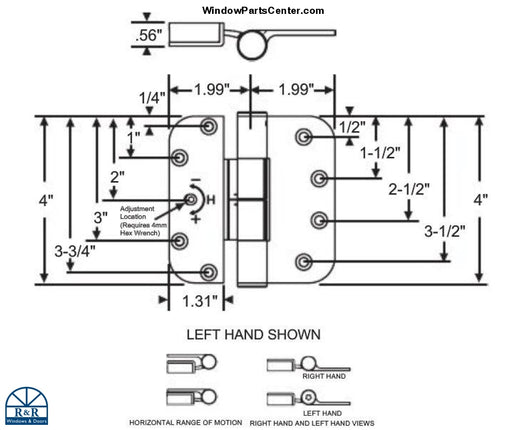

• Industry standard 4" x 4" with 5/8" radius corner
• Both Guide (Part # S4015) and Set (Part # S4016) Hinges take a 5/32" hex wrench
• Guide Hinge (Part # S4015) has a 11/64" adjustment and Set Hinge (Part # S4016) has a 1/4" adjustment
• Extruded brass hinges are provided in decorative finishes including PVD
• Extruded aluminum hinges are available in powder coated painted finishes
• Composite bushings provide noise-free operation

Set and Guide Hinge Placement:

3 Hinges Per Door Panel:

Starting at top of door Top of door

Guide

Set

Guide

4 Hinges Per Door Panel:

Anytime you need 4 hinges you would just add another guide hinge

Starting at top of door Top of door

Guide

Guide

 Set

Guide

The Set hinge no matter what is always the 2^nd from the bottom

Pro Tip: Remove weight from the hinges by lifting up on the door before you adjust.
