111 Truth Split Arm Dyad Straight Link Casement Operator
Truth and Wright Casement Split Arm / Dyad Operator.
$ 51.00
Part Number: 111
Wright / Amesbury Truth Casement Split Arm Dyad Operator Operator.
Sill Mounted Straight Link 4 3/4" Split Arm Casement Window Operator
Link Length: 3 1/2

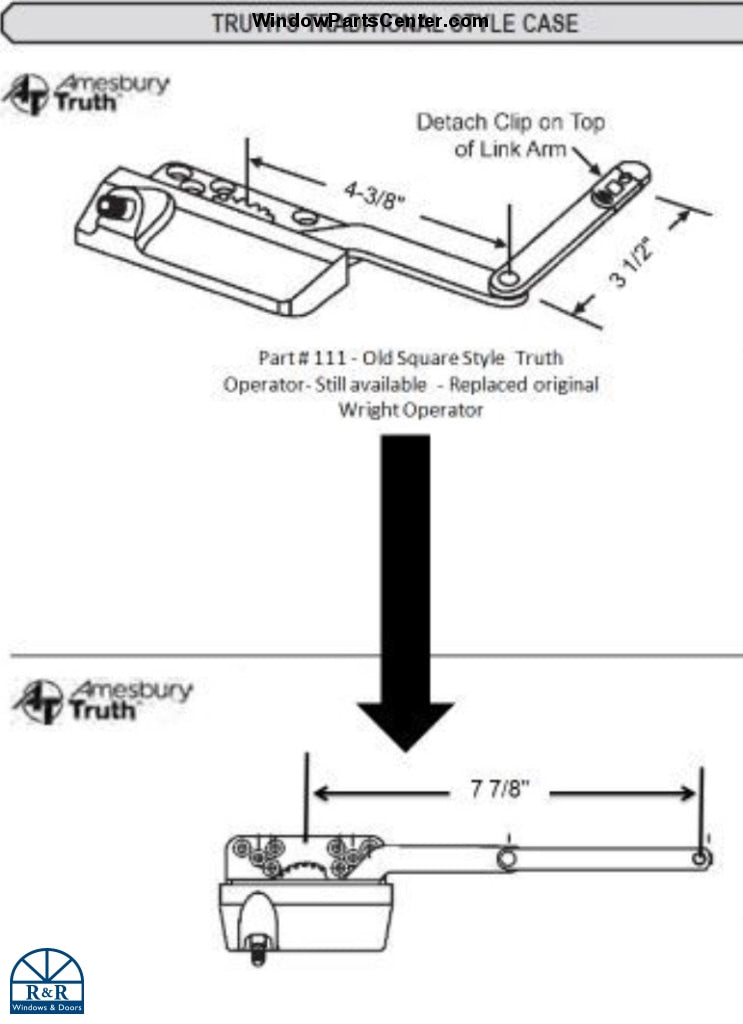

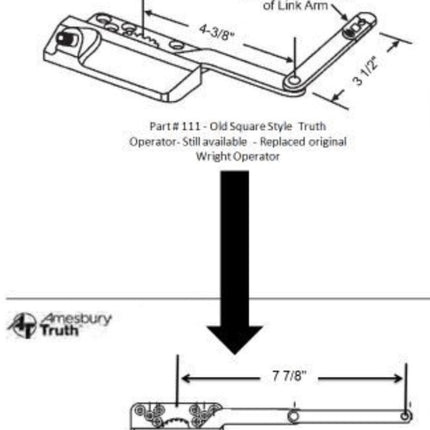

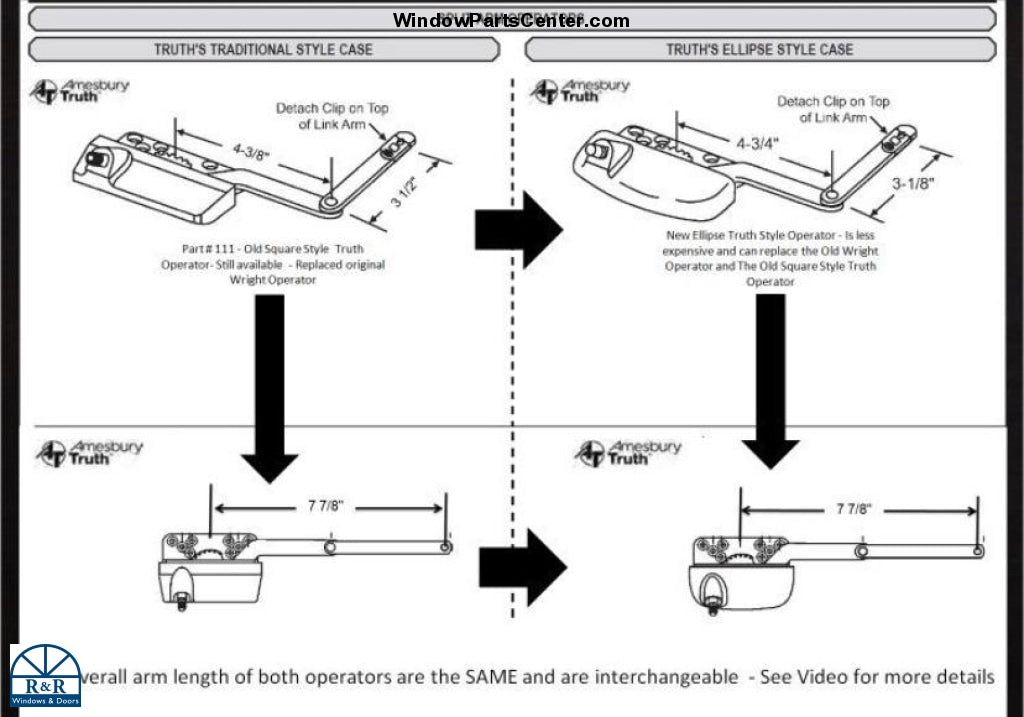

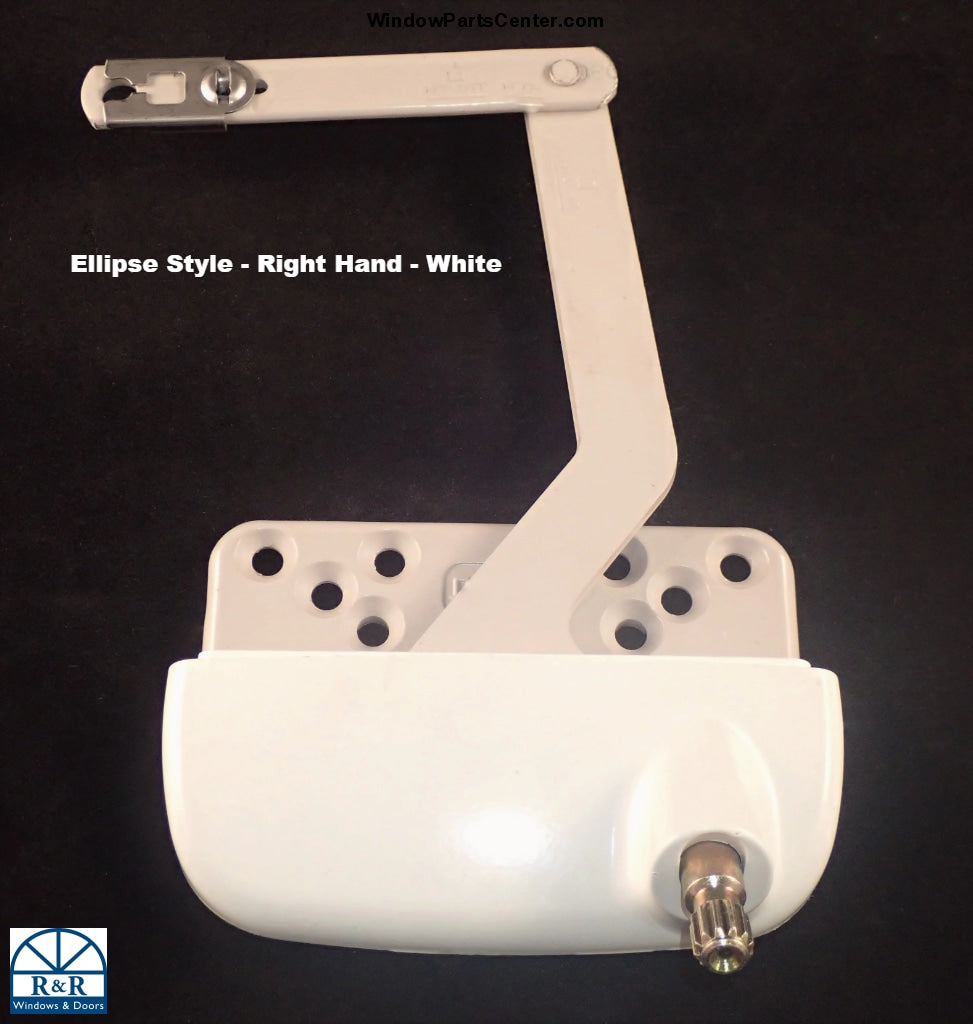

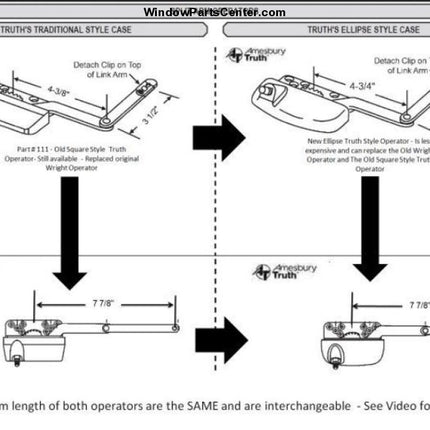

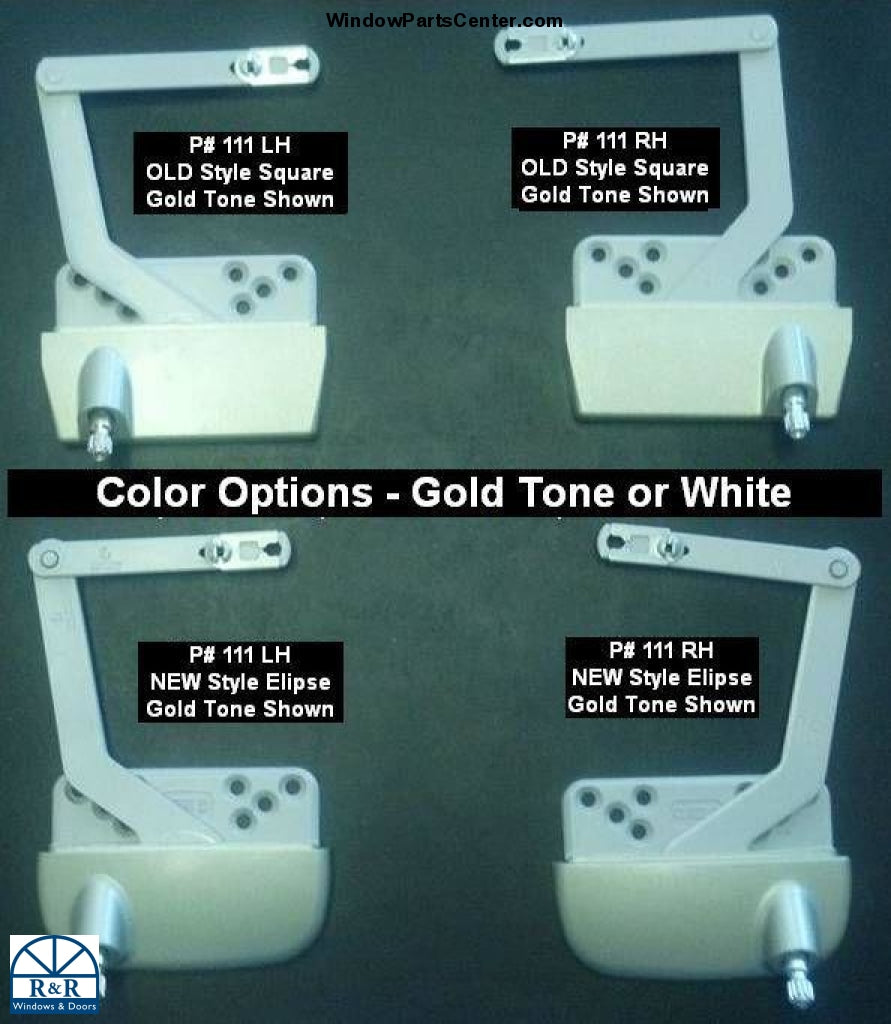

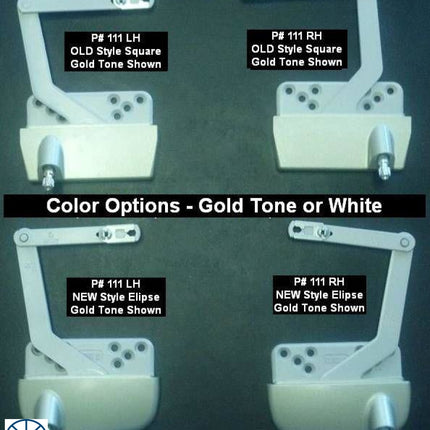

Style: the Ellipse Style which is less expensive but you many need to retro fit the sill cover. (Click on picture to enlarge and watch video below for more details). Or you can order the Truth Old Square Style which is the original style and has a $35.00 adder

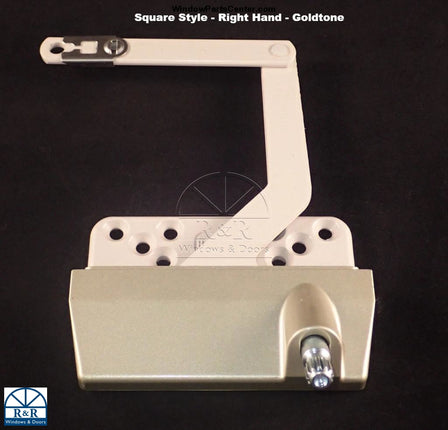

Handing To determine what handing to order: Look at picture of part and match up your operator to our picture to determine if you need to order a Left or Right handing. Click on picture to enlarge.

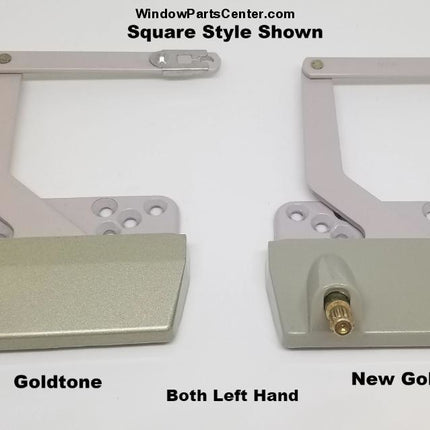

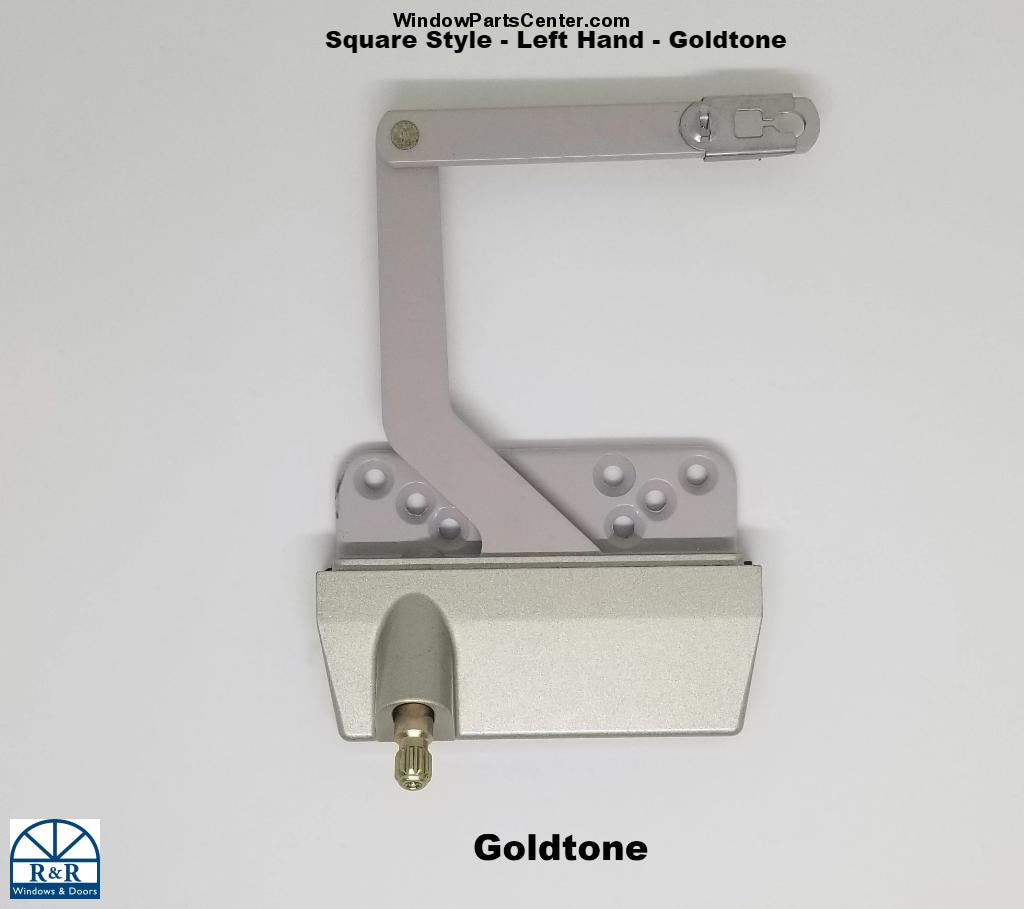

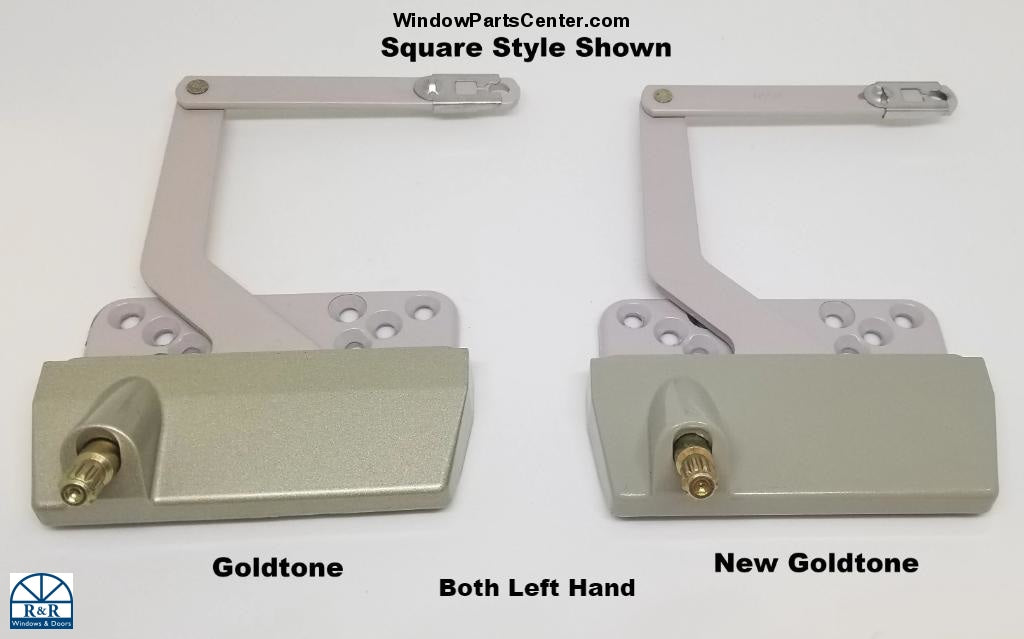

Colors: White, New Goldtone and Goldtone (The Goldtone has a $20.00 adder).

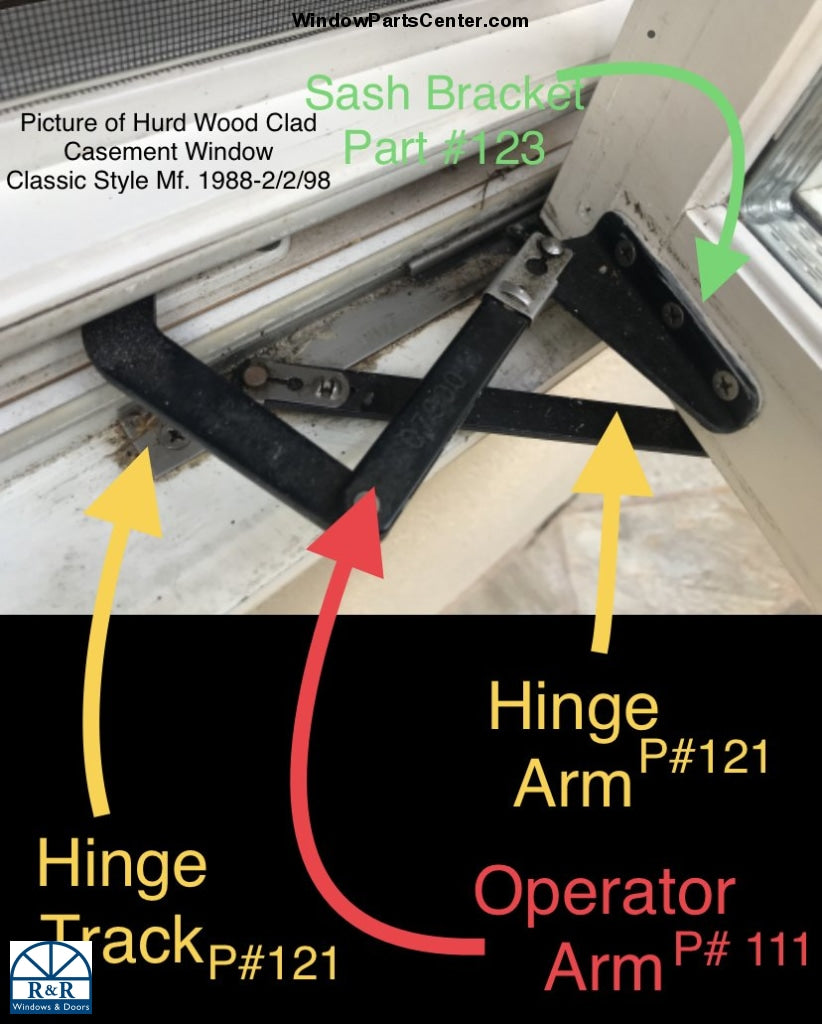

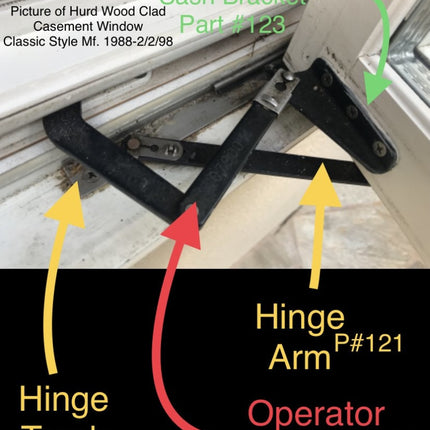

This Casement Split Arm Operator was used on Hurd windows from 1988 to 02-02-1998. And has been used on multiple other window brands. This operator was first produced by Wright Manufacturing # 07900 sometimes found on arm of operator. Then Wright went out of business and Truth started producing this same operator. Known Part Numbers: 7702, 45251, 55081, 55100 with 07900 or 21550 on Link Known Brands: Wright, Truth, Amesbury Truth, Hurd, Weather Sheild, Cradco, BiltBest, Oldac
Instructions on How To Replace Operator Click On Blog Link
Operators with Similar Housing But Different Arm Lengths:
- Part Number S1082 - Truth/Wright Dyad Operator
- Part Number S1048 - Truth/Wright Dyad operator
- Part Number S1068 - Truth/Wright Dyad Operator
- Part Number 105 - Truth/Wright Straight Arm
- Part Number 115 - Truth/Wright Straight Arm
- Part Number 109 -Truth/Wright Straight Arm
- Part Number 112 - Truth/Wright Straight Arm
- Part Number S1037 -GU - Split Arm Dyad Operator
- Part Number S1038 GU - Split Arm Dyad Operator Kit
- Part Number 111 - Truth/Wright Split Arm Dyad Operator
Known Part Numbers: 55100, 55101, 36-296-2
Used By: Hurd and Other Window Manufacturers
