Part Number 984
Amesbury Truth Window Lock Back Support Plate
Color: E-gard Beige
Comes in Packs of 1 or 5
Associated Parts Sold Separately:
989 Vinyl Window Sash Lock - Casement and Awning Windows
Used On: Amsbury Truth, Hurd Monument Vinyl, Cascade Vinyl, SuperSeal and many other vinyl window brands

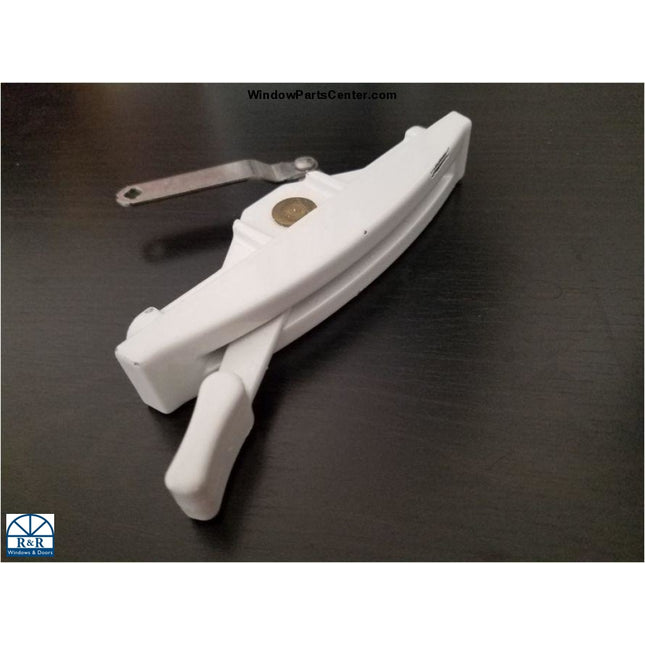

Part Number: 987 -
Roto Vinyl Casement Window Lock Only*
Dimensions: 4 1/2" x 3/4"Center to Center Measure: 3 7/8"
Color: White or black
Lock used with a tie bar or lock link application (sold as lock only not sold with tie bar or lock link).
*If you need the link lock it is sold separately see part number 999
Part Number 999 is a link lock accessory. This accessory link allows you to replace your old style lock (see pictures) that is no longer manufactured to the current version. To successfully retro fit the new lock you need to order part number 999 along with part number 987 - they are sold separately)
Pictures shown are examples of how the link and the replacement style lock work together. Again they are sold separately you need to order the link lock part number 999 if you also want to receive it with the new style lock
Known Part Number: 2791, 34-182-33W, 39-940
Part Number: 987 Old Style - Click thru pictures to see replacement option.
See part number 987 current and Part Number 999 is a link lock accessory. This accessory link allows you to replace your old style lock (see pictures) that is no longer manufactured with the current 987 version. To successfully retro fit the new lock 987 you need to order part number 999 along with part number 987 - they are sold separately
Pictures shown are examples of how the link and the replacement style lock work together. Again they are sold separately you need to order the link lock part number 999 if you also want to receive it with the new style lock 987
This lock is discontinued. For replacement option click here to order: 987 Current Style
Roto Vinyl Casement Window Lock
Dimensions: 4 1/2" x 3/4"Center to Center Measure: 3 7/8"
This part has been used on Hurd Monument Vinyl Windows. Known Part Number: 2791, 34-182-33W, 39-940
Part Number: 988
Truth Multi-Point Locking Handle For Casements and AwningsLocks are handed! Left Hand and Right HandColor: Bright White is a stock item.
Known to have been used on Hurd Monument Vinyl Windows, Allsco and more.
Known Part Number: 24-84-32-001, 24-84-32-002
stamped on arm: Truth 31402 or Truth 31401
stamped inside lock housing: 45121
stamped on inside lock handle: 45081 or 45082
Part Number: 989
Vinyl Window Sash Lock - Amesbury Truth Maxim Multipoint Lock with Gasket
Amesbury Truth Casement and Awning Window Replacement Sash Lock
Color:
White
Beige
Size:
Comes in 3 styles which is the "A" measurement on the drawing:
1-25/64 Inch
1-41/64 Inch
1-57/64 Inch
Screw Hole Center to Center Measurement is 3 13/16"
Screws not included. Factory recommended screws Qty 2 #10-24 PH PH thread forming machine screw.
Associated Parts Sold Separately:
984 - Amesbury Truth Window Lock Back Support Plate
Used On: Amsbury Truth, Hurd Monument Vinyl and many other vinyl window brands
known part number: 24.30, 24.31 and 24.33
Part Number: 999 - Link Lock Accessory
NOTE: lock sold separately see part number 987
Color: Aluminum
Sold Individually
Part Number 999 is a link lock accessory. This accessory link allows you to replace your old style lock (see pictures) that is no longer manufactured to the current version. To successfully retro fit the new lock you need to order part number 999 along with part number 987 - they are sold separately
Pictures shown are examples of how the link and the replacement style lock work together. Again they are sold separately you need to order lock part number 987 if you also want to receive the new style lock
Known associated Part Number: 2791, 34-182-33W, 39-940
These locks are NON-REVERSIBLE.
Product Features:
ADA Compliant Patented Design
1-Touch Push-Button Single Egress
Antique Brass Finish
Commercial Grade
NON-REVERSIBLE. Left-Handed Door Application
UL 3-hour latch available - CONTACT US
How to decide if I need a Left or Right handed lock?
If you look at indicator (from outside) and your hinges are on the right side, you need to order Right-sided lock. If you look at indicator (from outside) and your hinges are on the left side, you need to order left-sided lock
Link: Drop Ship Shipping and Return Policy
Cut Sheet ADA C5F Series
ADA Door Lock with Indicator in Antique Brass - Right-Handed
These locks are NON-REVERSIBLE.
Product Features:
ADA Compliant Patented Design
1-Touch Push-Button Single Egress
Antique Brass Finish
Commercial Grade
NON-REVERSIBLE. Right-Handed Door Application
UL 3-hour latch available - CONTACT US
How to decide if I need a Left or Right handed lock?
If you look at indicator (from outside) and your hinges are on the right side, you need to order Right-sided lock. If you look at indicator (from outside) and your hinges are on the left side, you need to order left-sided lock.
Product Description
ADA COMPLIANT DESIGN
This Door Lock is ADA compliant with a user-friendly one-touch lever that is easily operated by anyone with a physical challenge. The Antique Brass finish will add a glowing touch of warmth to any space. This ADA Door Lock is commercial quality and is perfect for medical practices, hospitals, rehabilitation facilities, and retirement communities.
PATENTED TECHNOLOGY
The patented Vizilok design means you get the functionality of an ADA-compliant one-touch opening action with the added security of an all-in-one visual indicator lock. Vizilok’s ADA-compliant one-touch action allows the door to be opened with a single movement – no need to turn the door handle. And of course, Vizilok’s visual indicator automatically displays “IN USE” or “VACANT” when locked or unlocked.
Vizilok visual indicator door locks help businesses comply with International Building Code (IBC) 1110.2.1.6, added in 2021, which requires that all family or assisted-use toilet and bathing rooms be equipped with an “occupied” indicator.
EASY INSTALLATION
No drilling. You only need a screwdriver.
NON-REVERSIBLE
Right-handed door application only.
MORE PRIVACY AND MORE SECURITY FOR YOUR ROOMS
- Single-toilet restrooms
- Medical facilities
- Senior and assisted living communities
- Hospitals
MAKE PEOPLE FEEL SAFE AND SECURE
Door handles have a major problem. You have to pull on them to see if they are locked. When this happens with a restroom, it is uncomfortable and embarrassing for everyone. Vizilok door handles display “IN USE” or “VACANT” so that every private room can feel pleasant, safe, and secure.
Your restrooms could be making your customers and employees feel embarrassed and unsafe.
1. BUY VIZILOK DOOR HANDLES
2. INSTALL IN MINUTES
3. MAKE PEOPLE FEEL SAFE AND SECURE
Technical Specification
SKU: C5FB-R.
Antique Brass finish.ADA Compliant.
Clear Vacant/In-Use indicator.
Commercial privacy function lever.
NON-REVERSIBLE - Right-Handed door application.
One-touch push button single egress.
Tested to withstand 200,000 opening and closing cycles.
Full-length lever with 3/8" return.
Stainless steel escutcheon, zinc alloy handle.
Emergency slot outside.
Door thickness is 1-3/8” to 2”.
Backset 2-3/8” to 2-3/4” adjustable.
Ships with mounting hardware.
Limited warranty.
Link: Drop Ship Shipping and Return Policy
These locks are NON-REVERSIBLE.
Product Features:
ADA Compliant Patented Design
1-Touch Push-Button Single Egress
Matte Black Finish
Commercial Grade
NON-REVERSIBLE. Left-Handed Door Application
UL 3-hour latch available - CONTACT US
How to decide if I need a Left or Right handed lock?
If you look at indicator (from outside) and your hinges are on the right side, you need to order Right-sided lock. If you look at indicator (from outside) and your hinges are on the left side, you need to order left-sided lock
Link: Drop Ship Shipping and Return Policy
Cut Sheet ADA C5F Series
ADA Door Lock with Indicator in Matte Black - Right-Handed
These locks are NON-REVERSIBLE.
Product Features:
ADA Compliant Patented Design
1-Touch Push-Button Single Egress
Matte Black Finish
Commercial Grade
NON-REVERSIBLE. Right-Handed Door Application
UL 3-hour latch available - CONTACT US Info@ WindowPartsCenter.com
Installation Template Please email us Info@ WindowPartsCenter.com
Product Description
ADA COMPLIANT DESIGN
This Door Lock is ADA compliant with a user-friendly one-touch lever that is easily operated by anyone with a physical challenge. The Matte Black finish adds an organic and earthy inspiration to any space. This ADA Door Lock is commercial quality and is perfect for medical practices, hospitals, rehabilitation facilities, and retirement communities.
PATENTED TECHNOLOGY
The patented Vizilok design means you get the functionality of an ADA-compliant one-touch opening action with the added security of an all-in-one visual indicator lock. Vizilok’s ADA-compliant one-touch action allows the door to be opened with a single movement – no need to turn the door handle. And of course, Vizilok’s visual indicator automatically displays “IN USE” or “VACANT” when locked or unlocked.
Vizilok visual indicator door locks help businesses comply with International Building Code (IBC) 1110.2.1.6, added in 2021, which requires that all family or assisted-use toilet and bathing rooms be equipped with an “occupied” indicator.
EASY INSTALLATION
No drilling. You only need a screwdriver.
NON-REVERSIBLE
Right-handed door application only.
MORE PRIVACY AND MORE SECURITY FOR YOUR ROOMS
- Single-toilet restrooms
- Medical facilities
- Senior and assisted living communities
- Hospitals
MAKE PEOPLE FEEL SAFE AND SECURE
Door handles have a major problem. You have to pull on them to see if they are locked. When this happens with a restroom, it is uncomfortable and embarrassing for everyone. Vizilok door handles display “IN USE” or “VACANT” so that every private room can feel pleasant, safe, and secure.
Your restrooms could be making your customers and employees feel embarrassed and unsafe.
1. BUY VIZILOK DOOR HANDLES
2. INSTALL IN MINUTES
3. MAKE PEOPLE FEEL SAFE AND SECURE
Technical Specification
SKU: C5FM-R.
Matte black finish.ADA Compliant.
Clear Vacant/In-Use indicator.
Commercial privacy function lever.
NON-REVERSIBLE - Right-Handed door application.
One-touch push button single egress.
Tested to withstand 200,000 opening and closing cycles.
Full-length lever with 3/8" return.
Stainless steel escutcheon, zinc alloy handle.
Emergency slot outside.
Door thickness is 1-3/8” to 2”.
Backset 2-3/8” to 2-3/4” adjustable.
Ships with mounting hardware.
Limited warranty.
Cut Sheet ADA C5F Series
Link: Drop Ship Shipping and Return Policy
ADA Door Lock with Indicator in Oil Rubbed Bronze - Left-Handed
These locks are NON-REVERSIBLE.
Product Features:
ADA Compliant Patented Design
1-Touch Push-Button Single Egress
Oil Rubbed Bronze Finish
Commercial Grade
NON-REVERSIBLE. Left-Handed Door Application
UL 3-hour latch available - CONTACT US
How to decide if I need a Left or Right handed lock?
If you look at indicator (from outside) and your hinges are on the right side, you need to order Right-sided lock. If you look at indicator (from outside) and your hinges are on the left side, you need to order left-sided lock.
Product Description
ADA COMPLIANT DESIGN
This Door Lock is ADA compliant with a user-friendly one-touch lever that is easily operated by anyone with a physical challenge. The Oil Rubbed Bronze finish adds an organic and earthy inspiration to any space. This ADA Door Lock is commercial quality and is perfect for medical practices, hospitals, rehabilitation facilities, and retirement communities.
PATENTED TECHNOLOGY
The patented Vizilok design means you get the functionality of an ADA-compliant one-touch opening action with the added security of an all-in-one visual indicator lock. Vizilok’s ADA-compliant one-touch action allows the door to be opened with a single movement – no need to turn the door handle. And of course, Vizilok’s visual indicator automatically displays “IN USE” or “VACANT” when locked or unlocked.
Vizilok visual indicator door locks help businesses comply with International Building Code (IBC) 1110.2.1.6, added in 2021, which requires that all family or assisted-use toilet and bathing rooms be equipped with an “occupied” indicator.
EASY INSTALLATION
No drilling. You only need a screwdriver.
NON-REVERSIBLE
Left-handed door application only.
MORE PRIVACY AND MORE SECURITY FOR YOUR ROOMS
- Single-toilet restrooms
- Medical facilities
- Senior and assisted living communities
- Hospitals
MAKE PEOPLE FEEL SAFE AND SECURE
Door handles have a major problem. You have to pull on them to see if they are locked. When this happens with a restroom, it is uncomfortable and embarrassing for everyone. Vizilok door handles display “IN USE” or “VACANT” so that every private room can feel pleasant, safe, and secure.
Your restrooms could be making your customers and employees feel embarrassed and unsafe.
1. BUY VIZILOK DOOR HANDLES
2. INSTALL IN MINUTES
3. MAKE PEOPLE FEEL SAFE AND SECURE
Technical Specification
SKU: C5FA-L.
Oil-Rubbed Bronze finish.ADA Compliant.
Clear Vacant/In-Use indicator.
Commercial privacy function lever.
NON-REVERSIBLE - Left-Handed door application.
One-touch push button single egress.
Tested to withstand 200,000 opening and closing cycles.
Full-length lever with 3/8" return.
Stainless steel escutcheon, zinc alloy handle.
Emergency slot outside.
Door thickness is 1-3/8” to 2”.
Backset 2-3/8” to 2-3/4” adjustable.
Ships with mounting hardware.
Limited warranty.
