Casement Window Parts

Part Number: BB12005   Ashland Hardware Systems Casement Window Lock Handle and Escutcheon Bezel - Handing: Non Handed Color:  White and Bronze Material: Metal Discontented: Plastic version  Known Part Number: C-6200-19 Stamped on Metal Version, P-6200-25A Stamped on Plastic Version, C-6200-42 stamped on metal version Known to have been used on Biltbest casement and awning windows.

Read more less

Part Number:  C2000  Ashland Optima Dual Arm Casement Window Operator With or Without Retaining Post (see video and pictures). Dual-Arm Operators are designed to work on windows from 24" [609 mm] in width up to 36" [914 mm] wide. It is used in conjunction with the sash bracket and track assembly sold separately. Operators are Handed:  Left Hand (Older Left hand operators had an “L” stamped on the arm. The current Left hand operators do not have a stamp for left hand)  Right Hand (Older left hand operators had no stamp on the arm. The Current Right hands operators have an “R” stamped on arm see pictures).  Verify handing by comparing our pictures which are labeled with handing to your operator  Style (see video below): With Retaining Post (This is the current style manufactured can ONLY be used with S1043 Evolutions Cover and Handle Kit Sold Separately) Modified No Retaining Post (We modify the operator to come without the retaining post to be like the old style - see pictures and video below. Can be used with S1043 Evolutions or C2001 Expressions. Both Sold Separately) Recommended Fasteners: #8 x 3/4" SS Phillips Pan Head - not included  Corresponding parts that are sold separately: Part # C2010 Ashland Guide Bar with Shoe Part # S1069 Ashland Casement and Awning Standard Operator Sash Brackets SST Part #S1043 Ashland Evolution Cover and Handle Kit For Casement and Awning Part Number C2001 Ashland Expressions Cover and Handle Kit Part#  S1039 Ashland Optima Casement Window Dyad Split Arm Operator Known to have been used on: Cascade Vinyl Casement Windows and other casement windows. Ashland Part With Post Known Part Number: 1491-120B / 1491-220B on housing, S-1491-165 / S1491-265 on dyad arm, S-1491-160 / S-1491-260 on straight arm, W1491-100, W1491-200 Old Style No Post Known Part Number: S-1491-165, S-1491-160, 1496-320, S-1081-71, S-1491-265, S1491-260, 1496-420, W1497-100, W1497-2

Read more less

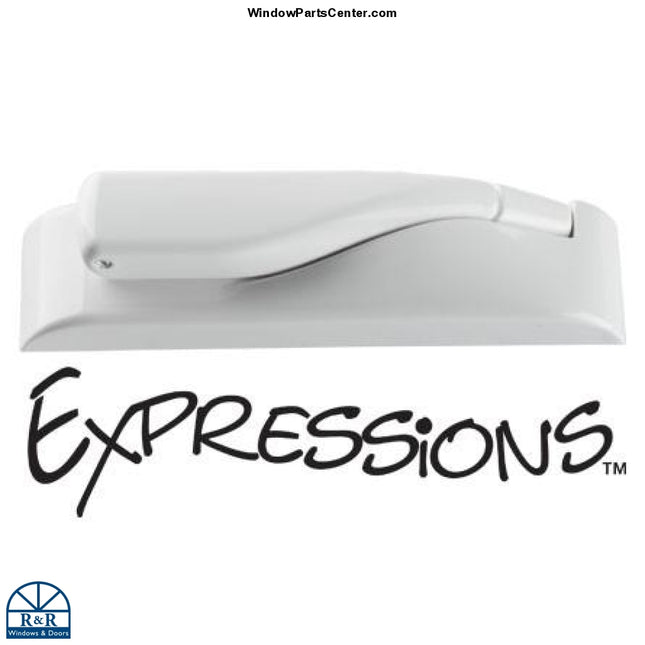

 Part Number: C2001 Ashland Expressions Cover and Handle Kit For Ashland Optima Casement Window Operator (this will not work on other brand operators)  Cover and Handle Kits Are Handed Left Hand and Right Hand. See pictures and videos to determine handing you need. Stock Colors: White, Beige/Almond, Faux Oil Rubbed Bronze  Other Colors: Available for Special order. Please email info@windowpartscenter.com for quote Minimum QTY purchase may apply Pro Tip: For handing and installation the handle goes to the top. Please see pictures and installation instructions video.  Accessory Parts That Sold Separately: Part # C2000 Ashland Optima Casement Window Dual Arm Operator Part # C2010 Ashland Guide Bar with Shoe Part#  S1039 Ashland Optima Casement Window Dyad Split Arm Operator Other Ashland Optima Cover That are Interchangeable with the C2001 S1043 Ashland Evolution Cover and Handle Kit For Casement and Awning Manufacturing Product Information Premium Visuals Fold-down and nesting visuals are standard to allow clearance for blinds and shutters Removable visuals reduce inventory costs and allow for easy customization Aesthetic underside allows hardware to look good from any angle Visual packages are available in all common powder coat colors as well as premium plated finishes Expressions (C2001) and Evolutions (S1043) Handle and cover options shown can be used on same operator system interchangeably Product is delivered in individual printed compartment bags, bar coded – to help ensure proper selection and order fulfillment Known to have been used on: Cascade Vinyl Casement Windows and other casement windows. Ashland Part Known Part Number on Cover: P-1496-100 LAX,  P-1496-200 RAX,  Known Part Number On Operator: S-1491-165, S-1491-160, 1496-320, S-1081-71, S-1491-265, S1491-260, 1496-420

Read more less

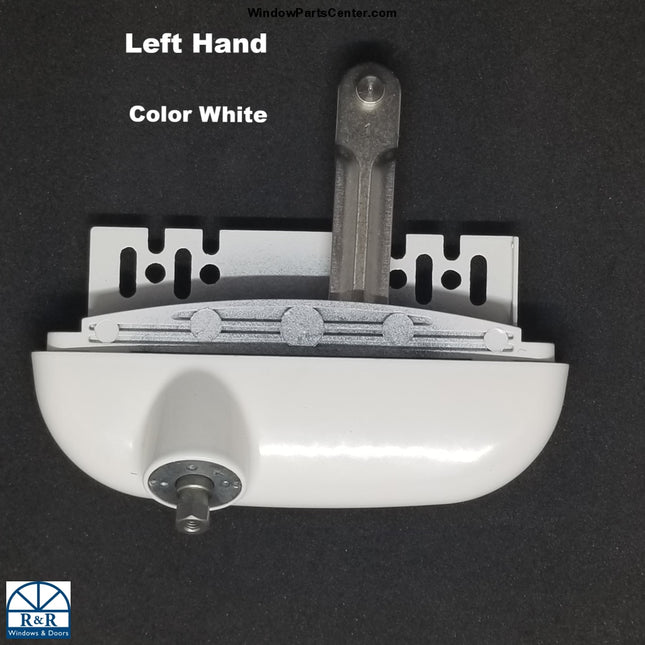

Part Number: C2002 Roto Interlock Casement Split Arm Operator - replacement*  Handed Item: Left Hand Or Right Hand Stock Colors: White, Blue White, Almond and Clay Brands: Roto, Interlock, Cascade, Milgard Vinyl Casement Windows. Known Part Number: C2002, Stamped on back of old operator: Roto Interlock World Patents, Made In New Zealand Design Pat. Pending. Works These Part Number Sold Separately: C2003 Handle or C2004 Handle (Part number P4601 stamped on back of handle that attaches to this operator) C2005 Hinge, C2006 Black Stop Spacer.  *An older version of this Roto operator had a square housing and then a  rounded housing and both have been discontinued by Roto. Old Housing on bottom was stamped:  a Roto Window symbol and is stamped P4600, Made in New Zealand stamped on the housing. C2002 is an aftermarket replacement option of the old Roto operator. There is no warranty on replacement hardware. For warranty questions please contact your window manufacturer you purchased the windows from.  Known to have been used on: Graef casement windows, Milgard Casement Windows and others window manufacturers.  Follow Related Parts Are Sold Sold Separately: Part Number C2002 -  Roto America Interlock Casement Split Arm Operator Part Number C2003 - Roto Interlock Non Folding Handle 5/16 Inch Hex Casement Awning Part Number C2004 - Roto America 5/16 Inch Hex Casement and Awning Folding Crank Handle Part Number C2005 - SX Interlock Friction Hinge Set Cascade Casement Awning Windows Part Number C2006 - 4-1/8 Inch Black Top Spacer - Interlock Roto Part Number C2009  - Interlock Connect Arm w/ modified Clip 160MM 6 7/8" Long Arm Part Number C2011 - Clamp Washer Part Number C2012 Brootom Back Plastic Shim Part Number C2013 DIE CAST BRACKET WITH ARM STAINLESS STEEL CONNECT ARM NOTCHED OUT  -Roto operator bracket 5 3/8"

Read more less

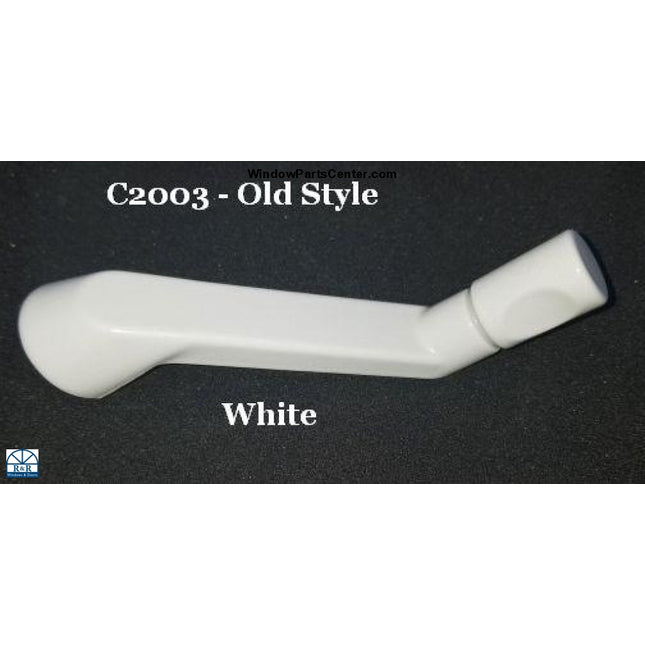

Part Number: C2003  Roto Interlock Non Folding Handle 5/16 Inch Hex For Casement Awning Window Operator Crank  C2003 Non folding is the old style and no longer available to order in all colors. Replacement new style is C2004 Folding Style and is available in multiple colors  C2003 Non Folding Colors Available: Blue White and White C2004 Folding Colors Available: White, Blue White, Euro White, Almond and Clay - to order please to go C2004 product page  How to tell white colors apart: When you have the handle on white copy paper the Euro White has a yellow hue compared to the paper, Bright White matches the color of the copy paper and Blue White has a blue tint compared to the paper. (Note the above is from comparing brand new handles. The sun can fade, change and yellow colors over time, if your handles are older try to use a handle that does not get direct or intense sunlight).  Brand: Interlock, Roto, Cascade, Milgard Follow Related Parts Are Sold Sold Separately: Part Number C2002 -  Roto America Interlock Casement Split Arm Operator Part Number C2003 - Roto Interlock Non Folding Handle 5/16 Inch Hex Casement Awning Part Number C2004 - Roto America 5/16 Inch Hex Casement and Awning Folding Crank Handle Part Number C2005 - SX Interlock Friction Hinge Set Cascade Casement Awning Windows Part Number C2006 - 4-1/8 Inch Black Top Spacer - Interlock Roto Part Number C2009  - Interlock Connect Arm w/ modified Clip 160MM 6 7/8" Long Arm Part Number C2011 - Clamp Washer Part Number C2012 Brootom Back Plastic Shim Part Number C2013 DIE CAST BRACKET WITH ARM STAINLESS STEEL CONNECT ARM NOTCHED OUT  -Roto operator bracket 5 3/8" Known Part Number: C2003, P4601, 7-1849BW

Read more less

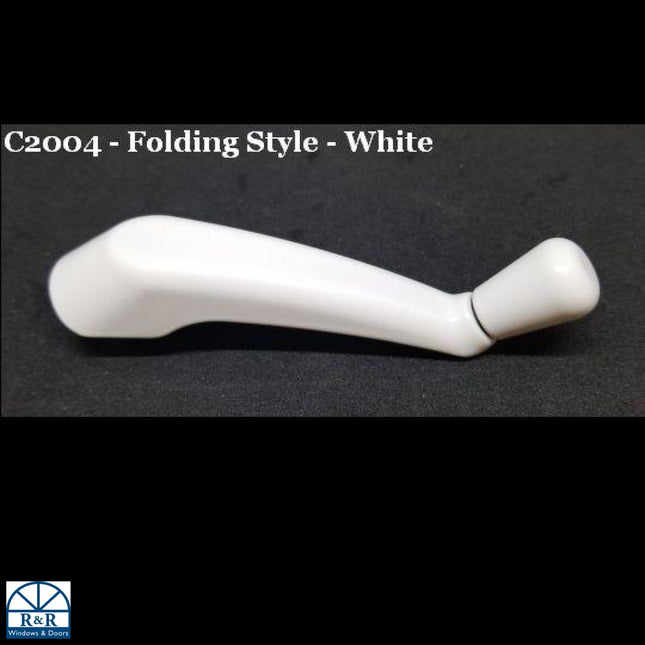

Part Number C2004  Roto America 5/16 Inch Hex Casement and Awning Folding Crank Handle Available Colors: White, Blue White, Almond and Clay  known to have been used on: Milgard Ultra Windows, Cascade and many other window brands  Follow Related Parts Are Sold Sold Separately: Part Number C2002 -  Roto America Interlock Casement Split Arm Operator Part Number C2003 - Roto Interlock Non Folding Handle 5/16 Inch Hex Casement Awning Part Number C2004 - Roto America 5/16 Inch Hex Casement and Awning Folding Crank Handle Part Number C2005 - SX Interlock Friction Hinge Set Cascade Casement Awning Windows Part Number C2006 - 4-1/8 Inch Black Top Spacer - Interlock Roto Part Number C2009  - Interlock Connect Arm w/ modified Clip 160MM 6 7/8" Long Arm Part Number C2011 - Clamp Washer Part Number C2012 Brootom Back Plastic Shim Part Number C2013 DIE CAST BRACKET WITH ARM STAINLESS STEEL CONNECT ARM NOTCHED OUT  -Roto operator bracket 5 3/8" C2004 is the New Roto American 5/16" folding style. Which is the Direct Replacement Style for C2003 Non Folding Style Known Part Number: C2003, P4601

Read more less

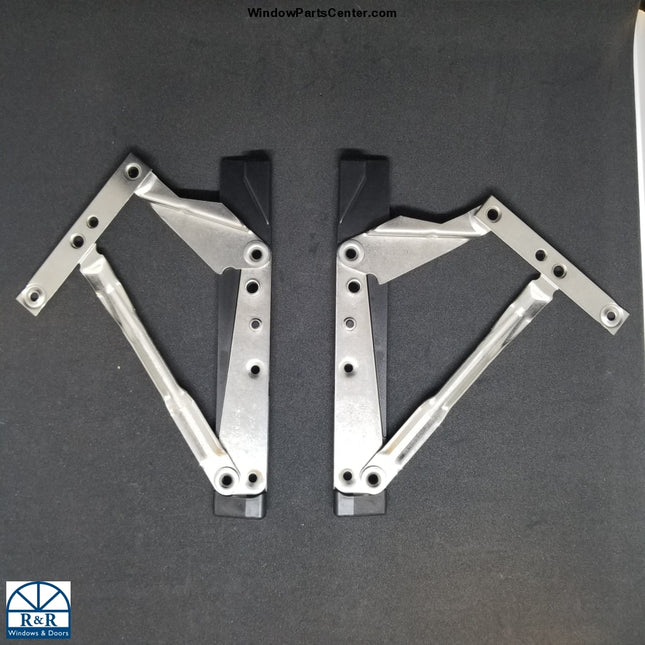

Part Number: C2005 XS Interlock Friction Hinge Set For Casement and Awning Windows Comes with Qty 2 hinges- 1 Left and 1 Right for Awning windows or 1 upper and 1 Lower for Casement Windows. (No screws included) Known Brands: Interlock, Roto, Cascade, Milgard, Ply Gem Known Part Numbers: 12C-IS23, 12C-IS23 RE, Interlock 12C-IS23 RE, XS Interlock 12C-IS23 RE, Interlock WORLD/PATS P1090 AI This hinge is to be used in conjunction with part # C2002 Interlock Roto Operator and many more.  Follow Related Parts Are Sold Sold Separately: Part Number C2002 -  Roto America Interlock Casement Split Arm Operator Part Number C2003 - Roto Interlock Non Folding Handle 5/16 Inch Hex Casement Awning Part Number C2004 - Roto America 5/16 Inch Hex Casement and Awning Folding Crank Handle Part Number C2005 - SX Interlock Friction Hinge Set Cascade Casement Awning Windows Part Number C2006 - 4-1/8 Inch Black Top Spacer - Interlock Roto Part Number C2009  - Interlock Connect Arm w/ modified Clip 160MM 6 7/8" Long Arm Part Number C2011 - Clamp Washer Part Number C2012 Brootom Back Plastic Shim Part Number C2013 DIE CAST BRACKET WITH ARM STAINLESS STEEL CONNECT ARM NOTCHED OUT  -Roto operator bracket 5 3/8"

Read more less

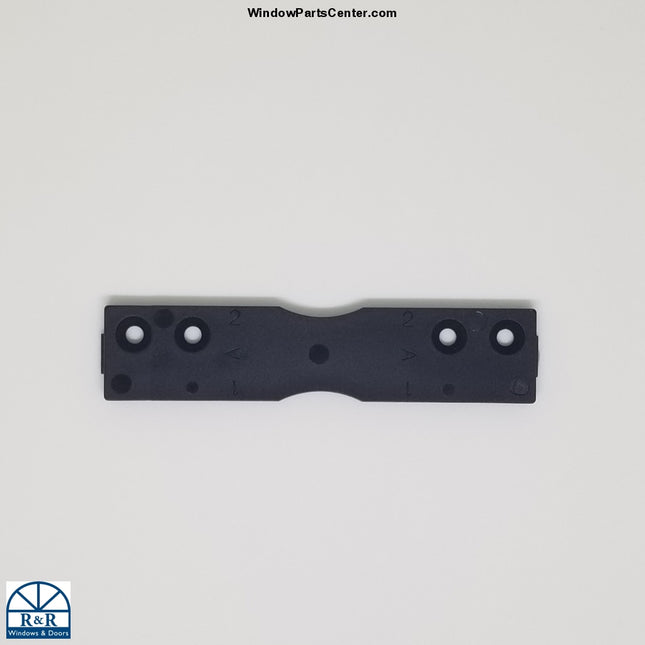

Part Number: C2006 4-1/8 Inch Black Top Spacer - Interlock Roto Dimensions: 4 1/8 Inch X 3.5 MM Thick X 22.5 MM High Shim Only Known Brands: Interlock, Roto, Cascade Use in conjunction with C2005 Friction Hinge Set Follow Related Parts Are Sold Sold Separately: Part Number C2002 -  Roto America Interlock Casement Split Arm Operator Part Number C2003 - Roto Interlock Non Folding Handle 5/16 Inch Hex Casement Awning Part Number C2004 - Roto America 5/16 Inch Hex Casement and Awning Folding Crank Handle Part Number C2005 - SX Interlock Friction Hinge Set Cascade Casement Awning Windows Part Number C2006 - 4-1/8 Inch Black Top Spacer - Interlock Roto Part Number C2009  - Interlock Connect Arm w/ modified Clip 160MM 6 7/8" Long Arm Part Number C2011 - Clamp Washer Part Number C2012 Brootom Back Plastic Shim Part Number C2013 DIE CAST BRACKET WITH ARM STAINLESS STEEL CONNECT ARM NOTCHED OUT  -Roto operator bracket 5 3/8"

Read more less

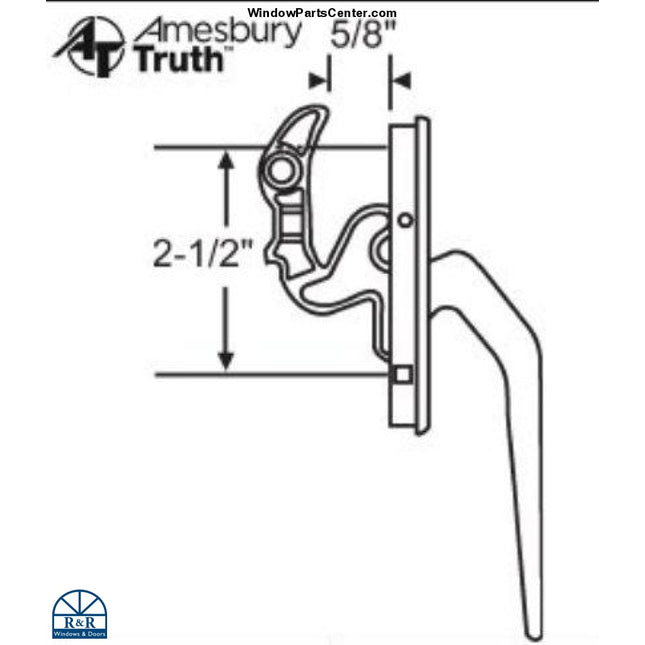

Part Number C2008 Amesbury Truth  Awning and Casement Window Die Cast Lock BarColors: White, Beige, (Special order items Bronze, Chestnut Bronze, Black, Aluminum and Bright White please e-mail info@windowpartscenter.com for pricing and lead time).Known Part Number: C2008, 30053, 30054, 31885, 34-95-3, 34-95-9, 24-25-32-300 Made in USA - PAT. 4,674,777

Read more less

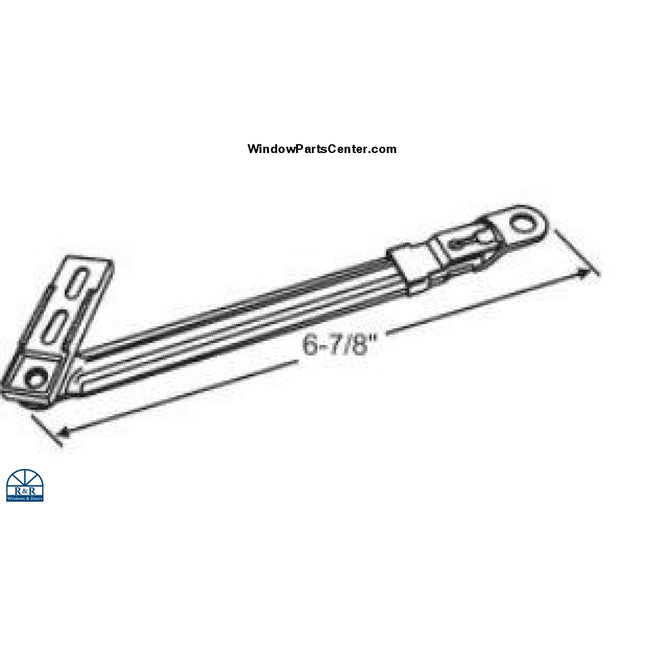

Part Number: C2009  Interlock Connect Arm w/ modified Clip 160MM Size: 6 7/16" Long Arm Known to have been used on or with: Interlock, Graef casement windows, Cascade windows, Milgard Windows. Roto North America, Roto Following Related Parts Are Sold Separately: Part Number C2002 -  Roto America Interlock Casement Split Arm Operator Part Number C2003 - Roto Interlock Non Folding Handle 5/16 Inch Hex Casement Awning Part Number C2004 - Roto America 5/16 Inch Hex Casement and Awning Folding Crank Handle Part Number C2005 - SX Interlock Friction Hinge Set Cascade Casement Awning Windows Part Number C2006 - 4-1/8 Inch Black Top Spacer - Interlock Roto Part Number C2009  - Interlock Connect Arm w/ modified Clip 160MM 6 7/8" Long Arm Part Number C2011 - Clamp Washer Part Number C2013 DIE CAST BRACKET WITH ARM STAINLESS STEEL CONNECT ARM NOTCHED OUT  -Roto operator bracket 5 3/8"

Read more less

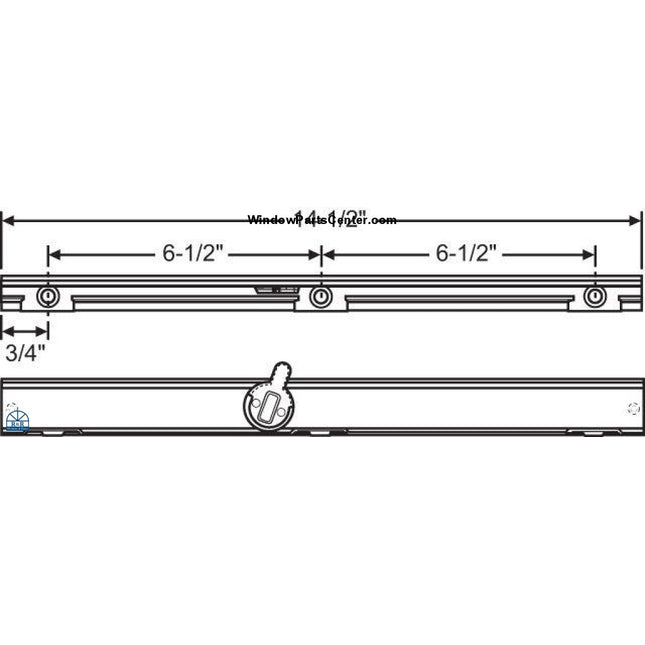

Part # C2010 Ashland Hardware Systems Guide Bar with Black Shoe. Dual-Arm Operator Track - SST Black shoe is not sold separately Recommended Fasteners: #8 x 3/4" SS Phillips Flat Head Known Part Number: 2005729; W1491-75A Use with Part # C2000 Ashland Optima Casement Window Dual Arm Operator

Read more less

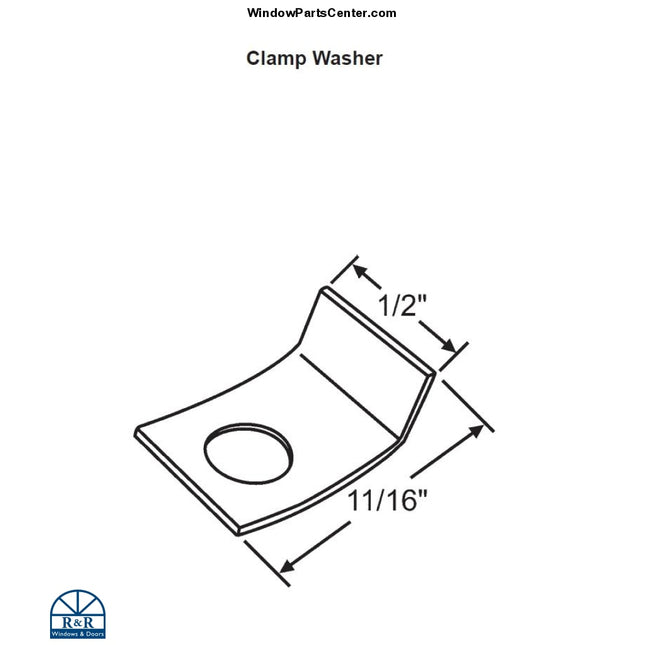

Part Number C2011 CLAMP WASHER ANGLED F/CASEMENT Follow Related Parts Are Sold Sold Separately: Part Number C2002 -  Roto America Interlock Casement Split Arm Operator Part Number C2003 - Roto Interlock Non Folding Handle 5/16 Inch Hex Casement Awning Part Number C2004 - Roto America 5/16 Inch Hex Casement and Awning Folding Crank Handle Part Number C2005 - SX Interlock Friction Hinge Set Cascade Casement Awning Windows Part Number C2006 - 4-1/8 Inch Black Top Spacer - Interlock Roto Part Number C2009  - Interlock Connect Arm w/ modified Clip 160MM 6 7/8" Long Arm Part Number C2011 - Clamp Washer Part Number C2012 Brootom Back Plastic Shim Part Number C2013 DIE CAST BRACKET WITH ARM STAINLESS STEEL CONNECT ARM NOTCHED OUT  -Roto operator bracket 5 3/8"

Read more less
