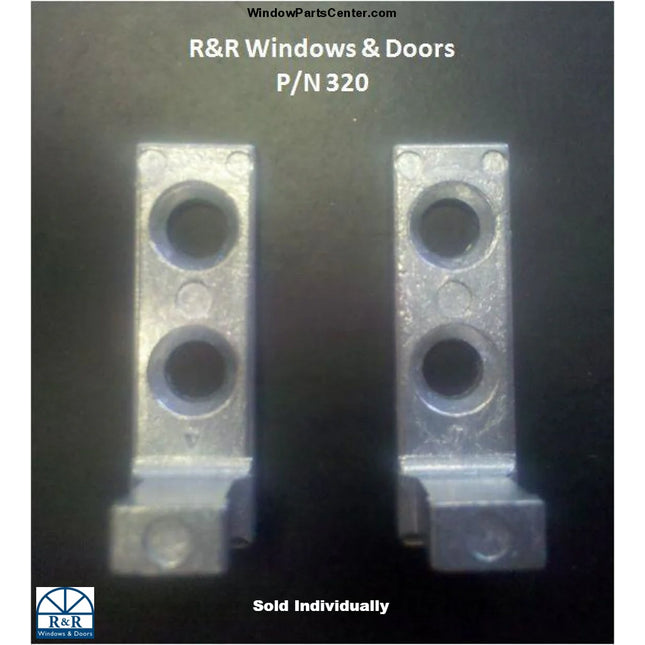

Part Number: 320
Tilt Pivot Pint for Classic and Premium Tilt Double Hung Windows
Sold individually
Fits Hurd Classic and Premium Tilt SH & DH, Wood & Clad, with Vinyl Jamb linersDIM: 1 3/8 x 1/8 x 5/8 DeepThis Tilt Pivot Pin was used with T-Lock Shoe (Part # 324) and 1 1/4" Block and Tackle Shoe (Part # 325)
Fits Hurd Classic and Premium Tilt SH & DH, Wood & Clad, with Vinyl Jamb liners

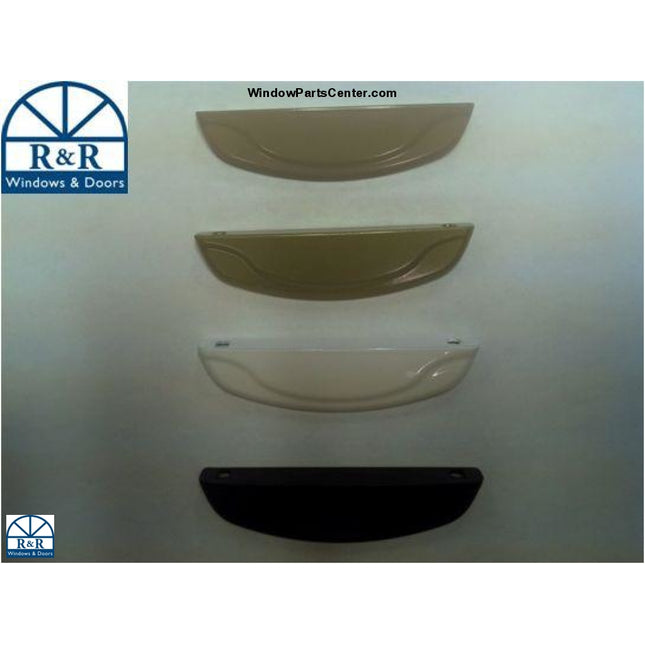

321 Sash Lift Handle - Double Hung Windows
For glass width over 24" 2 sash lifts per window are recommended by manufacture.Other Finishes Available - Special Order Only - Email or Text R&R for Finishes and Price

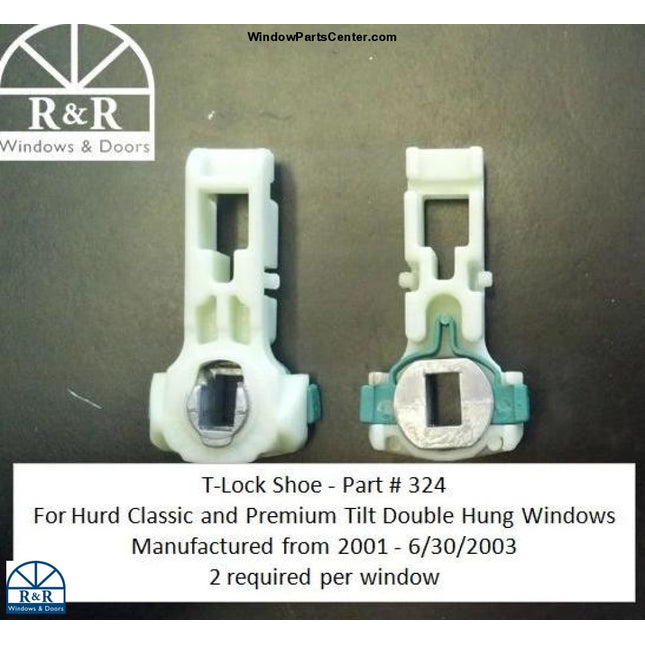

Part number: 324
T-Lock Shoe
Puck and sides that are extended color: Green
Cam: open
sold individually Tilt Double Hung Windows 2 are required per windowPart # 328 - Tilt Pivot Pin - is for T-lock Shoe.

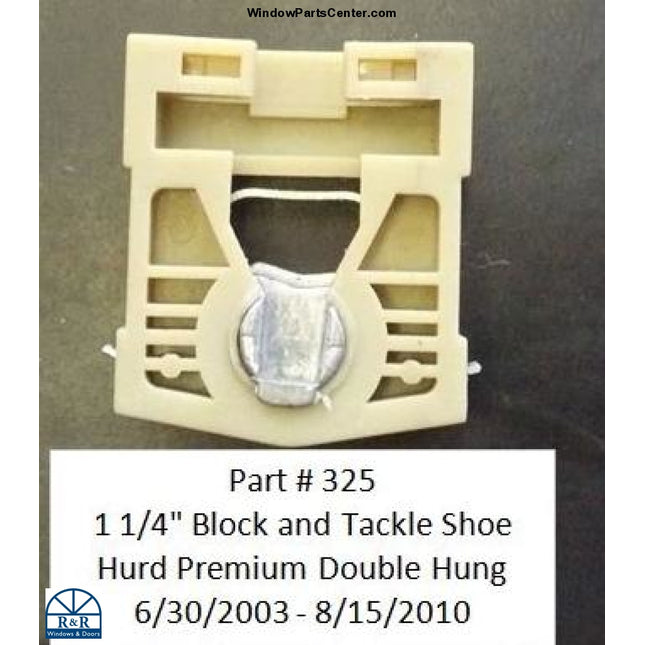

Part Number: 325
Omega Lock Pivot Shoe 1 1/4 Inch Block and Tackle Shoe
sold individually
Double Hung Jamb Liner Part
Associated Parts Sold Separately:
Tilt Pin (Pivot Pin) Part # 320. This tilt pin is what fits into Part # 325. 1 1/4" Block and Tackle Link Part # 326 (white plastic pc only). This fits into Part# 325.

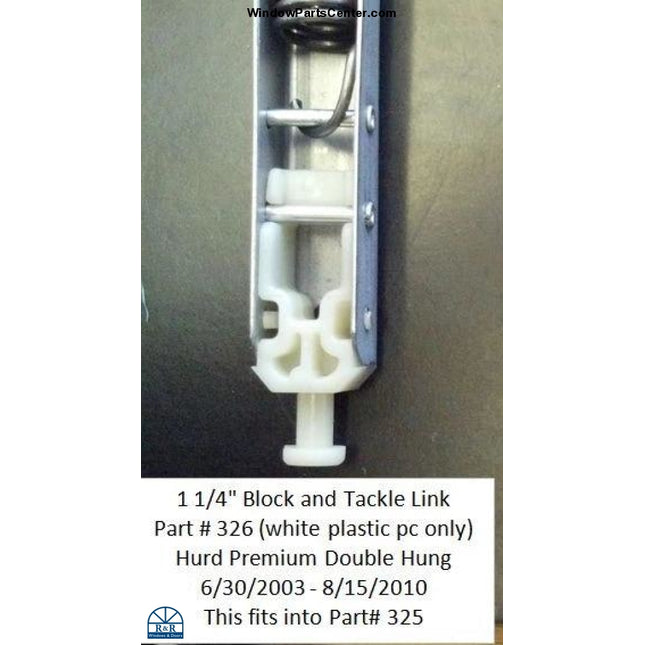

Part Number: 326 - 1 1/4" Black and Tackle Link Pack Premium Tilt
Sold Individually 1 1/4" Block and Tackle Link Premium Double Hung Jamb Liner Part
1 1/4" Block and Tackle Shoe Part # 325 This fits into Part# 326. Tilt Pin (Pivot Pin) Part # 320. This tilt pin is what fits into Part # 325.
Part Number: 327
Sold individually
327 is a discontinued Item once we are out of stock their replacement will be part number 710
Snap On Balance Shoe for Concealed Jamb liner
Style:
327 Old Style - Once we are out of stock you will replace with 701
710 New Style - to order go to 710 product page. comes with new rivet pin as 710 is longer and mounts in the 2nd old of your balance bar. If you do not have the rivet installation tool you will also need to order it. Part Number: Coming Soon is Sold Separately (see guide replacement instructions)
CDH Snap On Balance Shoe
Concealed Jamb Liner Double Hung Windows, Hurd and H3 Windows.
Part Number 710 Accessories sold Separately:
S2021 - Rivet Installation Tool
S2022 - Sash balance guide rivets
Part Number 329
Sash Lifts or Sash Handle for Double Hung and Horizontal Sliding Windows
Zinc Die Cast
Brand: Amesbury Truth / Truth Hardware
Comes With 1 sash lift
Low Stocked Colors: White, Bronze and Coppertone - May have a 1-4 week lead time and special order item no returns
Discontinued Colors: Bright Brass have been discontinued
Used on Hurd, Weather Sheild and may other Single Hung and Double Hung Windows. Known Hurd Part Number 013777, Allsco 211
Screws not included
Part Number: 331
Special order items no returns, exchanges or refunds. Lead time is 4-8 weeks for your order to ship. Once you place your order you will not be able to cancel your order.
Please See Chart To Order. (Second product picture and how to videos below)
Compression Tilt Jamb Liners
Comes with 1 Left and 1 Right Jamb Liner (see video below)
For Tilt Windows with Either Single Strength or Insulated Glass
86E Series for 1 3/8" or 1 1/4" Sash
Max Opening Height for 86E Series is 7-6 (90")
Bottom of jamb cut to fits a 14 degree sill angle by manufacture.
Jamb Liner Width: 3 7/16" Wide
Jamb Liner Length: See Chart
Colors: White or Beige
On Chart: Glass Size = Glass Height
Videos on How to identify and order 331 part 1 and part 2:
Installation Video:
Known to have been used on: Hurd, Caradco, Biltbest, Kolby, Weather Sheild, Jeld-Wen and many more
Part Number 332AW (Aluminum Clad Exterior / Wood Interior Sashes)
Vinyl Jambliner & Balance System Kit -Easy Tilt Aluminum Clad Premium Easy Tilt) - Hurd Double-Hung -March 22, 2002 - August 15, 2010
332 Aluminum Clad Exterior / Wood Interior Sashes This is for HURD Brand easy tilt double hungs only!!! Special order items no returns (for All wood style Hurd sashes see # 332W)Vinyl Jambliner & Balance System Kit - Aluminum Clad Premium Easy Tilt) - Double-Hung -March 22, 2002 - August 15, 2010To watch how to video to find the Call Out to order jamb liners see below.Kit Includes: Left and Right Jamb liner and Balance SystemFor Hurd Aluminum Clad Premium Easy Tilt - Double-Hung - Manufactured Date: March 22, 2002 thru August 15, 2010How To Order New Jamb Liners for Alum/Clad Double Hung (click on picture for diagram): To find the Hurd Call Out Size, measure the visible glass width and visible glass height of your window sash (either bottom or top sash). Then round your measurement up to the next Even inch.Example: If your visible glass measurement is 15" wide x 13" Height. Then round up to the next even inch. Your call out / what you would order would be 16 x 14Special Order 4-6 weeks Lead Time****Special Order Items NO Returns*****
Part Number 332W (All Wood Hurd Sashes)
Vinyl Jambliner & Balance System Kit -Easy Tilt All Wood Premium Easy Tilt) - Hurd Double-Hung -March 22, 2002 - August 15, 2010
332W All Wood Interior and Exterior Sashes This is for HURD Brand easy tilt double hungs only!!! Special order items no returns (for Aluminum/Wood style Hurd sashes See #332AW)Vinyl Jambliner & Balance System Kit -Hurd-Easy Tilt All Wood Premium - Double-Hung -March 22, 2002 - August 15, 2010To watch how to video to find the Call Out to order jamb liners see below.Kit Includes: Left and Right Jamb liner and Balance SystemHow To Order New Jamb Liners for All Wood Double Hung (click on picture for diagram): To find the Hurd Call Out Size, measure the visible glass width and visible glass height of your window sash (either bottom or top sash). Then round your measurement up to the next Even inch.Example: If your visible glass measurement is 15" wide x 13" Height. Then round up to the next even inch. Your call out / what you would order would be 16 x 14Special Order 4-6 weeks Lead Time****Special Order Items NO Returns*****
