Multi Point Hardware and Trim Handle Sets

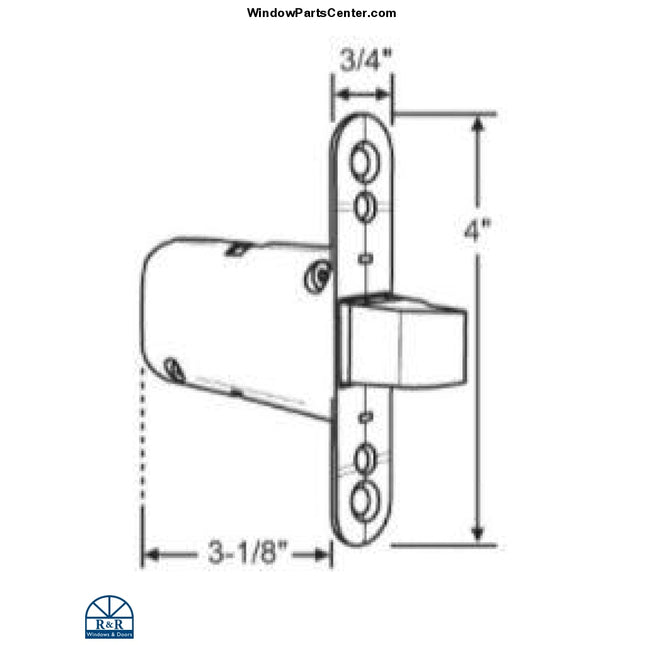

Part Number: S4115 Peachtree W&F Peachtree Citadel Swing Patio Door Multipoint Lock Aux Module This is designed to be field reversible. The latch is two stage, it operates first as a latch, then further extends to be a deadbolt. But the housing is symmetrical and the latch is removable. It  can be operated for Left hand or Right Hand, inswing or outswing swing doors. Associated Parts Sold Separately:  D301 W&F Trilennium multipoint 6 Inch CTC Replacement Handle Set S4112 - Peachtree Multipoint Mortise Lock Citadel IPD Citation W&F

Read more less

Part Number: 847 GU Sill Strike Plug for swinging doors  Style: Standard and ADA No Screws Included: Factory Recommends using: #6 x 3/4 Inch Associated Parts Sold Separately:  848 - GU Sill Strike Gasket For Swinging Doors  Known to be used on: GU, Hurd and Sierra pacific WI in-swinging wood/clad doors.

Read more less

Part Number: 819 Hoppe Multipoint Latch Plate  Curved Lip wi with cylinder hole  non handed  Size: 1 5/16 inch wide x 8 13/16 inch High  Color: Bright Brass, Stainless Steel

Read more less

Part Number: 856-857-858 GU Active Multi Point - 2006 - Current Product for Hurd and Sierra Pacific WI Product Review size sheet to know what to order. If measurements do not match your GU hardware then this will not work on you door. Special Order Item. No returns exchanges or order cancellations once order has been placed. Please allow 2-3 week lead time.

Read more less

Part Number: 842 Current Style Dummy  Amesbury Truth Sentry® .63 and Sentry® .03 For GU Multi Point Hardware DUMMY HANDLE SET* Dummy handle  no operation no thumb turn no locking capability - To be used on a secondary door panel on a French door that is fixed in place with no operation or has manual shoot bolts that are not operated by the handle set. 10 Inch Escutcheon NOTE TO CUSTOMER: As of March 20 2017 the OLD STYLE 8.9375 long Escutcheon was discontinued by the manufacture (mounting screw hole where 7 5/8" center to center) . The new style has 10" long Escutcheon (Mounting screw holes are 8 5/8" center to center). Note this height change does alter the placement of our mounting holes. Bottom mounting screw hole will be reused, but the customer will have to drill one new top mounting screw hole. The old mounting screw hole will be covered by the escutcheon.  All handle sets will be shipped with the new 10 inch taller escutcheon plates. Please note a new mounting hole will be necessary. Field instructions (see pictures)  Finish Options for Different Styles:  (All styles are not available in every finish color) Classic Escutcheon with Traditional Handle  Antique Brass Black (Matte) Bright Brass Brushed Chrome Champagne Oil Rubbed Bronze FB**  Polished Chrome Satin Nickel White Classic Escutcheon with Loft Handle  Antique Brass Brushed Chrome Oil Rubbed Bronze FB (forever bronze not true oil rubbed bronze that will change) Polished Chrome Satin Nickel White  Contemporary Escutcheon with Loft Handle Antique Brass Black (Matte) Bright Brass Brushed Chrome Oil Rubbed Bronze FB** Polished Chrome Satin Nickel White Squared Contemporary Escutcheon with Contemporary Handle  Antique Brass Black (Matte) Bright Brass Brushed Chrome Oil Rubbed Bronze FB** Polished Chrome Satin Nickel White Special Order Item. No returns exchanges or order cancellations once order has been placed. Please allow 2-3 week lead time.Used on Hurd Inswing and outswing patio doors all wood and wood clad 2006 - Present - Direct Replacement For 2005 models as well *For Active handle sets see part number 840 comes keyed with thumb turn and are for single door or the primary active door panel on a French door. *For Semi Active handle set see part number 841 Has thumb turn, but no keyed lock- To be used on a secondary door panel on a French door  that has shoot bolts that are operated and locked into place by the handle set. **FB = forever bronze so it will not change color over time like a true oil rubbed bronze would.

Read more less

Part Number: D300* W&F Trilennium 6 Inch CTC multipoint bore D300 is the new Replacement Handle Set - Non stock item special order - Allow 1-2 weeks for your order to ship (unless otherwise noted on our website about extended lead times) - No order cancellations or returns  D300 is for doors with: 6 inch center to center 1 7/8" or  2 1/8" diameter bores and screw hole placement 5 3/16" Center To Center.  Requires: 1 11/16" or 2 1/8" crossbore Model: D300 Standard Set** Screw Hole Placement: 5 3/16" Center To Center  Size: for Door Thickness 1 3/4" or 2 1/4" Colors: Victorian Bronze, Bright Brass, Satin Nickel, Black Style:  Active Standard 150 Degree- Has Thumb Turn, Keyed Cylinder and Lever is Operational*** For Single and French Active door panels. (Degree is how far the lever handle rotates for newer style multi point see pictures)  Active Modified 180 Degree- Has Thumb Turn, Keyed Cylinder and Lever is Operational*** For Single and French Active door panels. (Degree is how far the lever handle rotates for older multi point and double bore systems see pictures)  Dummy - No Thumb Turn, No Key Cylinder and Fixed Lever****  For Inactive panels in French doors - that is fixed or has independent astragal installed  Tumbturn for 3020 - Has Thumb Turn, No Key Cylinder and Fixed Lever**** For Inactive panels in French doors that has 3020 lock installed only*** Handing: Universal  - Non handed works for both LH and RH swing doors Handle Sets have been known to have been used on Bayer, Pella, Peachtree and other door brands. Known W&F old handle set Pat No. 4,671,089 stamped on back of trim plate Notes for other options for this style hardware on older doors: D300 is manufactured for the current multipoint system and will work for you right out of the box - order Active Standard 150 Degree (see pictures). If you have older style multipoint or backset lock and dead bolt with 6” center to center bore and screw hole placement is 5 3/16" Center To Center then Active Modified 180 Degree (see pictures) If your door has a 6 inch center to center 2 1/8" standard double bore with back set latch and dead bolt and screw holes are also 6" center to center you need to order part number 852).   If you are not sure what  type of system your door has, please send us pictures of your handle set with the door panel open so we can see the hardware that the handle set connects to inside the panel. Email pictures to: info@windowpartscenter.com footnotes: *Non stock - Allow 1 week for your order to ship - No order cancellations or returns  **This handle set also comes in other Models: See part numbers: D300, D301, D302, D304 ***Operational Lever: Can move up and down when door is unlocked **** Fixed Lever: Inactive, and is intended for push/pull function. *****Do NOT use a power driver tool to attach the handle set face plate retaining screws. Thread damage can result and is NOT considered a product defect. Associated Parts Sold Separately:  S4112 - Peachtree Multipoint Mortise Lock Citadel IPD Citation For Trilennium Multi Point - Email us for quote. Info@WindowPartsCenter.com

Read more less

Part Number S4019 Hoppe LATCH AND DEADBOLT STRIKE WITH CURVED LIP Non handed  Color: Stainless Steel  Other Colors and configurations available for special order email for pricing and lead times: Polished Brass, Antique Brass, Matte Black, Polished Chrome, Brushed Chrome, Oil Rubbed Brass, White Power Coat, Satin Nickel, Antique Nickel

Read more less

Part Number:872-873-874-875  GU Semi Active Shoot Bolt2006 - Current Product Energy Saver Hurd Swinging Door - if your door is not Hurd it will not work!For semi-active for secondary door panelShoot Bolt System Only - Handle Set Sold SeparatelySold in multiple styles. Click on picture to enlarge to see product dimensions.Special Order Items Lead Time 3-6 weeks No returns, exchanges or cancellations once order is placed. Lead times may be extended due to matieral shortage.

Read more less

Part Number: S4203 GU FERCO BKS Middle Keeper Latch and Dead Bolt Strike Plate Swing Door Accessory  Size: 45 mm (1 3/4 inch) or 57 mm (2 1/4 Inch) Thick Doors Color: Dark Bronze PC, Stainless Steel, Polished Brass (not all colors are in stock you can email or text to check stock and ETA) Additional Information: Non-handed  With clear protective film Two #8 x 5/8 FH/PH screws included  For use with GU-SECURY S-Bolt active door lock (single door only) Known Part Numbers: 9-C4777-45-0-*, 9-C4777-57-0-*

Read more less

Part Number: C1061Known Cascade Patio Door PD OXXO KEEPER 3/4 - used on 4 panel doors with DUAL MORTISE Lock None stock - special order item Associated Parts Sold Separately C1035 Truth Mortise Lock Box

Read more less

Ashland Sentinel MultiPoint Swing Door Lock System Facemount Active Lock Versions - Product Information page Product Information page. We do not stock this at our Denver warehouse.  - Use links in blue  under "Versions" subheading below to see pricing and to order your version - Available to Order via our parts catalog website  Versions: Model 56-100 Facemount Active Lock Welded Steel Deadbolt - Click Here to Order Model 56-185 Facemount Active Lock Powdered metal Deadbolt - Click here to Order Key Features of 56-100 and 56-185 Made from the finest 300 series stainless steel for superior corrosion resistance Incorporates the "Baby-Sitter Effect" that allows the consumer to operate the dead bolt and extension bolts independently of each other, eliminated the necessity for the consumer to lift the lever handle and engage the shoot bolts before activation the dead bolt. Incorporates an" Anti-Slam" device that prevents the lock bolts from extending until the door is in the closed position, eliminating the potential for door frame damage by the consumer. The shoot and dead bolts extend a full one-inch to meet the highest leaves of structural testing, and meets most local building codes. Performance and Security of 56-100 and 56-185 Mechanism has anti-backdrive provision on the deadbolt and shoot bolts to help prevent tampering. The extension bolt incorporates the necessary lead-in to provide signification pull-in of the door. Facemounted has .316" of pull in Robust and durable handle return spring design to prevent handle sag over time The handle is locked out when multipoint is in the locked position  Withstands abusive torques of over 500 lbs Lab tested over 50,000 cycles Manufacturing Flexibility and Ease The lock unit is one of the easiest and quickest to reverse the direction of the latch The very modular design gives flexibility to accommodate a variety of door sizes and options Lock has 2 3/8" backset Spacer sands offs are unitized to prevent the lock system from biding which mounting screws are accidently over tightened A simple one stop route profile for easier fabrication  easy peg-hole connection for quick installation Model 56-100P Multipoint Gearbox Passive - Click Here to Order Mortise type no astragal Has Deadbolt communication with the active panel lock When shoot bolts are extended and the active deadbolt is fully extended, the passive lock shoot bolts cannot be retracted. This prevents the homeowner from opening the passive panel with active deadbolt extended, which might damage the panel. Prevents active lock deadbolt from extending unless the passive shoot bolts are extended. Tells the homeowner to lock the passive panel first. Has latch communication with the active panel lock If the active deadbolt has not been engaged when passive lock shoot bolts are extended and the active lock latch is fully extended, the passive lock shoot bolts cannot be retracted. This prevents the homeowner from opening the passive panel first, which might damage the panel. Blocks active lock latch from full engagement into passive lock unless the passive shoot bolts are extended. Prevents damage to panels should passive panel be opened first and tells the homeowner to lock the passive panel first.  Model 56-480 Multipoint Gear Box Passive - Click Here to Order After shoot bolt extension, it has a thumb turn mechanism to manually lock the passive shoot bots in the extended position. Requires a passive trimset that has a thumb turn. Has deadbolt communication like above if the astragal is thin enough to allow the deadbolt to engage the blocker. However, this is typically used for thicker  astragal applications with no communication with the active lock. Model 56-481 - Multipoint Gear Box Passive - Click Here to Order Communication with active lock deadbolt through a 5/8" thick astragal No latch communication   Known to have been used on Caradco French doors and many other swinging doors that used Ashland hardware.  Known Component Number On Gear Box: 3295 3183 3194 68 Known Patent No. 6,209,931

Read more less
