Part Number D306 - Discontinued item no longer available
D306 no longer available. The replacement would be part number D300 Active Modified 180 degree style (no backsets included with D300 handle, it is the handle set only as pictures on the D300 product page show. It is a special order item and there are no returns.
W&F Original 1200-126 Trilennium Handle
color: bright brass
Handle set includes backsets and strike plates. What is pictured is what you get.
6 inch center to center bore. And 5 1/4” center to center screw holes
sold As IS - no returns. New unused - old stock
D306 is a discontinued product.
PAT. NO. 4,671.89

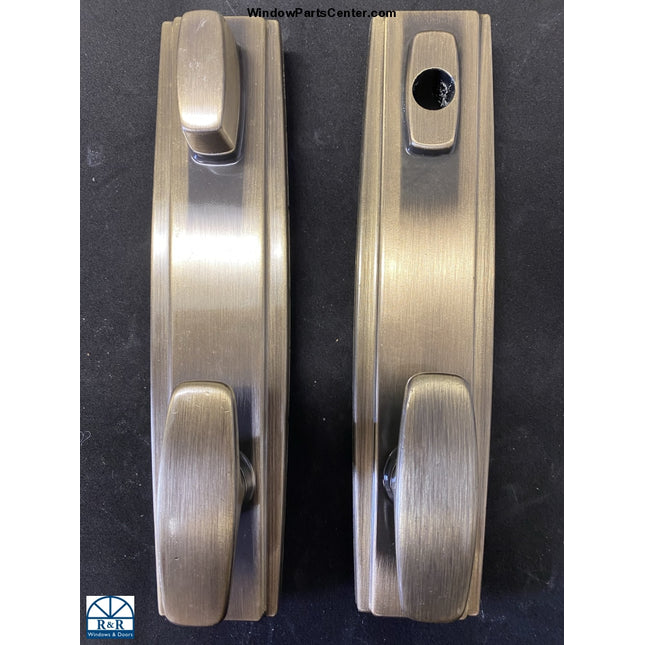

Part Number: S4111 Discontinued No longer Available . Replace with Part Number 852 Handle Set
Prado Contemporary Patio Door hardware
As is - New Condition old stock (may have minor scuffs, etc.) - No returns all sales final. Once our stock is gone this item will no longer be available
Peachtree Prado Door Handle Hardware Trim PTP Trim (W&F Hardware)
6 inch center to center (thumbturn and key cylinder)
Thumb-turn inside
Color: Antique Brass finish
Comes with: Interior and exterior faceplate and knobs, shaft, strike plates, keyed cylinder and 2 keys.
As is - New Condition old stock (may have minor scuffs, etc.) - No returns all sales final. Once our stock is gone this item will no longer be available
Known Part Numbers: 36280005 8006-3, PTP Trim, S4111
part number 870As is - New Condition old stock (may have minor scuffs, etc.) - No returns all sales final. Once our stock is gone this item will no longer be available.
1200 SERIES 3/4 INCH HANDLE EXTENSION - POLISHED BRASS and Antique Brass
W&F Door Handle Extention. Comes with 1 Extension, 1 Screw and 1 black Spacer and instructions.
Colors: Bright Brass and Antique Brass
Known Part Number: 40042, 037234, 037233, 870
Used On: W&F 1200 Series Handle Sets, Hurd Swinging Patio Doors and More.
Part Number: S4013
Hoppe Millennium Adjustable Hinge - 2-D Set Hinge with Non-removable Pin Vertical Adjustment - Hinges are Non Handed. Works for both Left hand and Right hand swinging doors. Known to been used on WeatherSheild and Peachtree Doors
Colors Still Available: Stainless Steel
Discontinued Colors: Oil Rubbed Bronze, Brass Chrome, antique brass
Pat.Nr. 5.701.1636, 122210600
Set and Guide Hinge Placement Table:
3 Hinges Per Door Panel - Up to 165 lbs:
Starting at top of door Top of door
Guide - Part Number S4014
Set - See Part Number S4013
Guide - Part Number S4014
4 Hinges Per Door Panel -Up to 165 lbs:
Anytime you need 4 hinges you would just add another guide hinge
Starting at top of door Top of door
Guide - Part Number S4014
Guide - Part Number S4014
Set - See Part Number S4013
Guide - Part Number S4014
4 Hinges Per Door Panel - 165 - 330 lbs:
Starting at top of door Top of door
Guide - Part Number S4014
Set - See Part Number S4013
Set - See Part Number S4013
Guide - Part Number S4014
5 Hinges Per Door Panel - 165 to 330 lbs:
Guide - Part Number S4014
Guide - Part Number S4014
Set - See Part Number S4013
Set - See Part Number S4013
Guide - Part Number S4014
Pro Tip: Remove weight from the hinges by lifting up on the door before you adjust.
Known part # 850-2388803, 850-8754819, 122210600
General HOPPE Adjustable Hinge Adjustment Instructions:
Determine hinge locations on the frame and door panel. Recommended hinge positions are given in the Set and Guide Hinge Placement Table above.
Prepare the door panel and frame.
Fasten hinges into the door panel. #10 ANSI wood screws with a minimum length of 1 1/4” are recommended. The Set Hinge must be installed according to the installation label. The label on the frame leaf will point down to the sill when properly installed.
On the frame, use #10 ANSI wood screws that are 5/8” to 3/4” long in three of the four screw locations. One screw on each hinge should be at least 1 1/2” long to reach the stud. This screw is typically left out and is installed after the door is positioned in the rough opening.
Install the frame leaf of the Set Hinge into the routing on the frame and fasten securely. Do not allow the Set Hinge(s) to support the weight of the panel without installing the Guide Hinges.
Install the frame leaf of the Guide Hinges into the routings on the frame and fasten securely. Leaves on the Guide Hinges will slide freely up and down for alignment with the rout.
Do not adjust hinges prior to the final installation into the rough opening. This will affect the ability of the door installer and end user to utilize the full adjustment range of the HOPPE Adjustable Hinge.
Disassembly
Do not attempt to remove the hinge pin, as this may cause damage.
To disassemble the door panel from the frame, support the weight of the panel to relieve the weight from the hinges.
Carefully remove either the frame leaf screws or door leaf screws to displace the panel.
Adjustment InstructionsIntroductionThere are two types of HOPPE Adjustable Hinges on each door panel:
Set Hinge: One or two per panel. The Set Hinge provides ± 1/8” vertical adjustment.
Guide Hinge: Two or three per panel. The Guide Hinges provide ± 1/8” horizontal adjustment. Look for the visible adjusting screw on the door sash leaf. This identifies the hinge as a Guide Hinge.
Hinge designs may vary, but adjustment remains the same.
Required Tools
A 3/16” hex wrench is required.
A small flat head screwdriver is required.
A plastic putty knife is recommended.
Vertical Adjustment for Doors with One Set HingeWith the door closed or open:
Remove the press-fit Finial Cap from the bottom of the Set Hinge to expose the adjustment screw. Use the small screwdriver for Set Hinges featuring a plastic Finial Cap. A plastic putty knife is recommended for Set Hinges featuring a brass Finial Cap.
Insert the hex wrench into the bottom of the Set Hinge. Tighten the screw to raise the panel and loosen to lower the panel.
Reinstall the Finial Cap removed in Step 1.
Vertical Adjustment for Doors with Two Set HingesWith the door closed or open:
Remove the press-fit Finial Cap from the bottom of the Set Hingeto expose the adjustment screw. Use the small screwdriver forSet Hinges featuring a plastic Finial Cap. A plastic putty knife isrecommended for Set Hinges featuring a brass Finial Cap.
To raise the panel, insert the hex wrench into the top-most SetHinge and tighten the adjustment screw to achieve the desiredInsert the hex wrench into the other Set Hinge andtighten the adjustment screw 1/8 turn past the onset of resistanceto distribute the panel weight evenly between both Set Hinges.
To lower the panel, insert the hex wrench into the top-most SetHinge and loosen the adjustment screw as far as possible withoutInsert the hex wrench into the other Set Hinge andloosen the adjustment screw to achieve the desired adjustment.Retighten the adjustment screw on the top-most 1/8 turn past theonset of resistance to distribute the panel weight evenly betweenboth Set Hinges.
Reinstall the Finial Caps removed in Step 1.
Horizontal AdjustmentWith the door open:
Insert a 3/16” hex wrench into the horizontal adjustment screw.
Turn clockwise to decrease the margin and counterclockwise toincrease the margin on the hinge side.
IF THIS HINGE DOES NOT LOOK EXACTLY LIKE YOUR ADJUSTABLE HINGE. CLICK HERE TO SEE ALL THE ADJUSTABLE HINGES WE HAVE ON OUR WEBSITE TO ORDER. IF YOU ARE NOT FINDING YOUR HINGE PLEASE EMAIL OR TEXT OUR RESEARCH DEPARTMENT AND WE WOULD BE HAPPY TO ASSIST YOU
Once stock is gone to order new handle set see part number S4100AC
As is - New Condition old stock (may have minor scuffs, etc.) - No returns all sales final. Once our stock is gone this item will no longer be available
805-006 - Exterior Face Plate - Hoppe Door Handle Set - Hurd Swinging Door
3 exposed screw holes (no screws included)
Discontinued Product Part- what we have in stock is all that is available. Sold as is, all sales final.
M216N stamped on back of face plate
As is - New Condition old stock (may have minor scuffs, etc.) - No returns all sales final. Once our stock is gone this item will no longer be available.
840-011- Amesbury Truth GU Faceplate - Swinging Patio Door Hurd
Discontinued Product. What we have in stock is all that is available. No returns. All Sales final.
As is - New Condition old stock (may have minor scuffs, etc.) - No returns all sales final. Once our stock is gone this item will no longer be available
805-013- Face Plate - Hoppe Door Handle Set - Hurd Swinging Door
Bright Brass NO SCREWS Included
Discontinued Product. What we have in stock is all that is available. No returns all sales final.
No Longer available to order new handle set see part number S4100AC
As is - New Condition old stock (may have minor scuffs, etc.) - No returns all sales final. Once our stock is gone this item will no longer be available
805-005 - Thumb Turn Only - for Hoppe Door Handle Set - Hurd Swinging Door
085427 - Hoppe Handle Set ORB Active - Hurd Swinging Door
This is a Discontinued style - what we have in stock is all that is available. No returns on this item.
Part Number: S4301
Sold Individually
Hinge Cap replacement for HG100 and HG200 Amesbury Truth Dual Adjustable Door Hinge Part Numbers S4005 S4006 S4007 S4008
Color: Black
Sold Individually
Use on part number: S4005 S4006 S4007 S4008
