Part Number: SS20006
Window Operating Control Devise Kit (WOCD) 50-2003 Series
For Hung and Horizontal Sliding Vinyl Windows
Complies with the ASTM F2090-10You need 1 kit per window - choose handing for Horizontal Slider. For a single Hung window you can use either a Right hand or Left hand
Color: white, Almond (aka beige) and Clay
see instructions in pictures
50-2003 Series Dual action WOCD designed to install directly to the face of the window jamb and interact with the active sash of any hung or sliding window. this device comes with mounting hardware to assure proper installation and is available in right and left handing. This series was designed to be applied in the field or in the factory.
Kit Includes:
Installation Instructions
Operating Instructions
1 WOCD (Your Choice of LH or RH)
8 Screws (4 Pair)
3 Shims
Color: White, Almond (AKA Beige) and Clay
WOCD Installation Instructions PDF
Part # 705 - Replacement Vinyl Window Screen Pins - Cap Spring and Plunger
7/32 inch Plunger Flip Type White
Included in Pack:QTY 1 Metal Plungers
QTY 1 SpringsQTY 1 White Vinyl LH or RH CapBeige color is discontinued and no longer available.
These have been used on and Known Part Numbers: V00867 V00868 V00872, Hurd Monument Vinyl Windows, American Weather Seal, as well as many other window brands.
Part Number: SS10017
Roto North America
15 Inch Face Mount Track Assembly with Black Track Shoe (the factory will NOT sell the shoe separately it an only be ordered with the track as it comes on the track).
Size: Track is 15 Inch long
Part Number on Shoe: OP051002
Known Part Number: OP05-8108
Associated Parts Sold Separately:
SS10011 Roto North America X Drive Dual Arm Vinyl Casement Operator
SS10012 - Roto X Drive Handle for Casement and Awning Window Operator
Part Number : SS10016
SuperSeal Screen Corner Key Casement and Awning Vinyl Window Screens
Color: White
Screen comers have been used on SuperSeal, Hurd and Sierra Pacific brand screens and many other brands.
Colors: WhiteDimensions: See picture click on enlarge (For ease of measuring for our customers we only measure down to the 16th inch)
Known Part Numbers: SS10016
Below is a video showing how to replace screen comers this video shows another screen comer not SS10016 but the idea is the same of how to install.
Sash Lock For Sierra Pacific and SuperSeal Builder Series Single Hung and Slider windowsPicture is showing lock in the unlocked position. Only handing shown in the picture is used on the windows.2 23/32" x 31/32" x 1/2" (1/2" measurement does not include toggle)# known to be stamped on back of lock 677157 and 024-22
For Bulk Pricing for 10 or more Please e-mail info@WindowPartsCenter.com with color and QTY you would like to order

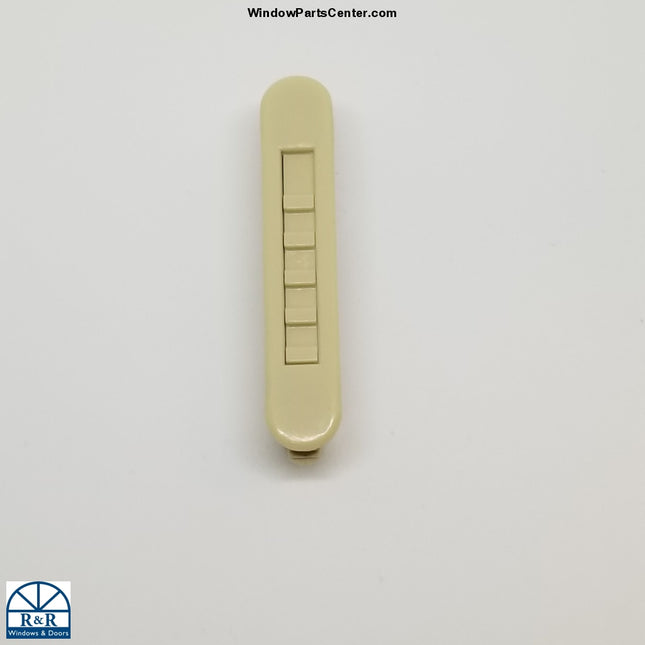

Part Number: SS20011 - Night Latch
Replacement Night Latch For Vinyl Double Hung and Single Hung Window
Used On 7800/7900 SuperSeal Vinyl Windows and Many other Vinyl Window Brands.
Colors: White and Beige
Sold Individually
Dimensions: 3/8" Wide x 2" Long x 7/8" Deep

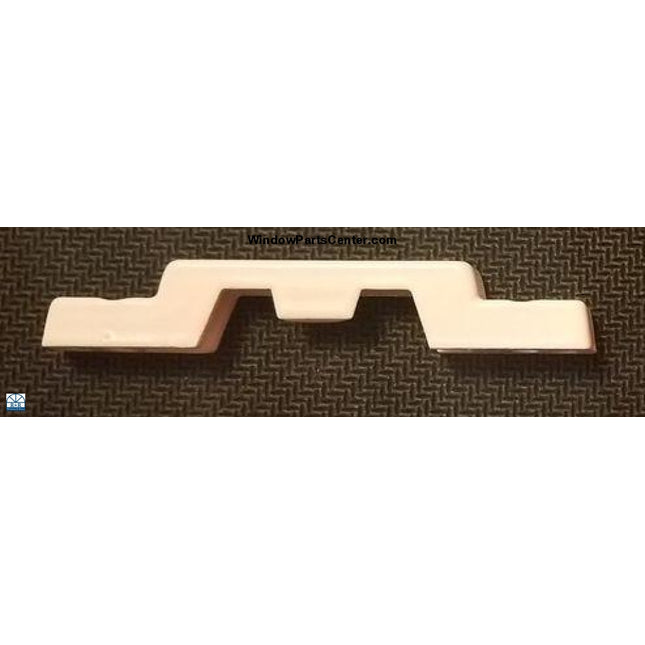

Sash Lock Keeper for Single Hung windows on Sierra pacific and SuperSeal Vinyl Windows and many other manufacturers Dimensions: 2 3/4 x 7/32" x 1/4"
Lock Sold Separately #SS20008
Transom Vinyl Connector
Color: White
Dimensions: 11/16" x 2 1/8" x 3/8"
Used on: SuperSeal Vinyl Windows and Sierra Pacific Vinyl Windows
Number Printed On Part Part ACTIVE CO NY 718-522-0361
Part Number: S1111 System This page shows you which part numbers work together. see part numbers below to order them individually.

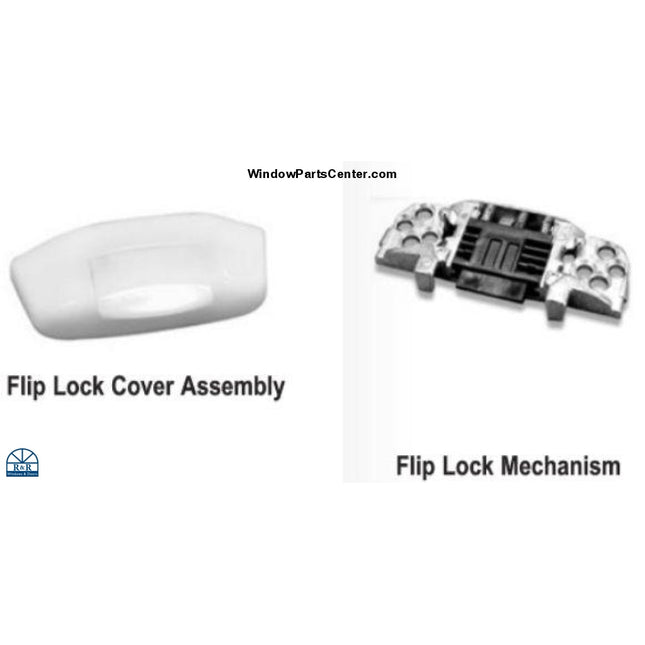

Roto Flip Auto Lock (sweep and Sash Lock) Innovative and Intuitive!
To Order Parts See the following:

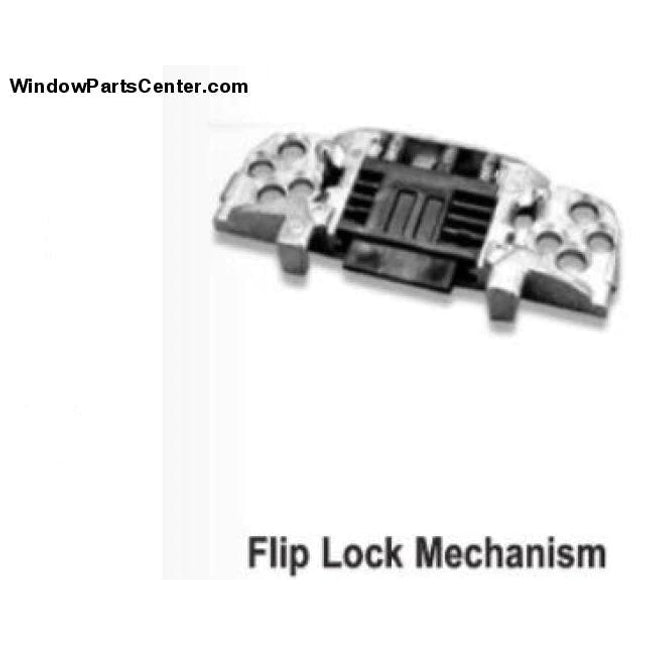

Part Number S1111M - Mechanism
Part Number S1111FLC - Flip Lock Cover
Part Number S1111J - Installation Jig
Part Number C10000FMK - Face Mount Keeper
Part Number C10000SSK - Surface Striker Keeper (Surface Mounted)
Can be used on: Vinyl Double Hung, Single Hung and Horizontal Slider Windows!
Keeper Striker: your choice of Face Mount or Surface Mount
The Roto Flip Lock is an automatic sash lock for single hungs, double hungs and sliding windows that's easy to install, easy to operate and highly intuitive. Flip lick's excellent balance and durability combined with its intuitive and sleek signed provides you with a superior lock while providing your customers with great comfort, connivance and security.
Features:
The Positive action Lock, once unlock and the sash is opened, resets itself and then lock automatically when the sash is closed
Innovative functionality that makes operation of the lock ergonomically friendly
Internal mechanism has two springs to maintain balance.
Four mounting positions
Unique breakaway feature - flip lever will sty up unless complete closed.
Meets or exceeds forced entry resistance requirements an hurricane impart testing
Benefits:
Ease of operation and pace of mind knowing that once the window is closed it is locked!
In the case of arthritic conditions, the lock can be operated with a slim device thus not requiring extensive movement of one's fingers
Enhanced durability/cycle performance, reliable consistent functionality.
Ultimate flexibility to position the lock correctly on various profiles
Acts as a visible indicator that the window is not completely closed, thus no locked.
Adds vital elements of security and strength to the overall performance of the window.
Can also be used as a replacement retro fit lock for Cascade and Mercer old auto lock. - Watch video below in full- you will need to drill 2 new mounting screw holes! Part number C10000 is what is shown in the video below.

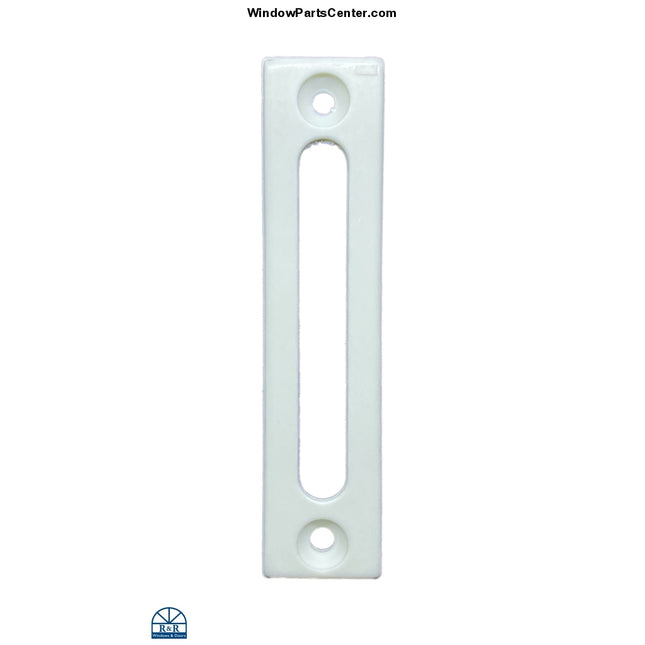

Part Number: S2018
Vinyl Lock Bar Guide for Vinyl Casement and Awning Window (sliding lock guards). For multipoint window lock
Color: White
Dimensions: 3-7/16 Inch Long x 3/4 Inch Wide x 3/16 Inch Thick
Screw Holes CTC: 2-15/16 Inch
Sold individually
Known to have been used on: Vinyl Windows, PGT, SuperSeal, Hurd and more
Screws not included. Please reuse your old screws
Part Number S1112
Zinc Die Cast Window Sweep and Sash Lock
Color: Black
Can be ordered with or with out a keeper
No Screws Included
Replacement Option for Part with Stamped on back of : ACTIVE CO 718 552 0361
Current Style has stamped on back of part: C-A N.Y., 1356, 13 5 7

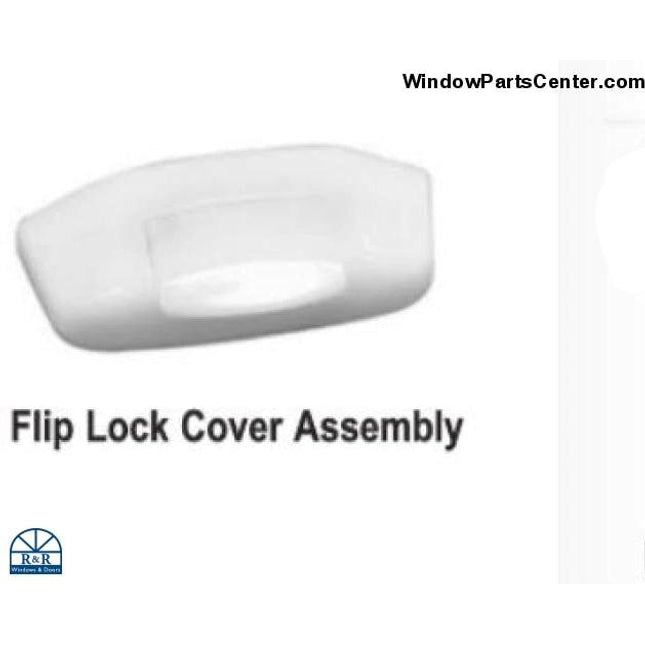

Part Number: S1111FLC
Cover Only
Roto Positive Action Locks Flip Lock Cover.
Can be used on: Vinyl Double Hung, Single Hung and Horizontal Slider Windows!
Color: White (G2), Blue White, Almond, Almond MK, Earth Brown (exposed Screw)
Manufacture Part Number: 833125
Accessories Sold Separately:
S1111M - Mechanism
S1111FLC - Flip Lock Cover
S1111J - Installation Jig
C10000FMK - Face Mount Keeper
C10000SSK - Surface Striker Keeper (Surface Mounted)
Manufacture Information Roto Frank of America, Inc. & Roto Fasco Canada, Inc.:
The Roto Flip Lock is an automatic sash lock for single hungs, double hungs and sliding windows that's easy to install, easy to operate and highly intuitive. Flip lick's excellent balance and durability combined with its intuitive and sleek signed provides you with a superior lock while providing your customers with great comfort, connivance and security.
Features:
The Positive action Lock, once unlock and the sash is opened, resets itself and then lock automatically when the sash is closed
Innovative functionality that makes operation of the lock ergonomically friendly
Internal mechanism has two springs to maintain balance.
Four mounting positions
Unique breakaway feature - flip lever will sty up unless complete closed.
Meets or exceeds forced entry resistance requirements an hurricane impart testing
Benefits:
Ease of operation and pace of mind knowing that once the window is closed it is locked!
In the case of arthritic conditions, the lock can be operated with a slim device thus not requiring extensive movement of one's fingers
Enhanced durability/cycle performance, reliable consistent functionality.
Ultimate flexibility to position the lock correctly on various profiles
Acts as a visible indicator that the window is not completely closed, thus no locked.
Adds vital elements of security and strength to the overall performance of the window.
known manufacturing to have been used on: Allsco 4400 Premium PVC Hung Windows and 2300 Series insert frame or 8300 Prestige Series.
Can also be used as a replacement retro fit lock for Cascade and Mercer old auto lock. - Watch video below in full- you will need to drill 2 new mounting screw holes! Part number C10000 is what is shown in the video below.
