Description
Part Number 810R

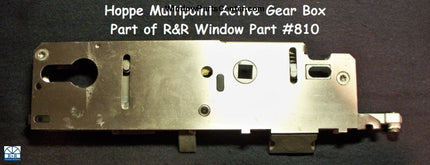

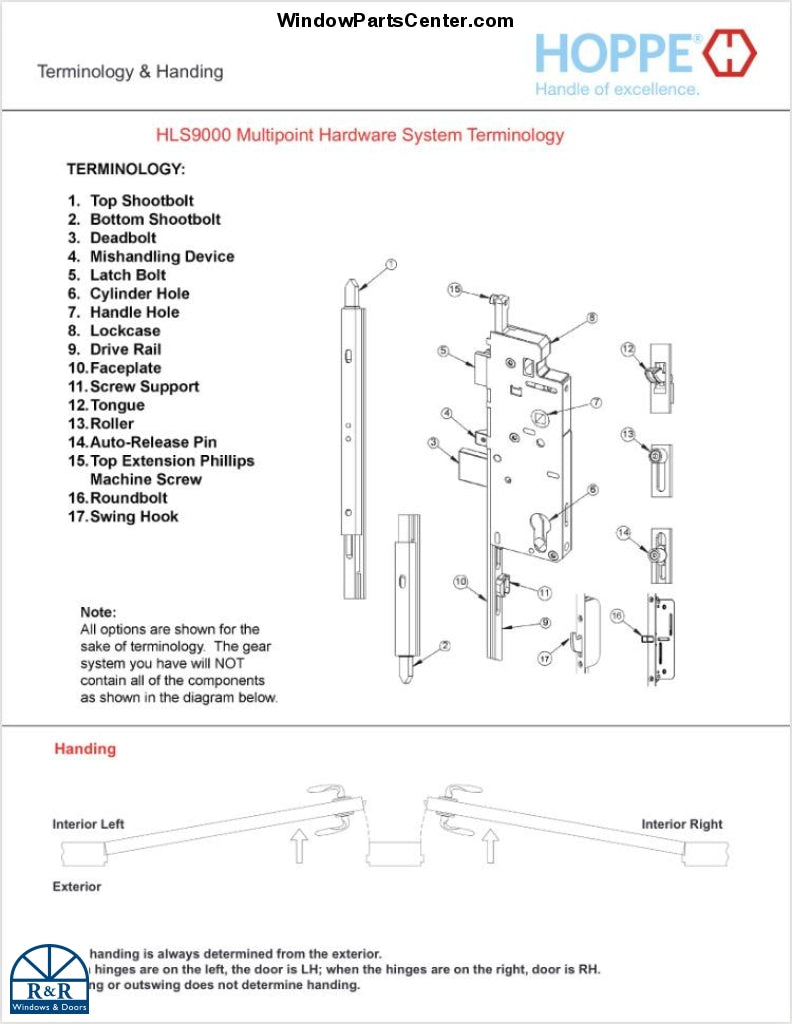

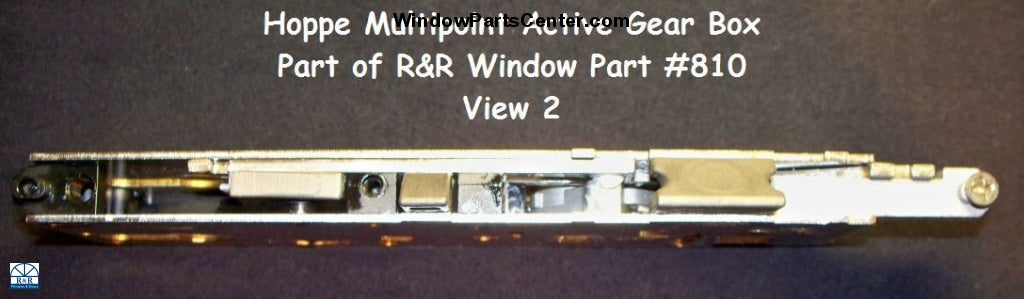

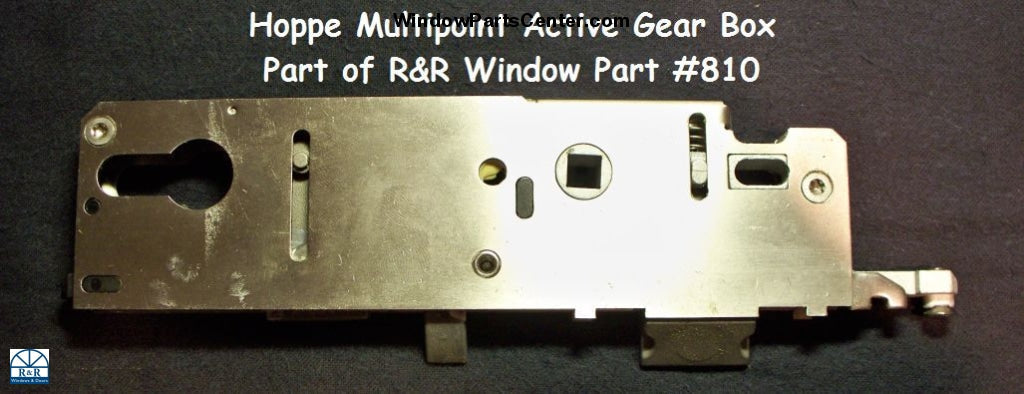

Hoppe Multipoint Automatic Roller Bottom Gear Box Extension HLS9000

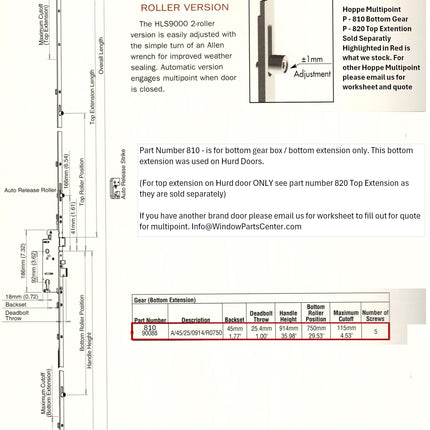

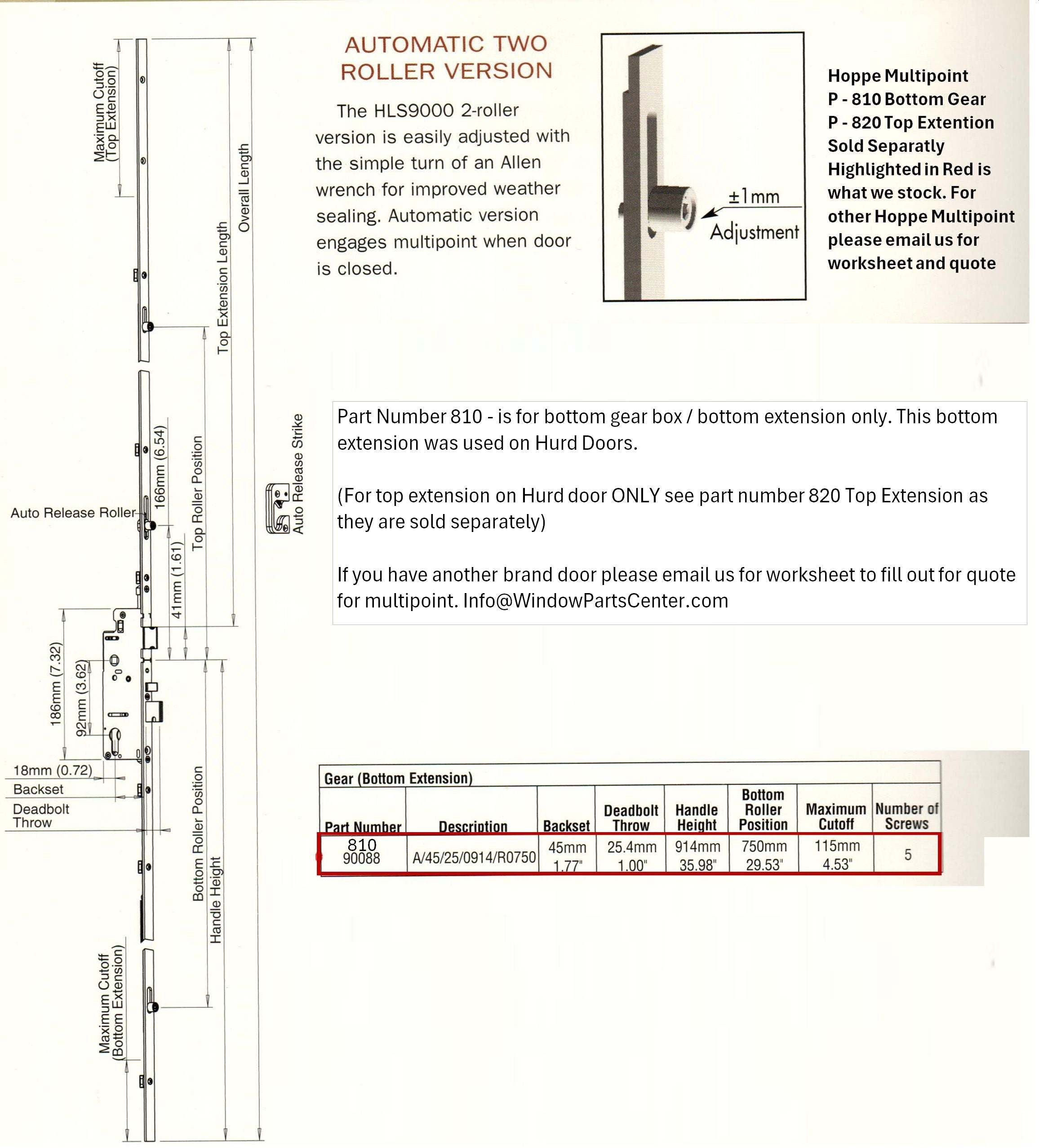

CUSOTMER PLEASE READ BEFORE YOU ORDER: See chart for dimensions to compare with your multipoint BEFORE you place your order. If measurements do not match for your multipoint please email us for the worksheet you will need to fill out for a quote. Single point gearbox is not interchangeable with multipoint gearbox. The cover may look the same but internal components are different. Info@WindowPartsCenter.com

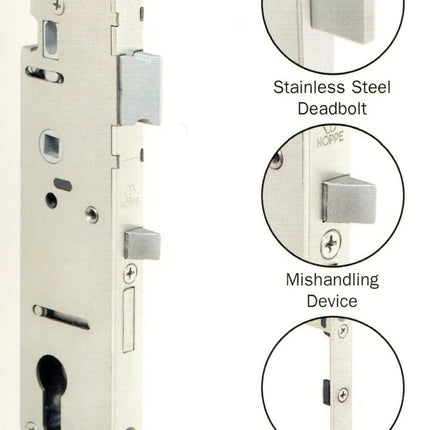

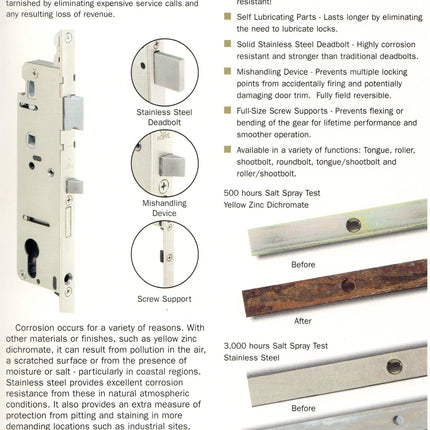

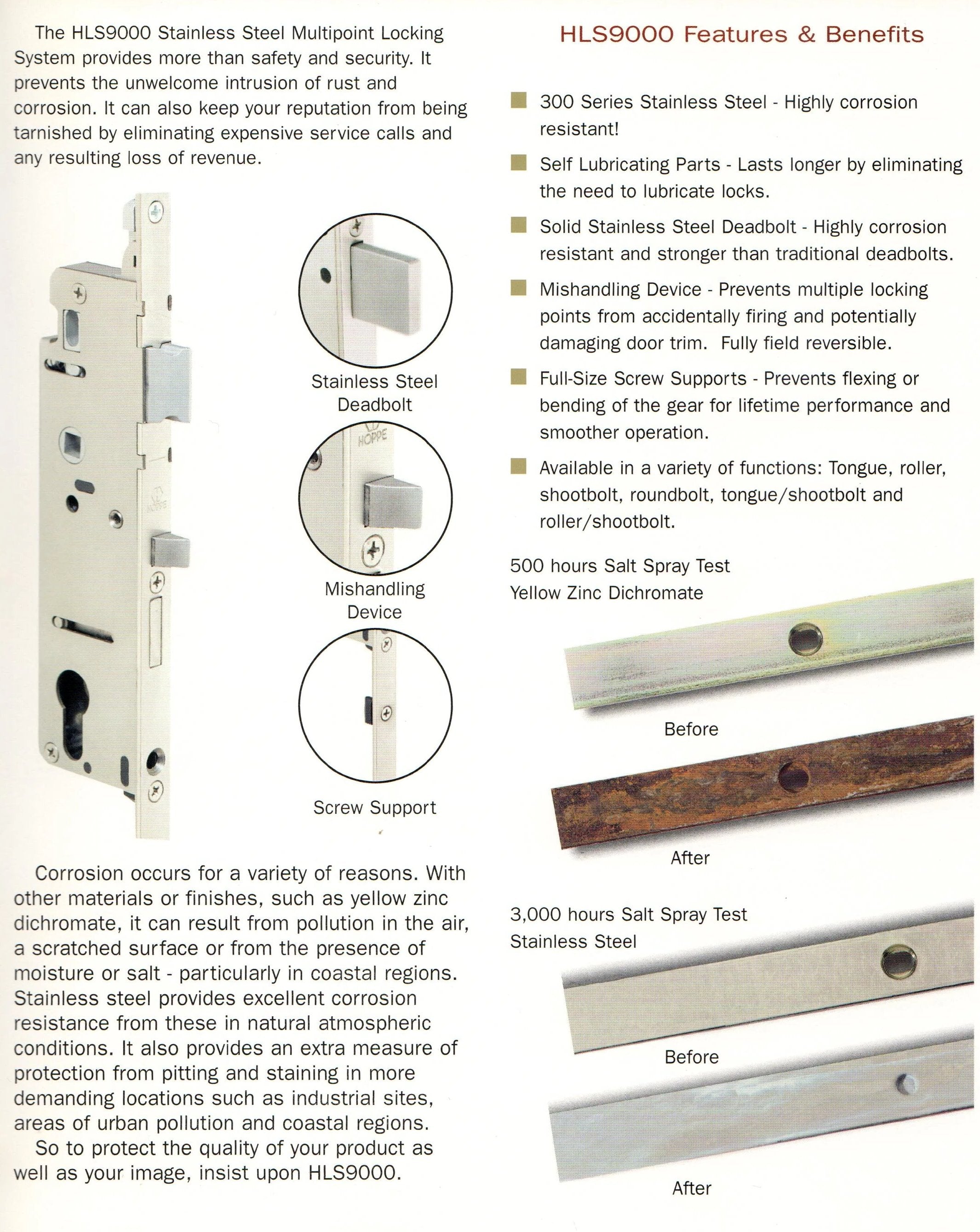

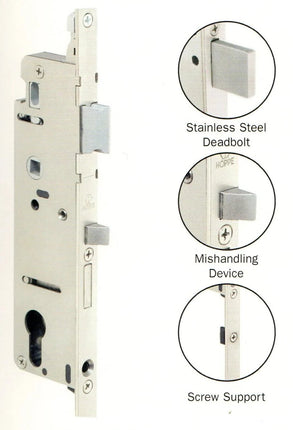

Material: Stainless Steel (sliver). Brass color no longer manufactured - only comes in stainless steel for both the gear box and the extension. See features and benefits picture.
Style: Roller

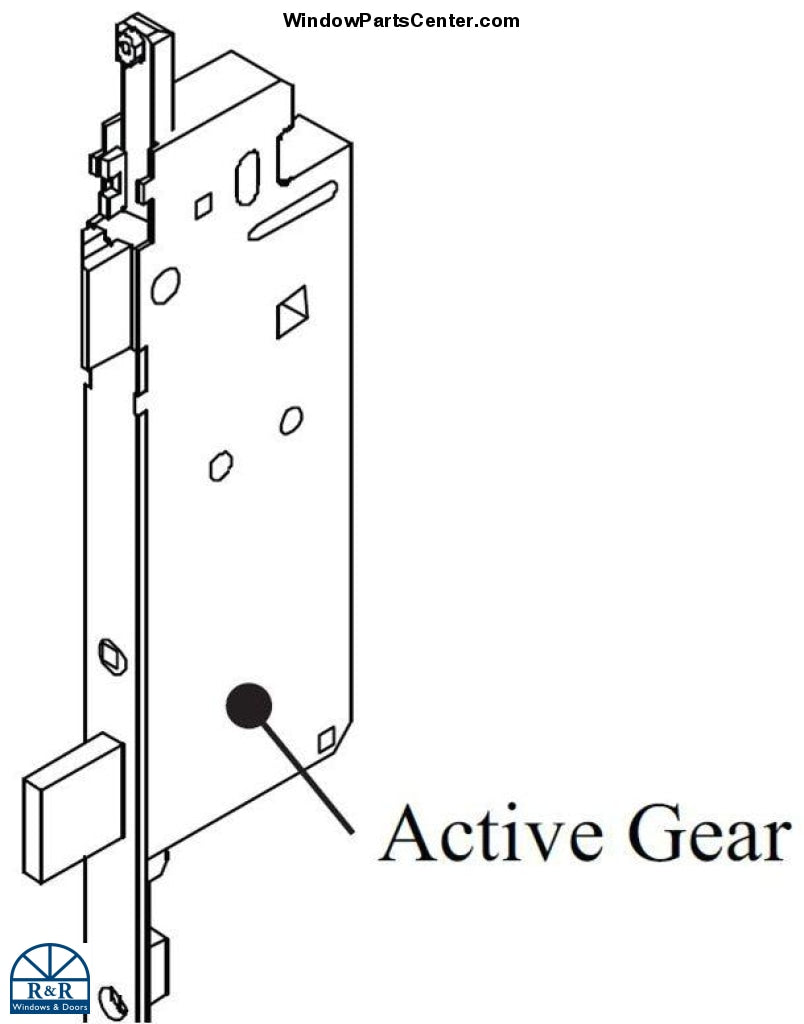

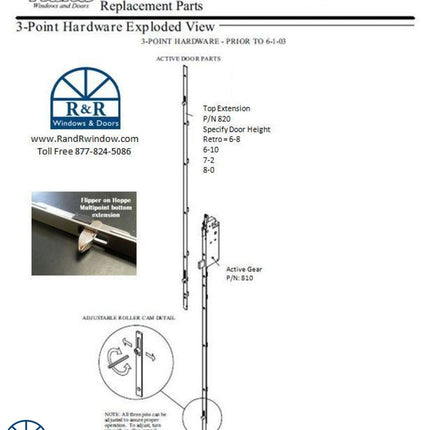

Comes with: bottom extension with gear box attached (top extension SOLD separately see part number 820R for top extension these are for Hurd doors only. For other brand doors please email for worksheet to fill out for a quote)

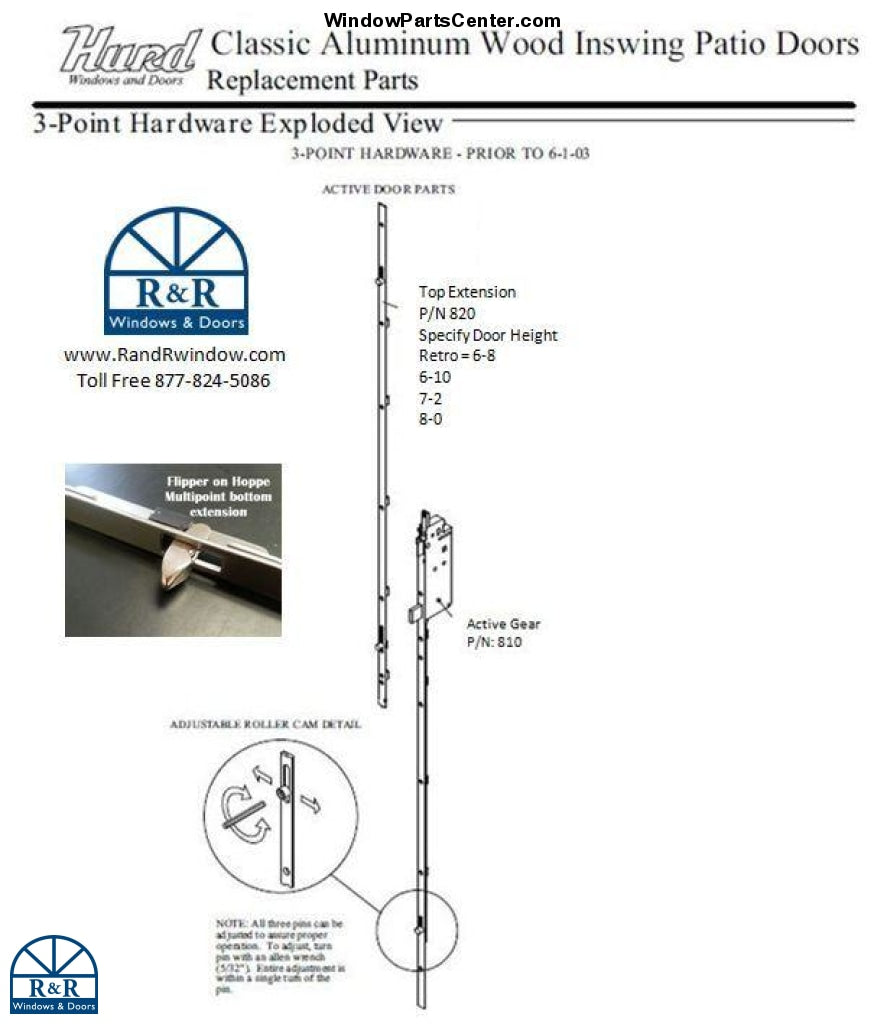

The Hoppe #810R/820R Roller style is the direct replacement for old FUHR Roller Multi point that was on Hurd – no modification is needed when changing to the Hoppe #810 - you need to order both top extension 820 and lower extension with great box 810 to use as a replacement with old FUHR. The only difference is some of the FUHR multi point had an automatic fire to engage the multi point, the Hoppe does not. So with the Hoppe to engage the multi point you close the door then lift up on the door handle then throw the dead bolt to lock.

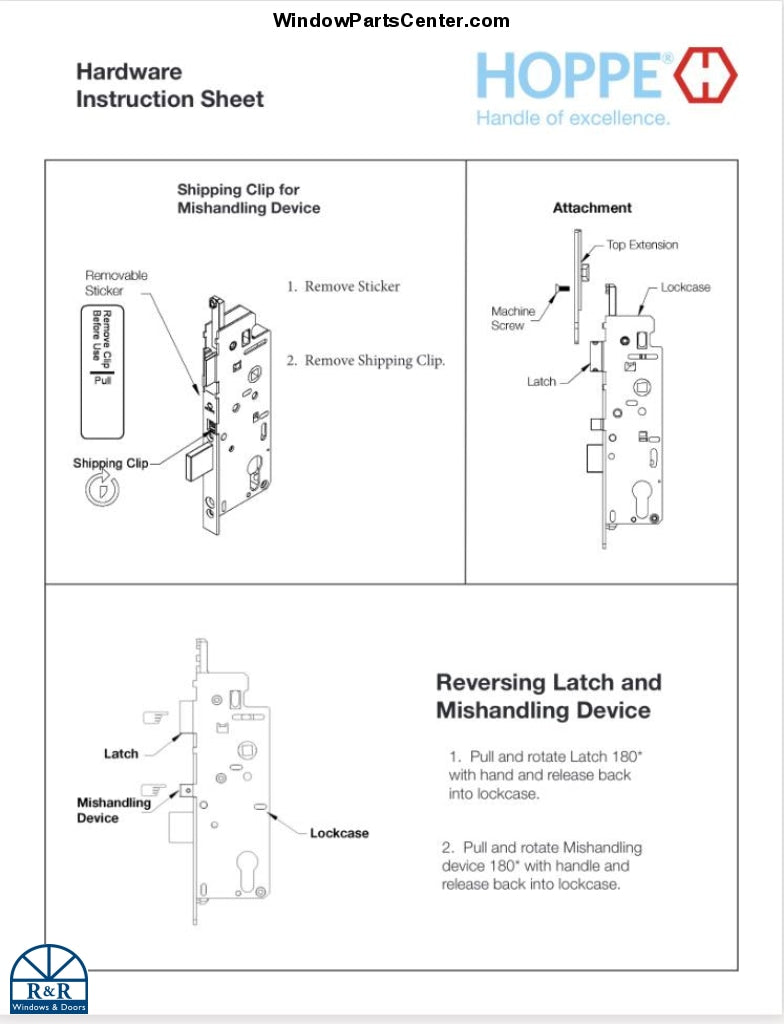

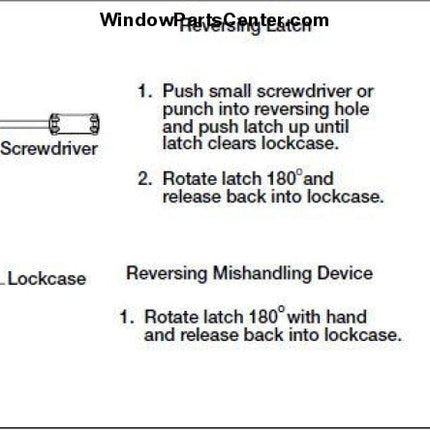

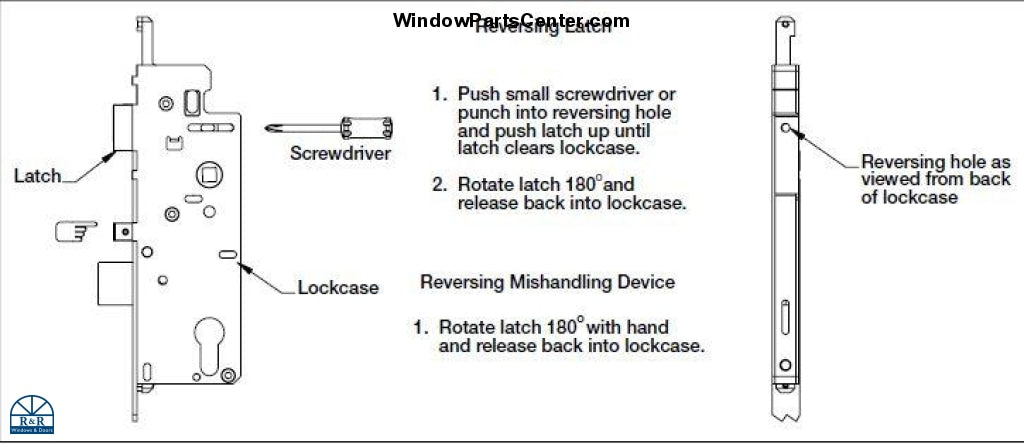

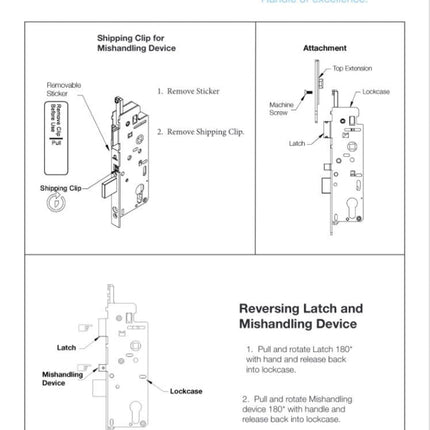

Handing: Non handed latch is reversible. See video on how to change latch handing
Associated Parts Sold Separately:
Other Hoppe Multipoint and Single Point We Stock:
For Hoppe Multipoint We Do Not Stock Please Email us for worksheet and quote

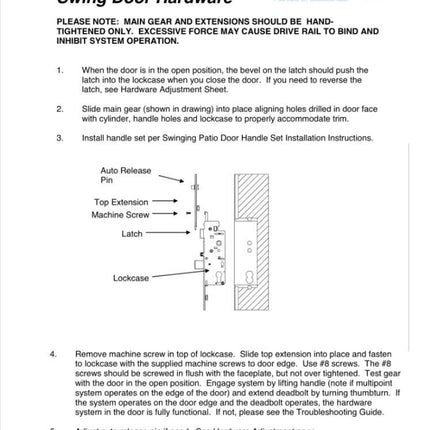

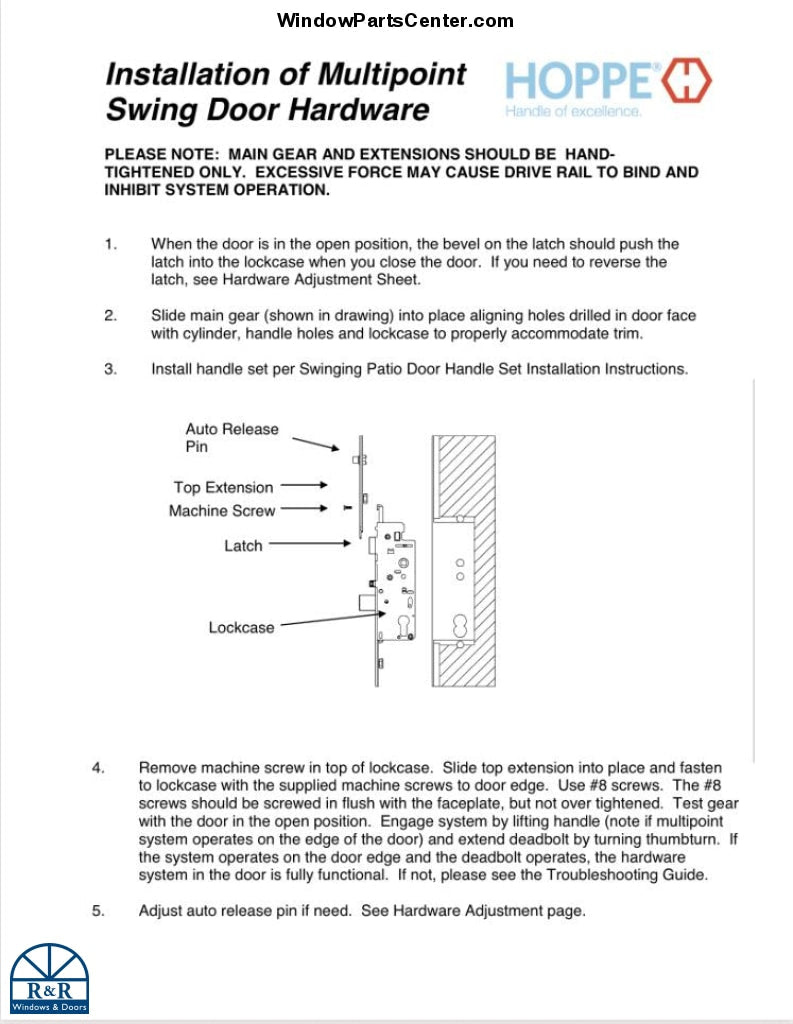

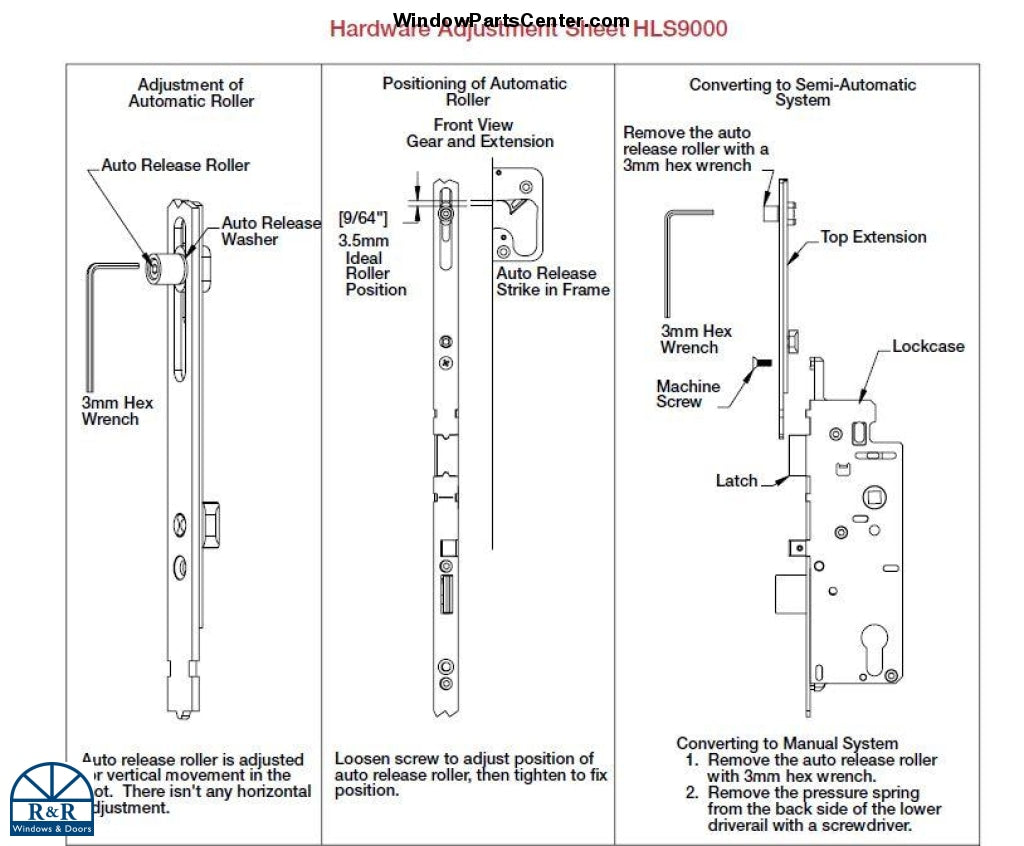

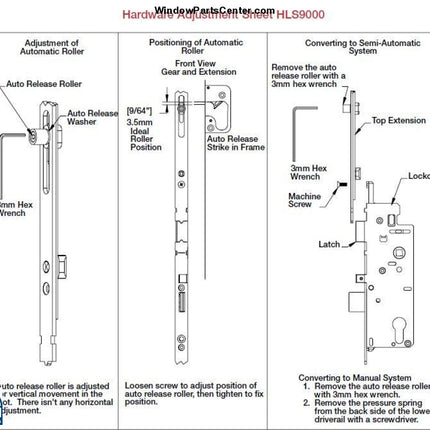

Install Instructions (also see instructions in pictures):
- Remove set screws on handle levers and remove
- remove three mounting screws on faceplate estuation
- On side of door remove screw that lines up with the lock cylinder.
- Remove the handle set
- Remove all screws down the side of the door that holds on the multipoint system (keep all screws you will reuse them)
- Install new multipoint with screws
- Test for Operation
- Reinstall handle set
- Test for proper operation
810R Known to have been used on: For Classic Hurd Doors Manufactured from 2005 and Prior. Fuhr Multi point used on Classic Hurd doors are no longer manufactured - Hoppe Multi point is the direct replacement. Number Known To Have Been On Older Gear Box (Hoppe Roller Style Brass Color): 1334291 - this is a component number.
