S4003 - Set Hinge Vertical Adjustable Set Door Hinge

Description

Part Number S4003 - Vertical Adjustment

Before you place your order please read all below and watch our video at the bottom of the product page to make sure you order the correct hinge.

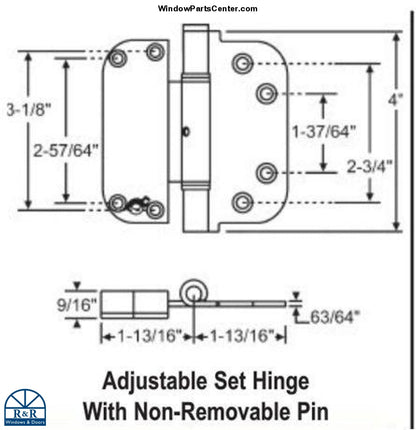

Adjustable Door Hinge -  Set Hinge With Non-removable pin - Vertical Adjustment

Non Handed - these hinges are for Left Hand and Right Hand Doors, by removing the set screw and hinge pin and changing the handing before you install it on your door.

  • S4003 is a Set hinge- vertical adjustment only . Comes in multiple finishes. Pin is removable.
  • S4003 works in tandem with S4004 sold separately. See hinge placement diagram in pictures and watch video below.

Colors Available In Stock: Bright Brass, Brushed Chrome, White *See finish note below

Discontinued Colors: Oil Rubbed Bronze, Antique Brass , Black, Satin Nickel, Polished Chrome. (if you can add to cart we still have stock. Once stock is gone colors will be NLA and will not allow you to add to cart. No returns, all sales final on discontinued colors they are sold as is and have been marked down in price for quick sale).

    Condition:

    • New - All hinges are new product
    • As Is = any color with "AS IS" added is a New product that has been discounted due to one or more of the following: old stock, discontinued colors or styles,  minor finish flaws or scratches.  This item may be a customer return, vendor sample, or came in from the factory with finish flaws.  In some instances, these items are repackaged. Not available in all colors.  All sales final No returns on as is items.

    S4003 interchangeable and direct replacement for  Hoppe Columbus 2-D Hinge part # S4001

    To Order Guide Horizontal Adjustment Hinge See Part # S4004

    Set and Guide Hinge Placement - Also See Hinge Placement Guide Drawing:

    • 3 Hinges Per Door Panel:
      • Starting at top of door Top of door
        1. Guide (Part # S4004)
        2. Set (Part # S4003)
        3. Guide (Part # S4004)
    • 4 Hinges Per Door Panel:
      • Anytime you need 4 hinges you would just add another guide hinge
      • Starting at top of door Top of door
      1. Guide (Part # S4004)
      2. Guide (Part # S4004)
      3.  Set (Part # S4003)
      4. Guide (Part # S4004)

    Vertical Hinge Adjustment Instructions:

     Using a Phillips screwdriver, first adjust the panel up or down by turning the screw marked "V" on the set hinge. When turning the screw in the direction of the arrow (counter clockwise) the other leaf will be pushed in the direction of the arrow. Automatic screwdrivers are NOT recommended. The speed of the gun may strip the heads of the screws are over adjusted.

    When the vertical adjustment is turned clockwise, the non-adjustable leaf will move in the direction of the arrow. The vertical adjustment has approximately 32 turns from its extremes.

    Replacement hinge for hinges with(watch video below) Pat. Nr. 5701636, Pat. Nr. 5,701,636

    Pro Tip: Remove weight from the hinges by lifting up on the door before you adjust.

    Known Brands: Hoppe Hardware, Hoppe Columbus, Semco, Windsor Doors and Superior Doors, Loewen Doors, Roto and more.

    Matching Screws are included with each hinge.

    *Finish Note: Not for Coastal or High Humidity Applications. These hinges do not come in a sea coast or stainless material, high humidity or costal application can cause hinges to corrade this is not a product defect.

    IF THIS HINGE DOES NOT LOOK EXACTLY LIKE YOUR ADJUSTABLE HINGE. CLICK HERE TO SEE ALL THE ADJUSTABLE HINGES WE HAVE ON OUR WEBSITE TO ORDER. IF YOU ARE NOT FINDING YOUR HINGE PLEASE EMAIL OR TEXT OUR RESEARCH DEPARTMENT AND WE WOULD BE HAPPY TO ASSIST YOU

    How to Adjust video below

    updated 7/12/23
