S4010 HTL Ultimate 2-D Hinge - Hoppe Guide Hinge Adjustable

Description

Part Number: S4010

Before you place your order please read all below watch our video at the bottom of the product page to make sure you order the correct hinge.

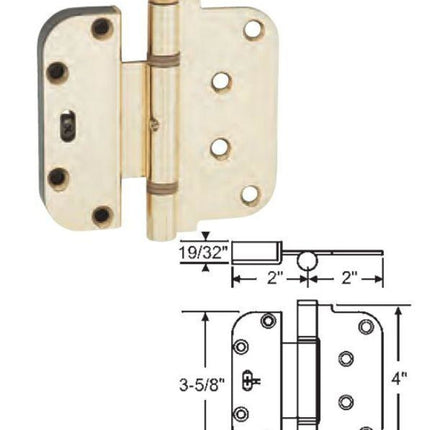

S4010 HTL Ultimate 2-D Hinge - Hoppe Guide Hinge Horizontal Adjustment - Non Handed -  Removable Pin Style

No Screws Included

Color / Finish Options Are as Follows:

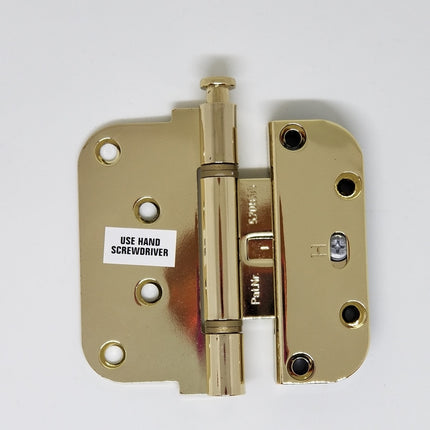

    • Bright Brass
    • Polished Chrome

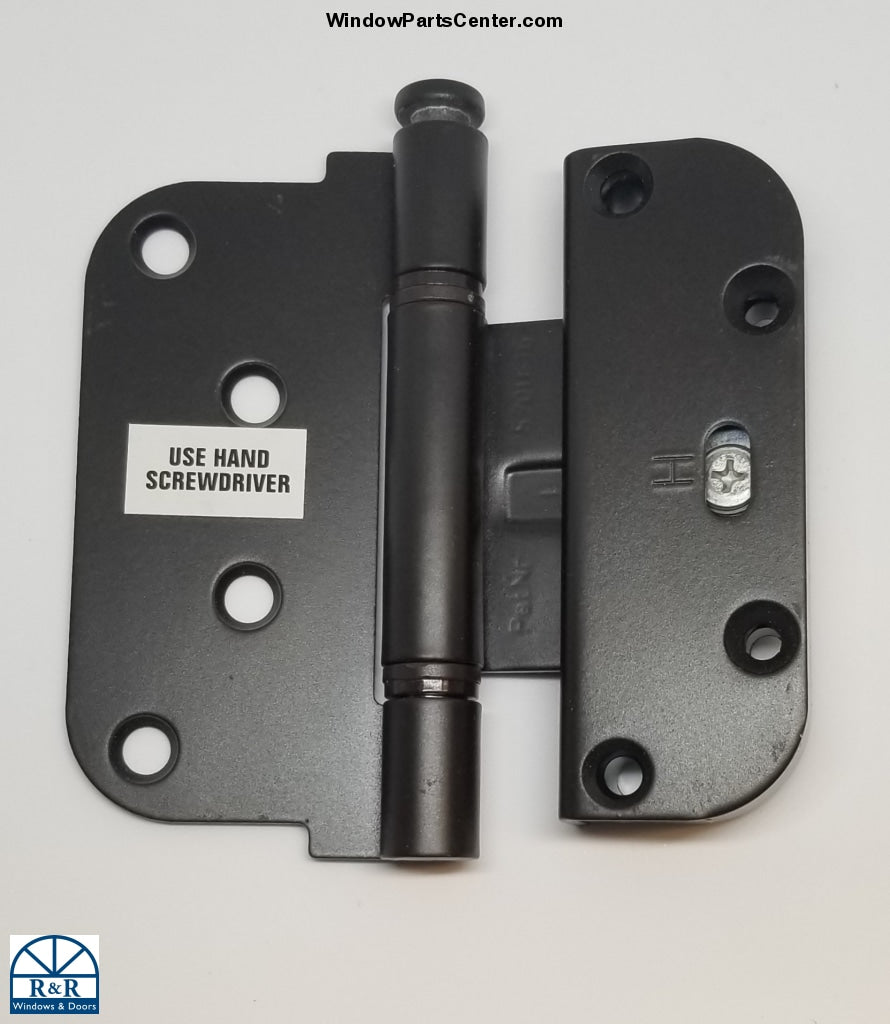

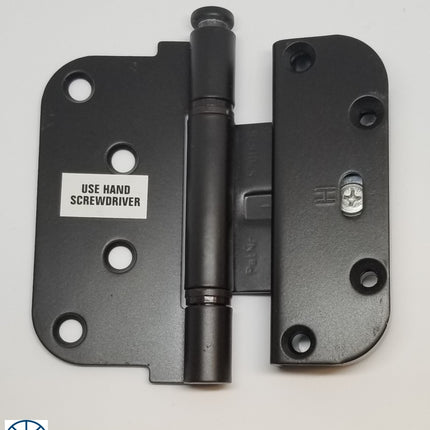

    • Rustic Umber
    • Stainless Steel

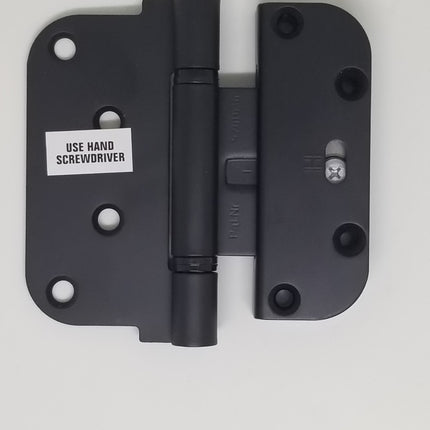

    • Matte Black

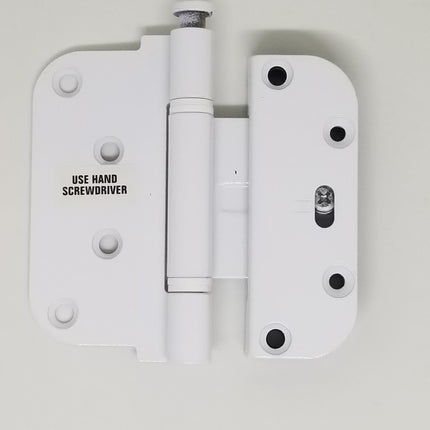

    • White
    • Antique Brass, Brushed Chrome - NO LONGER AVAILABLE - Use part number S4012 as direct replacement hinge.

We stock this hinge if you to check QTY of stock on a color please email or text us.

When factory discontinues a color for S4010 use S4012 as the direct replacement hinge.

Product Description:

  • S4010 is a Guide Hinge - Horizontal adjustment only . Comes in multiple finishes
  • S4010 works in tandem with S4009 sold separately. See hinge guide placement in pictures

Steel Reinforcements – Makes this new hinge the "Ultimate" with door systems.
• Corrosion Resistant – Specially coated components for improved
durability and strength.
• Easy Adjustment – Set hinge is Part # S4009 sold separately has a vertical adjustment feature (+/- 2.5mm). S4009 works in tandem with S4010.

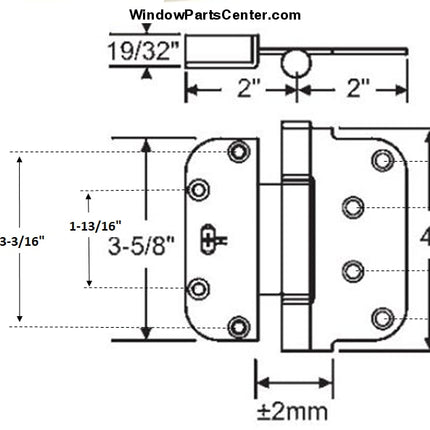

Guide hinge (Part # S4010) has a horizontal adjustment feature (+/- 2mm). See hinge placement diagram in pictures.
• Maintenance Free Bearings – No oiling required.
• Simple Door Preparation – Quick and easy one pass routing.
• Variety of Finishes – Available in finishes to match your HOPPE® handle sets.
• Designed to carry up to 165lbs. per door.
• Not to be used in commercial applications, especially not in
conjunction with a door closer.

Set and Guide Hinge Placement:

 3 Hinges Per Door Panel:

 Starting at top of door Top of door

Guide (S4010)

Set (S4009)

Guide (S4010)

4 Hinges Per Door Panel:

Anytime you need 4 hinges you would just add another guide hinge

Starting at top of door Top of door

Guide (S4010)

Guide (S4010

 Set (S4009)

Guide (S4010)

 The Set hinge no matter what is always the 2nd from the bottom

Pro Tips:

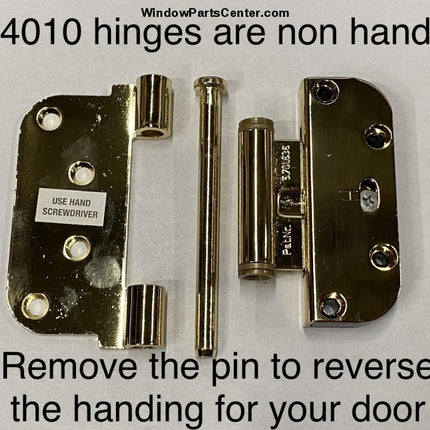

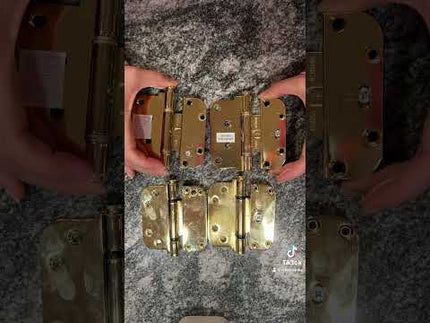

    • These hinges are not handed! The pin is removable So you can reverse the handing for your door . (Scroll thru pictures above that show this) Pin can be tight - use a flat head screw driver and hammer to LIGHTLY tap out the pin from the bottom.
    • Remove weight from the hinges by lifting up on the door before you adjust.
    • Never use power tools to adjust the hinge. ONLY use hand tools.
    • Hinge: S4010 Minimum of two per panel. These hinges only have the horizontal adjustment ± 2mm.
    • When the vertical adjustment (S4009) is turned clockwise, the non-adjustable leaf will move in the direction of the arrow. The vertical adjustment has 32 turns from it's extremes, and the horizontal (s4010) has 7 turns. Adjust the horizontal by turning clockwise to increase the margins. Turn counter clockwise to decrease the margins

Known Part # 850-8762435,  850-8762531, Pat.Nr. 5.701.636, 30033, 8762531, 5 310544 0 10708

Product form

4 in stock

$ 62.00

    Description

    Part Number: S4010

    Before you place your order please read all below watch our video at the bottom of the product page to make sure you order the correct hinge.

    S4010 HTL Ultimate 2-D Hinge - Hoppe Guide Hinge Horizontal Adjustment - Non Handed -  Removable Pin Style

    No Screws Included

    Color / Finish Options Are as Follows:

      • Bright Brass
      • Polished Chrome
      • Rustic Umber
      • Stainless Steel
      • Matte Black
      • White
      • Antique Brass, Brushed Chrome - NO LONGER AVAILABLE - Use part number S4012 as direct replacement hinge.

    We stock this hinge if you to check QTY of stock on a color please email or text us.

    When factory discontinues a color for S4010 use S4012 as the direct replacement hinge.

    Product Description:

    • S4010 is a Guide Hinge - Horizontal adjustment only . Comes in multiple finishes
    • S4010 works in tandem with S4009 sold separately. See hinge guide placement in pictures

    Steel Reinforcements – Makes this new hinge the "Ultimate" with door systems.
    • Corrosion Resistant – Specially coated components for improved
    durability and strength.
    • Easy Adjustment – Set hinge is Part # S4009 sold separately has a vertical adjustment feature (+/- 2.5mm). S4009 works in tandem with S4010.
    Guide hinge (Part # S4010) has a horizontal adjustment feature (+/- 2mm). See hinge placement diagram in pictures.
    • Maintenance Free Bearings – No oiling required.
    • Simple Door Preparation – Quick and easy one pass routing.
    • Variety of Finishes – Available in finishes to match your HOPPE® handle sets.
    • Designed to carry up to 165lbs. per door.
    • Not to be used in commercial applications, especially not in
    conjunction with a door closer.

    Set and Guide Hinge Placement:

     3 Hinges Per Door Panel:

     Starting at top of door Top of door

    Guide (S4010)

    Set (S4009)

    Guide (S4010)

    4 Hinges Per Door Panel:

    Anytime you need 4 hinges you would just add another guide hinge

    Starting at top of door Top of door

    Guide (S4010)

    Guide (S4010

     Set (S4009)

    Guide (S4010)

     The Set hinge no matter what is always the 2nd from the bottom

    Pro Tips:

      • These hinges are not handed! The pin is removable So you can reverse the handing for your door . (Scroll thru pictures above that show this) Pin can be tight - use a flat head screw driver and hammer to LIGHTLY tap out the pin from the bottom.
      • Remove weight from the hinges by lifting up on the door before you adjust.
      • Never use power tools to adjust the hinge. ONLY use hand tools.
      • Hinge: S4010 Minimum of two per panel. These hinges only have the horizontal adjustment ± 2mm.
      • When the vertical adjustment (S4009) is turned clockwise, the non-adjustable leaf will move in the direction of the arrow. The vertical adjustment has 32 turns from it's extremes, and the horizontal (s4010) has 7 turns. Adjust the horizontal by turning clockwise to increase the margins. Turn counter clockwise to decrease the margins

    Known Part # 850-8762435,  850-8762531, Pat.Nr. 5.701.636, 30033, 8762531, 5 310544 0 10708
