S4009 HTL Ultimate 2-D Hinge - Hoppe Set Hinge Adjustable

Description

Part Number: S4009

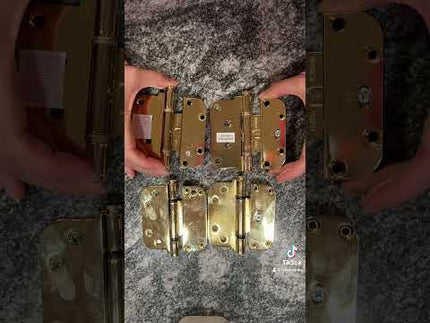

Before you place your order please read below and watch our video at the bottom of the product page to make sure you are ordering the correct hinge.

Hoppe HTL Ultimate 2-D Hinge - Hoppe Set Hinge (vertical adjustment) - Removable Pin Style

These SET HINGES ARE NOT HANDED - you can remove the pin to swap the handing for your door.

(For NON-Removable pin style see Part # S4011 and they ARE HANDED, if any of the S4009 become unavailable you will need to order S4011)

No Screws Included, sold individually

Material: Steel

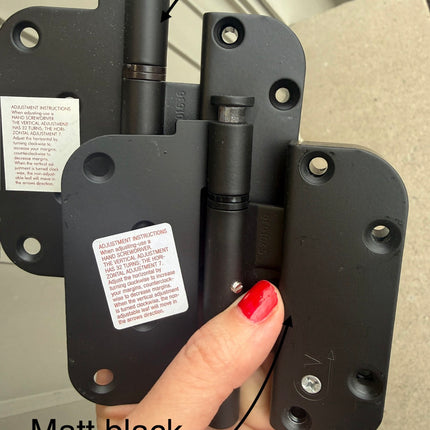

Color / Finish Options Are as Follows:

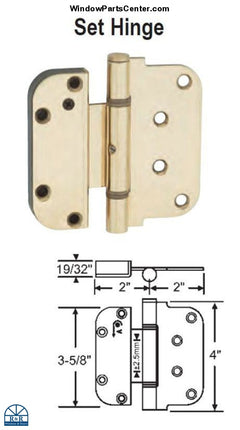

  • Bright Brass
  • Polished Chrome

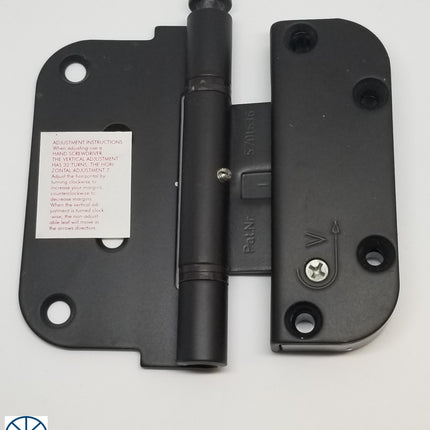

  • Rustic Umber

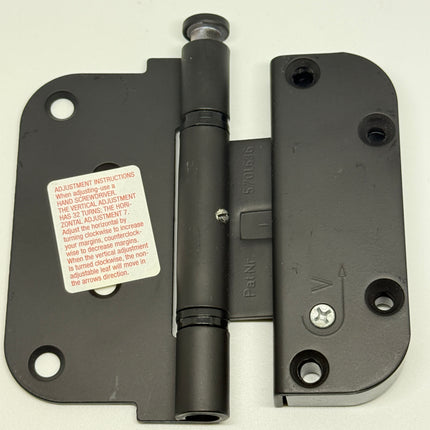

  • Matte Black (available for pre-order will not be receiving more in till mid October 2023, no order cancellation - thank you for your patience).
  • Stainless Steel

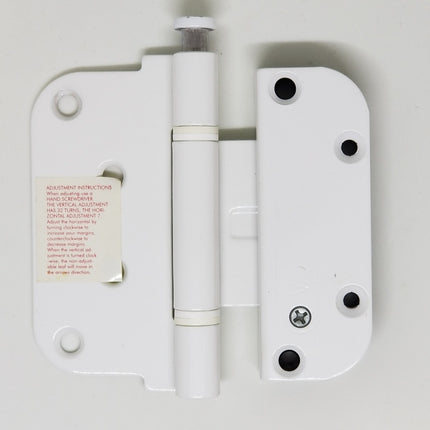

  • White
  • Antique Brass, Brushed Chrome - NO LONGER AVAILABLE once stock is gone See part number S4011 direct replacement hinge

We stock these hinges- if you would like a QTY check on a color please e-mail or text us.

Product Description:

  • S4009 is a Set hinge- vertical adjustment only . Comes in multiple finishes. Pin is removable.
  • S4009 works in tandem with S4010 sold separately. See hinge placement diagram in pictures and watch video below.

Steel Reinforcements – Makes this new hinge the "Ultimate" with door systems.
• Corrosion Resistant – Specially coated components for improved
durability and strength.

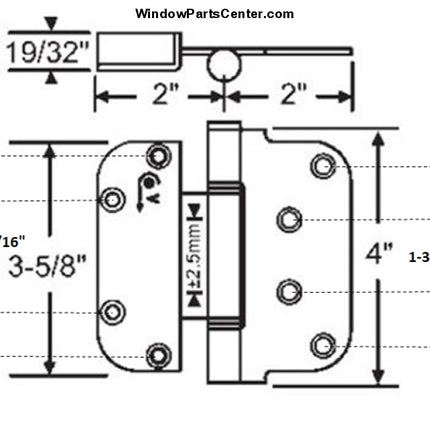

• Easy Adjustment – Set hinge (Part # S4009) has a vertical adjustment feature (+/- 2.5mm)
Guide hinge (Part # S4010 sold separately ) has a horizontal adjustment feature (+/- 2mm) and works in tandem with S4009 see hinge placement description below and diagram in pictures.
• Maintenance Free Bearings – No oiling required.
• Simple Door Preparation – Quick and easy one pass routing.
• Variety of Finishes – Available in finishes to match your HOPPE® handle sets.
• Designed to carry up to 165lbs. per door.
• Not to be used in commercial applications, especially not in
conjunction with a door closer.

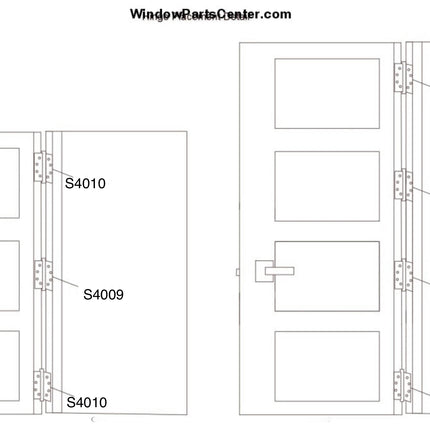

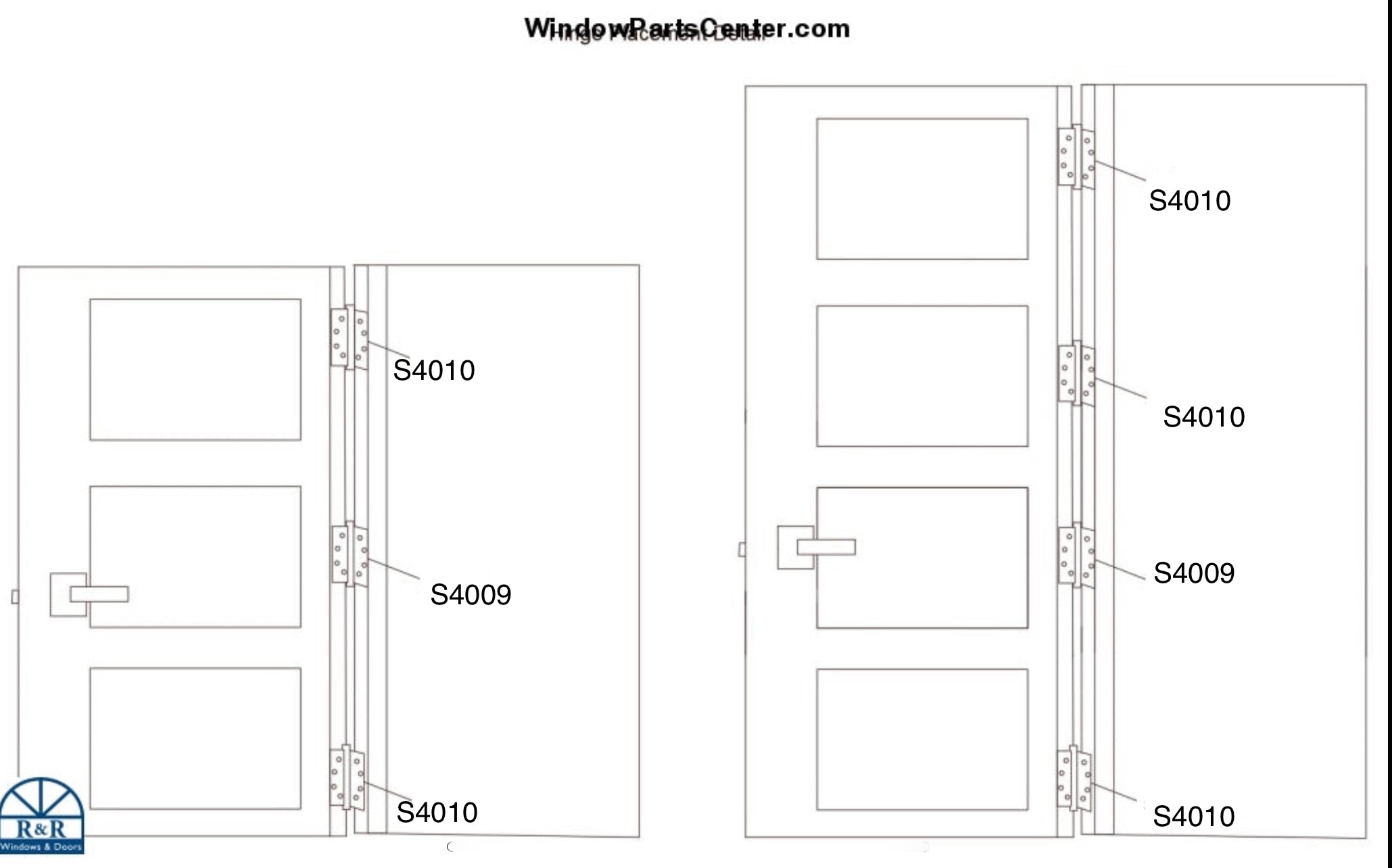

Set and Guide Hinge Placement (see picture diagram):

3 Hinges Per Door Panel:

Starting at top of door Top of door

Guide (use part # S4010)

Set (use part # S4009)

Guide (use part # S4010)



4 Hinges Per Door Panel (see picture diagram):

Anytime you need 4 hinges you would just add another guide hinge

Starting at top of door Top of door

Guide (use part # S4010)

Guide (use part # S4010)

 Set (use part # S4009)

Guide (use part # S4010)

The Set hinge no matter what is always the 2nd from the bottom

Pro Tip: Remove weight from the hinges by lifting up on the door before you adjust.

Pro Tips:

    • Remove weight from the hinges by lifting up on the door before you adjust.
    • Never use power tools to adjust the hinge. ONLY use hand tools.
    • Hinge S4009- 1 hinge per panel. Vertical adjustment  feature (+/- 2.5mm)

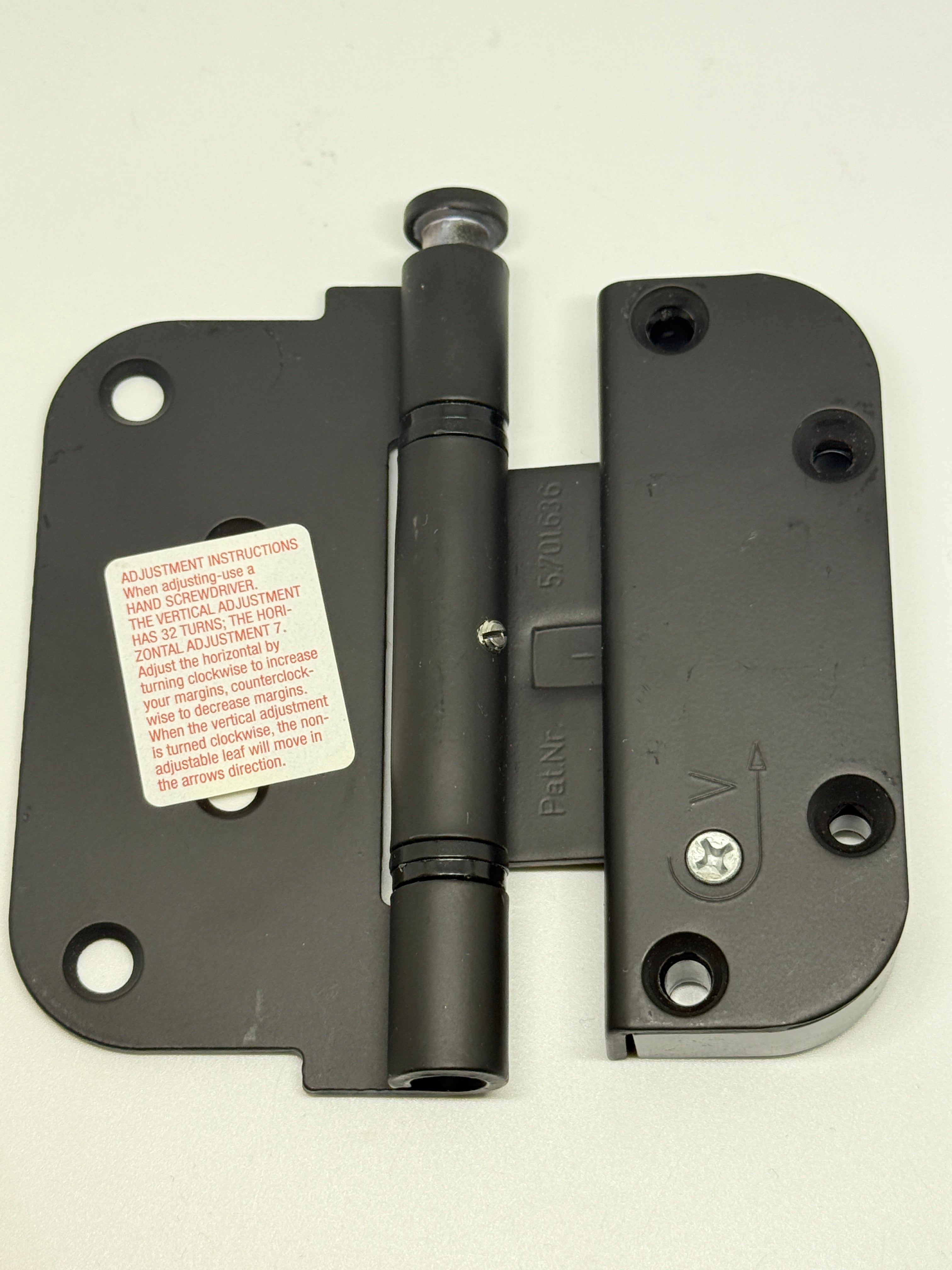

    • When the vertical adjustment (S4009) is turned clockwise, the non-adjustable leaf will move in the direction of the arrow. The vertical adjustment has 32 turns from it's extremes, and the horizontal (s4010) has 7 turns. Adjust the horizontal by turning clockwise to increase the margins. Turn counter clockwise to decrease the margins

Known Part # 850-8762439 and Pat. Nr. 5701636, Pat. Nr. 5,701,636



Product form

48 in stock

$ 62.00

    Description

    Part Number: S4009

    Before you place your order please read below and watch our video at the bottom of the product page to make sure you are ordering the correct hinge.

    Hoppe HTL Ultimate 2-D Hinge - Hoppe Set Hinge (vertical adjustment) - Removable Pin Style

    These SET HINGES ARE NOT HANDED - you can remove the pin to swap the handing for your door.

    (For NON-Removable pin style see Part # S4011 and they ARE HANDED, if any of the S4009 become unavailable you will need to order S4011)

    No Screws Included, sold individually

    Material: Steel

    Color / Finish Options Are as Follows:

    • Bright Brass
    • Polished Chrome
    • Rustic Umber
    • Matte Black (available for pre-order will not be receiving more in till mid October 2023, no order cancellation - thank you for your patience).
    • Stainless Steel
    • White
    • Antique Brass, Brushed Chrome - NO LONGER AVAILABLE once stock is gone See part number S4011 direct replacement hinge

    We stock these hinges- if you would like a QTY check on a color please e-mail or text us.

    Product Description:

    • S4009 is a Set hinge- vertical adjustment only . Comes in multiple finishes. Pin is removable.
    • S4009 works in tandem with S4010 sold separately. See hinge placement diagram in pictures and watch video below.

    Steel Reinforcements – Makes this new hinge the "Ultimate" with door systems.
    • Corrosion Resistant – Specially coated components for improved
    durability and strength.
    • Easy Adjustment – Set hinge (Part # S4009) has a vertical adjustment feature (+/- 2.5mm)
    Guide hinge (Part # S4010 sold separately ) has a horizontal adjustment feature (+/- 2mm) and works in tandem with S4009 see hinge placement description below and diagram in pictures.
    • Maintenance Free Bearings – No oiling required.
    • Simple Door Preparation – Quick and easy one pass routing.
    • Variety of Finishes – Available in finishes to match your HOPPE® handle sets.
    • Designed to carry up to 165lbs. per door.
    • Not to be used in commercial applications, especially not in
    conjunction with a door closer.



    Set and Guide Hinge Placement (see picture diagram):

    3 Hinges Per Door Panel:

    Starting at top of door Top of door

    Guide (use part # S4010)

    Set (use part # S4009)

    Guide (use part # S4010)



    4 Hinges Per Door Panel (see picture diagram):

    Anytime you need 4 hinges you would just add another guide hinge

    Starting at top of door Top of door

    Guide (use part # S4010)

    Guide (use part # S4010)

     Set (use part # S4009)

    Guide (use part # S4010)

    The Set hinge no matter what is always the 2nd from the bottom

    Pro Tip: Remove weight from the hinges by lifting up on the door before you adjust.

    Pro Tips:

      • Remove weight from the hinges by lifting up on the door before you adjust.
      • Never use power tools to adjust the hinge. ONLY use hand tools.
      • Hinge S4009- 1 hinge per panel. Vertical adjustment  feature (+/- 2.5mm)
      • When the vertical adjustment (S4009) is turned clockwise, the non-adjustable leaf will move in the direction of the arrow. The vertical adjustment has 32 turns from it's extremes, and the horizontal (s4010) has 7 turns. Adjust the horizontal by turning clockwise to increase the margins. Turn counter clockwise to decrease the margins

    Known Part # 850-8762439 and Pat. Nr. 5701636, Pat. Nr. 5,701,636
