Part Number: 716 - Tie Bar Lock Actuator Linkage For Awning and Casement
H3 Tie Bar Lock Actuator Linkage for Awning and Casement WindowsThis lock linkage goes with part # 715 Tie Bar Assemblies Awning and Casement WindowsFinish: E-Gard Beige. Stainless Steel available for Special Order Please Call or E-mail R&R for Pricing.This tie bar lock actuator linkage work on Hurd and Sierra Pacific Hurd Brand Awning and Casement Windows as well as other window brands.
Known Part Number Stamped On Back Of Black Part: 40960 CAV
Associated parts Sold Separately:
129 Amesbury Truth Mirage Lever Lock & Escutcheon Kit
Part Number 715 Tie Bar
Part Number 114
Sash track for casement window. Track Only (Sliding track shoe p/n 189 not included)
Color: Beige (Replaces Black) May receive beige or black depending on stock.
Dimensions: 14 1/2" Long X 14/16" Wide X 19/32" Tall
Amesbury Truth 11576.XX
#8 x 1 Flat Heat Sheet Metal Screw recommended by manufacturer (not included)
Related Products Sold Separately:
Part # 101 - Amesbury Truth Maxim DLX Sill Mount Casement Dual Arm Operator
Part # 187 - Sash Bracket with Set Ring - elbow arm of #101 operator snaps onto
Part # 189 - Track Shoe – what the long arm of the #101 operator snaps onto
Part # 121 - Adjustable Hinge – below the operator on the bottom and on top of the window when you open it.
Part # 119 - Newer Encore Operators are a direct replacement/upgrade for these. See part number 119
This block and tackle balance is used on Hurd Energy Saver Concealed Jamb Liner Double Hung / Single Hung and H3 Lines.Also used on other manufacturers windows - customer will have identify and match up picture. To order block and tackle balance: See number stamped on side of metal and match it up to the options.Due to the multiple sizes available these are not a stock item and have a 3 week lead time. Special order item NO returns.
You will receive once balance system. if you need to replace both the left and right side on one window order QTY 2.
Kit Includes: 1 Lock, 1 Keeper, 4 screws
Locks are Handed.If you window only has 1 lock then it is a Left Hand.If window has 2 locks then it has a Left Hand and a Right Hand***Left Hand and Right Hand Locks are sold separately - See picture for handing
Goldtone has been discontinued by manufacturer. Once stock is depleted Champagne will be shipped out in its place.
Number that can be stamped on the back of the lock: 32782Numbers that can be stamped on the back of the keeper: 677147

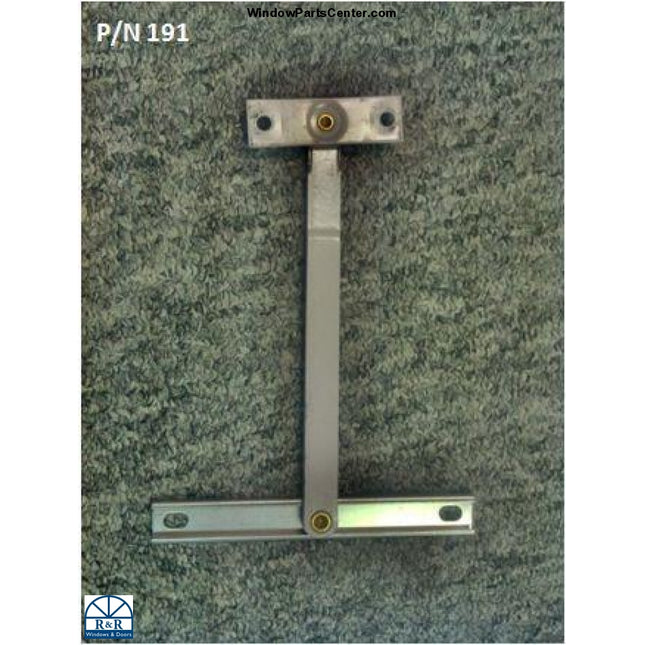

Installing a limit device is a great solution to help to protect your windows if you live in a windy area. Allowing your casement windows to open up to a maximum of 4". Click on the picture above to see how limit device is installed onto your casement windows.Limit the venting of the window.Allows sash to open a maximum of 4"NOTE: MOUNTING DIMENSIONS MAY VARY WHEN USED WITH OTHER TYPES OF HINGES.THIS IS NOT A SAFETY DEVICE

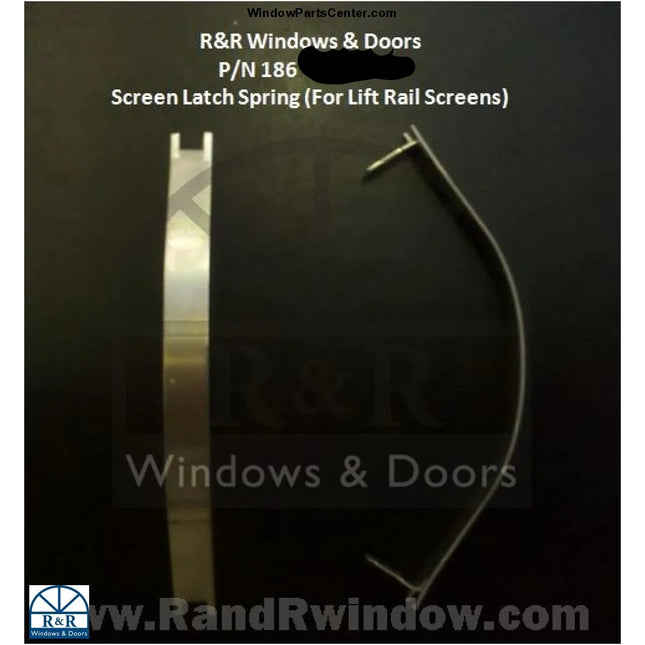

Part Number 186
Screen Latch Spring Pack
Sold Individually
Window Screen Replacement part for Hurd Casement and awning window lift rail screens and other window brands
714 - H3 Sash Weather Strip Awning and Casement
Color: White, Bronze, Sand.
Sold by the foot Rolled: Larger QTY's maybe shipped in multiple rolls. Example if you order 300 feet you may receive QTY 6 - 50 foot rolls. Some rolls maybe in increments of 25 feet. (for full spool order 1250 feet)
no returns of rolls of less than 25 feet
Returns will only be accepted for full uncut rolls in increments of 25, 50 and 100 feet.
1000 feet + orders - no returns**
**Can have a lead time if not in stock no order cancelations or returns
Bulk Pricing Calculated Once Added To Cart:
QTY 25 - 49 Feet 45%
QTY 50-99 Feet 55%
QTY 100-499 Feet 65%
QTY 500-999 Feet 75%
QTY 1000+ Feet 80%
Known to have been used on Hurd Sierra pacific Gen II H3 Windows
718 - Amesbury Truth Awning Guide BarDimension: 16" Long x 5/8" Wide x 1/4" High
Color: E-Guard or Stainless Steel (special order)
Associated Parts Sold Separately:
Part Number: 213 Black Slider Shoe - Package of 2
Part Number: 207 Amesbury Truth Encore Sill Mount Awning Operator
Part Number: 209 Amesbury Truth Maxim DLX Awning Operator
Part Number: 711 - GEN I H3 Jamb Liners Kit (Sold Under the Hurd Brand name)
Jamb Liners for GEN I H3 Double Hung's Kit - You will Receive Left Hand and Right Hand Jamb Liner - for 1 windowGen I H3 Double Hung Was retired March 2016Special Order Item - NO return - No order cancelation once order has been placed. Not a stock item 6-12 week lead timeVinyl Option is White or Beige
Clad Color : White (for other colors please email for quote)
Wood: All interior wood will come Pine natural unfinished (for other options please email for quote)Gen I Call Out Width = Sash Size Width = Glass Size Width18 = 14 1/4" = 12 1/2"24 = 20 1/4" = 18 1/2"28 = 24 1/4" = 22 1/2"30 = 26 1/4 = 24 1/2"32 = 28 1/4" = 26 1/2"36 = 32 1/4" = 30 1/2"40 = 36 1/4" =34 1/2"Gen I Call Out Height = Sash Size ( for top & bottom)= Glass Size Height (for top and bottom)36 = 16 7/8" = 15 1/8"40 = 18 7/8" = 17 1/8"48 = 22 7/8" = 21 1/8"54 = 25 7/8" = 24 1/8"60 = 28 7/8" = 27 1/8"66 = 31 7/8" = 30 1/8"72 = 34 7/8" = 33 1/8"78 = 37 7/8" = 36 1/8"84 = 40 7/8" = 39 1/8
715 - H3 Lock Tie Bar Assemblies For Awnings and Casements
Replacement H3 Lock Tie Bar Assemblies Awning and Casement WindowsTie Bar Lock Actuator Linkage Sold Separately see Part # 717.Finish: E-Gard Beige. Stainless Steel available for Special Order Please E-mail R&R for Pricing.These tie bars work on Hurd and Sierra Pacific Hurd Brand Awning and Casement Windows as well as other window brands.
Associated parts Sold Separately:
129 Amesbury Truth Mirage Lever Lock & Escutcheon Kit
Part Number 717 Tie Bar lock Actuator Linkage
part number: 703 - Discontinued - Replacement is S703
Screen Plunger & Cap for H3 Hurd And Sierra PacificReplacement Part Number S703This is a replacement Option Replacement Option Cap you will receive is WhiteSold in Packs of 25Comes With 25 of each: Plunger, Cap and SpringReplacement White Cap Version Information:5/32 Inch Plunger AssemblyDimensions:A = 7 3/32"B - 1/8"C = 3/8"D = 5/32"H3 Clear Cap Version Discontinued in 2021
Part Number S703Cap Color you will receive is WhiteSold in Packs of 25
Comes With 25 of each: Plunger, Cap and SpringWhite Cap Version Information:5/32 Inch Plunger AssemblyDimensions:A = 7 3/32"B - 1/8"C = 3/8"D = 5/32"
S703 works as a replacement option for Hurd and Sierra Pacific H3 Clear Cap Version Discontinued in 2021
