Hurd Sliding Door Parts

Part # 529-Screws Screws is an adder option You will receive 1 Install Screw and 1 Adjustment Screw Known To Be Used On: Rite Screens, Hurd Sliding patio Door Screens, Sierra Pacific WI Sliding patio Door screen. PVS4, SCPR47801 Associated Parts Sold Separately: 529-Screen Roller

Read more less

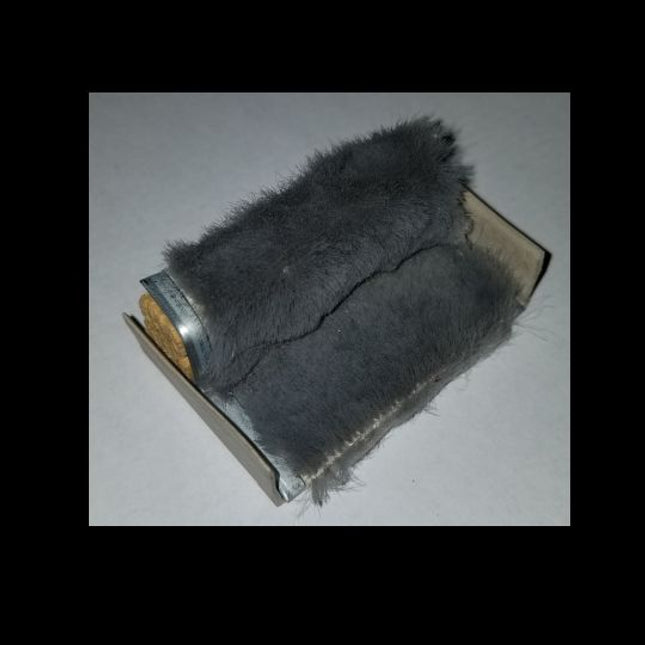

Part Number 514-Old-Style (Dust Block Sill Manufactured prior to 2/19/1996)Dimensions: 2 3/8 x 1 1/2 x 1Dust Pad is hidden underneath the operating panel. The dust pad goes below the operating panel next to the interlock where the stat and operating panel come together.Known to be called: Dust Block, Saddle Interlock Plug with Block and Dust Block Assembly. Know Part Number: 022336

Read more less

Part Number: 541 Foot Bolt Sliding Patio Door - Secondary Lock Not a Stock Item Special Order (no returns or order cancelations on special order items once order has been placed).  Known to have been used on: Hurd, Sierra pacific

Read more less

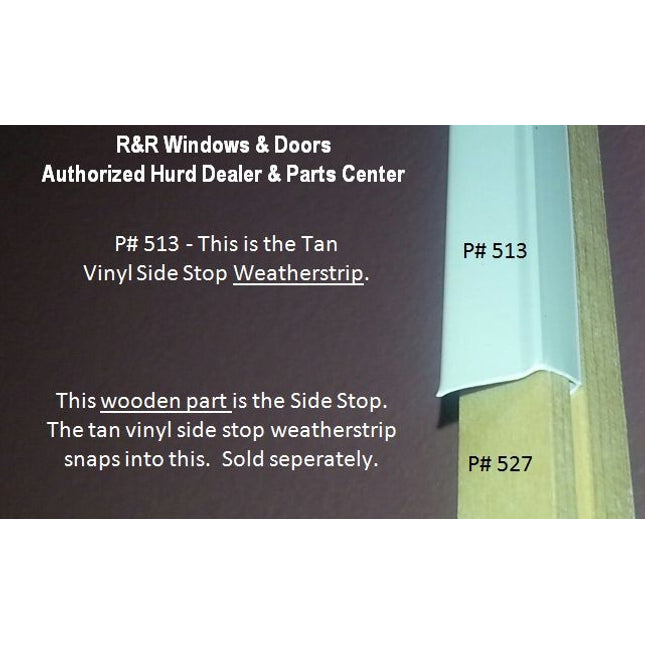

Part # 527  This is the WOODEN Side Stop pc that Part #513 (Vinyl Side Stop Weather Strip) snaps into. Wood part and Vinyl Side Stop are sold separately.Length: 93 5/8 inch long associated part sold separately part number 513

Read more less

Part Number: 540-A With Wings 41.10 Security Hardware Secondary Patio Door Limiter Foot Bolt Sliding Patio Doors (Foot Operated Lock) Bolt Lock Only Spring loaded and foot-operated, this sturdy device easily engages to provide a more secure door and easily releases to provide a ready means of escape. In fact, this patio door limiter has been tested to withstand a forced entry attempt of 400 lbs. of forceMade in the U.S.A. Amesbury TruthStyle: 41.10 Color: White Or Bronze Limited QTY Colors: Dark Brown, Almond, Tan (Once stock is gone of these colors they will no longer be available)  Bolt Travel Measured from bottom of lock housing to bottom of bolt: White, Almond and Tan have a longer bolt: Approx. 19/32 inch in unlocked position to approx. 1 inch in locked position. Bronze and Dark Brown have a shorter bolt: Approx. 1/16 inch in unlocked position to approx. 9/16 inch in locked position    Material: Acetal body, release lever and button. Cold-rolled steel bolt. Keeper Option Sold Separately: 540-20824  540-30680  540-30672  RECOMMENDED SCREWS: (Screws Not Include)  SECONDARY PATIO DOOR LIMITER 41.10 WOOD: 4  #8 X 1.0 PHILLIPS, FLAT HEAD, SHEET METAL SCREWS PVC/METAL: 4-#8 PHILLIPS, FLAT HEAD SCREWS (LENGTHS AND THREAD TYPE TO BE DETERMINED BY PROFILE) For Keeper 20824 WOOD: 2  #8 X 1.0 PHILLIPS, FLAT HEAD, SHEET METAL SCREWS PVC/METAL: 2 - #8 PHILLIPS, FLAT HEAD SCREWS (LENGTH AND THREAD TYPE TO BE DETERMINED BY PROFILE) For Keeper 30680 WOOD: 2  #8 X 1.0 PHILLIPS, PAN HEAD, SHEET METAL SCREWS PVC/METAL: 2 - #8 PHILLIPS, PAN H EAD SCREWS (LENGTH AND THREAD TYPE TO BE DETERMINED BY PROFILE) For Keeper 30672 WOOD: 2 #8 X 1.0 PHILLIPS, FLAT HEAD, SHEET METAL SCREWS PVC/METAL: 2 - #8 PHILLIPS, FLAT HEAD SCREWS (LENGTH AND THREAD TYPE TO BE DETERMINED BY PROFILE) Mounting: Mounts to bottom rail of sliding door and engages in sill, or into the face of the stationary door. See mounting positions “A” and “B”.Made in the U.S.A. Amesbury Truth (Stamped on Back 45010, and 30680)

Read more less
